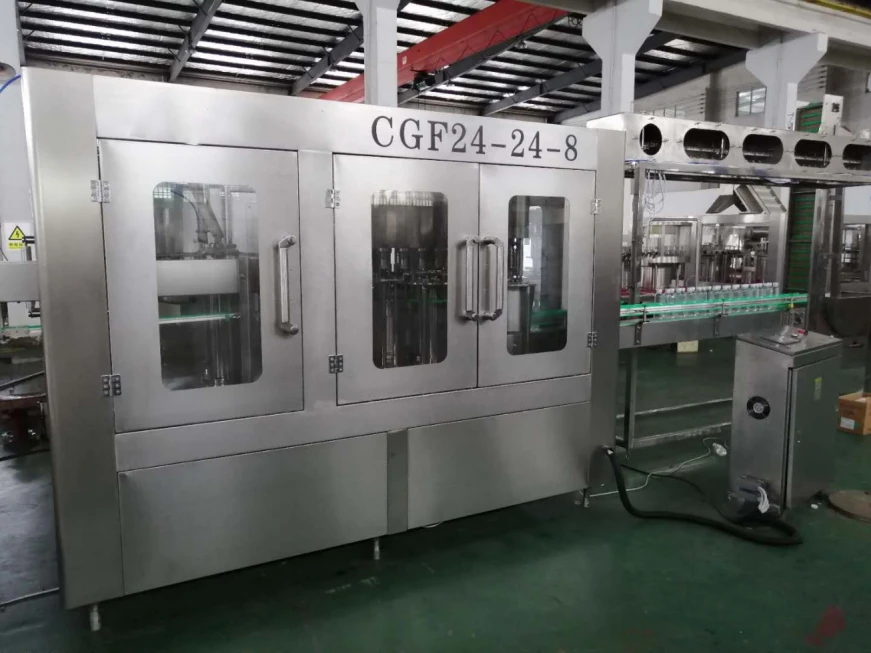

Automatic Rotary 5000BPH Water Filling Machine For 200 2000 ML Bottles From Chinese Factory
- Category: >>>
- Supplier: Suzhou Songfa Machinery Co. Ltd.
Share on (1600262714049):
Product Overview
Description
Product Description
Ultra-clean Lines
Auto bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 1000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi program-mable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
Technical Parameters
Application | Mineral water and other bottled water etc. | ||||||
Applied Containers | PET bottles with various capacities and shapes. | ||||||
Filling System | Mechanical valve or flow-meter valve. | ||||||
Capacity | 1000-36000BPH. | ||||||
Product's Scope | Blowing molding system, air compressor system, filling system , purification system, caps sterilization system, sterile air system, filled bottle conveying system, labelling machine, carton/film packing machine, palletizer, electric control, engineering design and construction. | ||||||
Machine Details

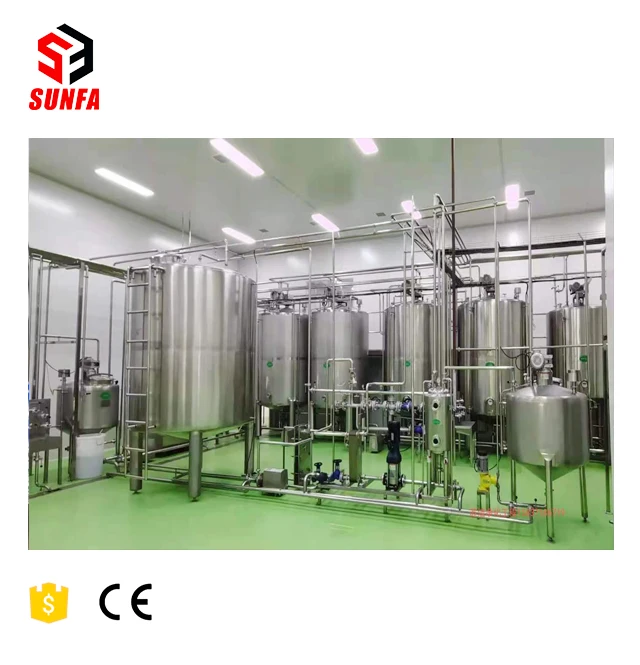

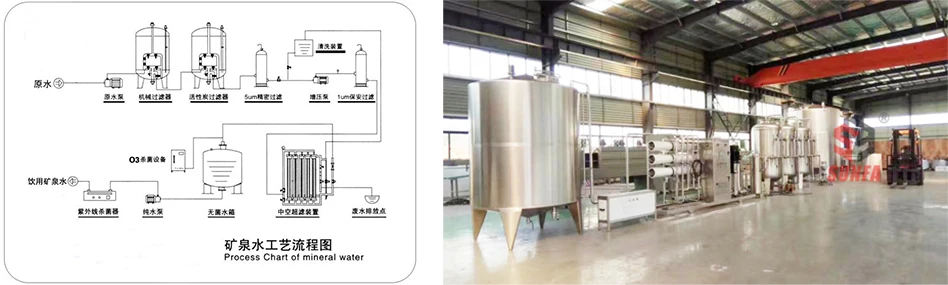

Water Treatment Equipment

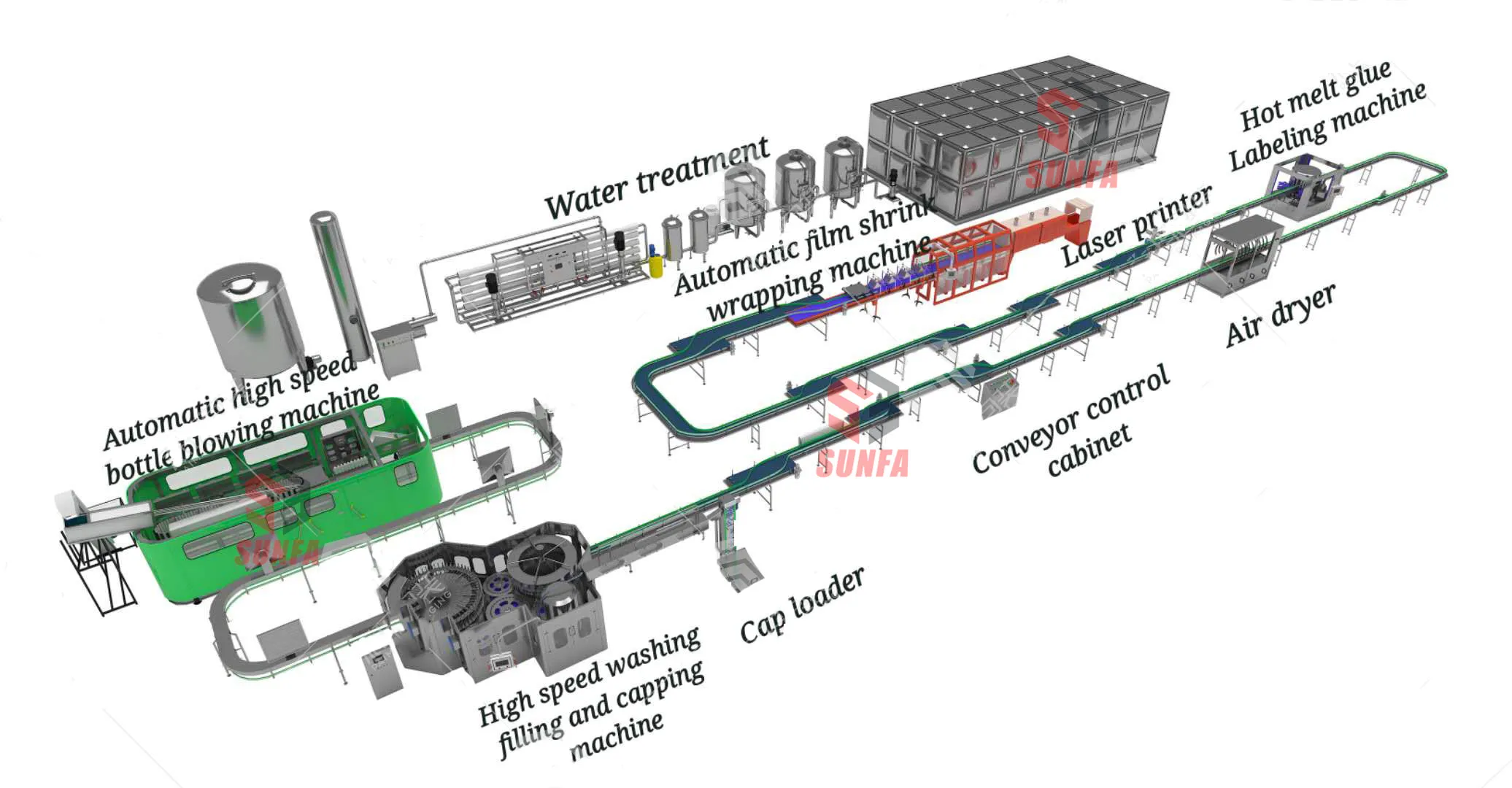

Composition Of Mineral Water Production Line.
Water treatment, bottle blowing machine, filling machine (bottling, filling, sealing), blow drying machine, sleeve scaling machine (labeling mach-ine), shrink film machine (packing machine), conveying line, etc.

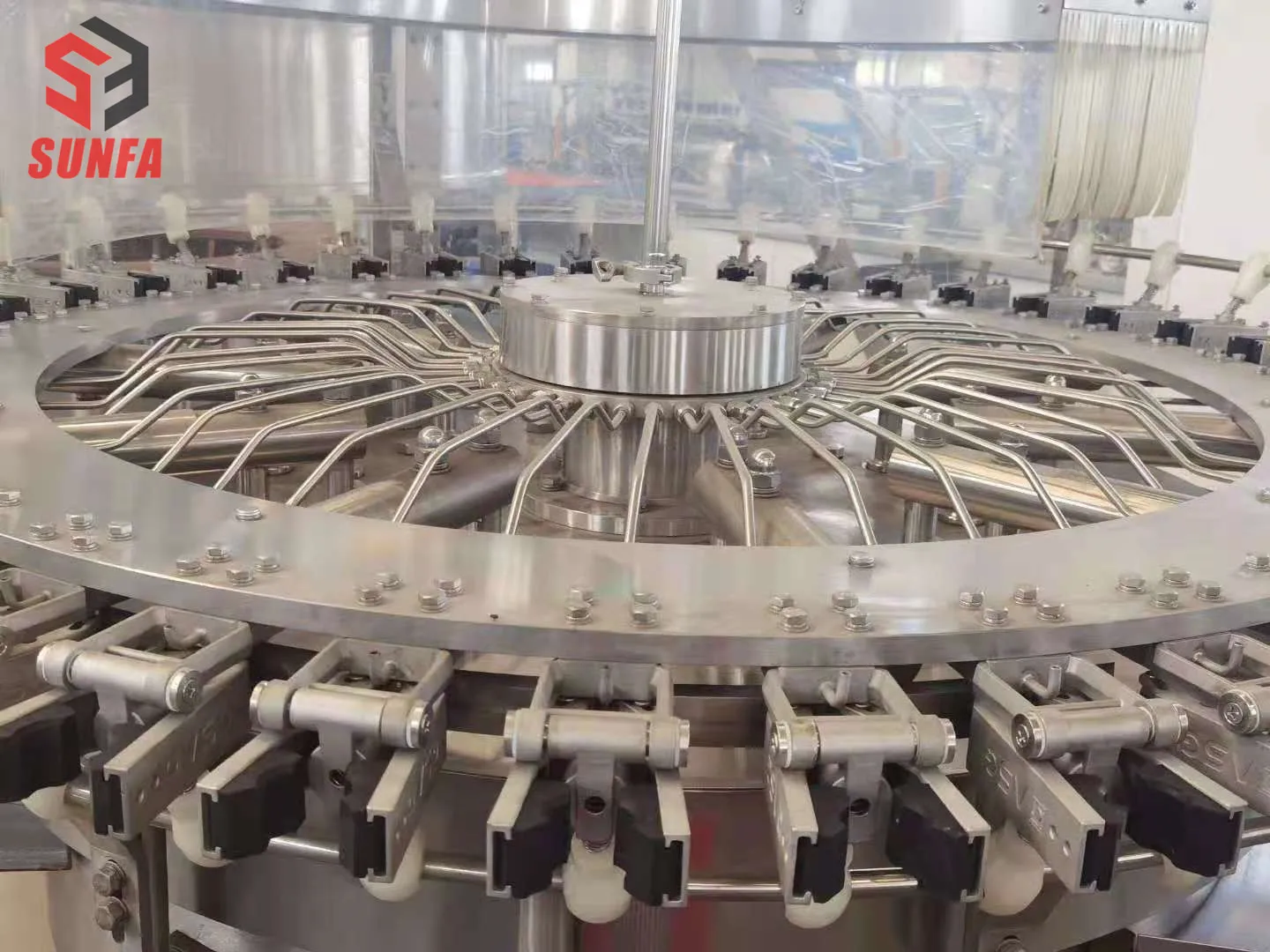

Bottle Washer
<1>304 stainless steel washing head, high-pressure water cleaning, more water saving, more clean
<2> 304 stainless steel washing pump.
<3>304 stainless steel fixture, long service life

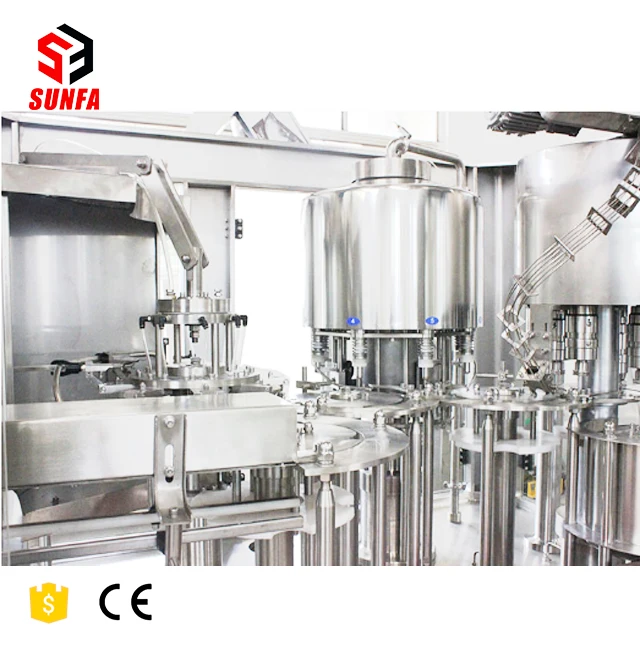

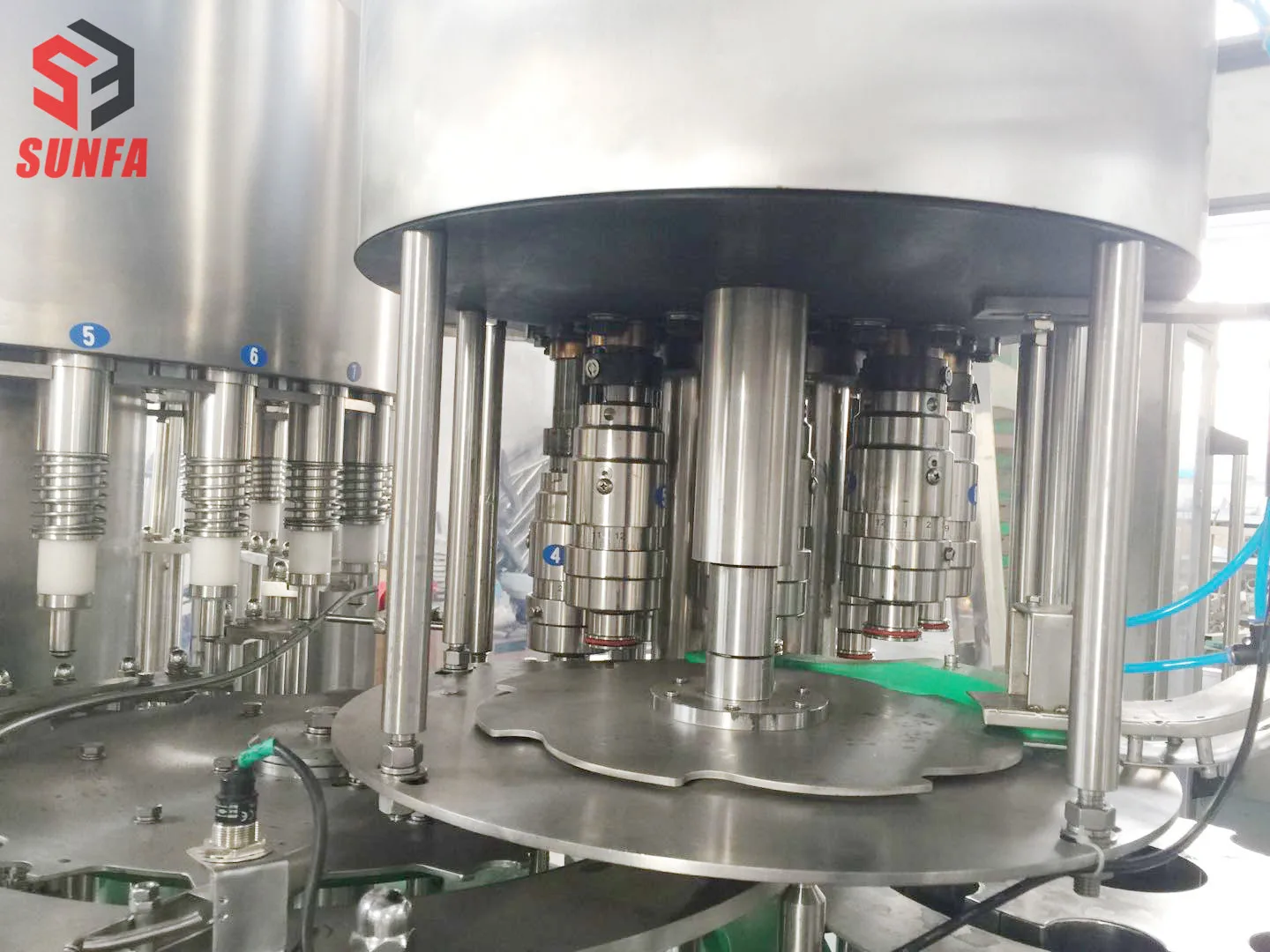

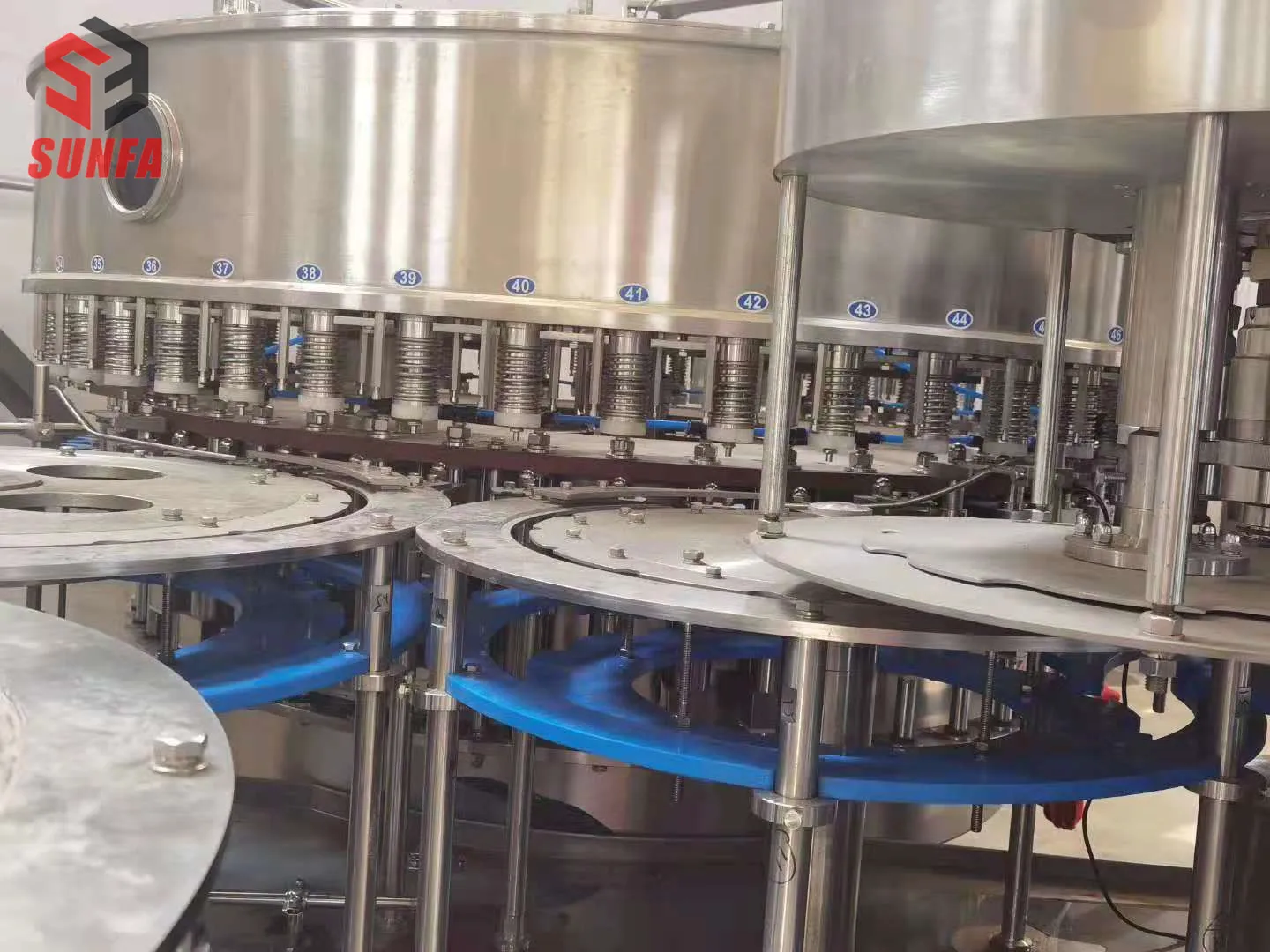

Filling Head
<1> 304 stainless steel filling nozzle
<2> filling capacity 200ml-2000ml can be adjusted
<3> and material contact are made of 304 stainless stee
<4> pump material 304 stainless steel
Bottle Cap Sealing Machine
<1> automatic grab cover, magnetic rotary cap
<2> automatic stop without bottle cap <3> screw-on torque adjustable
Features
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, onlychange related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, onlychange related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

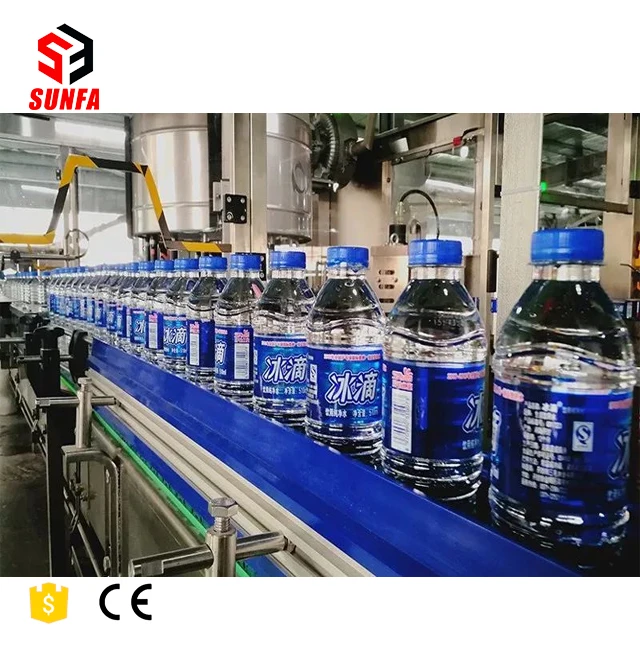

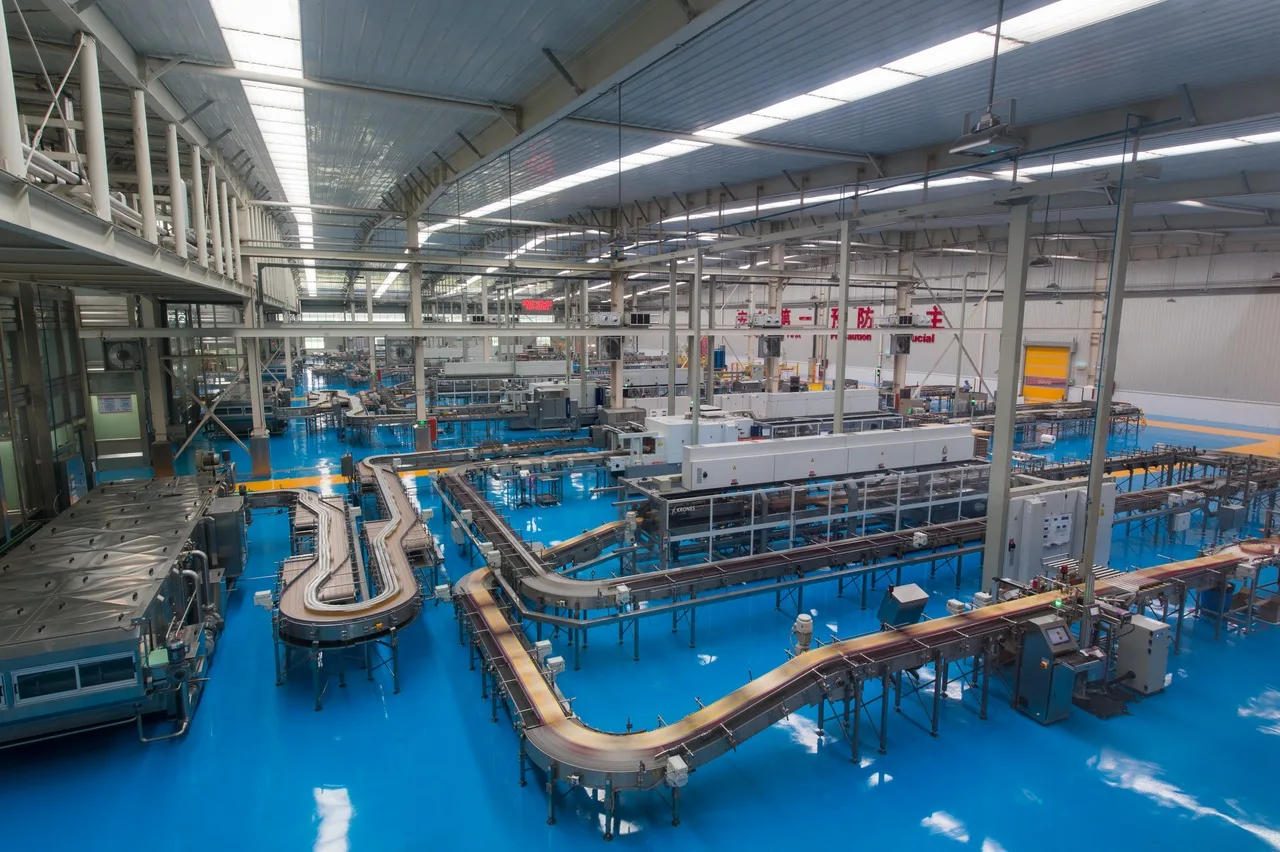

Customer installation site: no pressure delivery line for finished products
The conveying length of finished products can be designed according to the user's actual terrain.
Automatic Bottle Blowing Machine
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L.
It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

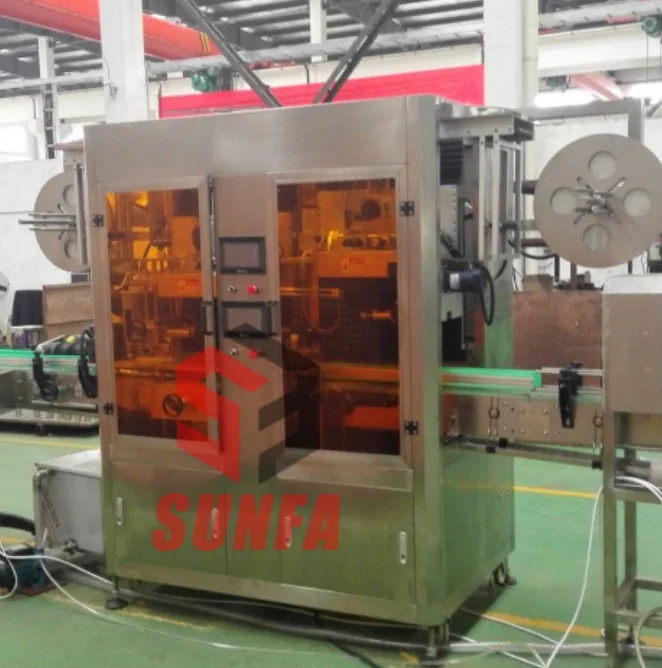

Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.
This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable.
The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable.
The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

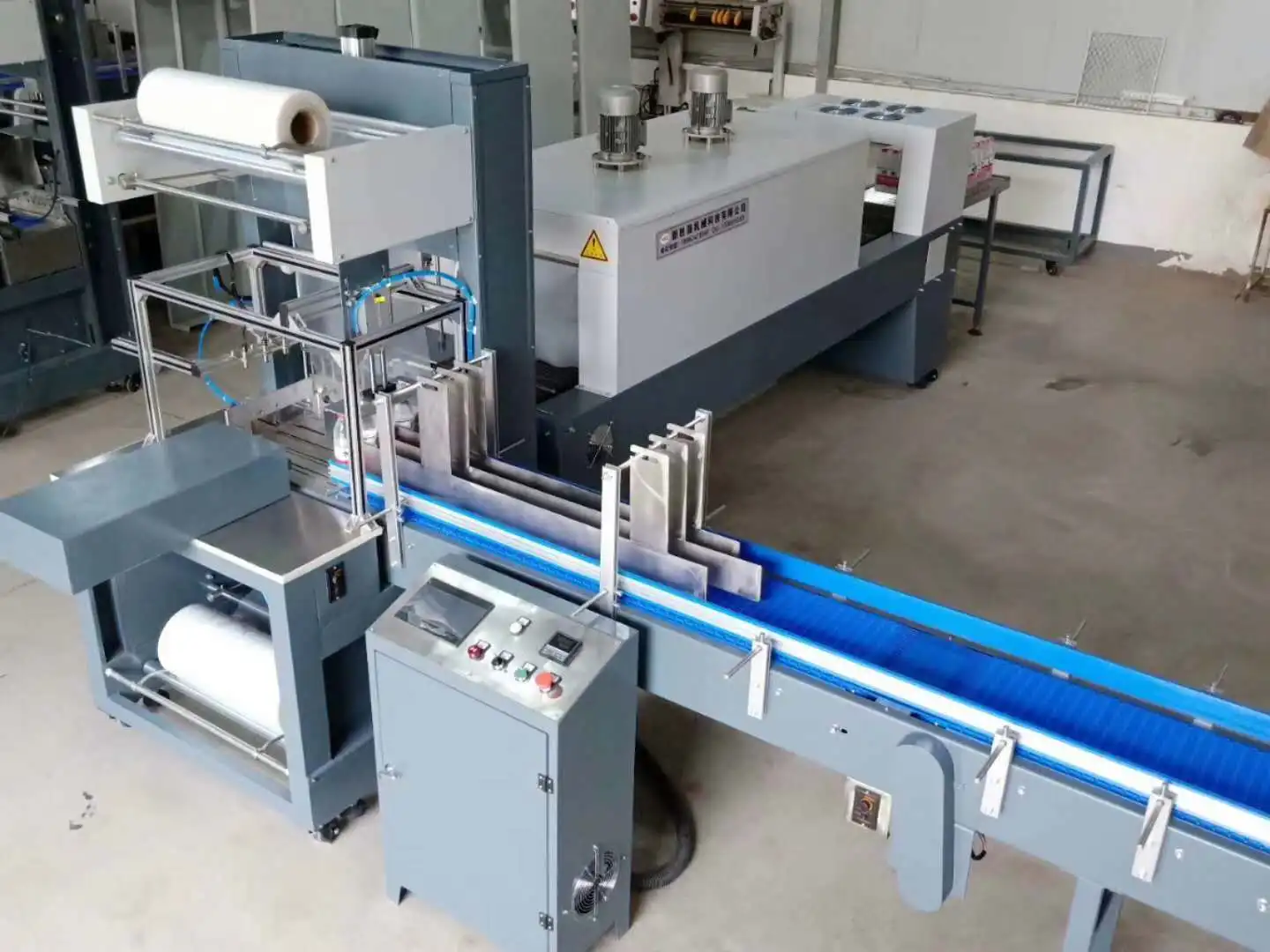

Shrink Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adop-ts the Germany advanced technics, and the main parts are imported from international famous companies.
It consists of seven actuating motor, through cooperation with 7 actua-ting motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
It consists of seven actuating motor, through cooperation with 7 actua-ting motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
Packing & Delivery
Best Suppliers
Songfa not only upgrades the research and development of technology, the precision of process, the assembling
level and the detection methods but also integrates the best suppliers.
All the components from Songfa are provided by well-known brands at home and abroad.
level and the detection methods but also integrates the best suppliers.
All the components from Songfa are provided by well-known brands at home and abroad.
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your
technicians how to run the machines.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your
technicians how to run the machines.
