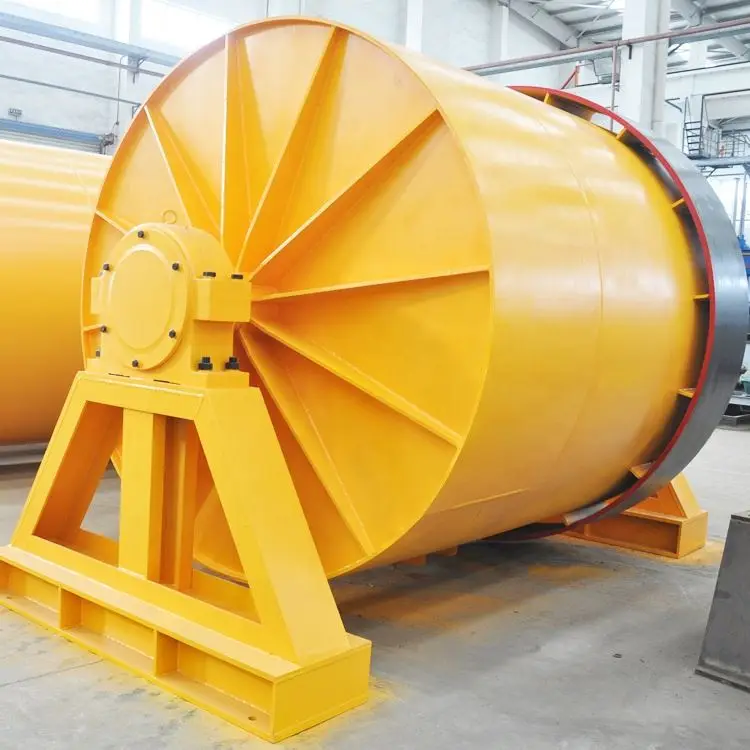

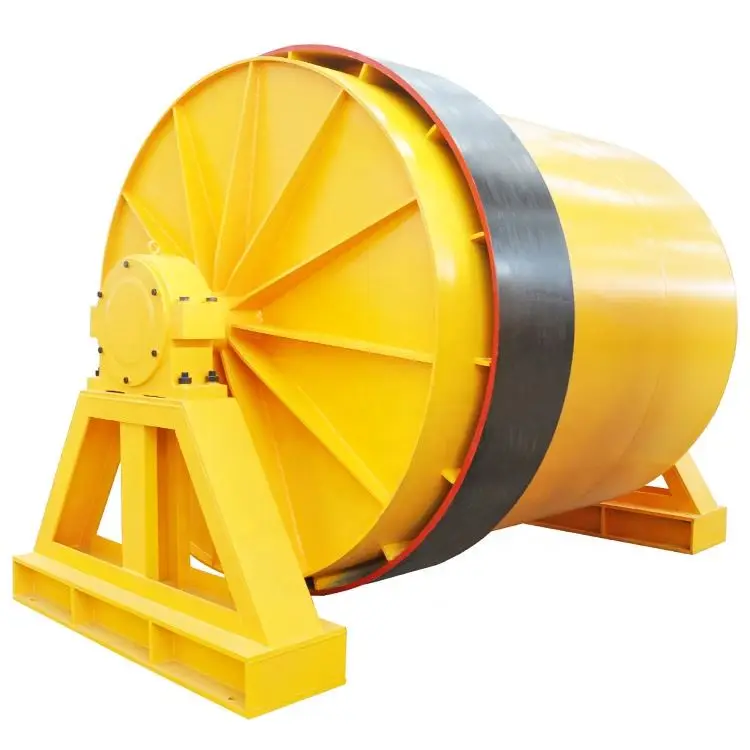

Ceramic Ball Mill With Aluminiumporcelain Liner Manufacturer Laboratory Machine Milling For Powder Balls Plant Corundum Jars Jar
- Category: >>>
- Supplier: Henan Yusheng Machinery Co. Ltd.
Share on (1600263043891):
Product Overview
Description
Product Description
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Working Principle
Intermittent ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Intermittent Ball Mill
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate, and it has many benefits of even products size, energy conservation and saving electricity.
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Intermittent Ball Mill
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate, and it has many benefits of even products size, energy conservation and saving electricity. Besides, it is suitable for both wet grinding and dry grinding, and can self-control the size depending on the grinding time. Moreover, it is mainly suitable for mixing and grinding of the general and special materials. And the user can choose an appropriate model, linear plate and medium type, according to the specific density and the hardness of the materials, even the productivity or other actual situations.
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Features
Energy conservation
1. Saving energy
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate, and it has many benefits of even products size, energy conservation and saving electricity.
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Intermittent Ball Mill
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate, and it has many benefits of even products size, energy conservation and saving electricity. Besides, it is suitable for both wet grinding and dry grinding, and can self-control the size depending on the grinding time. Moreover, it is mainly suitable for mixing and grinding of the general and special materials. And the user can choose an appropriate model, linear plate and medium type, according to the specific density and the hardness of the materials, even the productivity or other actual situations.
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Features
Energy conservation
1. Saving energy
2. It is suitable for both wet grinding and dry grinding

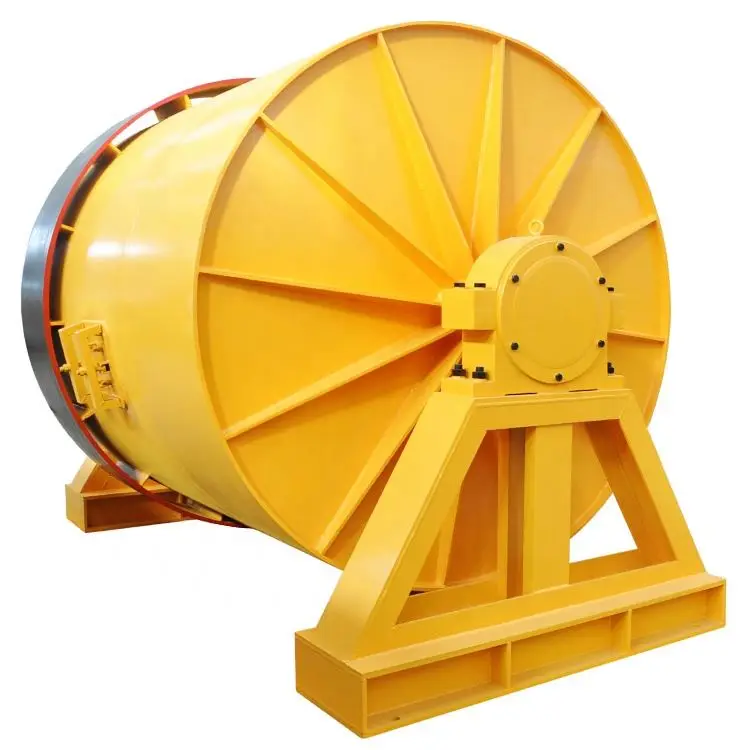

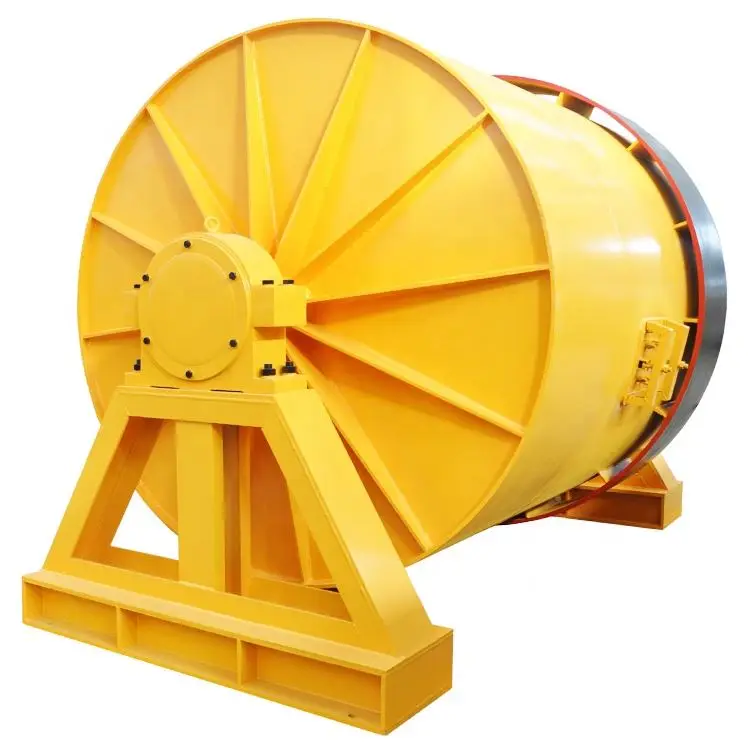

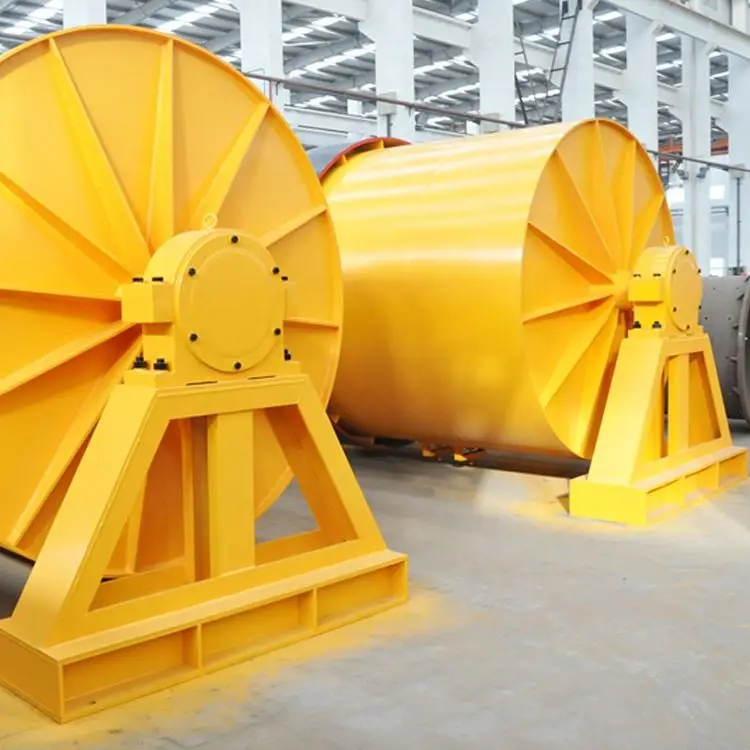

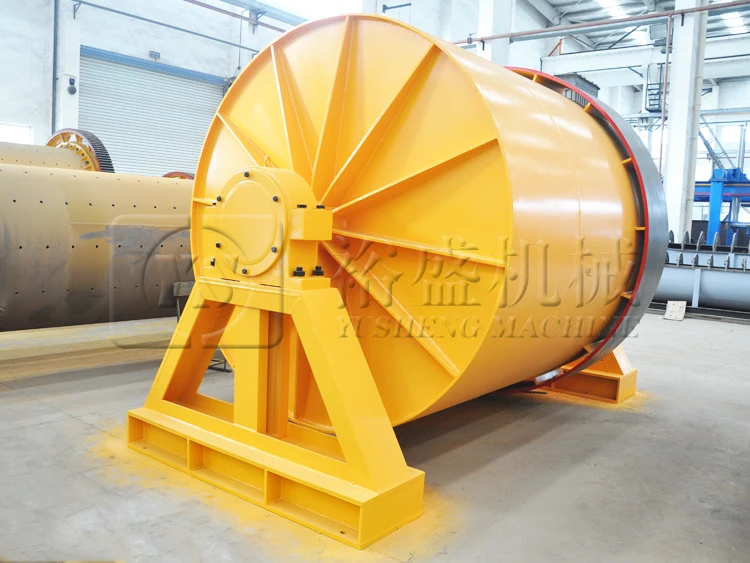

Details Images
Product Paramenters
Large Capacity High Alumina Ceramic Ball Mill Energy Saving Ceramic Grinding Machine Ceramic Ball Mill Technical Parameter: | ||||||||
Model | Loading weight (ton/time) | Rotate speed (r/min) | Power (kw) | Liner material |
900×1200 | 0.2 | 38.5 | 5.5 | Ceramics, silica, rubber and metal (the liner material and grinding materials determine the power) |
1300×1500 | 0.5 | 33 | 7.5 | |
1500×1800 | 1.2 | 28.5 | 11 | |
1800×2000 | 1.5 | 24 | 15 | |
2600×2800 | 5 | 16.5 | 37 | |
3000×3800 | 10 | 14.5 | 55 | |
3200×4600 | 15 | 13.5 | 75 | |
3400×6600 | 18 | 13 | 135 |

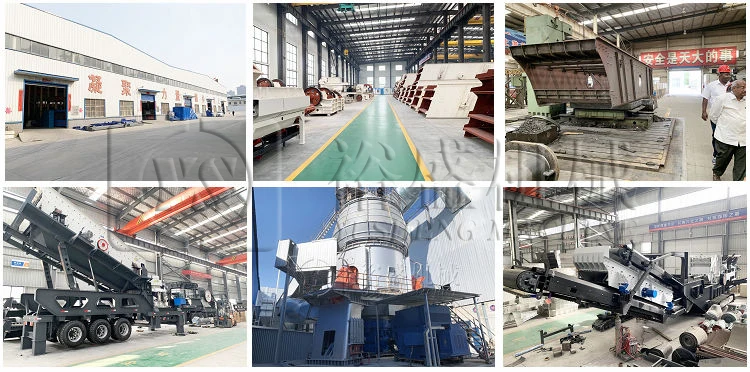

Company Profile
Henan Yusheng Machinery is a manufacturer specializing in the R&D and sales of mining crushing equipment, screening equipment, and grinding equipment. It is a comprehensive enterprise integrating technical consultation, engineering design, manufacturing and installation, personnel training and after-sales service. Henan Yusheng Machinery Co., Ltd. was established in 2003. The company has two production bases which are located in Xingyang Mining Machinery Industrial Park and Huixian Mengzhuang National Sustainable Development Experimental Zone.Our has more than 120 employees, including more than 16 professional engineering design and R&D technicians, including 6 senior engineers of industry core technology. Yusheng company has a perfect 3D and CAD design and simulation center, and has strong independent design and research capabilities to ensure product stability and independence. While the company continues to become internationalized, which products with independent intellectual property rights; company has passed international quality system management certification, with independent import and export rights of the People’s Republic of China. Relying on the core technology obtained in the field of mining machinery, with its professional knowledge and years of accumulated experience, the company continuously introduces unique and innovative solutions for customers to help them achieve greater success in the market. After more than 20 years of cooperation with senior domestic and foreign vertical mill experts and scientific research institutes, our company has researched and developed YSM series vertical mills. After continuous improvement, it has reliable performance, compact structure, convenient maintenance, energy saving, low carbon and environmental protection. At present, it has formed a raw material vertical mill, coal vertical mill, cement vertical mill and an annual output of 200,000 tons, 300,000 tons, 400,000 tons, 500,000 tons, 600,000 tons, 1 million tons, 1.5 million tons of slag, steel slag vertical mill products.
Certifications

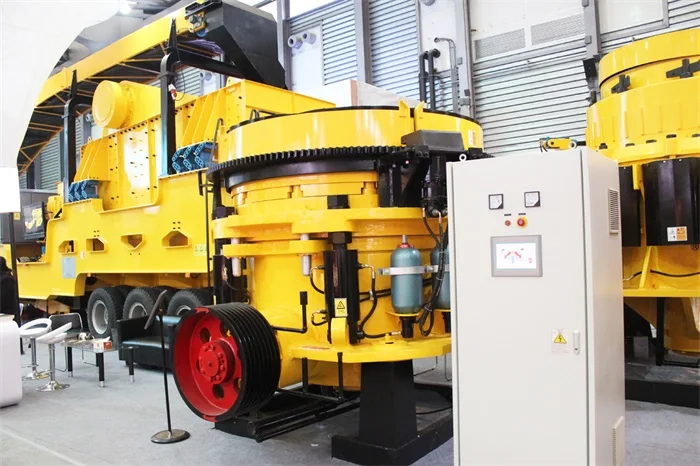

Exhibition & Customers
Packing & Delivery
Recommend Products

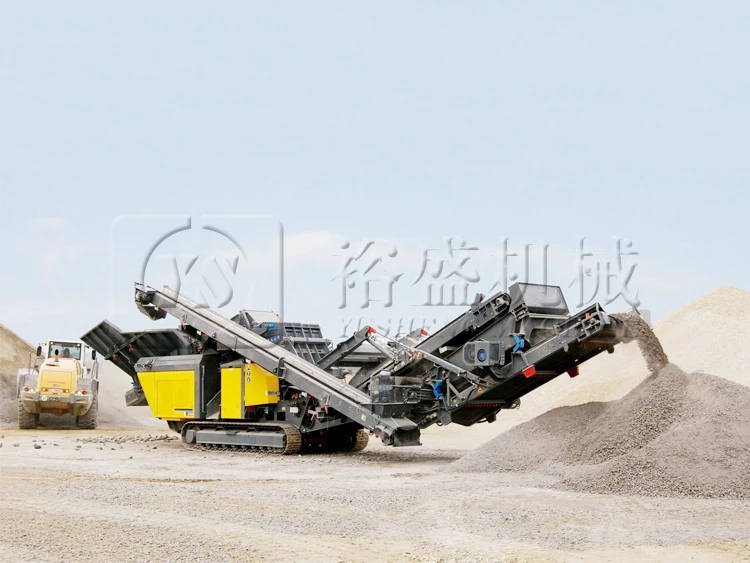

Crawler Mobile Jaw Crusher
As crushing and screening equipment, Crawler Type Mobile Crushing Plant with pedrail can move on the production site
automatically. This patented machine is possess of mature idea and accurate system, which can be adapted to mountainous region,wet land, etc. landforms.
automatically. This patented machine is possess of mature idea and accurate system, which can be adapted to mountainous region,wet land, etc. landforms.

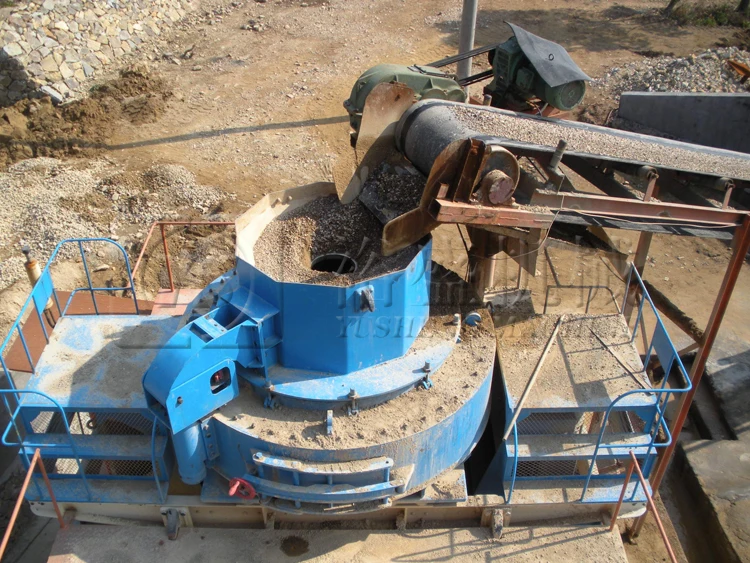

VSI Sand Making Machine
