Algae Tubular Separator Centrifuge
US $6800
3 90KG Explosion Proof Industrial Scale Centrifuge
- Category: Separation Equipment >>>
- Supplier: Shanghai,Yuhua,Instrument,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
INTRODUCE&SPECIFICATION
HH series centrifuge is specially designed for plant extraction, with closed, explosion-proof and clean functions. It can be used for extracting and filtering centrifuges for cannabis and other plants. The series of centrifuges extract the active ingredients in plants through a built-in program, which is single-handed, easy to use and large in capacity.
Model | Drum | Power | Weight | Overall size | ||||||||
Diameter (mm) | Height (mm) | Volume (L) | Speed (rpm) | Capacity for dry hemp (kg/batch*) | (kw) | (kg) | (L × W × H) (mm) | |||||
HH25 | 300 | 350 | 25 | 2000 | ~8 | 1.5 | 220 | 950*500*580 | ||||
HH65 | 450 | 400 | 65 | 1500 | ~22 | 3 | 470 | 1250*700*860 | ||||
HH145 | 600 | 500 | 145 | 1250 | ~48 | 5.5 | 1030 | 1500*900*1150 | ||||
HH250 | 800 | 500 | 250 | 1100 | ~83 | 11 | 1500 | 1550*1200*1500 | ||||
HH480 | 1000 | 600 | 480 | 1000 | ~160 | 15 | 2000 | 1800*1400*1600 | ||||
HH860 | 1250 | 700 | 860 | 950 | ~287 | 18.5 | 2500 | 2150*1620*1820 | ||||
Model | loading per batch (KG) | Alcohol volume （L） | Cooling fluid volume (L) | Cooling area (m²) | Feeder with valves and mirrors | Wash mouth valve | Vacuum port valve | Outlet Valve and Mirror | Jacket inlet and outlet valves |
HH15 | 3 | 30 | 6 | 0.33 | φ50.5φ19 | 50.5φ19 chuck | KF25φ10 | 64φ51 | 50.5φ19 chuck |
HH25 | 5 | 40 | 8 | 0.44 | φ50.5φ19 | 50.5φ19 chuck | KF25φ10 | 64φ51 | 50.5φ19 chuck |
HH45 | 10 | 85 | 16.5 | 0.6 | Cartoon φ50.5φ32 | 50.5φ19 chuck | KF25φ10 | 64φ51 | 50.5φ19 chuck |
HH65 | 12 | 105 | 21 | 0.77 | Cartoon φ50.5φ32 | 50.5φ19 chuck | KF25φ10 | 64φ51 | 50.5φ19 chuck |
HH115 | 23 | 175 | 28 | 1 | Cartoon φ64φ51 | 50.5φ19 chuck | KF25φ10 | 91φ76 | 50.5φ19 chuck |
HH145 | 28 | 210 | 34 | 1.2 | Cartoon φ64φ51 | 50.5φ19 chuck | KF25φ10 | 91φ76 | 50.5φ19 chuck |
HH250 | 50 | 380 | 45 | 1.6 | Cartoon φ64φ51 | 50.5φ19 chuck | KF25φ10 | 91φ76 | 50.5φ19 chuck |
PRODUCT CHARACTERISTIC

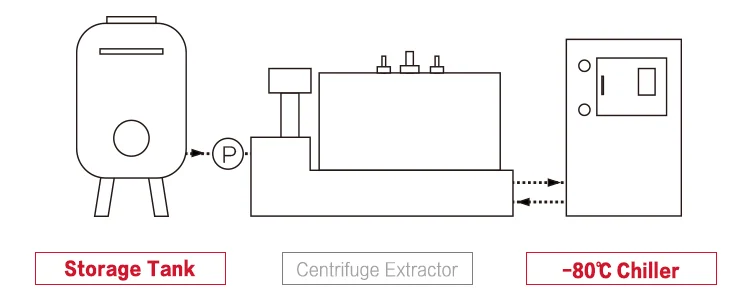

TURNKEY SERVICE
COMPANY PROFILE
Shanghai Yuhua Instrument Equipment Co.,Ltd is a professional manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research filed. Yuhua was founded in 2008 in Shanghai, China. With more than 10 years experience, Yuhua accumulated rich customer groups and huge amount of product application experiences. We have professional engineers and workers, high quality products, excellent customized service and perfect after-sale service, bring you a relax experiment.
Yuhua persists on offering satisfied product at a competitive price. We've won wide market recognition base on our serious attitude in technology and sincere service to customers. Our products have been exported to more than 20 countries such as USA, Canada, UK, Poland, Australia, Korea, Singapore, etc.
We believe that Yuhua will be your loyal friends!
Yuhua persists on offering satisfied product at a competitive price. We've won wide market recognition base on our serious attitude in technology and sincere service to customers. Our products have been exported to more than 20 countries such as USA, Canada, UK, Poland, Australia, Korea, Singapore, etc.
We believe that Yuhua will be your loyal friends!
FAQ
1. Who are we?
We are manufacturer based in Shanghai, China, start from 2008, sell to Domestic Market(60.00%),South America(15.00%),North America(15.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
We are manufacturer based in Shanghai, China, start from 2008, sell to Domestic Market(60.00%),South America(15.00%),North America(15.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
We can provide real-time trial video before shipment.
3. Can you provide customized service for us?
3. Can you provide customized service for us?
Yes, we have experienced technicians who can discuss with you and design your own products. Including product voltage, flow, interface type, etc. OEM production is also possible.
4. What can you buy from us?
Glass Reactor, Stainless Steel Tank/Reactor, Rotary Evaporator, Molecular Distillation, Filters,Stirrers, Low Temperature Circulating Chiller, High Temperature Circulating Oil Bath, High and Low Temperature Circulating Device, etc.
5. Why should you buy from us not from other suppliers?
Shanghai Yuhua, a leading manufacturer of glass reactor, rotary evaporator and related vacuum, heating circulator, cooling circulator, with a history of ten years in China
6. What services can we provide?
Accepted Delivery Terms: EXW, FCA, FOB, CFR,CIF, DDU, DDP Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
Glass Reactor, Stainless Steel Tank/Reactor, Rotary Evaporator, Molecular Distillation, Filters,Stirrers, Low Temperature Circulating Chiller, High Temperature Circulating Oil Bath, High and Low Temperature Circulating Device, etc.
5. Why should you buy from us not from other suppliers?
Shanghai Yuhua, a leading manufacturer of glass reactor, rotary evaporator and related vacuum, heating circulator, cooling circulator, with a history of ten years in China
6. What services can we provide?
Accepted Delivery Terms: EXW, FCA, FOB, CFR,CIF, DDU, DDP Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
CONTACT US
Shanghai Yuhua Instrument Equipment Co.,Ltd.
Add:No.321-1, Chungui Road, Huangdu
Add:No.321-1, Chungui Road, Huangdu
Industrial Park, Shanghai City, China
Email: [email protected]
Whatsapp:+86 15695515213
Wechat: +86 15695515213
Wechat: +86 15695515213
