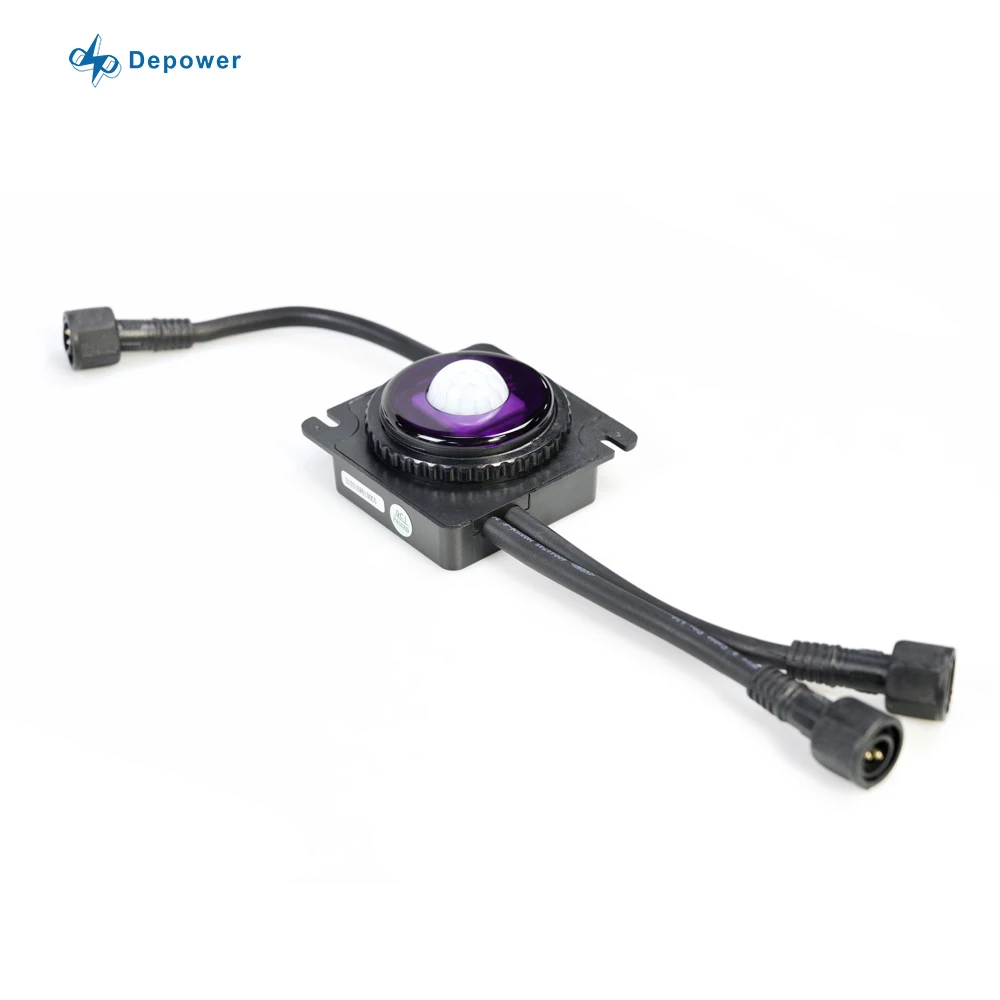

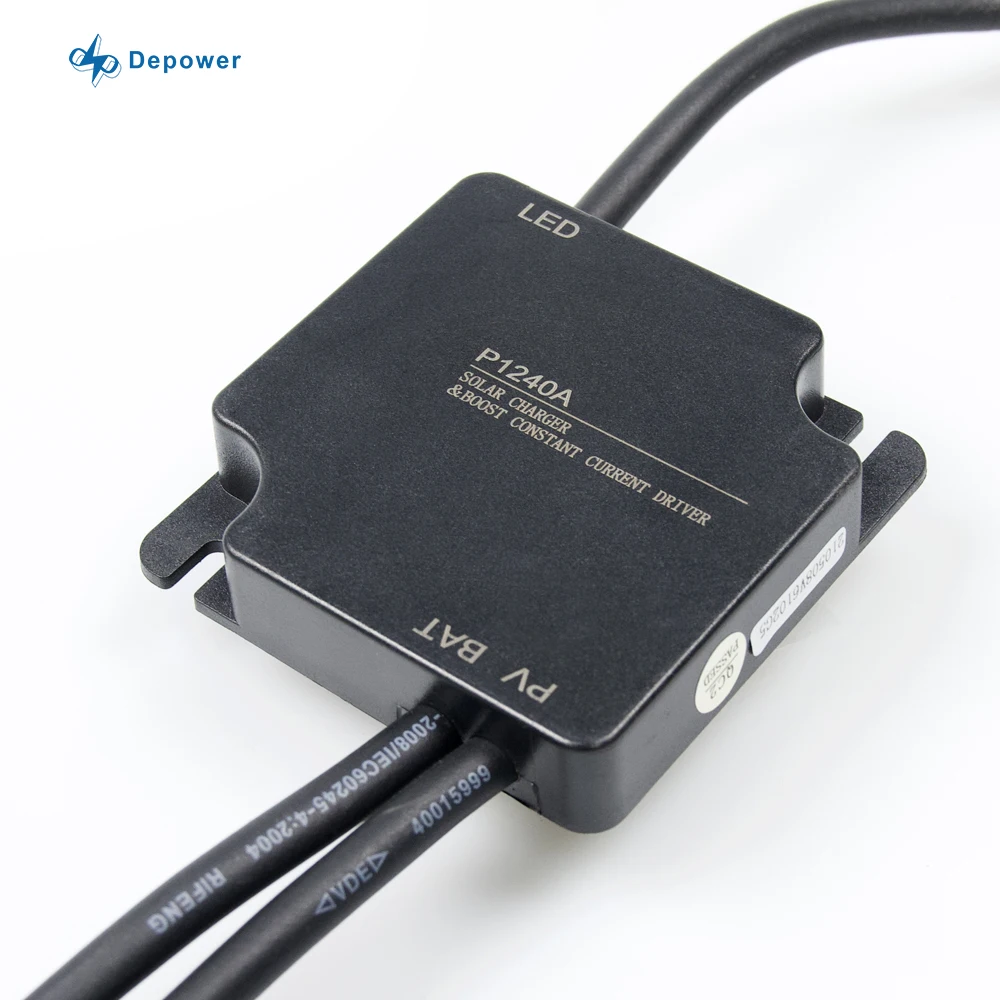

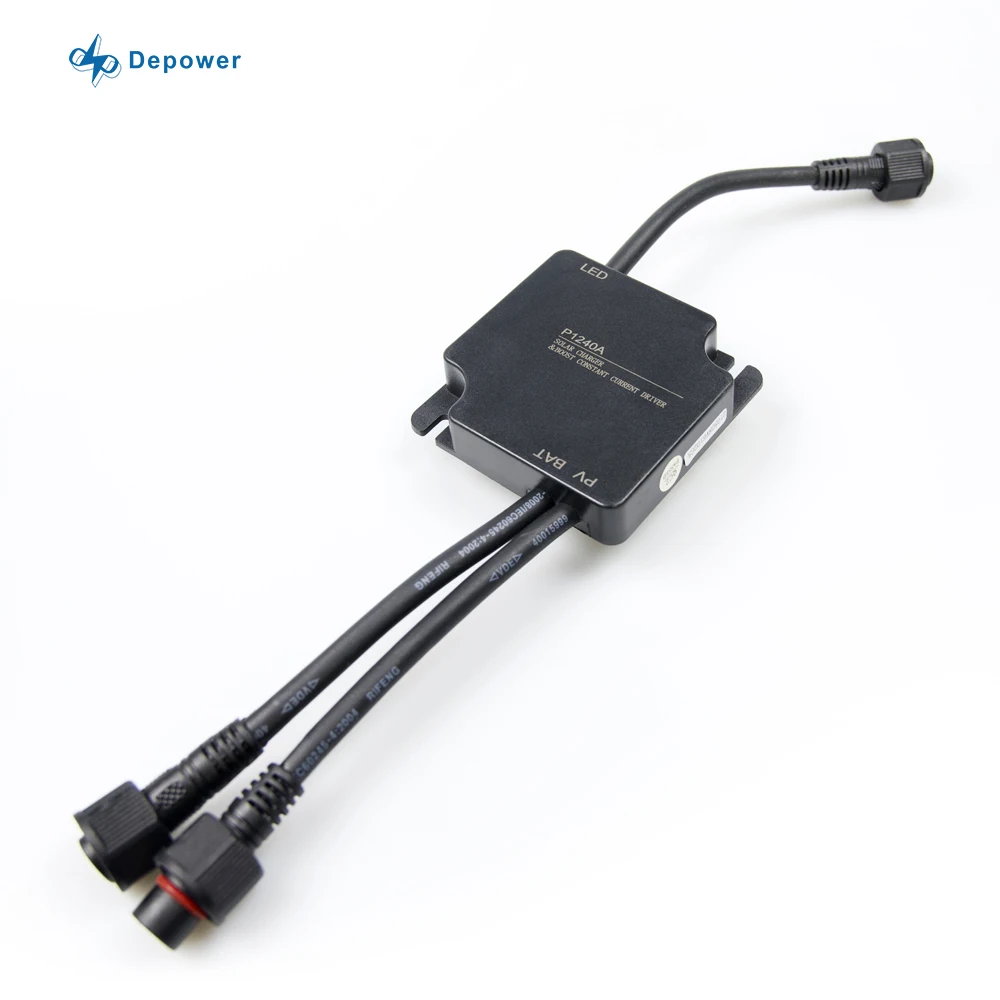

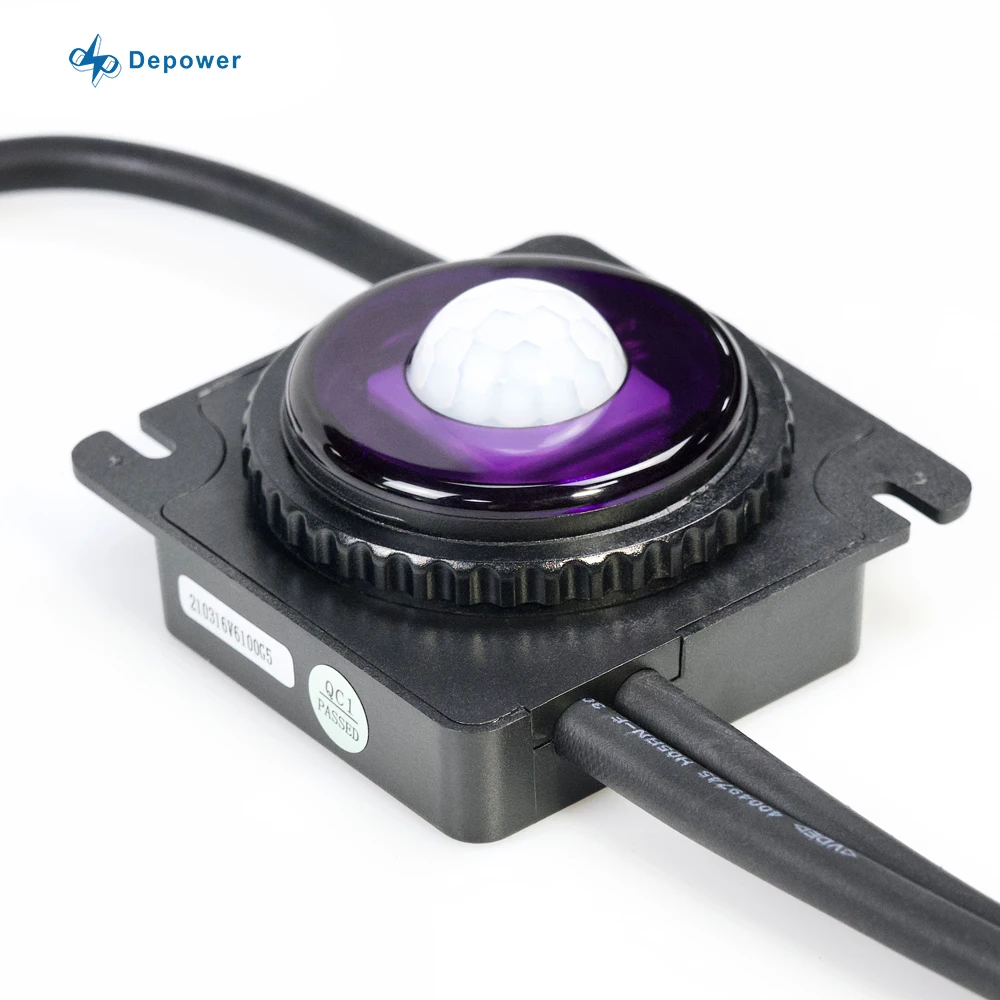

Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver
Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver

Depower P1240AI PWM Solar Charge Controller for Solar Street Light 12V for 30W LED Street Lights with Human Sensor LED Driver

Share on (1600263145083):


Price:$8.50 - $11.00

Quantity:


Product Overview

Description





Technical Specification


Content
Model
P320AI/W
P1220AI/W
P1230AI/W
P1240AI/W
Battery type
Lithium battery
Rated system voltage
3V system
12V system
Max. charge current
15A
6A
8A
10A
Boost charge voltage(settable)
3.6V
14.4V
Clear undervoltage (settable)
3.2V
12V
Battery undervoltage (settable)
2.8V
10.8V
Max.PV input voltage
9V
≤25V
Solar panel power
6V/90W;5V/75W
110W
140W
180W
Turn on LED PV voltage
≤2V
≤5V
Driving LED current
50～2000mA
50～1000mA
50～1000mA
50～2000mA
Driving LED voltage range
5～35V
16～50V
Max. LED driving power
20W
20W
30W
40W
Driving current accuracy
≤3%FS
Output mode
1.Five times control mode
2.Five times sensing control mode
Human sensing distance
Infrared sensor：6-8m；
Microwave sensor：8-10m
Light control time stage
5
LED dimming range
0～100%
Max driving efficiency
90
94.5
Static power consumption
≤20mA
≤11mA
communication method
Infrared communication
cable
Red black cable
Waterproof cable
Stored/working temperature
-35～65℃
Stored/working humidity
0～100%RH
altitude
3000m
Protection level
IP68(1.5m,72h)
Certification
CQC，CE,ROSH
Weight
0.165KG
Dimension
72*72*30mm
Package
72Pcs/Box
54Pcs/Box


Product Feature
1. Super high charging efficiency and driving efficiency, reduce product temperature
2. IP68 protection level, further improve waterproof reliability
3. PWM and CV charging modes, perfectly matched with lithium battery protection board
4. Dimming function, each time period can control different output power
5. Support infrared communication
