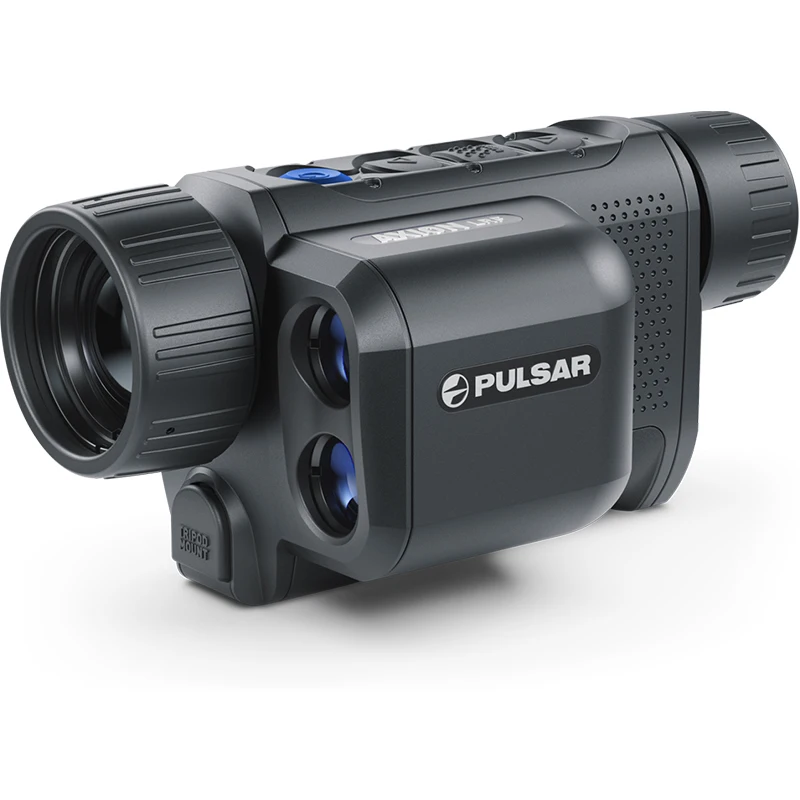

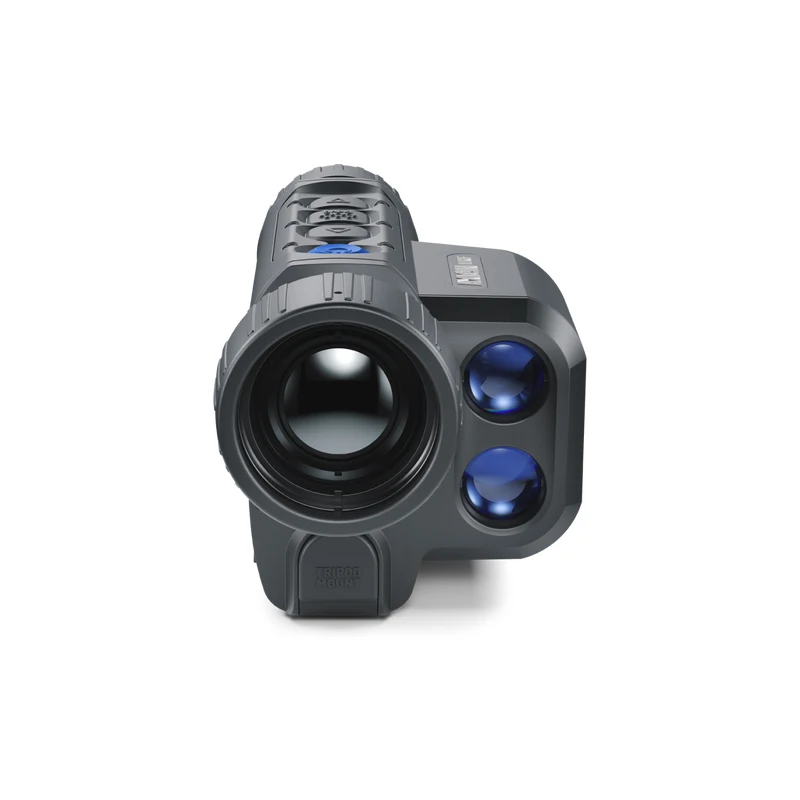

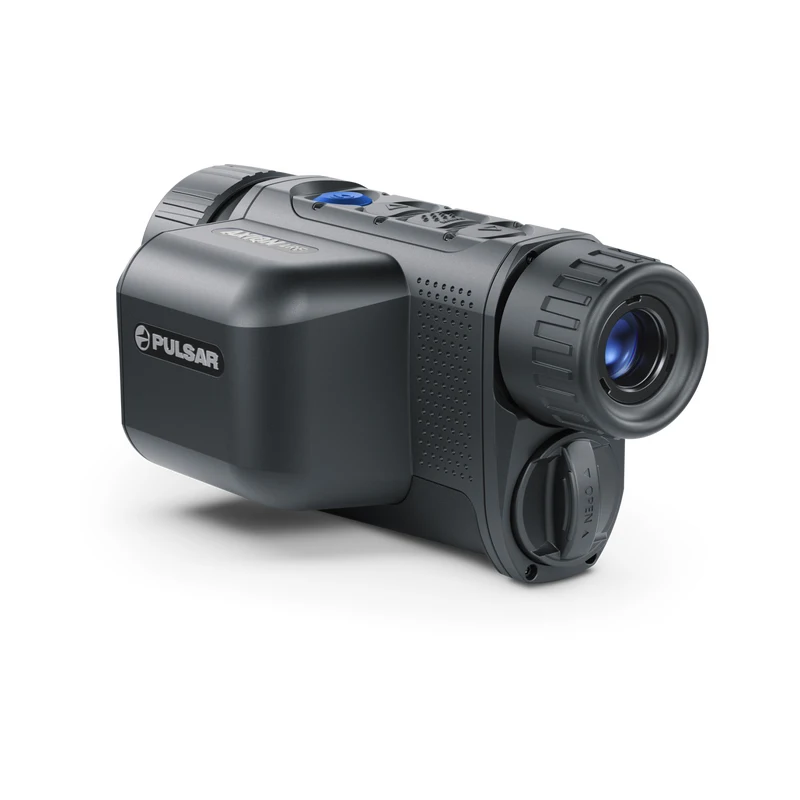

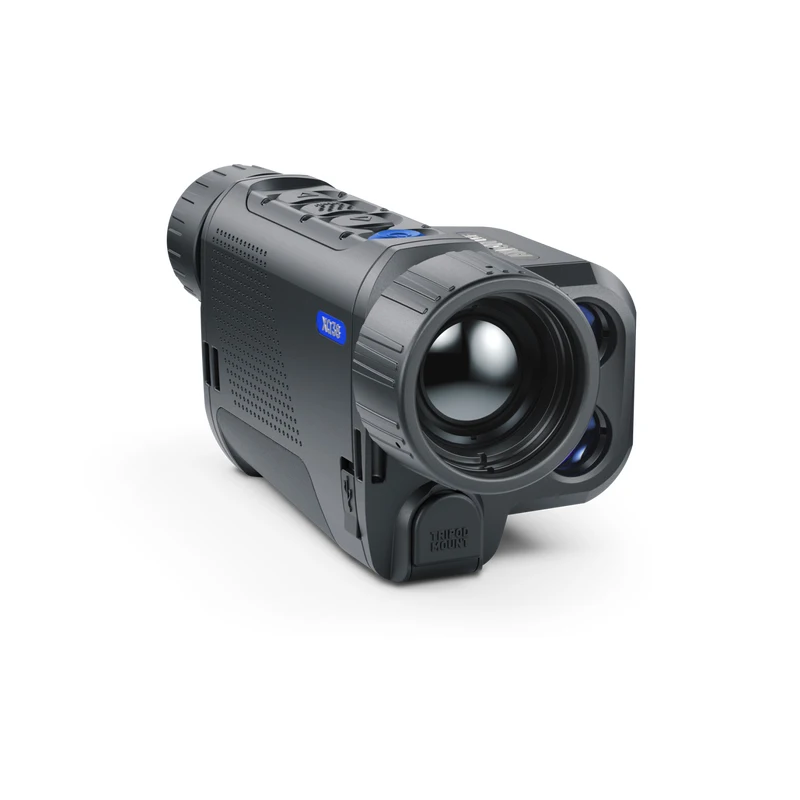

Pulsar Axion 2 XQ38 LRF Thermal Monocular
The NEW LEVEL OF THERMAL SPOTTING
Full featured, extra sensitive, ultra compact monocular
Built-In Precision Laser Rangefinder
Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Accurate distance readings help to quickly assess the size of territory, distance and relief.
The NEW LEVEL OF THERMAL SPOTTING
Full featured, extra sensitive, ultra compact monocular
Built-In Precision Laser Rangefinder
Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Accurate distance readings help to quickly assess the size of territory, distance and relief.
Highly sensitive thermal imaging sensor
The Axion XQ’s 384x288 @ 17 µm thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall,fog or cold mornings in the most difficult conditions for thermal imager.
Image Boost Technology
Image Boost technology is a proprietary combination of software algorithms that allows to raise image clarity and overall image detail. Application of Image Boost makes picture look sharper and more detailed enabling better object identification capabilities.
Image Boost technology is a proprietary combination of software algorithms that allows to raise image clarity and overall image detail. Application of Image Boost makes picture look sharper and more detailed enabling better object identification capabilities.
Light-weight and Rugged Magnesium Alloy Housing
Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Detection range more than 1300 meters
A powerful F38/1.2 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1350 m away in complete darkness.
A powerful F38/1.2 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1350 m away in complete darkness.
Full-Color, HD AMOLED Display
New HD display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid,
high-resolution imaging and power saving.
New HD display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid,
high-resolution imaging and power saving.
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion Key is designed to run
flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion Key is designed to run
flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Picture in Picture Function
Upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.
Upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.
Variable Digital Zoom from 3.5x to 14x
Digital zoom, up to 14x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.
Digital zoom, up to 14x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.
Observation Modes
Image optimization should be performed depending on the environmental location and conditions. Mountains, cities and forests havedifferent ambient temperatures. In order to achieve the highest possible image quality, certain settings have been optimized and gathered into profiles. As a result, optimized imaging in various conditions is easier. Identification preset is another optimal-imaging option that makes identifying easier, even at longer distances.
Image optimization should be performed depending on the environmental location and conditions. Mountains, cities and forests havedifferent ambient temperatures. In order to achieve the highest possible image quality, certain settings have been optimized and gathered into profiles. As a result, optimized imaging in various conditions is easier. Identification preset is another optimal-imaging option that makes identifying easier, even at longer distances.
Color Palettes
The 8-color palette enhances viewing in varying conditions. While the classic White Hot mode is exceptionally versatile, Hot Black is often favored for detecting wildlife at night. Red Monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while Red Hot, Rainbow and Ultramarine enhance temperature differences of various object attributes. Violet helps to identify objects faster.
The 8-color palette enhances viewing in varying conditions. While the classic White Hot mode is exceptionally versatile, Hot Black is often favored for detecting wildlife at night. Red Monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while Red Hot, Rainbow and Ultramarine enhance temperature differences of various object attributes. Violet helps to identify objects faster.
model | Axion XQ38LRF |
sensor | 384x288 pix.@17um(NETD＜40MK) |
objective lense | f38/1.2 |
magnification x | 3.5-14(x4 zoom) |
field of view (HxV), degree/m@100m | 9.8X7.4/17.2X12.9 |
detection range | 1350m |
type | uncooled |
resolution pixels | 384x288 |
pixels pitch um | 17 |
frame rate hz | 50 |
eye relief mm | 15 |
display type | AMOLED |
display resolution pixels | 1024x768 |
video/photo format | / |
video recorder built-in memory | / |
video recorder built-in memory capacity | / |
battery type/capacity/output voltage | Li-Ion Battery Pack АPS5 |
battery capacity | 4900mAH |
battery output voltage | 3.0-4.2V |
external power supply | 5v |
operating time | 4h |
degree of protection | IPX7 |
operating temperature range | -25°c ~ +40 °c |
mount, type | 1/4'' socket |
wifi frequency Ghz | / |
wifi standard | / |
line-of-sight reception range | / |
Laser Rangefinder Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
Laser Rangefinder Wavelength, nm | 905 |
Laser Rangefinder Max. measuring range, m | 1000 |
Laser Rangefinder Measurement accuracy, m | ± 1 |
dimensions | 167x49x73mm |
weight(without battery) | 0.4kg |
Packing & Delivery
AXION KEY Thermal Imager
APS3 rechargeable battery
Power adapter
Warranty card
Case USB cable
Hand strap
Quick start guide
Clothfor cleaning optics
Shipping to worldwide via DHl express with 3-5 days delivery.
