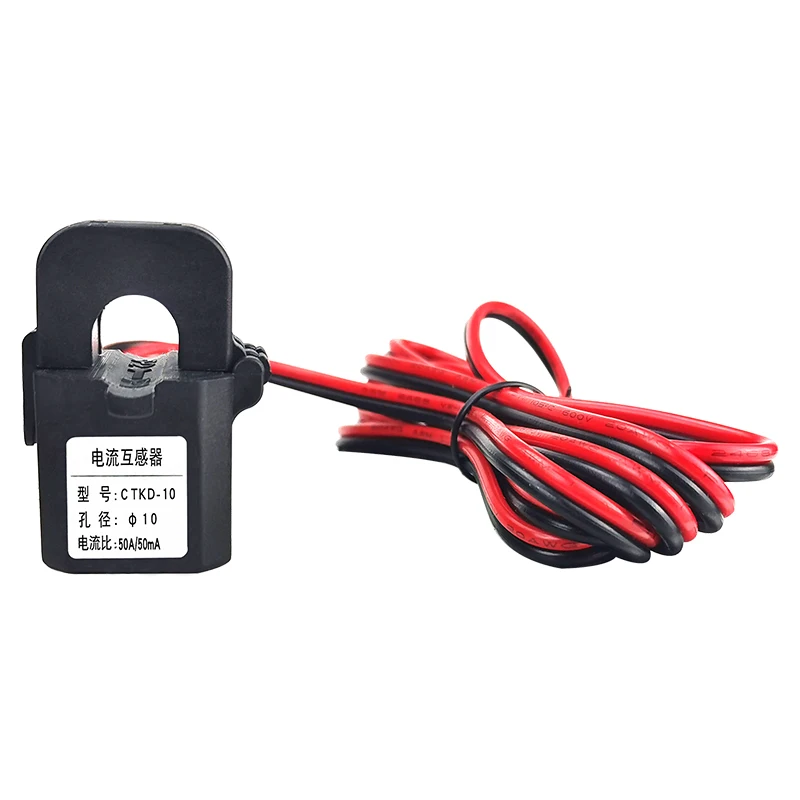

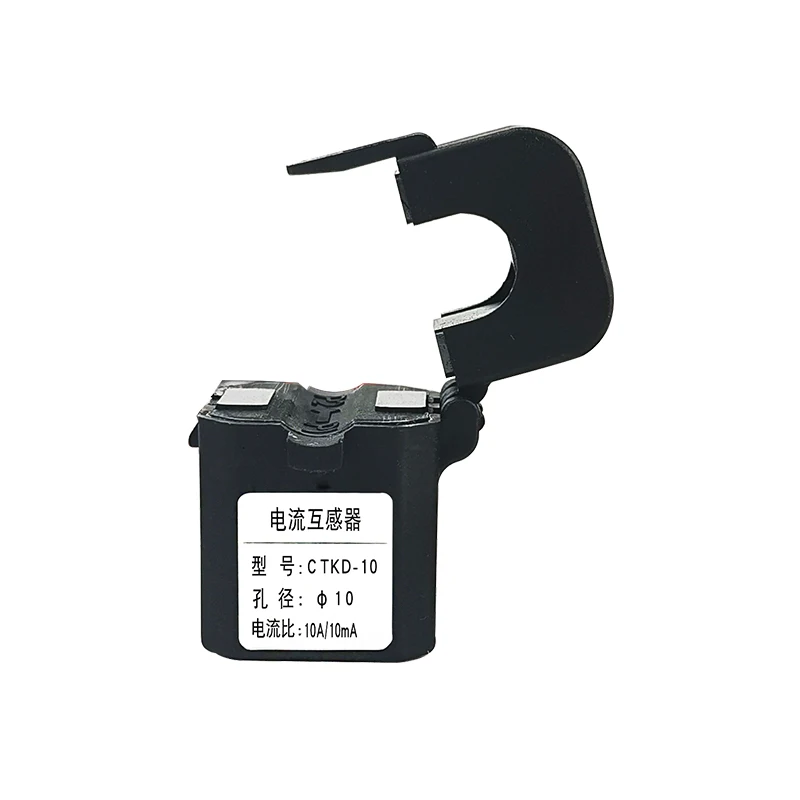

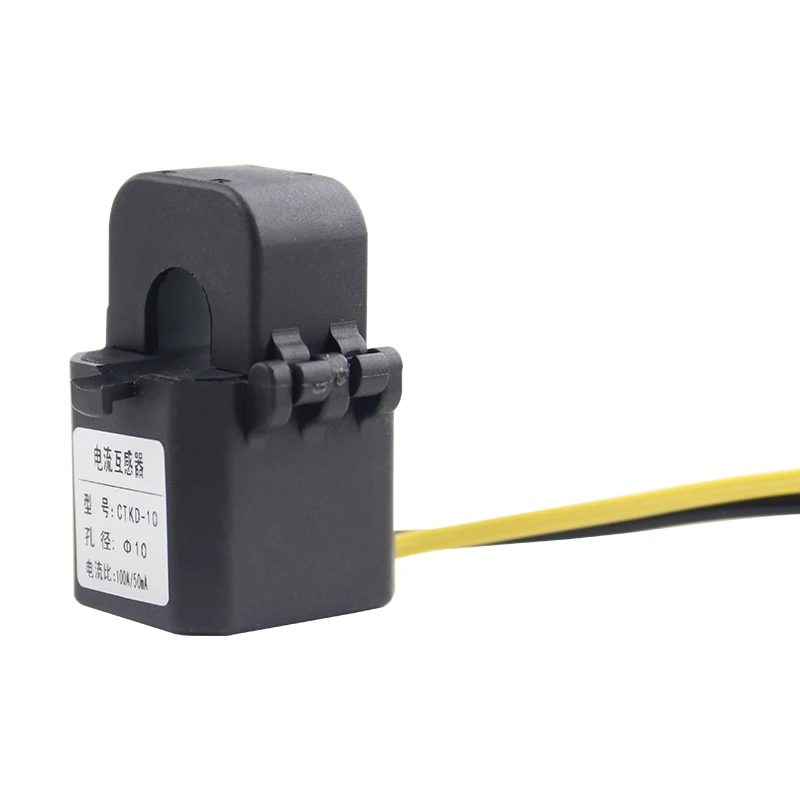

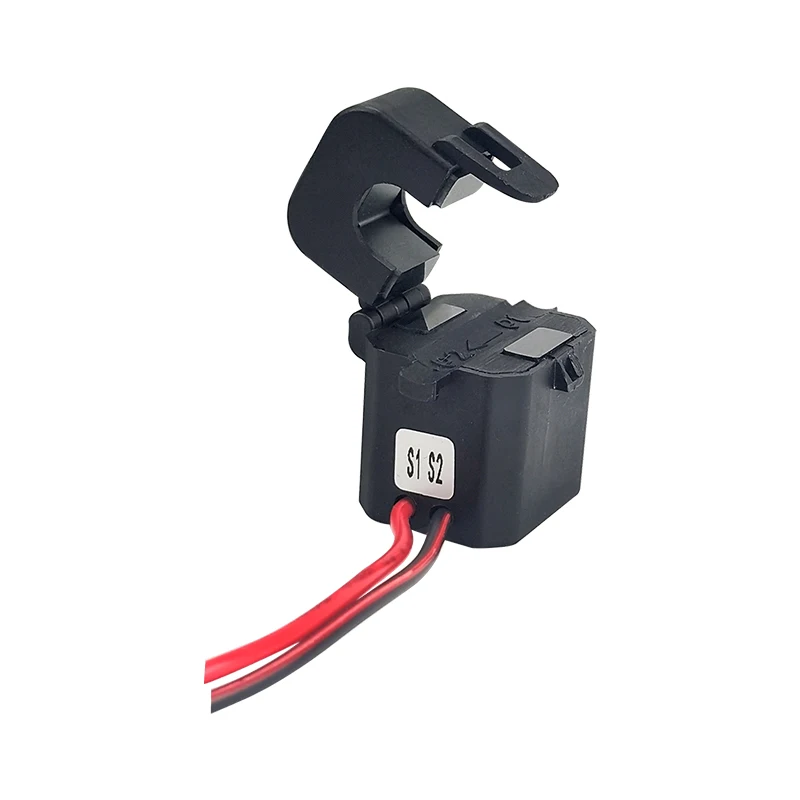

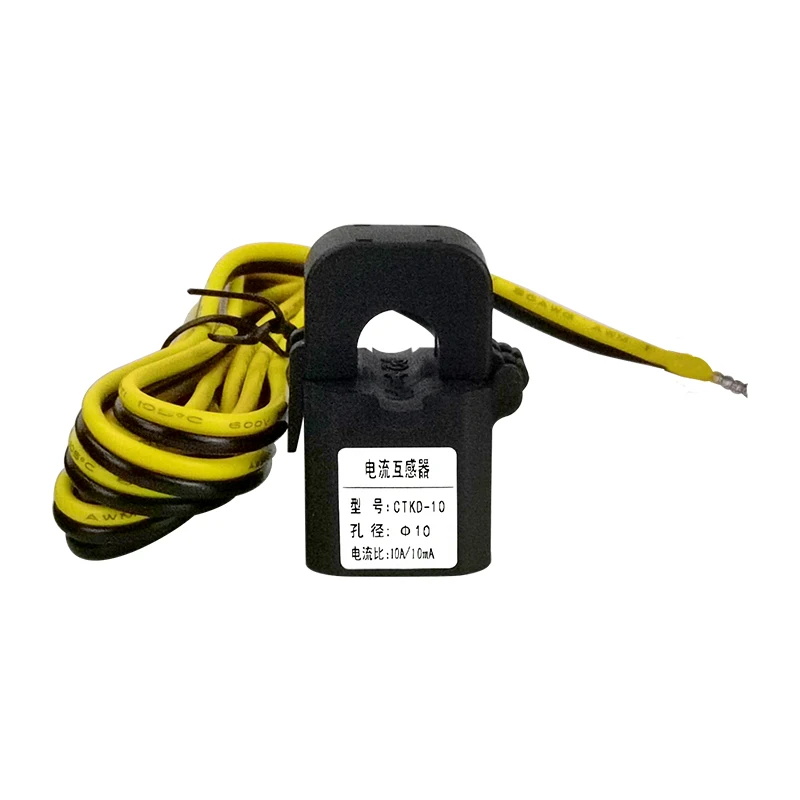

CT mA 0.5 Class 10/20/50/75mA Snap in type Mini current transformer Three phase electric sensor
- Category: >>>
- Supplier: Wenzhou Taiye Electric Appliance Co. Ltd.
Share on (1600263183990):
Product Overview
Description
Description Working frequency: 50-2KHz Rated input: 5A-630A Measuring range: 10%In-130%In Rated output: 0.333V (AC) or 0-500mA Ratio difference: ≤±1.0% Phase difference: ≤±60 minutes Dielectric strength: 2.5KV/1mA/1min Insulation resistance: DC500V/100MΩ min Shell: PA, flame retardant grade 94-V0 Frame: PBT Iron core: silicon steel Internal structure: buckle Construction: fixed with tie Working temperature: -25℃~+75℃ Environment temperature: ≤85% Output connection: PVC three-color 1.5m twisted pair cable The colors of the lines are red, yellow, and blue, and they are sent randomly！！！ |
Company Profile
Wenzhou Taiye Electric Co.,Ltd. has be committed to provide full-service for industrial automation control since its founded. We provide users with advanced technology and quality service for a long time.
Our company is specialized in design, production and sales of digital instruments (Ammeter, voltmeter, frequency meter, power factor meter, multifunction meter,Wifi Meter ),current sensor, power transformer and so on. The products have been widely used in the industries of power system, control system,building, civil projects, environmental protection, national defense etc.
Our main products have passed the national relative national type tests and got the certificates. Our company has fully passed the ISO9001,CE,ROHS. We sincerely expects to cooperate with all friends from the world.
Our company is specialized in design, production and sales of digital instruments (Ammeter, voltmeter, frequency meter, power factor meter, multifunction meter,Wifi Meter ),current sensor, power transformer and so on. The products have been widely used in the industries of power system, control system,building, civil projects, environmental protection, national defense etc.
Our main products have passed the national relative national type tests and got the certificates. Our company has fully passed the ISO9001,CE,ROHS. We sincerely expects to cooperate with all friends from the world.
Certifications
