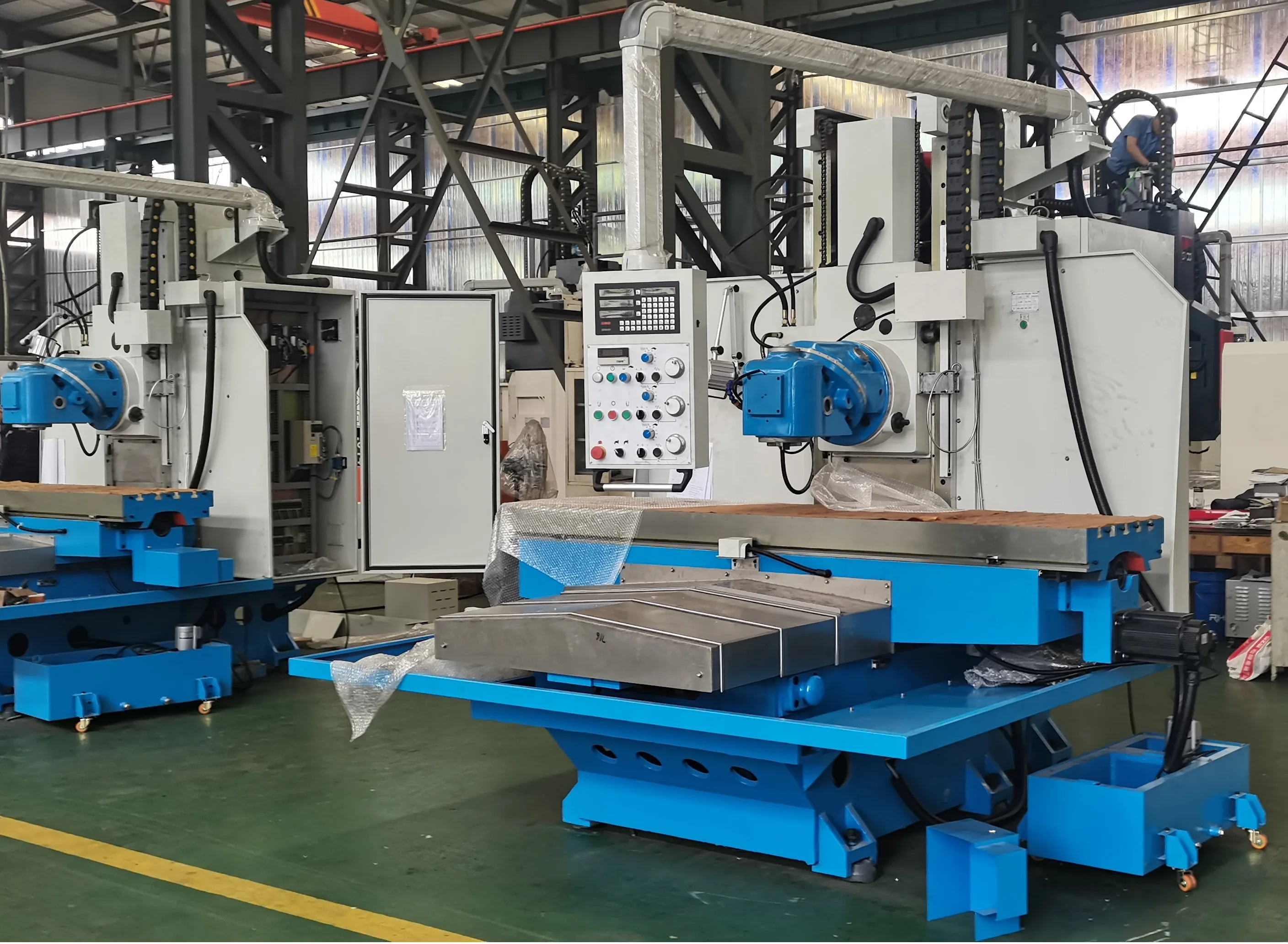

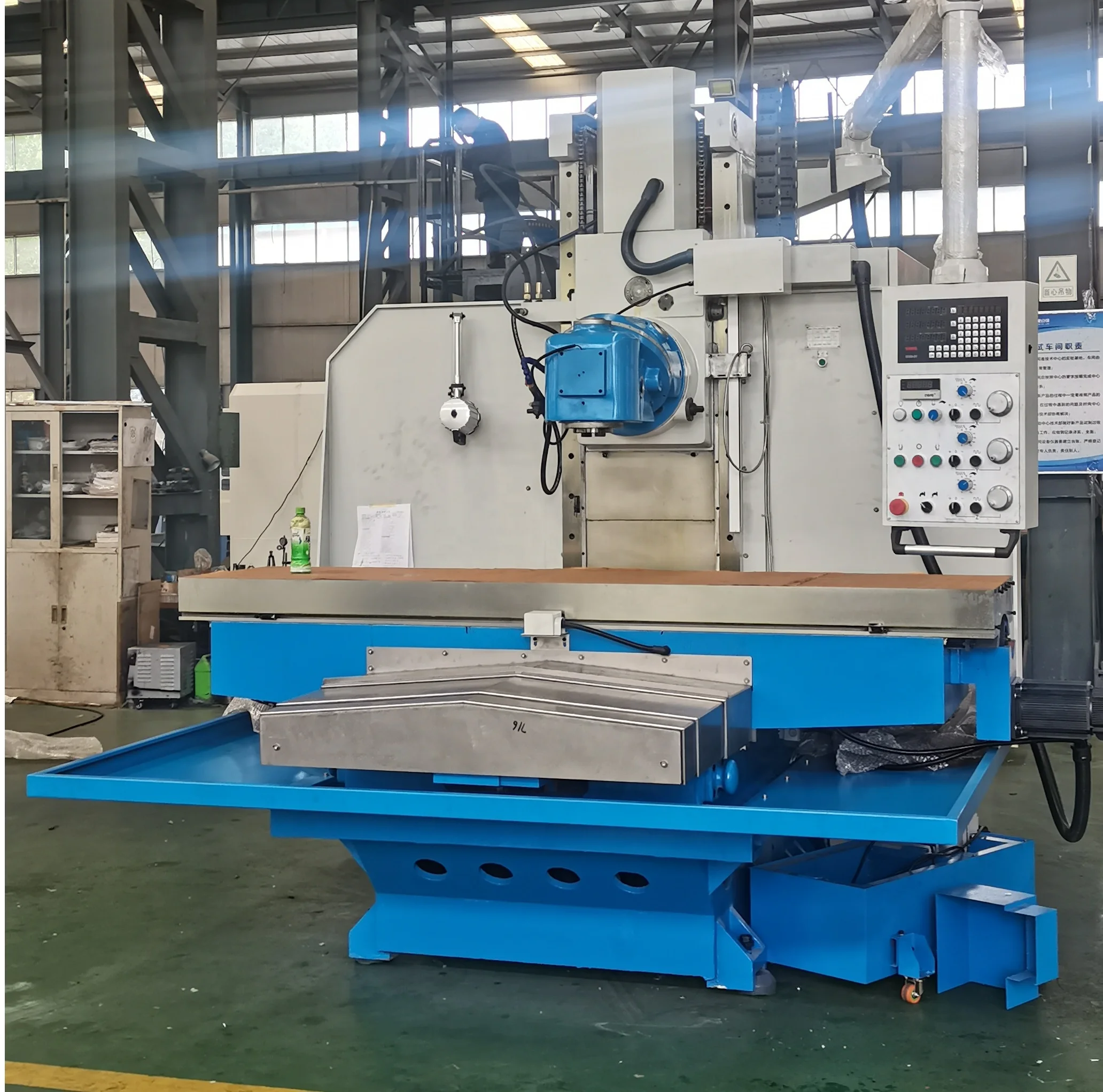

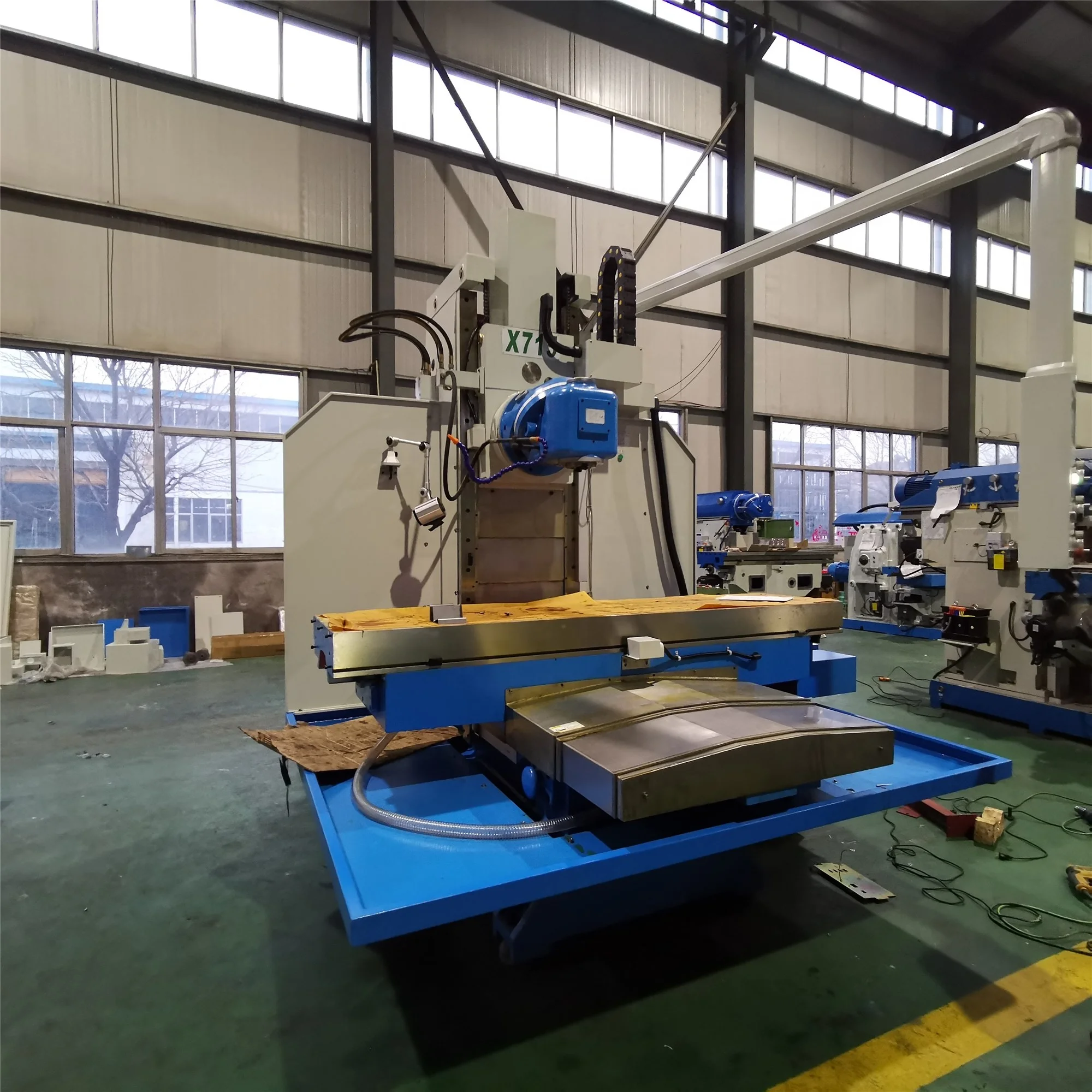

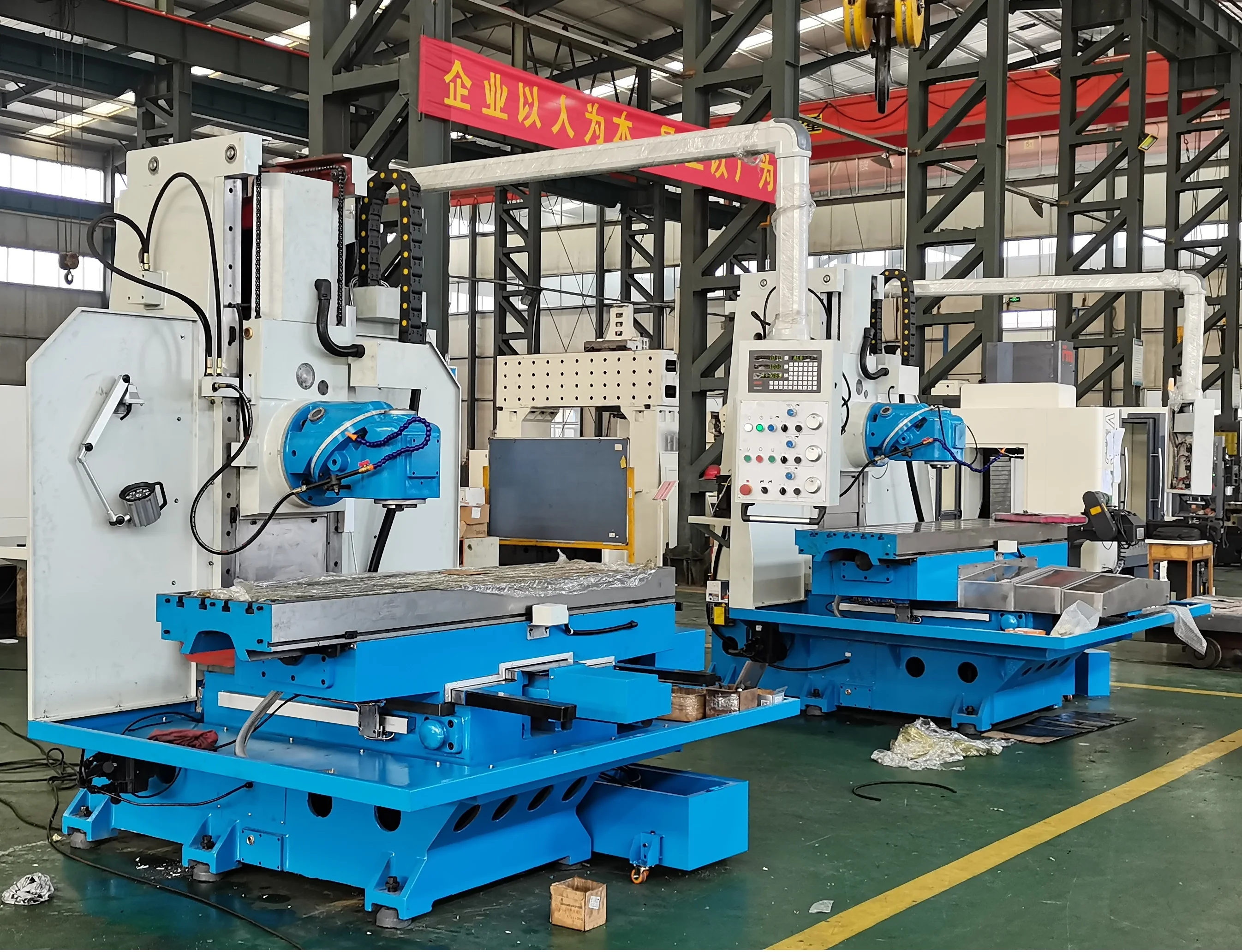

X715 universal bed milling machine with DRO digital read out
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (1600263226472):
Product Overview
Description
X715 universal bed milling machine with DRO digital read out
swivel head,

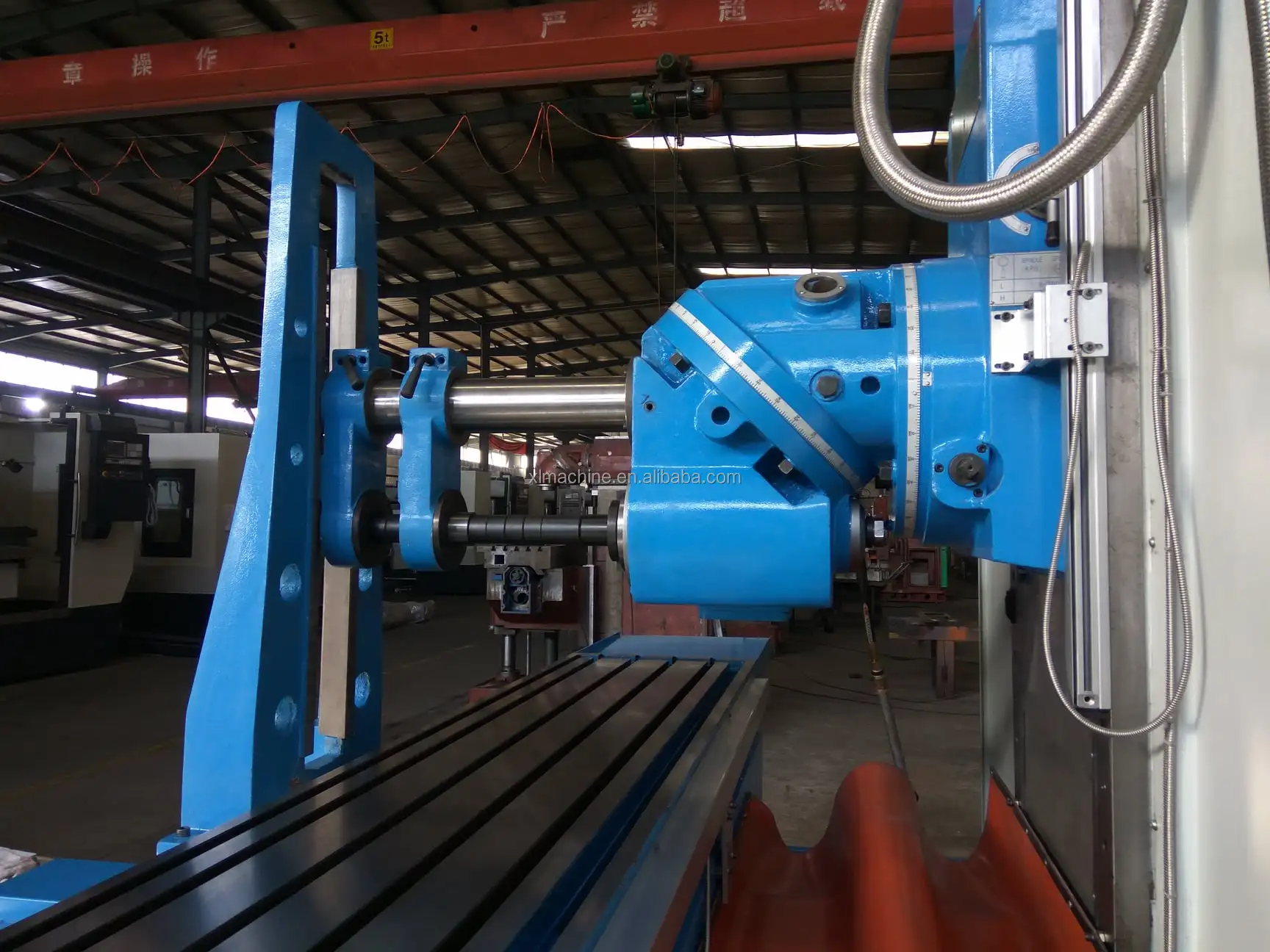

when horizontal milling
Brief Introduction
1). heavy duty bed-type milling machine, max load nearly 2000kg
2). 360° swivel head, can realize vertical & horizontal milling
3). step-less spindle speed in 2 ranges (6-300rpm & 30-1500rpm), ensures good torque
4). ball screws on X,Y,Z axes, good accuracy
5). independent servo motors driven for X,Y,Z axes movement, good accuracy
6). electronic hand wheels for X,Y,Z axes in addition to automatic feed, good accuracy
7). with automatic lubrication system
8). CNC model is available if customer have demand
Specificaitons of This Series
ITEM | UNIT | X715 |
spindle taper | ISO50 | |
spindle speed | rpm | 2 steps: 6-300, 30-1500 |
distance from vertical spindle axis to vertical column | mm | 610 |
distance from vertical spindle nose to table | mm | 0-650 |
distance from horizontal spindle axis to table | mm | 8-660 |
table size | mm | 2100*500 |
T-slots (N/W/D) | 4/20/100 | |
table travel - X axis | mm | 1500 |
table travel - Y axis | mm | 650 |
feed speed - X/Y axes | mm/min | 2.5-3000 |
feed speed - Z axis | mm/min | 2.5-2500 |
rapid feed speed - X/Y/Z | mm/min | 6000/6000/3000 |
main motor power | kw | 11 |
torque of servo motors -X/Y/Z | Nm | 18/23/18 |
cooling motor power | w | 90 |
overall size | mm | 3220*2420*2800 |
N.W. | kg | 7300 |
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
