0.5m/1m/2m/3m Amphenol SAS cable MINI memory SAS line 8088/8088

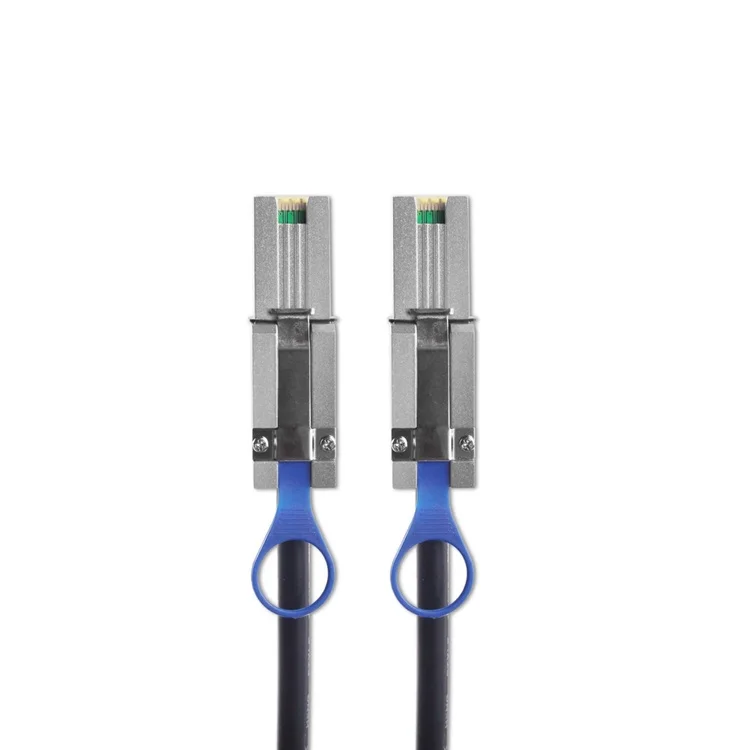

Mini SAS 26P Straight to Mini SAS 26P Straight
Part Number
Mini SAS 8088
Product Description
Mini 8088
Series
mini sas sff cable
Cable Length
0.5m/1m/2m/3m
Signal Wire Size
28AWG, Tinned Copper, OD: 0. 9*2.3,MM
Plating
Au 3u' min over Ni 100u' min
Color
Over mold Black
Environmental Compliance
RoHS Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Mini SAS 26P STR to STR Product Description: Mini SAS 26P Straight to Mini SAS 26P Straight Series: Mini SAS Cable Length: 2.0 Meters Wire Size: 28AWG, Tinned Copper, OD: 0. 9*2.3,MM Lock to Mating Part: With Latch Plating: Au 30u' Min Over Ni 100u' min Color: Cable Blue, Overmold Black Environmental Compliance: RoHS Flammability: Cable Horizontal Flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 6 Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum.
Unmating Force: 49 N maximum.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
