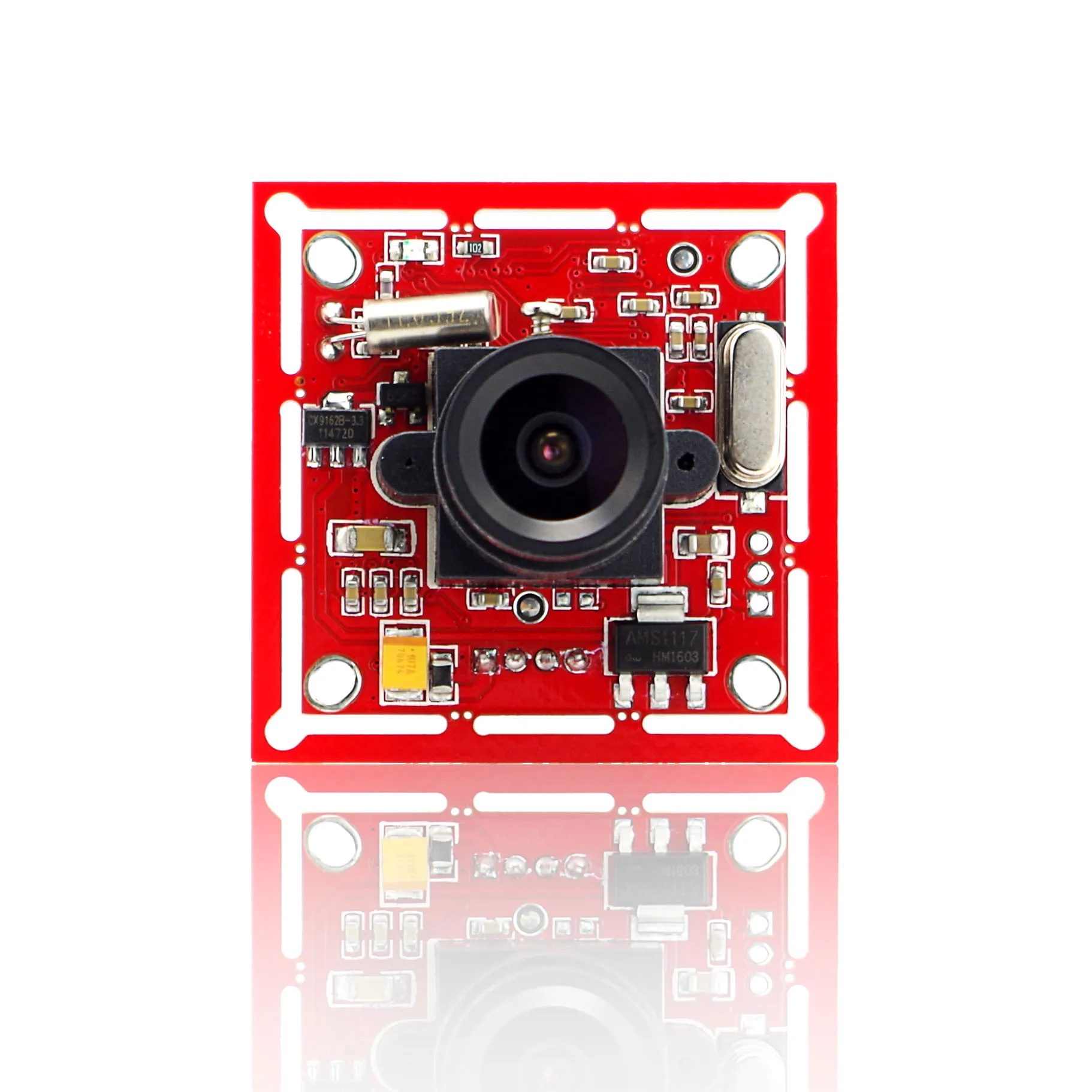

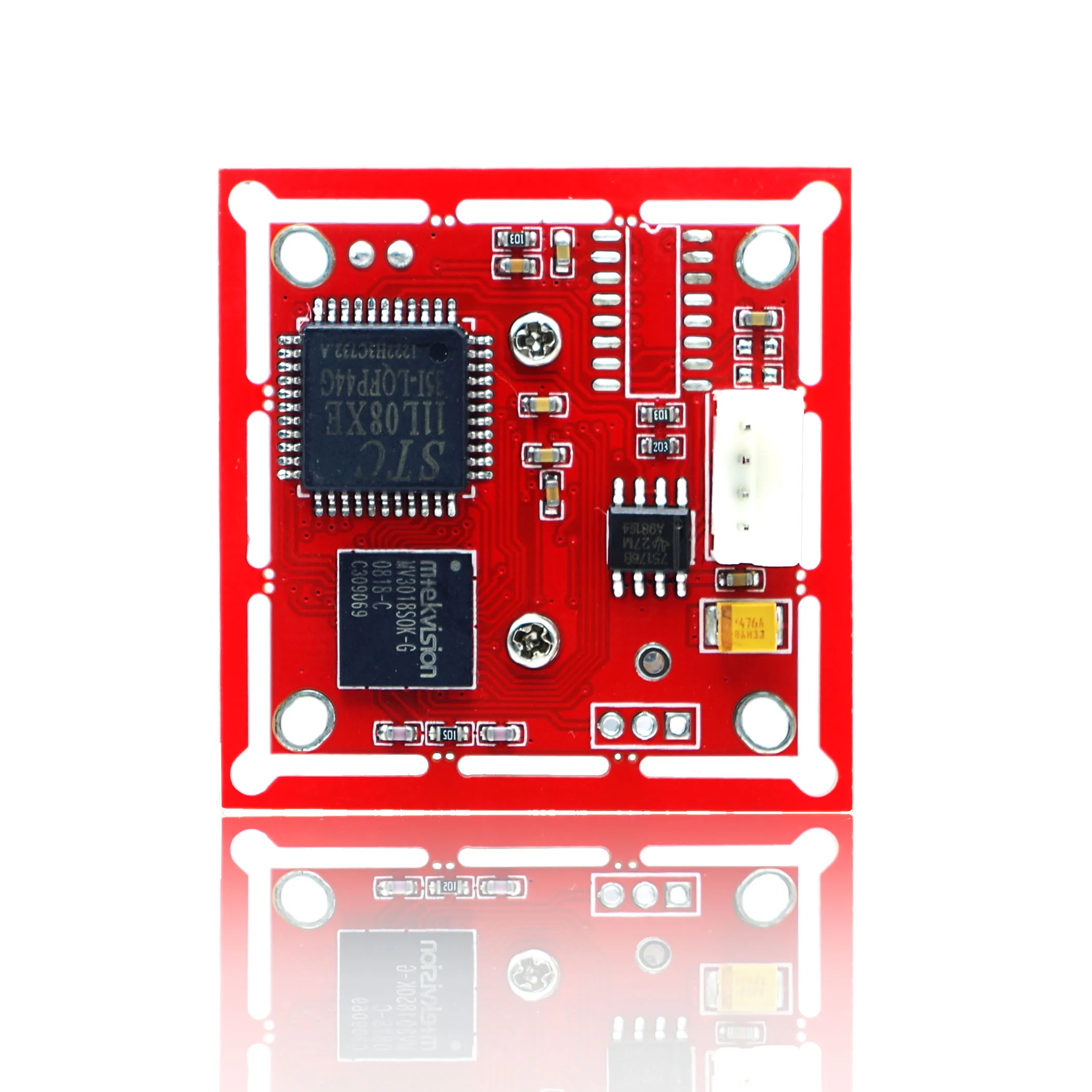

DC5V RS485 infrared jpeg color camera JPEG Serial Port Camera Module UART Interface Camera Module OV528 Communication Protocol
- Category: >>>
- Supplier: Shenzhen Toproview Technology Co. Ltd
Share on (1600263744707):
Product Overview
Description
Product Description
Note:

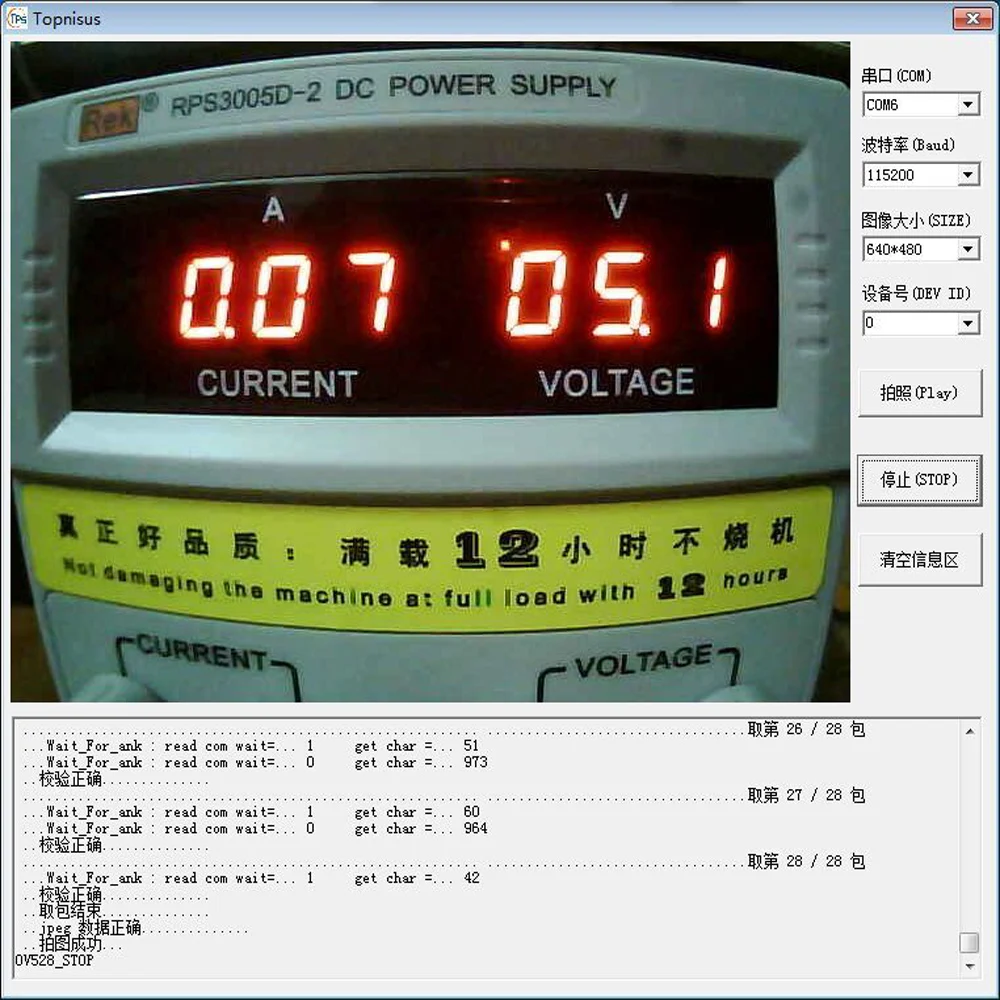

Please download the JPEG Serial Port Camera Test Software and User Manual OV528 Protocol from www.download-toproview.com
Please download the JPEG Serial Port Camera Test Software and User Manual OV528 Protocol from www.download-toproview.com
| Image sensor | Color CMOS |
| Pixels | 0.3 mega pixels |
| Image Resolution | VGA(640*480)\\QVGA(320*240)\\QQVGA(160*120) |
| Image Compression | JPEG |
| Lens | F:2.8mm\\IR:850nm\\FOV:100° |

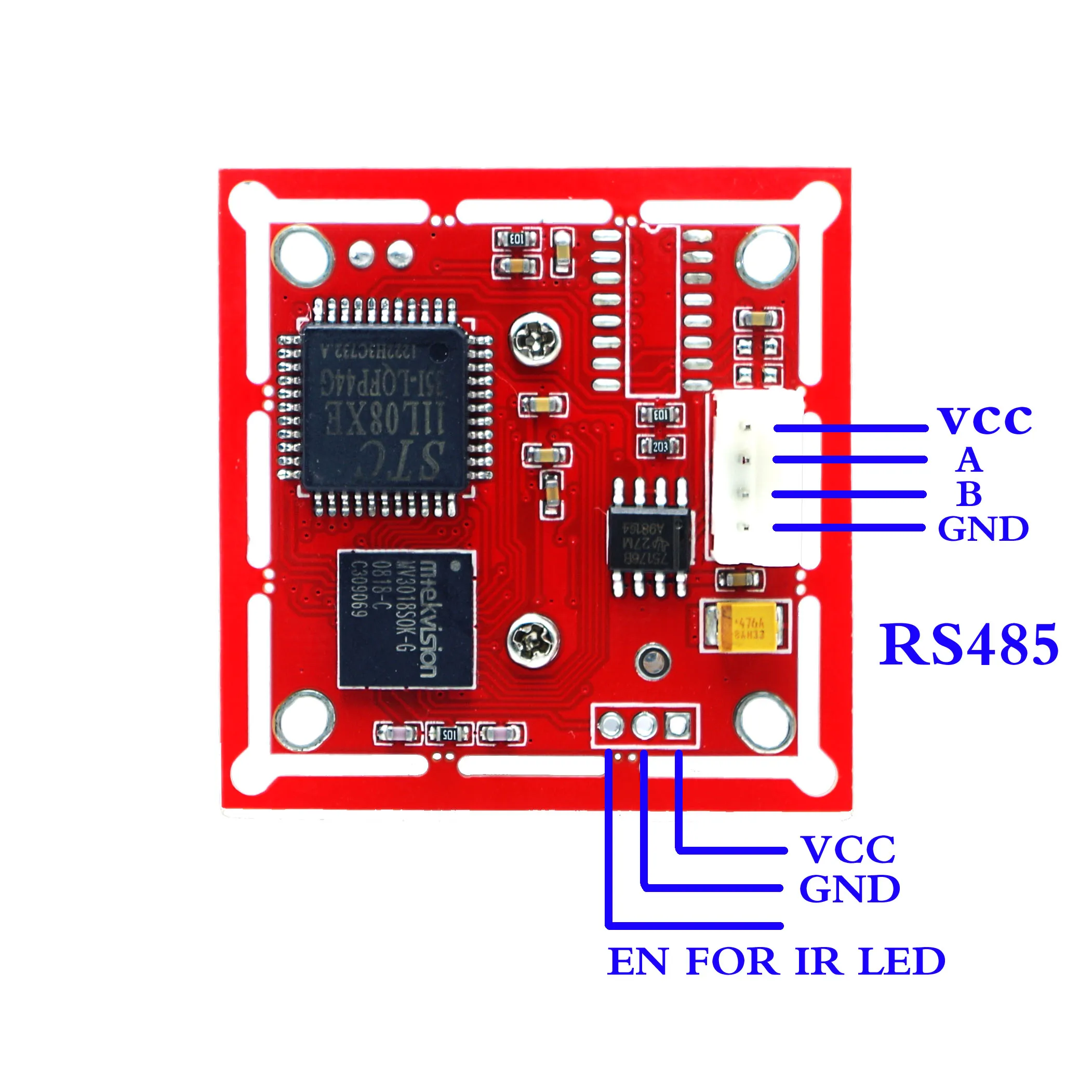

| Interface | RS485 |
| Baud Rate | 9600 to 115200bps |
| White Balance | Automatic |
| Exposure | Automatic |
| Auto Gain Control | Automatic |
| Working Power | DC 5V |
| Working Current | About 70mA (Standby: 50mA) at DC 5V |
| Working Temperature | -10 to 70 degree Celsius |
| Communication protocol | OV528 |

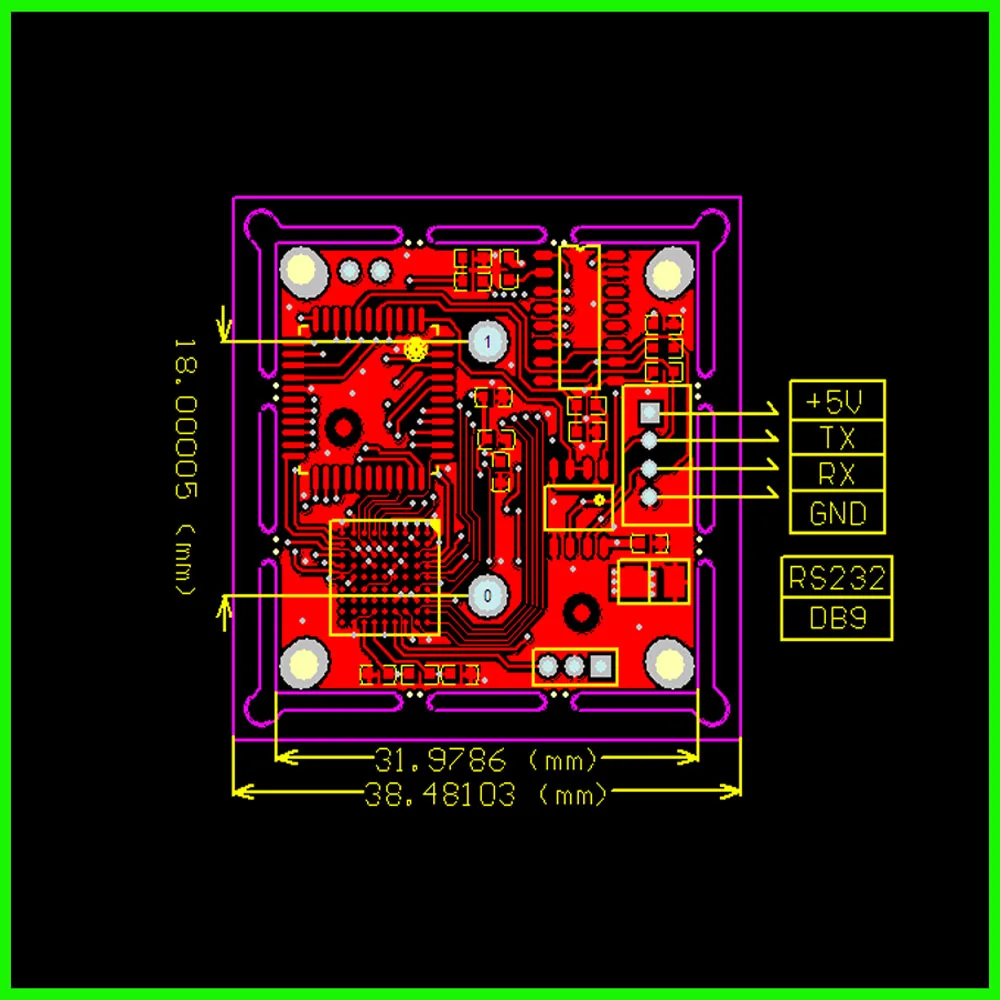

| Size | 38mm*38mm |
| Warranty | Limited One-Year Warranty and Lifetime Product Support |
| Package Included | 1 x RS485 JPEG Camera Module |
Packaging & Shipping
Company Information

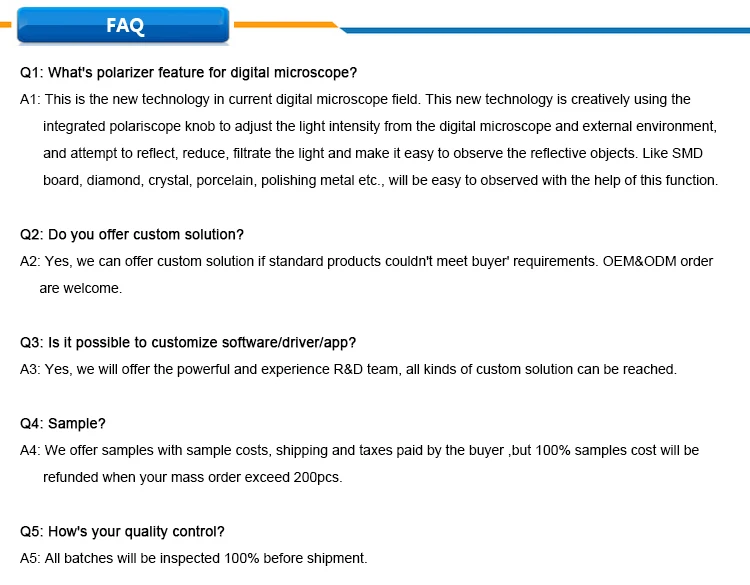

FAQ
