High Quality Durable Using 200A 9.6kw Smart 48volt Lithium Ion Golf Car Battery
- Category: Charger >>>
- Supplier: Guangdong Aipower New Energy Technology Co. Ltd.
Share on (1600264123760):
Product Overview
Description
Products Description

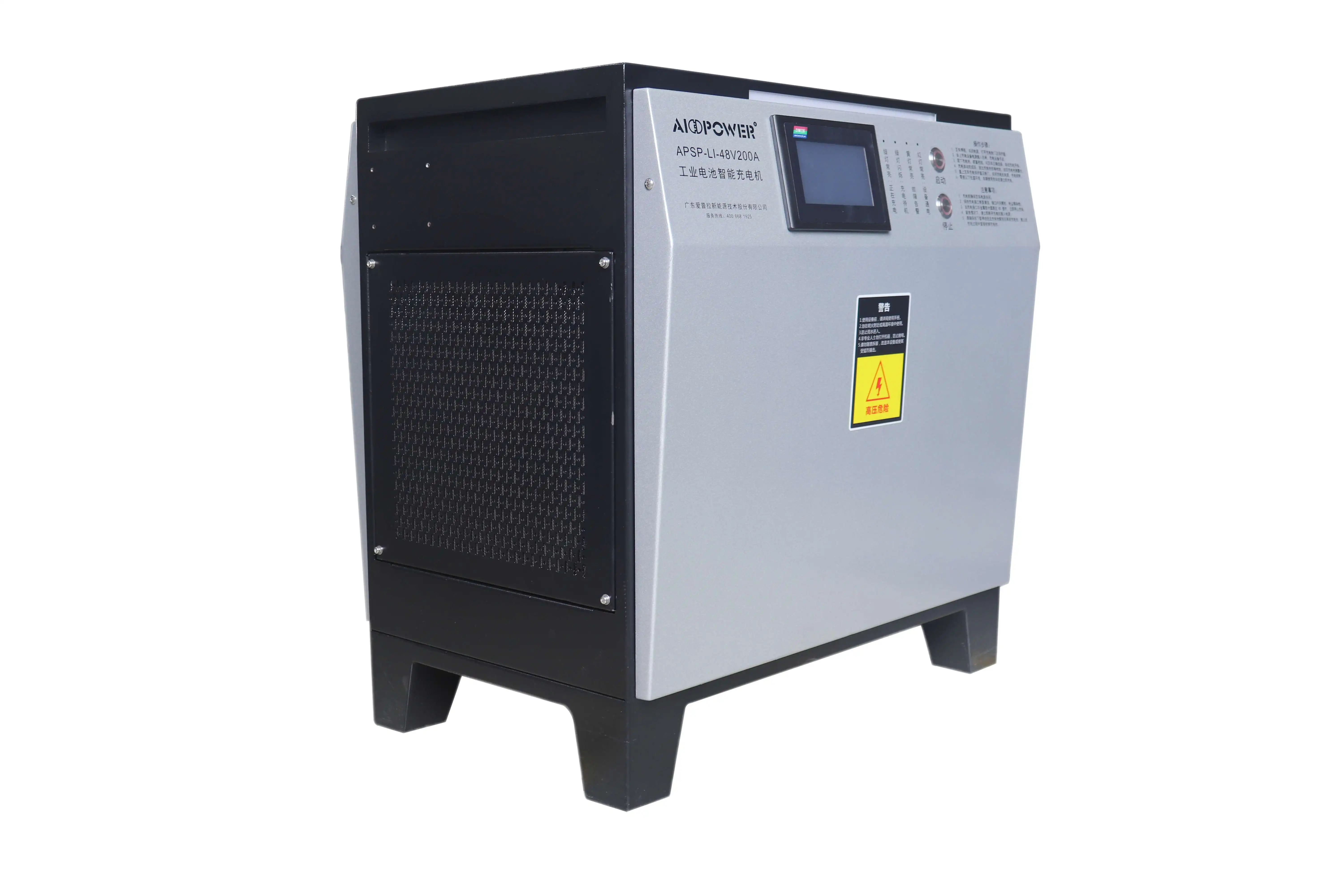

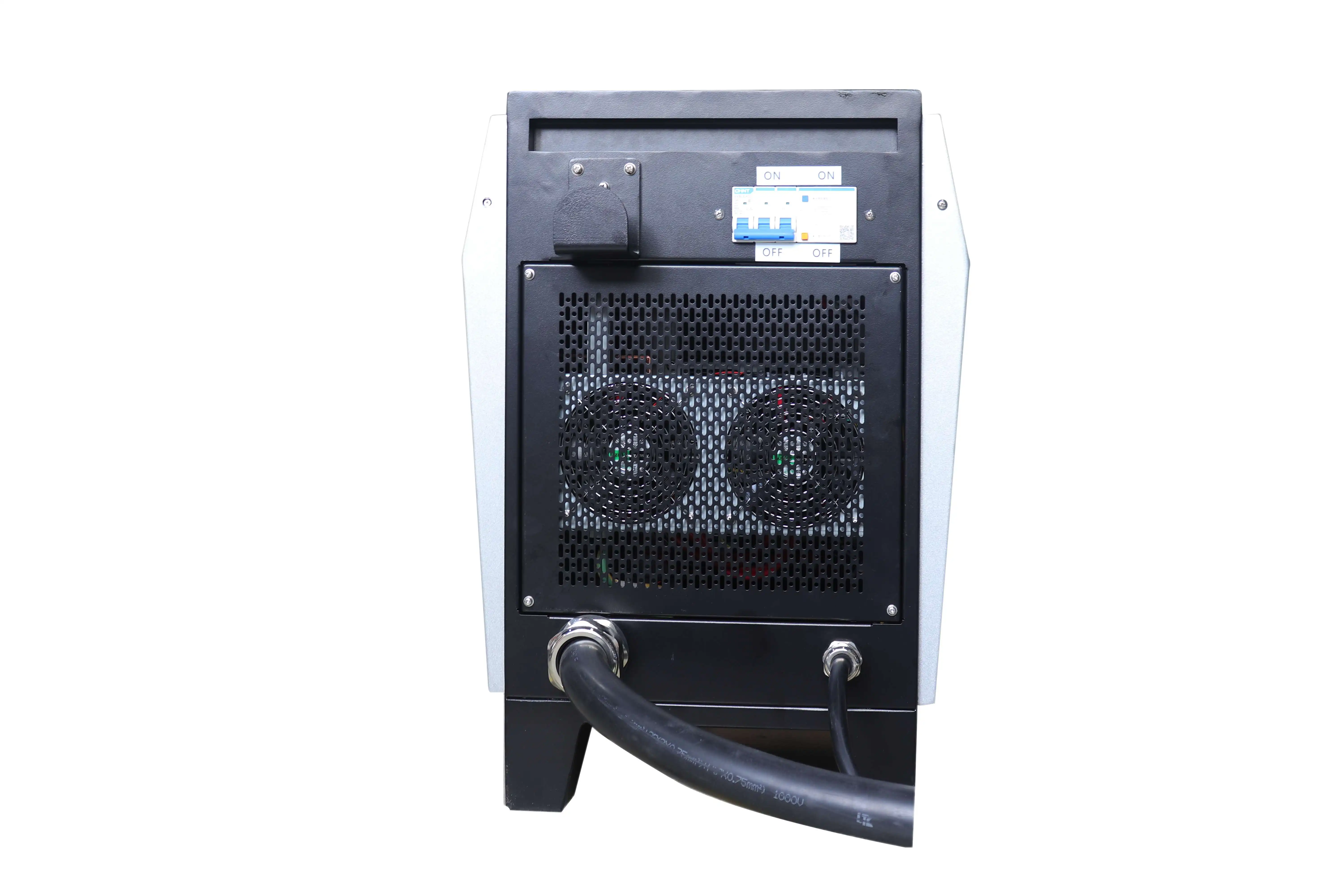

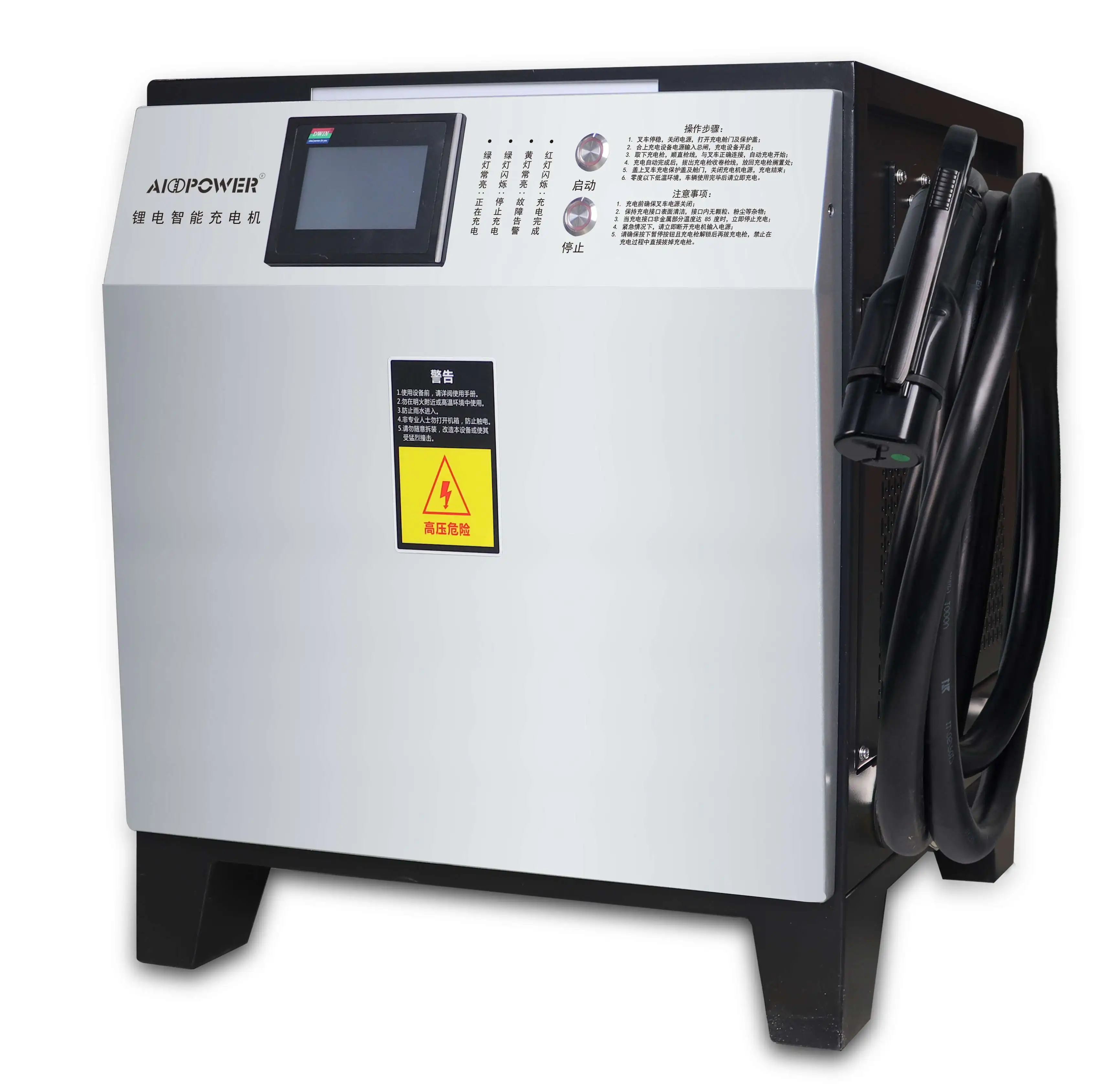

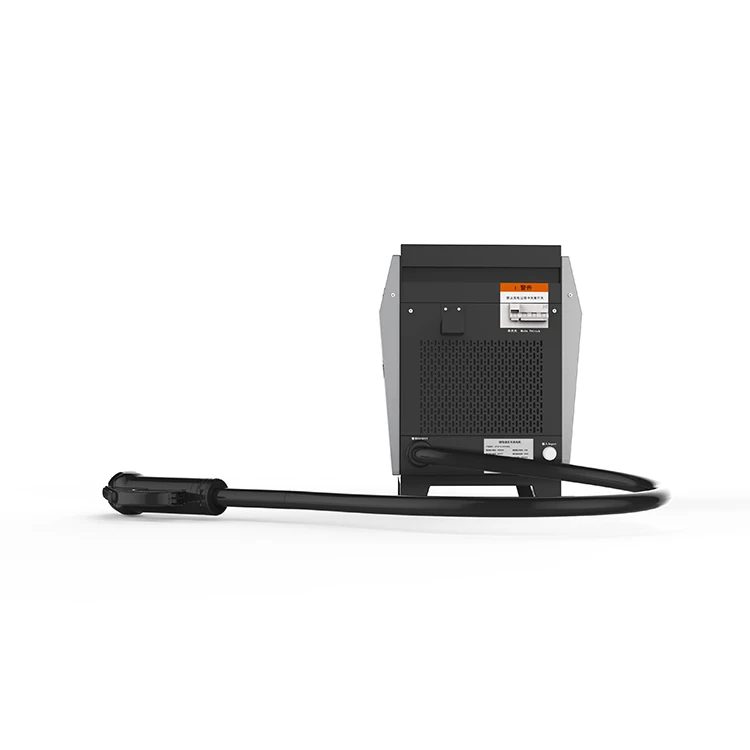

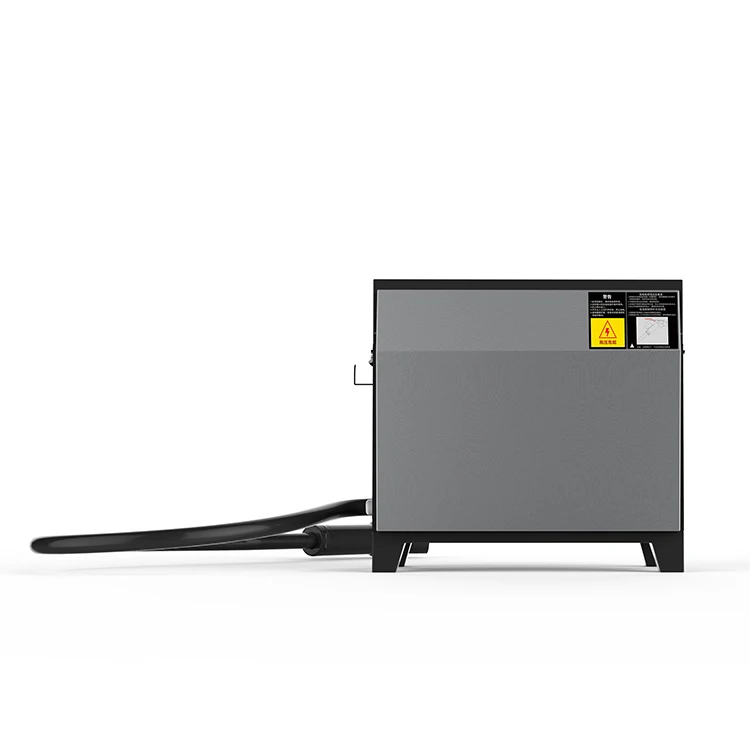

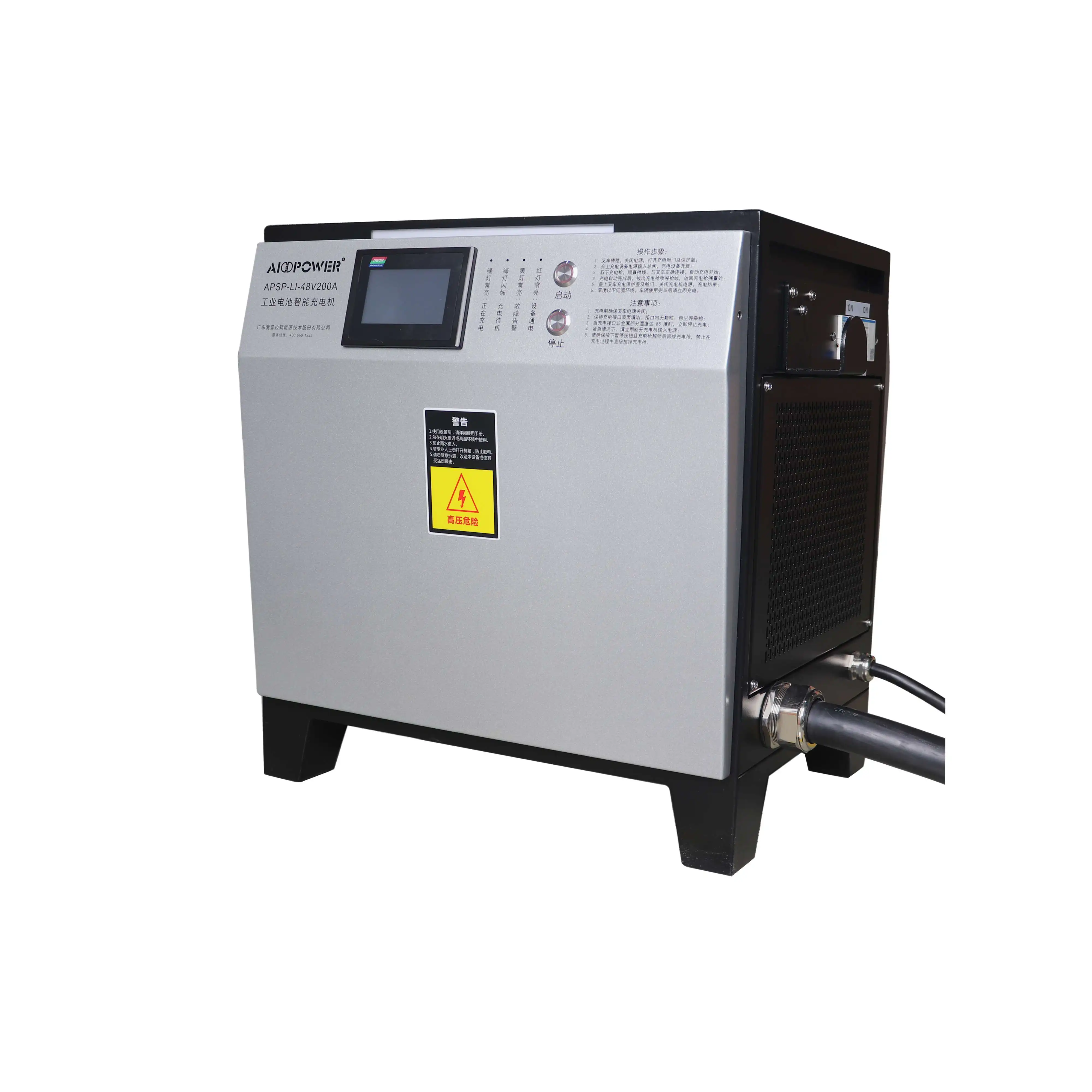

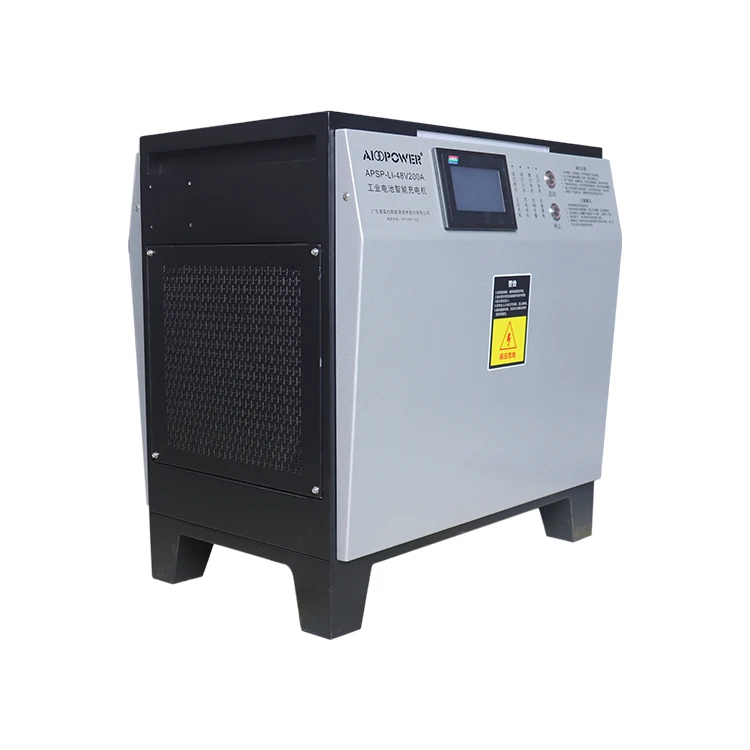

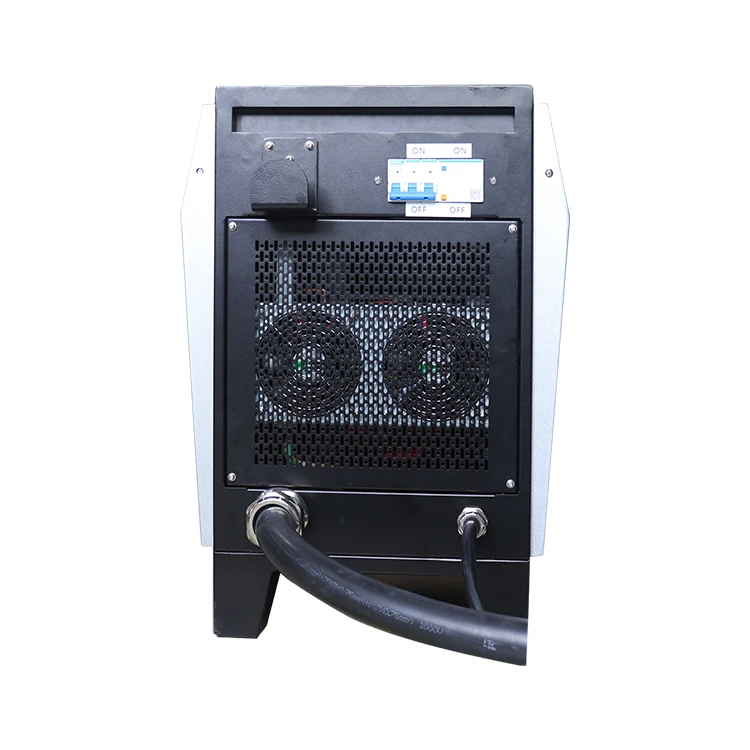

High Quality Durable Using 200A 9.6kw Smart 48volt Lithium Ion Golf Car Battery
Name | Lithium Battery Charger |
Current Adjustable Range | 5A-100A |
Output Voltage | 30VDC-65VDC |
Connector Type | REMA |
Rated Output Current | 200A |
Power | 9.6kw |
Rated Input Voltage | Three Phase-Four wire 380VAC |
Rated current Range | <20A |
Frequency | 50Hz~60Hz |
PF Power Factor | ≥0.99 |
HDI-Current Distortion | ≤5% |
Input Protection | Overvoltage, under-voltage, overcurrent and lack of phase protection |
Ripple Wave | ≤1% |
Stable Voltage Precision | ≤±0.5% |
Efficciency | 92% |
Relative Humidity | 5%~95%， No Condensation |
Insulation Strength | IN-OUT:2800VDC/10mA/1Min IN-SHELL:2800VDC/10mA/1Min OUT-SHELL:500VDC/10mA/1Min IN-OUT: DC500V>10MΩ IN-SHELL: DC500V>10MΩ OUT-SHELL: DC500V>10MΩ |
Dimension | 800*560*430mm |
I/O Line Length | 3m |
Heat Dispation | Forced Air Cooling |
More Products
About Us
Certifications

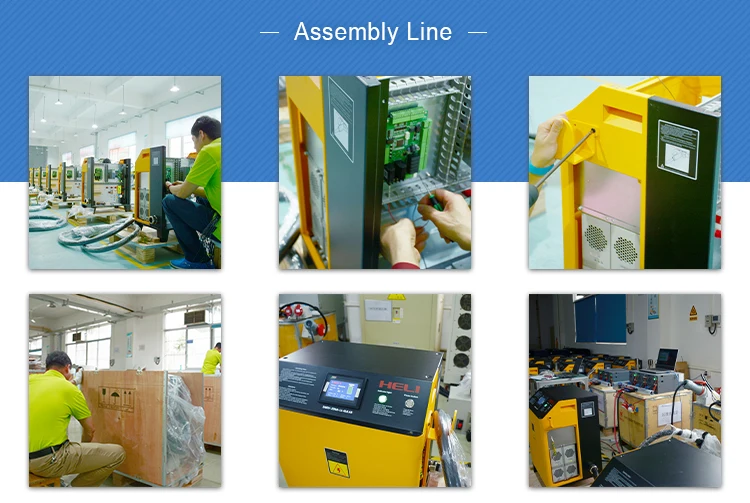

Assembly Line

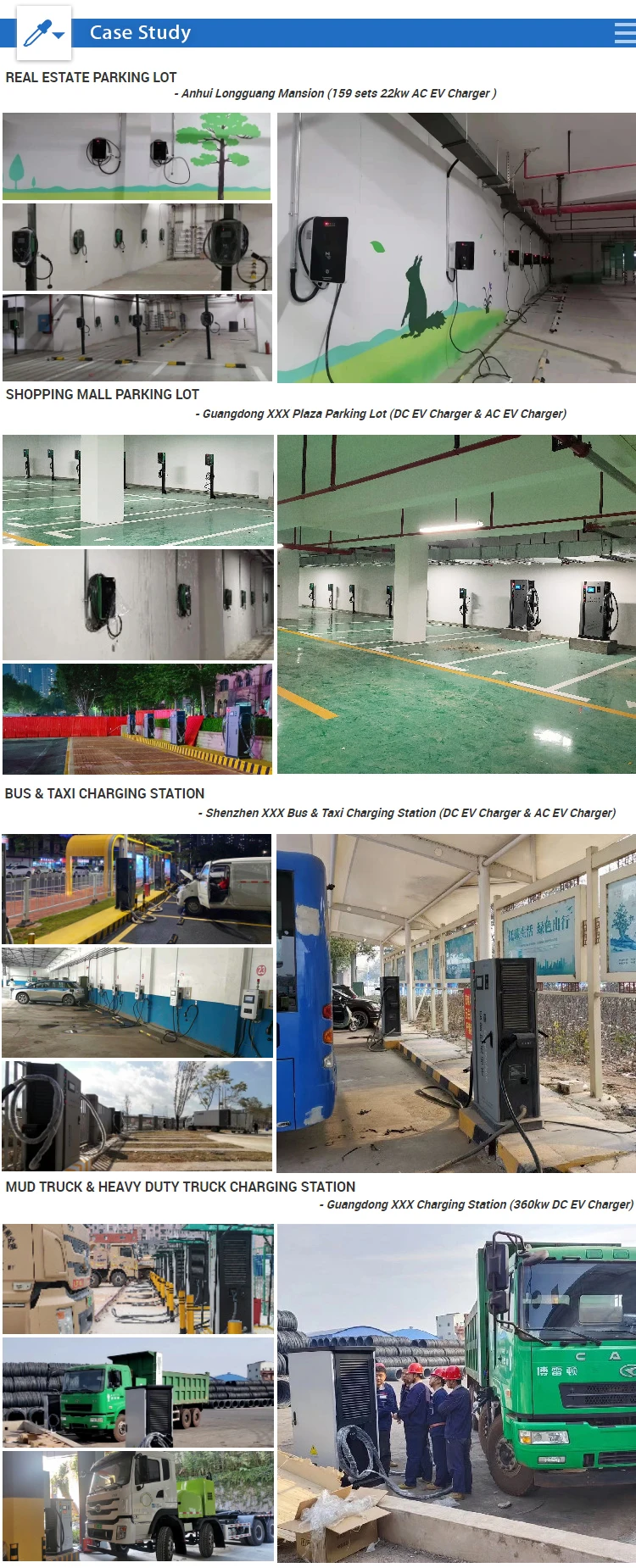

Case Study
Transportation&Packaging
FAQ
1. Are you factory or trading company?
We are definately factory with 15000+m² production base.
2. May I get a sample of your products to check quality?
Yes, of coourse. Sample orders are welcomed for quality checking. We will offer you the same price as small batch.
3. What is your MOQ if I want to put my logo on your products?
It depends on which model you choose. Generally we will printing your logo for free based on 500sets for AC EV Charger 200 sets for DC EV Chargers.
4. What is the shipping cost for a sample?
The dimension and weight of each model is different. We will provide you the shipping cost when you confirmed the model.
5. What is your payment terms regarding big quantity orders?
We will provide you different price according to EXW/FOB/DDP/DAP and other incoterms. We accept payment on alibaba trade assurance and T/T bank transfer. 50% down payment as deposit when order confirmed. Balance payment shall be done before parts delivery.
