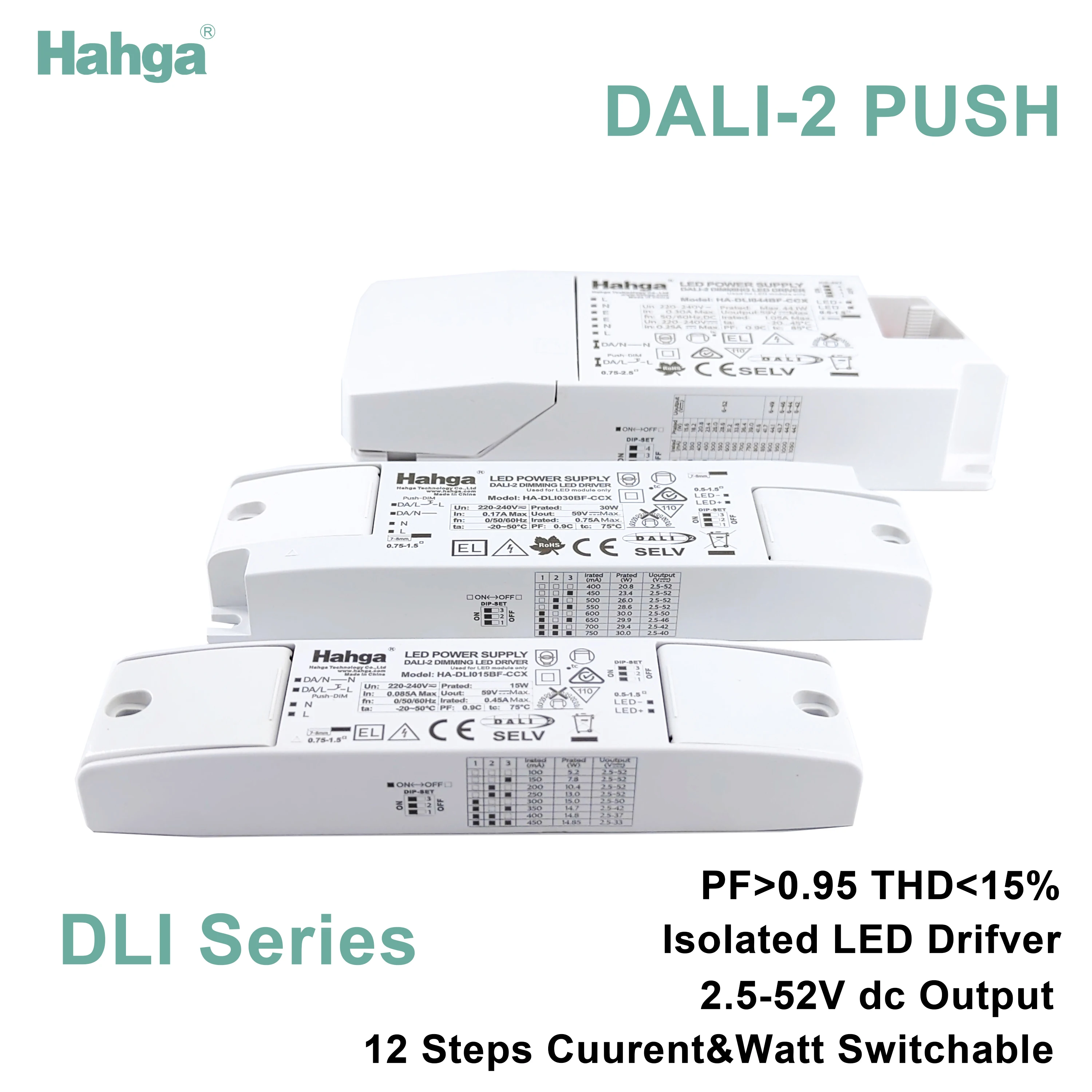

5W 10W 15W Led driver 2.5V 52 DALI PUSH led driver dimmable power supply IP20
- Category: >>>
- Supplier: Zhongshan Hahga Technology Co. Ltd.
Share on (1600264200486):
Product Overview
Description
Hahga
Products Description
Feature
■Output constant Current
■Range: 220-240VAC 220-240VDC
■Power Factor:≥0.95
■Efficiency up to 88%
■Protections: short circuit/over load/ over temperature
■IP20design for indoor and outdoor installation
■Power Factor:≥0.95
■Efficiency up to 88%
■Protections: short circuit/over load/ over temperature
■IP20design for indoor and outdoor installation

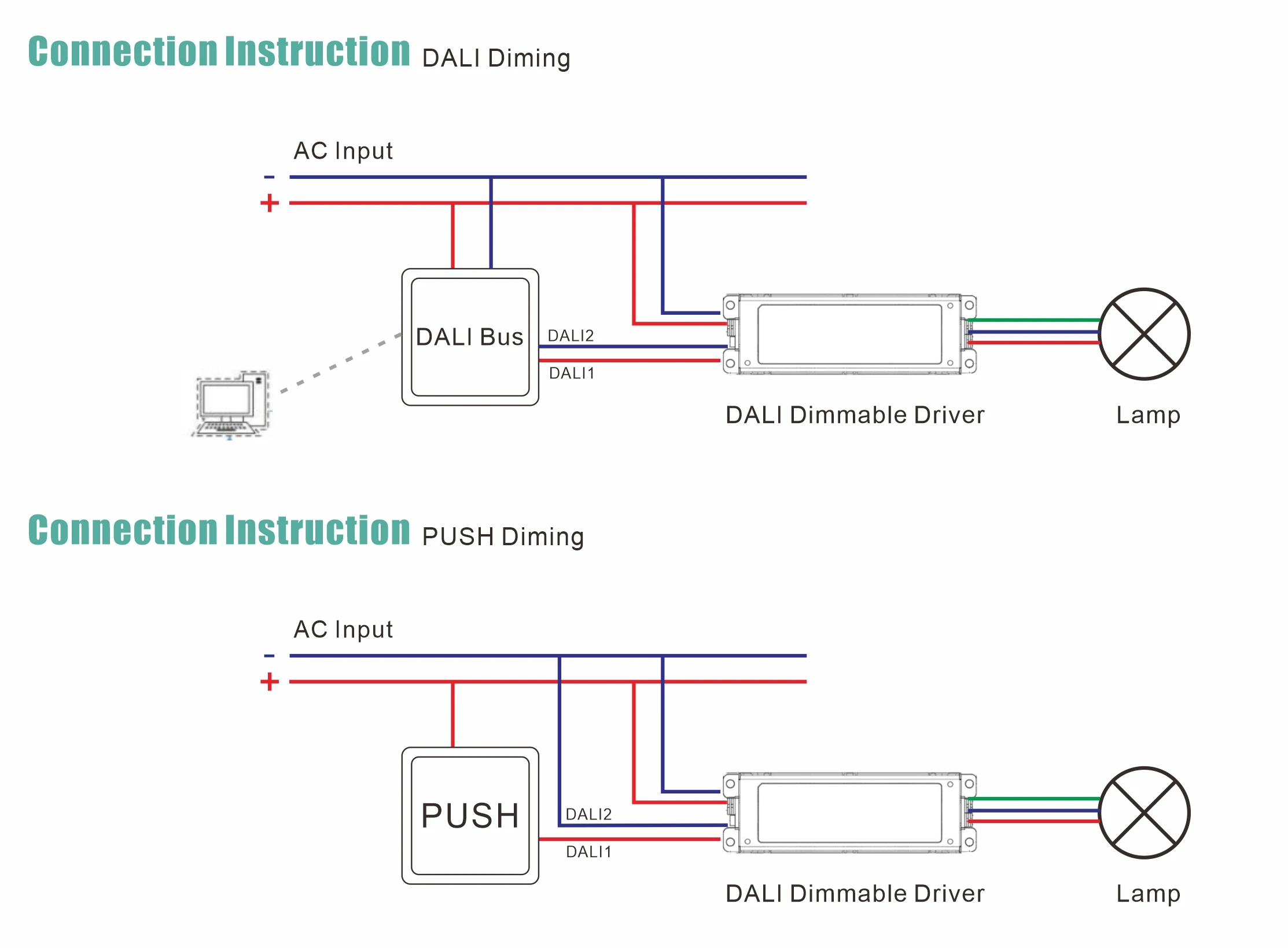

■Dimming function: DALI-2&PUSH dimming
■Digital dimming, accurate, stable and smooth dimming
■Digital dimming, accurate, stable and smooth dimming
■Single light control, more flexible control
■Signal wire isolation

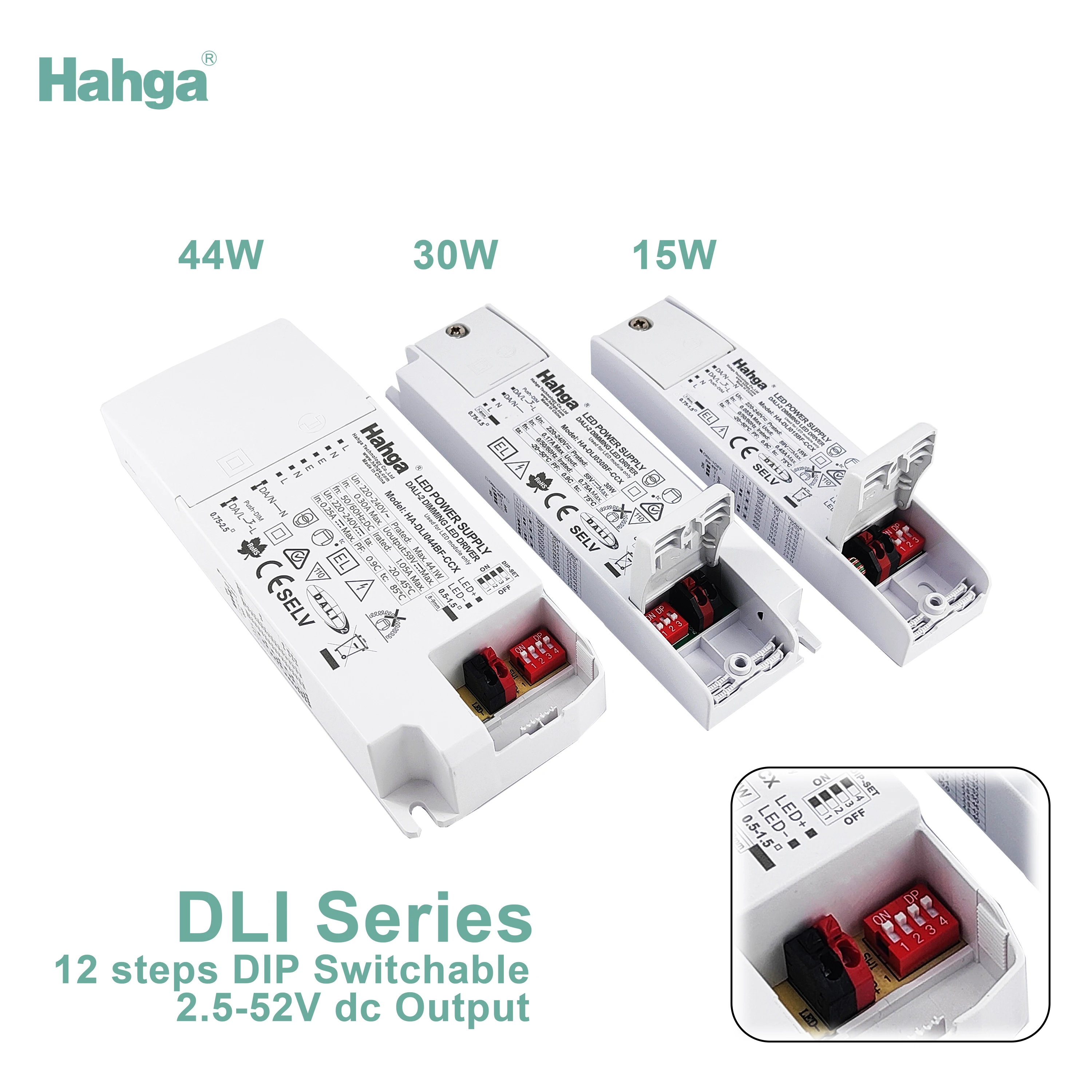

■DIP Switchable for Current and Wattage, 16 Steps different wattage optional. One Driver support 16 product.
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■Signal wire isolation
■DIP Switchable for Current and Wattage, 16 Steps different wattage optional. One Driver support 16 product.
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■CE Rohs approval
■5-year warranty
■5-year warranty

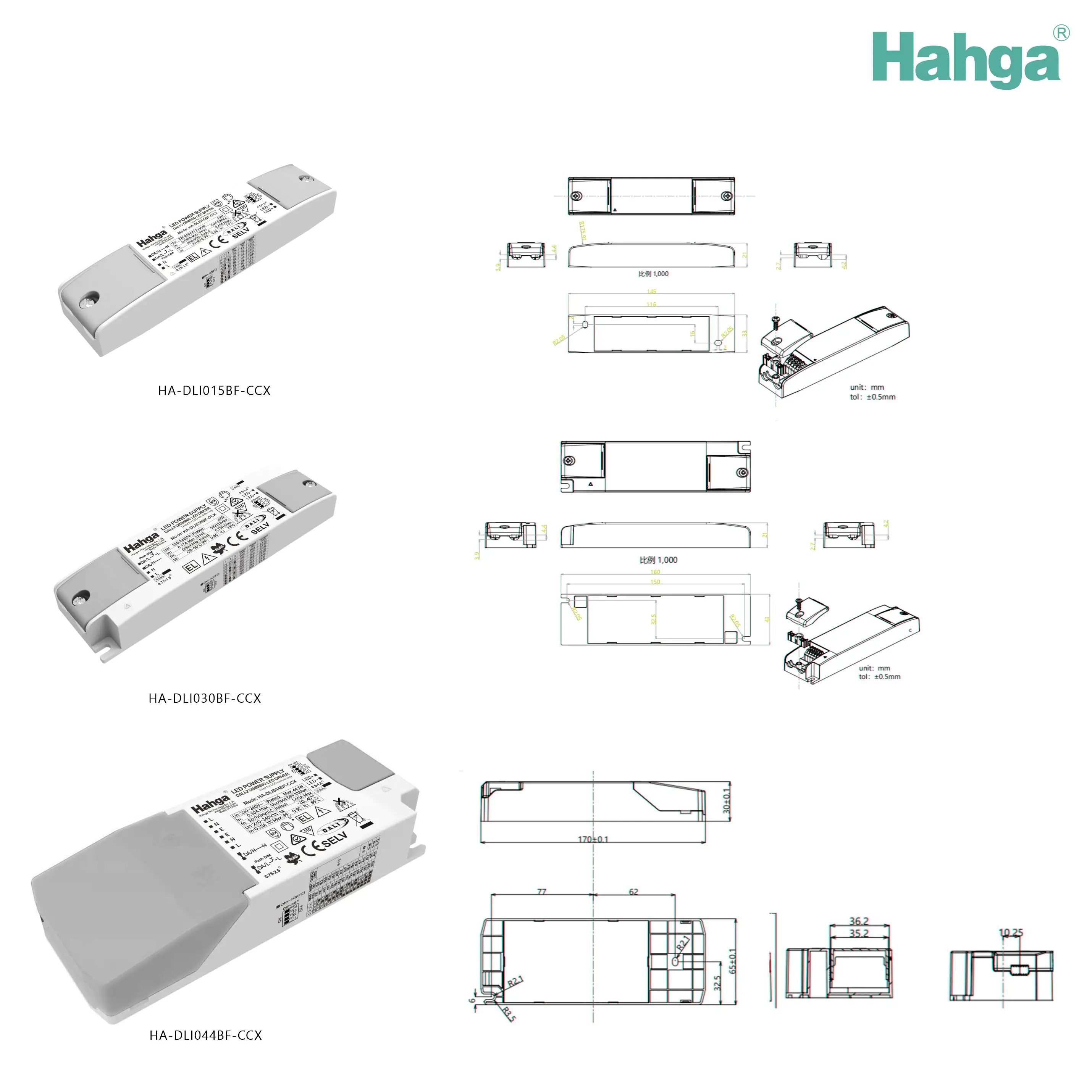

Model | Output Current (mA) | Output Power (W) | Output Voltage (Vdc) | Efficiency (%) | Dimension (mm) |
HA-DLI015BF-CCX | 100 | 5.2 | 2.5-52 | 81 | 145*33*21 |
150 | 7.8 | 2.5-52 | 81 | ||
200 | 10.4 | 2.5-52 | 81 | ||
250 | 12.5 | 2.5-52 | 85 | ||
300 | 15 | 2.5-50 | 85 | ||
350 | 14.7 | 2.5-42 | 85 | ||
400 | 14.8 | 2.5-37 | 85 | ||
450 | 14.85 | 2.5-33 | 85 | ||
HA-DLI030BF-CCX | 400 | 20.8 | 2.5-52 | 86 | 160*43*21 |
450 | 23.4 | 2.5-52 | 86 | ||
500 | 26 | 2.5-52 | 86 | ||
550 | 28.6 | 2.5-52 | 86 | ||
600 | 30 | 2.5-50 | 86 | ||
650 | 29.9 | 2.5-46 | 87 | ||
700 | 29.4 | 2.5-42 | 87 | ||
750 | 30 | 2.5-40 | 88 | ||
HA-DLI044BF-CCX | 300 | 15.6 | 6-52 | 87 | 170*65*30 |
350 | 18.2 | 6-52 | 87 | ||
400 | 20.8 | 6-52 | 87 | ||
450 | 23.4 | 6-52 | 87 | ||
500 | 26 | 6-52 | 87 | ||
550 | 28.6 | 6-52 | 87 | ||
600 | 32.2 | 6-52 | 87 | ||
650 | 33.8 | 6-52 | 87 | ||
700 | 36.4 | 6-52 | 87 | ||
750 | 39 | 6-52 | 87 | ||
800 | 41.6 | 6-52 | 87 | ||
850 | 41.7 | 6-49 | 88 | ||
900 | 44.1 | 6-49 | 88 | ||
950 | 43.7 | 6-46 | 88 | ||
1000 | 44 | 6-44 | 88 | ||
1050 | 44.1 | 6-42 | 88 |
Technical Norm | HA-DL040BF-CX1150/T | HA-DL060BF-CX1500/T | |||||
Output Type | Constant Current | ||||||
Dimming Type | Dali-2 & PUSH | ||||||
Dimming Range | 1-100% | ||||||
Dimming Depth | 0.1% | ||||||
Output Features | Isolation | ||||||
Insulation Class | Class II | ||||||
Voltage Range | AC220-240V DC220-240V | ||||||
Limited Voltage | 264VAC | ||||||
Power Factor | >0.95 | ||||||
T.H.D | <15% | ||||||
Current Ripple | ±5% | ||||||
PstLM | <1 | ||||||
SVM | <0.4 | ||||||
Current Accuracy | ±5% | ||||||
Power-on Time | <0.5s | ||||||
Protection | Short Circuit | constant voltage mode, recover automatically after fault condition is removed | |||||
Over Loading | ≤120% constant voltage limiting, recover automatically after fault condition is removed | ||||||
Over Temperature | 100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
Others | Ta | -20℃~50℃ | |||||
Tc | 85℃ | ||||||
IP rating | IP20 | ||||||
Life span | 50000hours | ||||||
Warranty | 5 years | ||||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||||
