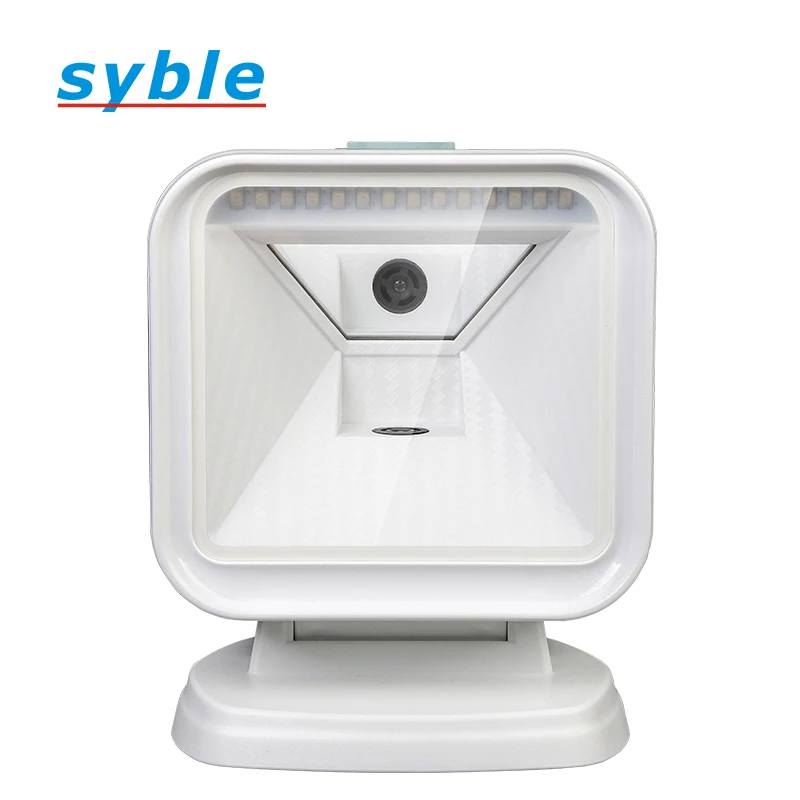

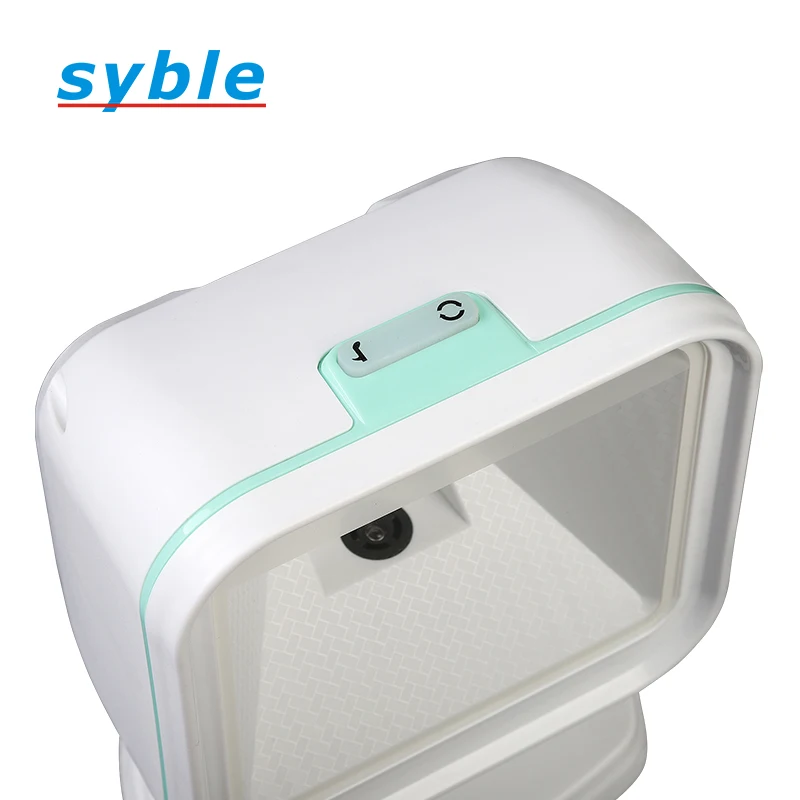

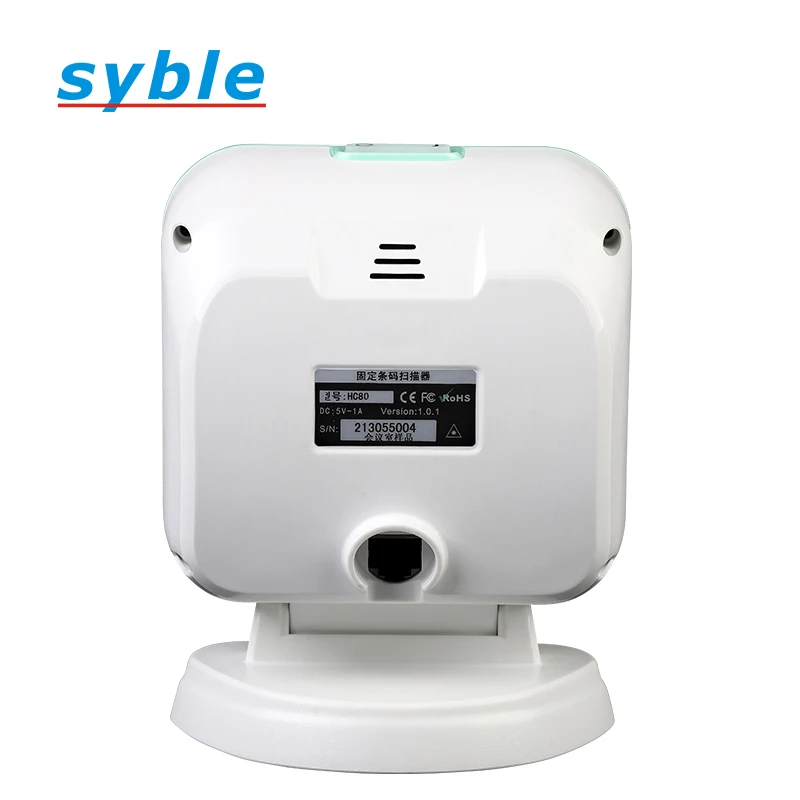

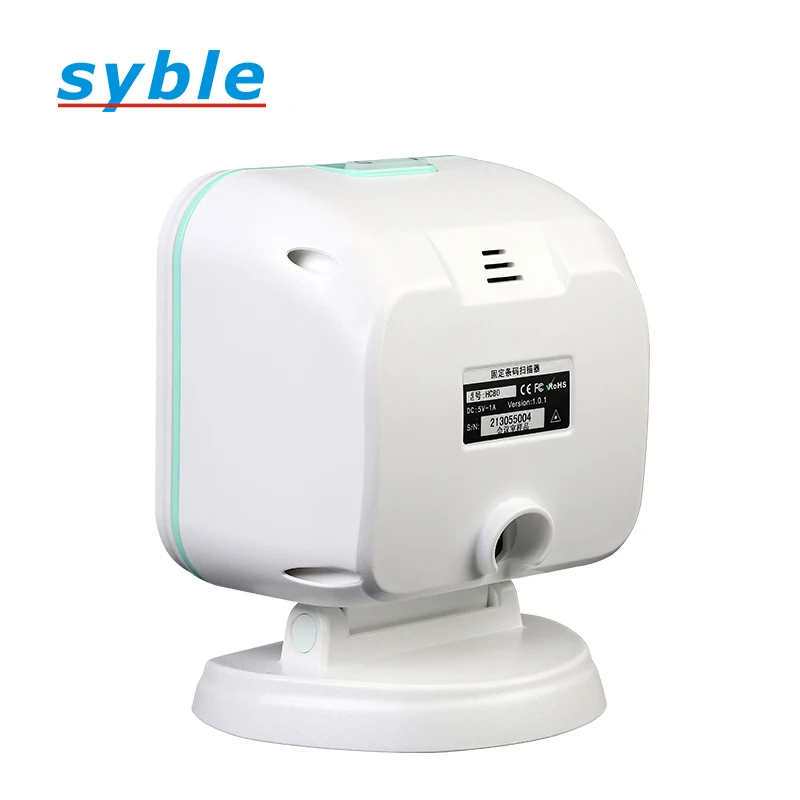

syble high quality QR barcode scanner Medical Payment System 1D and 2D code reader HC80
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (1600264265168):
Product Overview
Description
syble high quality QR barcode scanner Medical Payment System 1D and 2D code reader HC80
Product Description
Feature
•Compatible with Linux, Android, Windows XP, 7, 8, 10, MAC
• Switch to read only 1D code, to prevent misreading adjacent 2D code
• Read the coated bar code and mobile phone payment code smoothly
• Quick and accurate reading of universal 1D & 2D code
• Ultra wide scan wide Angle and ultra far reading distance
• Soft color fills the light, does not hurt the eye

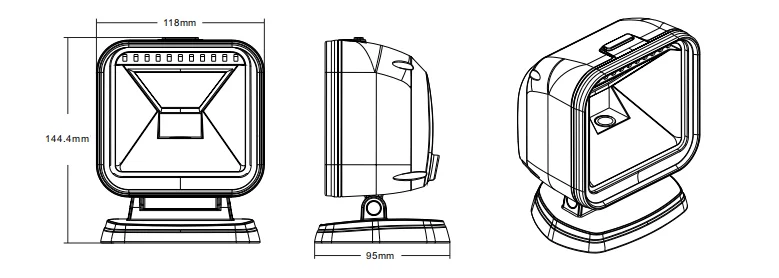

Size
Specification
Specification | |||
Performance Parameters | |||
Image Sersor | SXGA-W(Width1280*high1024) Ratio(5: 4) | ||
Supported Symbologies | 1D: EAN-8, EAN-13, EAN-132add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1DataBar(RSS14), GS1DataBarLimited, GS1DataBarExpanded. 2D: PDF417, MicroPDF417, QR-code, MicroQR, DataMatrix, QR, Aztec. | ||
Scan Range | 5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(Code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm | ||
System compatibility | Linux,Android,Windows XP,7,8,10,MAC | ||
Minimum recognition accuracy | Code 39 4mil | ||
Barcode Type | Paper, Thinfilm1D/2D; 1D/2Dbarcodeonmobilephone, tabletscreen | ||
Motion tolerance | 3.8meters/second | ||
Scan Mode | Continuous Scanning | ||
Support Keyboard | Support Multi-Language | ||
Barcode output editing | Support Prefix & Suffix | ||
Comminication Interface | USB(Drive-Free), RS232, USB-COM | ||
Print contrast | 20% | ||
Recognition angle range | Turn ±360°, Elevation ±60°, Declination ±70° | ||
Mutual Move | Led: Blue light: blue light flashes the code reading prompt, blue light power indicator Red light: turn off the QR code reading function; Beeper: Startup prompts, reading tips Key: switch three tones; QR code switch | ||
Physical Parameters | |||
Dimensions | 118mm*95mm*144.4mm | ||
Weight | 390g | ||
Material | ABS+PC | ||
Cable Length | 2M | ||
Environmental Parameters | |||
Operating Temperature | -20℃ - 55℃ | ||
Storage Temperature | -20℃-60℃ | ||
Relative Humidity | 5% ~95% RH (non-condensing/non-freezing) | ||
Ambient Ligh | 0-70000LUX | ||
Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | ||
Electronic Parameters | |||
Working Voltage | DC5V±5% | ||
Operating Current | Standby current 180mA; Working current 210mA. | ||
Packaging & Shipping
- Fast Shipping from Guangzhou Xunbao barcode scanners Factory
- Item shipped in 3-10working days after payment is received depends on the quantity of the order.
- Item shipped by UPS,FEDEX,DHL,TNT and others,depending onf size and weight of total order
- Deliver time:24hours from stock order,production order within 3-5days.
- Tracking number will be sent to you as soon as when shipped the goods
Company Information
We are barcode scanner manfacturer in Guangzhou, which qualified by ISO9001:2008,all products passed CE,RoHS,and FCC etc.
| Safety Standards | |
| EMC | CE EN55022 B, FCC Part 15 Class B, SGS,IP54 Waterproof Test. |
| Laser safety | IEC 60825-1 Class 1 |
The Reason You Choose XUNBAO
Product Performance: Owns Core technology of laser barcode scanner, Performance has reached international level after continuous optimization for promotion ;
Technical Available: Any kinds of communication interfaces available & Customized, Command control Available, Provide secondary development.
Quality: Strict quality management system, Return rate control in 0. 65% & it was a decreasing trend.
Market Share: Our own brand and OEM, ODM brand in the Chinese marketsimilar products, market share as high as21%.
Price: Compare with American & Europe products of the same grade, The Price is 52% only of them.
Parket Protection: Strict regional exclusive agent system, To ensure the long-term interests of dealers.
Our Services
Technical support
- Provide the necessary professional traning online or offline
- Comprehensive technical support provide pre-sales&after-sales
- Presentation&promotion of the new inonvative products
Spare parts policy
- Provide certain spare parts in every order shipment as required
- Provide free maintenance or replacement spare parts within the given warranty period
- Provide free maintenance technology and spare parts chargeable under out of warranty
Products service
- Provide the pre-sales,in-sales and after-sales services
- Provide all technical documents as required
- 2 years warranty for all of our products
Value-added services
- Provide long time maintenance services
- Provide extended warranty as required
- Provide the regular routine maintenance services
FAQ
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design

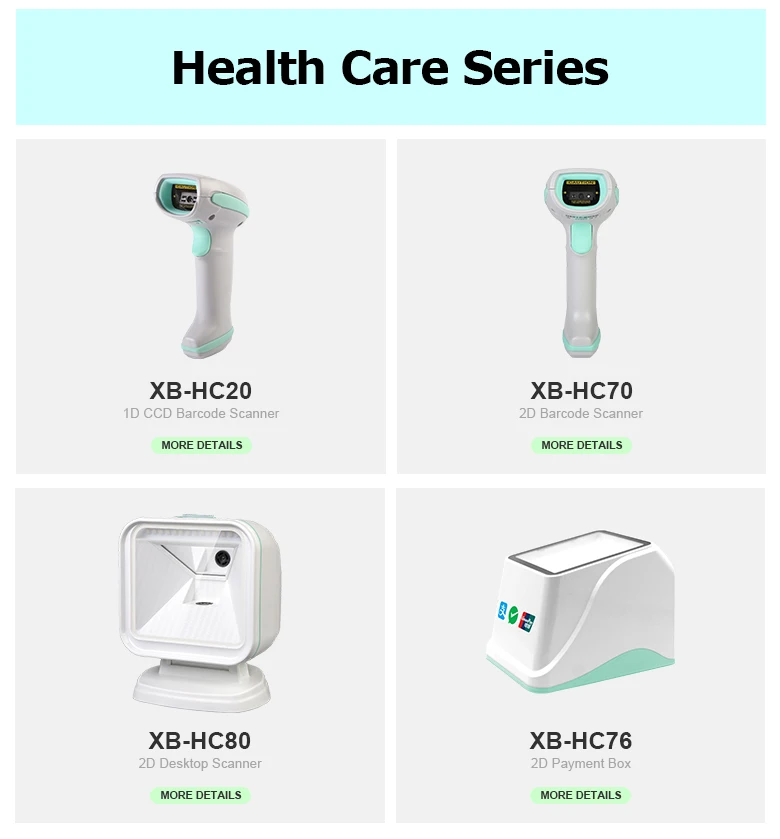

5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
