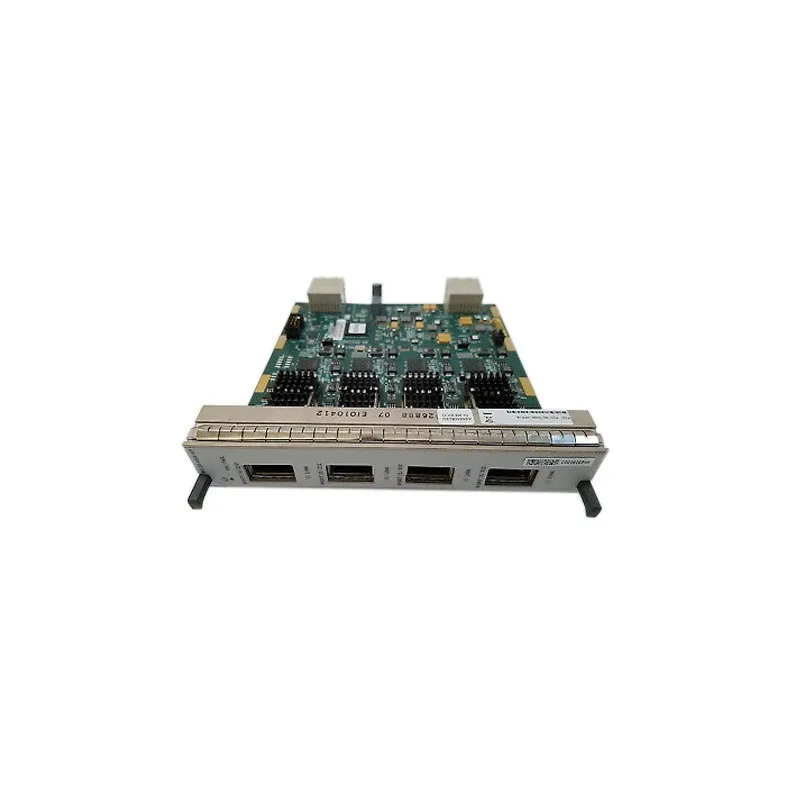

MIC-3D-4XGE-XFP
Model:\tMIC-3D-4XGE-XFP - Juniper Router MX960 Modules & Cards
Detail:\t4x10G MIC for MX, requires optics sold separately. Only supported on MX-MPC2, MPC2E-3D-NG, MPC2E-3D-NG-Q, MPC3E-3D-NG and MPC3E-3D-NG-Q line cards



MIC-3D-4XGE-XFP Overview
4x10G MIC for MX, requires optics sold separately. Only supported on MX-MPC2, MPC2E-3D-NG, MPC2E-3D-NG-Q, MPC3E-3D-NG and MPC3E-3D-NG-Q line cards
MIC-3D-4XGE-XFP Specification
4x10G MIC for MX, requires optics sold separately. Only supported on MX-MPC2, MPC2E-3D-NG, MPC2E-3D-NG-Q, MPC3E-3D-NG and MPC3E-3D-NG-Q line cards


Software release
2-port: Junos 10.2 and later
4-port: Junos 10.1 and later
Description
Two or four 10-Gigabit Ethernet ports
Power requirement:
2-port: 0.6 A @ 48 V (29 W)
4-port: 0.56 A @ 48 V (27 W)
Weight:
2-port: 1 lb (0.45 kg)
4-port: 1.1 lb (0.5 kg)
Model number:
2-port: MIC-3D-2XGE-XFP
4-port: MIC-3D-4XGE-XFP
Name in the CLI:
2-port: 3D 2X10GE XFP
4:-port 3D 4X10GE XFP
Hardware features
High-performance throughput on each port at speeds up to 10 Gbps
LAN-PHY mode at 10.3125 Gbps
WAN-PHY mode at 9.953 Gbps
Maximum transmission units (MTUs) of up to 9192 bytes
Software features
Configurable LAN-PHY and WAN-PHY mode options
Synchronous Ethernet support
Optical diagnostics and related alarms
Virtual Router Redundancy Protocol (VRRP) support
IEEE 802.1Q virtual LANs (VLANs) support
Remote monitoring (RMON) EtherStats
Source MAC learning
MAC accounting and policing—Dynamic local address learning of source MAC addresses
Flexible Ethernet encapsulation
Multiple tag protocol identifiers (TPID)
Interfaces
Syntax: xe-fpc/pic/port where:
fpc: Slot in the router where the MPC is installed
pic:
2-port: 0 when installed in MIC slot 0; 3 when installed in MIC slot 1
4-port: 0 or 1 when installed in MIC slot 0; 2 or 3 when installed in MIC slot 1
port:
2-port: 0 or 1
4-port: 0 or 1
