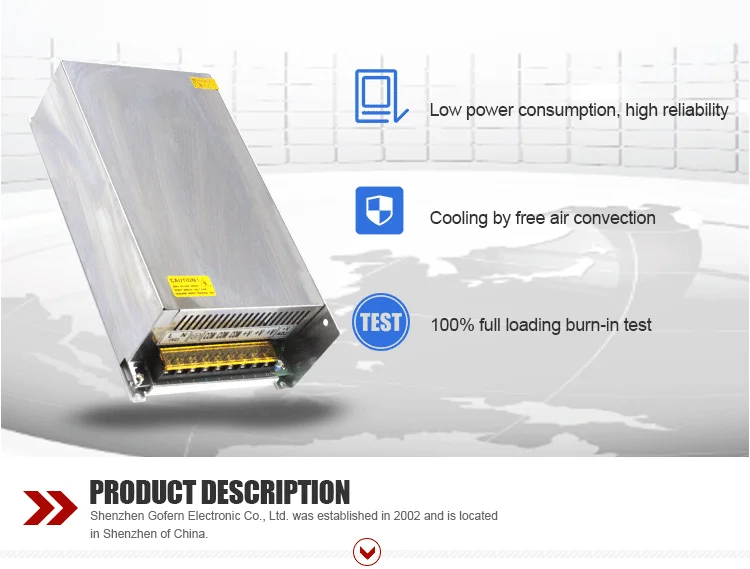

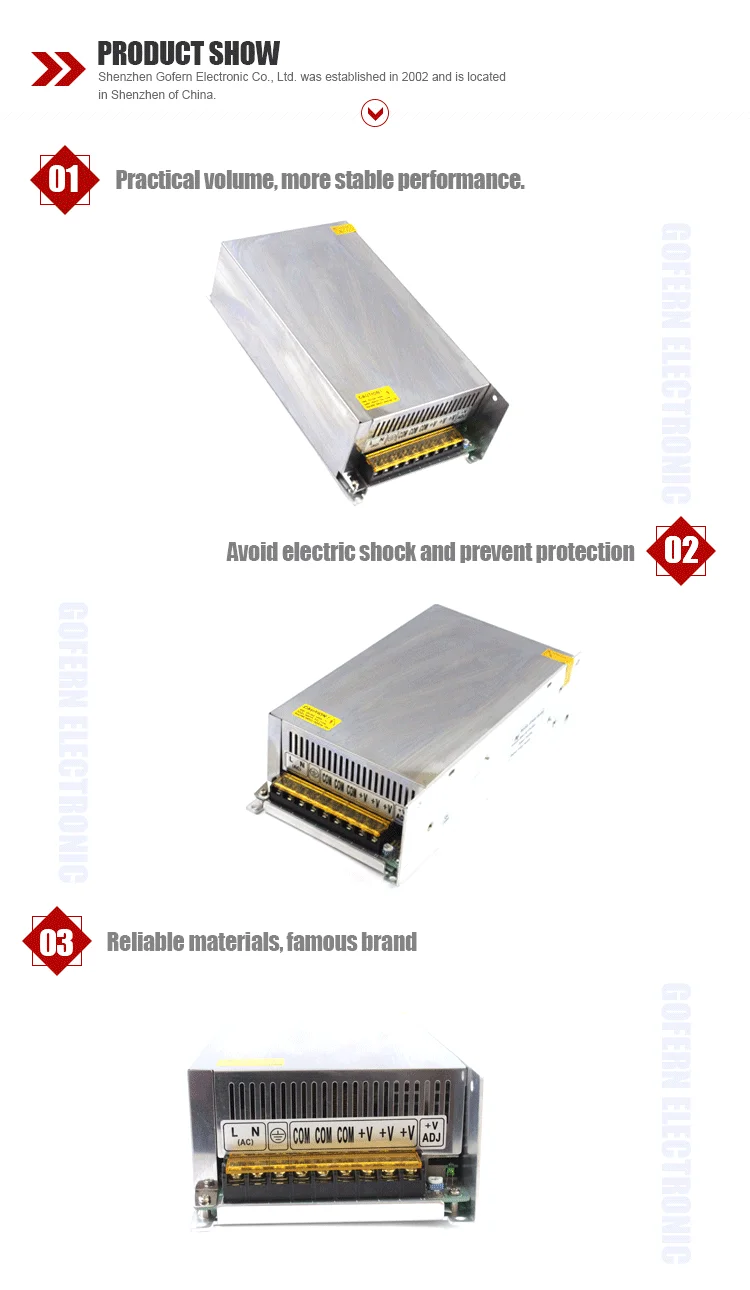

AC 220V high power transformer triac dimmable amplifier power supply 600w

Product Overview

Description

AC 220V high-power transformer triac dimmable amplifier power supply 600w



OUTPUT	DC VOLTAGE	12V	15V	24V	36V	48V
	OUTPUT POWER	600W	600W	600W	600W	600W
	CURRENT RANGE	50A	40A	25A	16.6A	12.5A
	RIPPLE & NOISE(max.)	150mVp-p	200mVp-p	200mVp-p	300mVp-p	300mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	180 ~ 264VAC (110VAC input can be custom-made)
	AC CURRENT(Typ.)	7A/115V        3.5A/230V
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	18A/115V      36A/230V
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FAN
SAFTY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	DIMENSION	L240*W125*H65MM
	WEIGHT	12PCS/Carton/17KG
	SHELL MATERIAL	Aluminium



AC 220V high-power transformer triac dimmable amplifier power supply 600w
