TONGDA Model TD 789 Jute Fabric Weaving Machine
- Category: Spinning Machines >>>
- Supplier: Qingdao,Tongda,Textile,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Company Profile

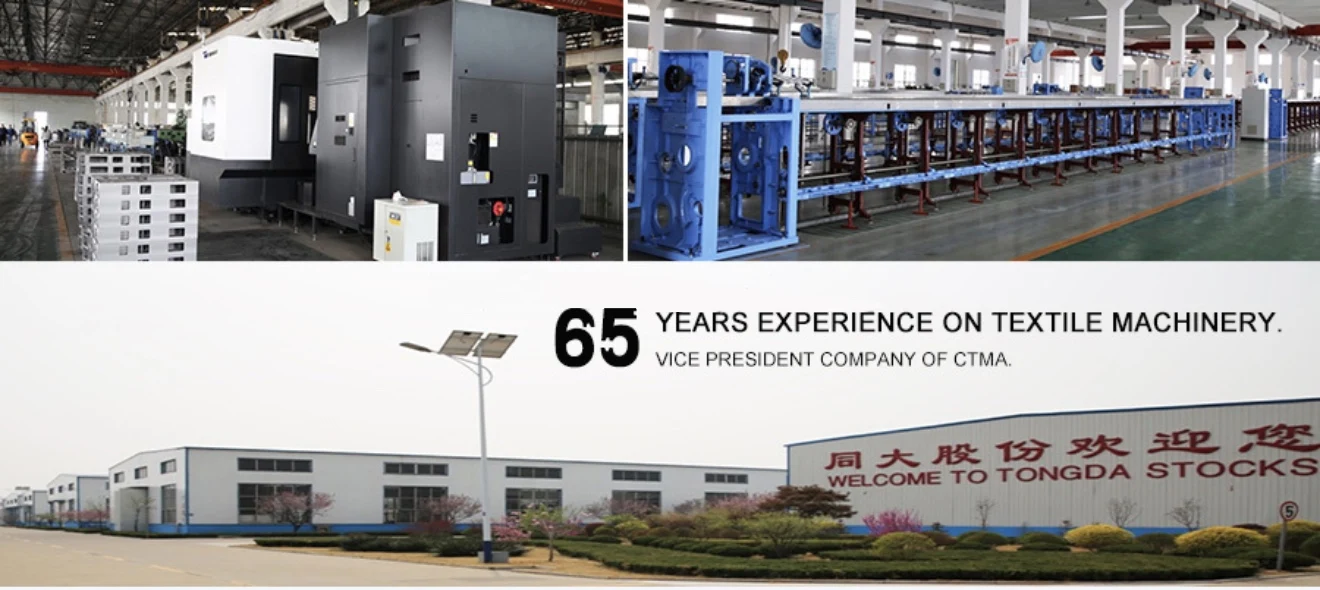

TONGDA are over 60 years old China Government group company and Top brand for textile machinery since 1952. And we are the Vice president Company of CTMA ( China Textile Machinery Association). Our main products are Weaving machines including the Air jet loom, water jet loom and rapier loom ,Yarn spinning machines. We exported to overseas market since 1988.
Product Display
TD788/ TD789 JUTE RAPIER LOOM
Tuck in devices for flexible
fabric width range
Low noise, save space, reduce manpower and dust pollution
The independent mechanical
batching motion
Upper mechanical dobby with spring forced heald return
Microcomputer control system
Piezo electric ceramic sensor
control weft stop
Model | TD 788 | TD 789 | |
Reed width (cm) | 180(74") 200(78") 230(90") 250(98") 280(11 0") 330(130") | 180(74") 200(78") 230(90") 250(98") 280(11 0") 330(130") | |
Rotation speed(R.P.M) | 130~210 | 150-210 | |
Weft selection | Picked by left and right rapier band & hand | 1-4 Colors | |
Let-off Motion | Mechanical | jute yarn 7-60Ne,Chemical fabric 100-650D | |
Take-up & Rolling-up | Continuous take up | 0 - 600 0 - 400 | |
Warp Stop | 6 rows electric warp stop | 8-12 | |
Weft stop | Piezoelectric ceramic sensor control weft stop | 300-400 | |
Beating Up Motion | Crankshaft weft insertion and 4 linkage beating-up | P.L.C | |
Electric System | PLC | 1.5-1.8KW | |
Weight(kg) | 2300~2700 | 1700-2200 | |
Overall size(mm) | 3800x2000x1800 (230cm Working Width) | 5400x1 827x2120(330cm/130") | |
Our Advantage
PRODUCT ADVANTAGE
·The higher output, different working width to choose by the tuck in devices.
·Diversity and Flexible loom is capable of making Hessian or Sacking fabric on the same loom.
·Low noise, save space, reduce manpower and reduce dust pollution compared with the old type shuttle jute rapier loom.
·High technology: Electrical Sensor Warp Break Stoppage, Digital Control Panel (Instant power on, very responsive)
·Suited with the independent mechanical batching motion.
·Convenient operation, operating smoothly, quality and stability, high performance cost ratio, powerful adaptability.
·Diversity and Flexible loom is capable of making Hessian or Sacking fabric on the same loom.
·Low noise, save space, reduce manpower and reduce dust pollution compared with the old type shuttle jute rapier loom.
·High technology: Electrical Sensor Warp Break Stoppage, Digital Control Panel (Instant power on, very responsive)
·Suited with the independent mechanical batching motion.
·Convenient operation, operating smoothly, quality and stability, high performance cost ratio, powerful adaptability.
Application
APPLICATION
This machine is suitable for jute fabric weaving, and it is more suitable for A Twill/ T Twill/ Jute Shopping Bag/Rice Bag/Standard B twill fabric/Light Cees Jute Bag weaving and etc.
Exhibition
Related Products

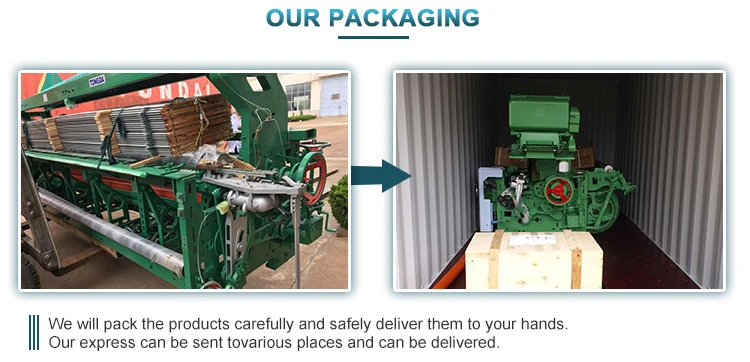

Our packaging
