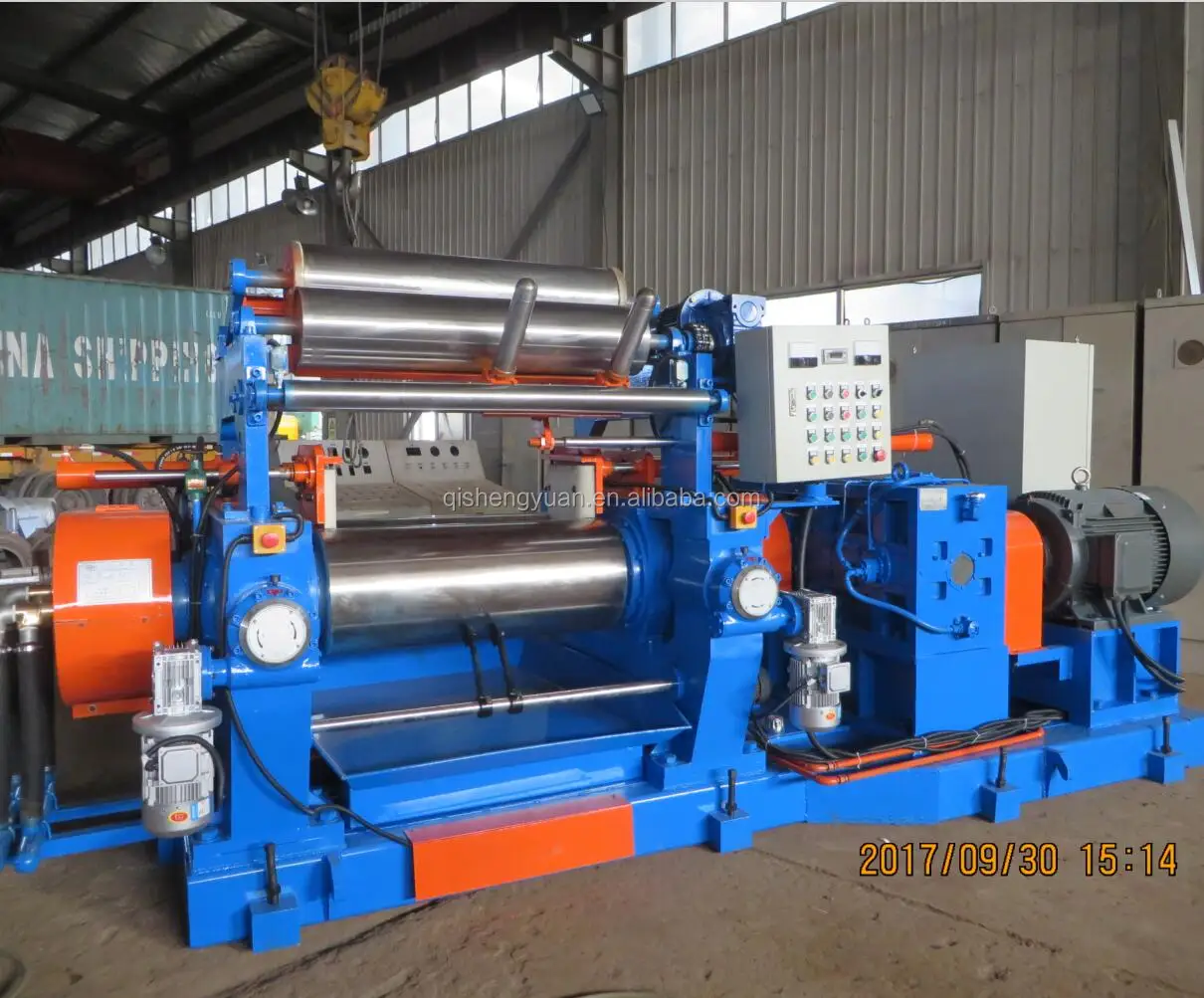

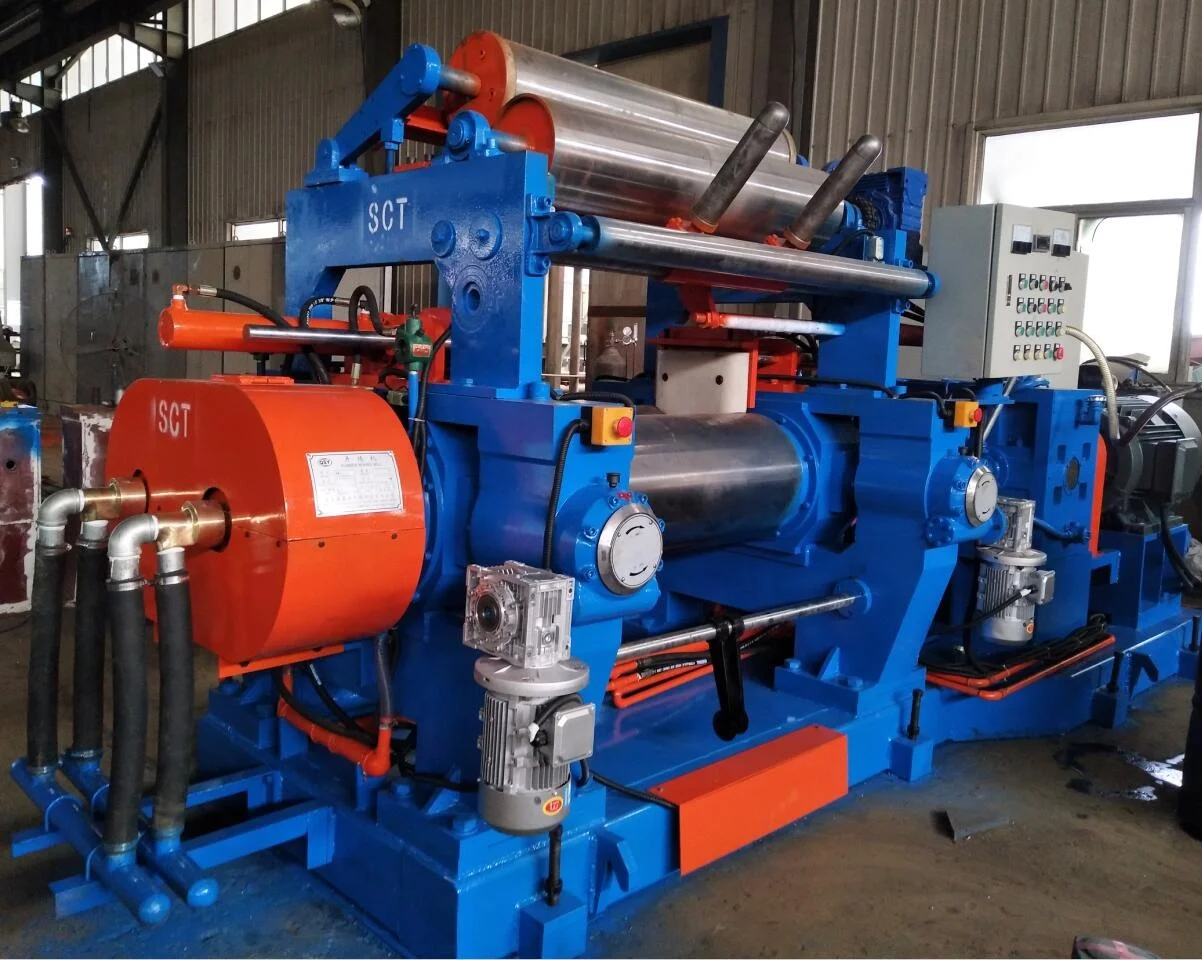

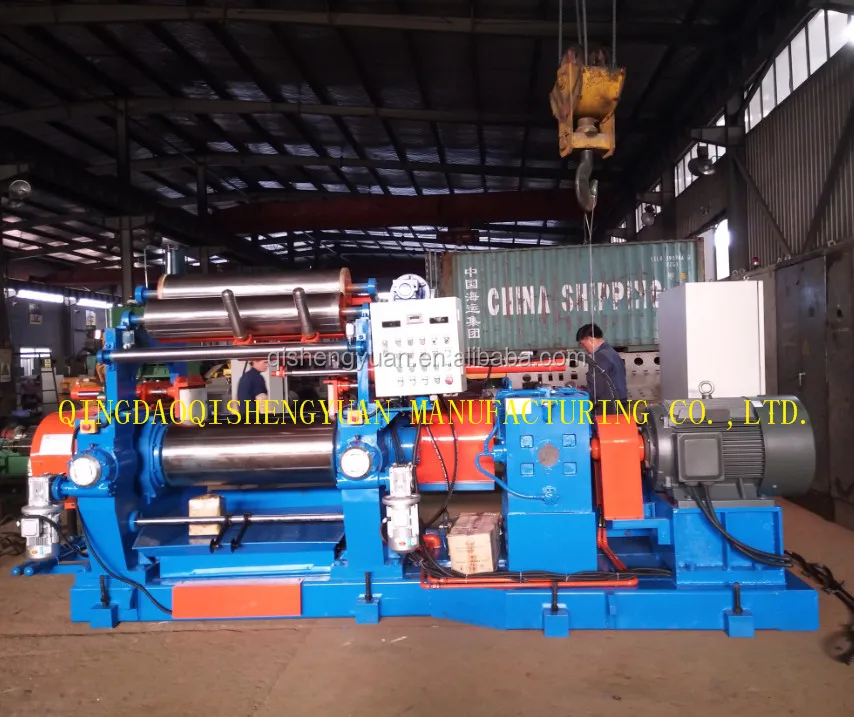

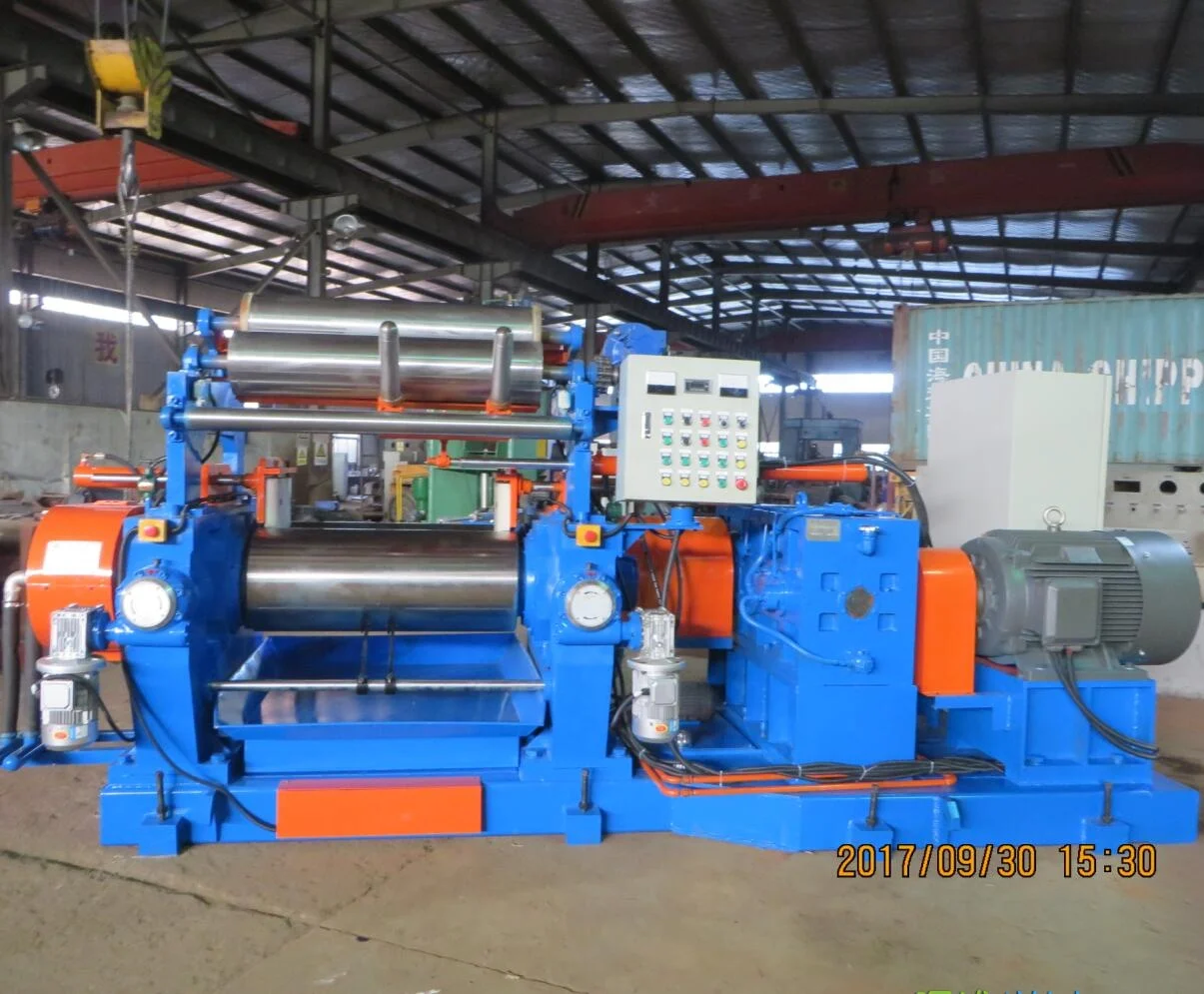

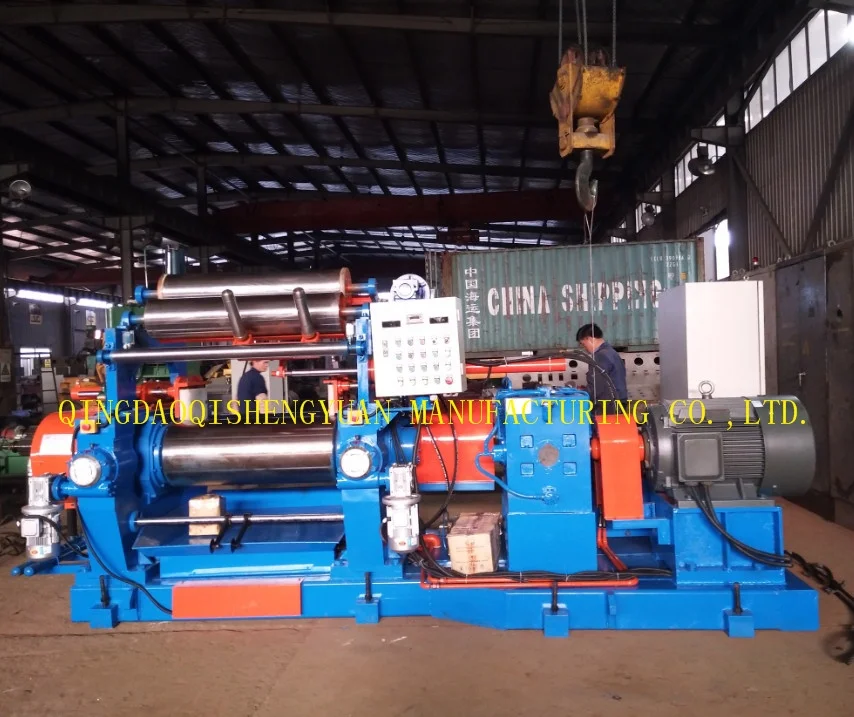

This is the mill we export to Thailand.,High configuration,. electric nip distance-adjusting ,with stock blender ,Hydraulic block
Product Description
Specification
Version | XK-160 | XK-250 | XK-300 | XK-400 | XK-450 | XK-560 | XK-660 |
Roll diameter(mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
Working length of rolls(mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
Front roll surface speed(m/min) | 8.99 | 15.3 | 15.1 | 18.65 | 24.32 | 27.72 | 28.6 |
Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
Max.nip (mm) | 4 | 8 | 8 | 10 | 15 | 15 | 15 |
Capacity per.batch (kg) | 1-2 | 10-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
Motor power (kw) | 5.5 | 18.5 | 22 | 37 | 55 | 90 | 245 |
Overall dimensions(mm) | 1160*920 *1370 | 3120*1322 *1500 | 3580*1550 *1695 | 4350*1850 *1780 | 5670*2390 *1670 | 5845*2284 *1978 | 7465*3662 *2080 |
Weight(kg) | 1000 | 4000 | 5200 | 7600 | 12000 | 23000 | 49000 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

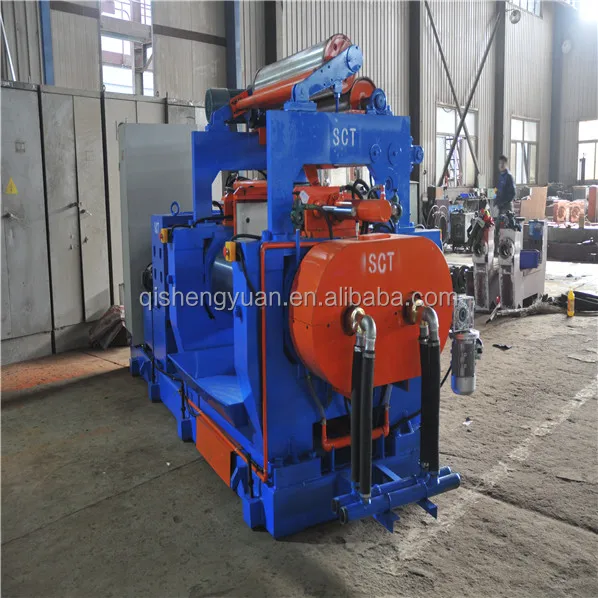

Features of Open Mixing Mill
* The roller material is vanadium titanium alloy cold hard cast iron, the surface is hard and wear-resisting roller has drilling
or hollow way to heat or cool, so that the roller surface temperature is even;

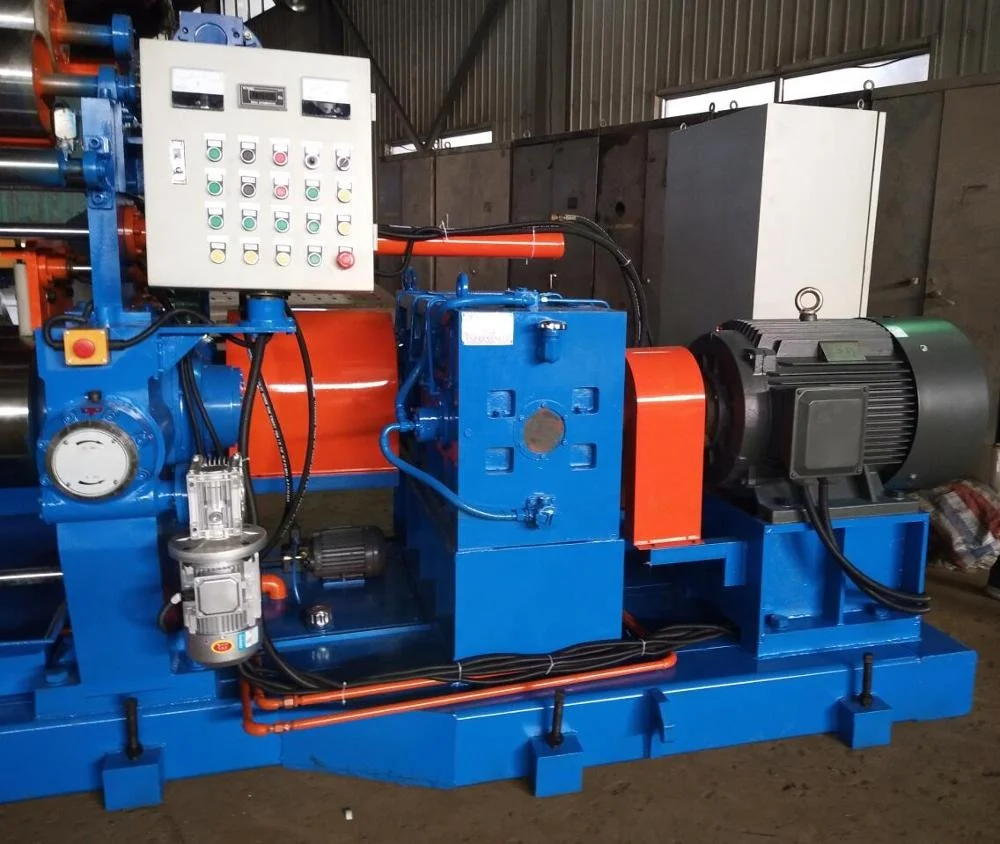

* The transmission system uses the hard tooth surface reducer, the structure compact noise is low, the efficiency is high.
* The roller adopts adjustable bearing, low energy consumption, convenient maintenance and long service life.

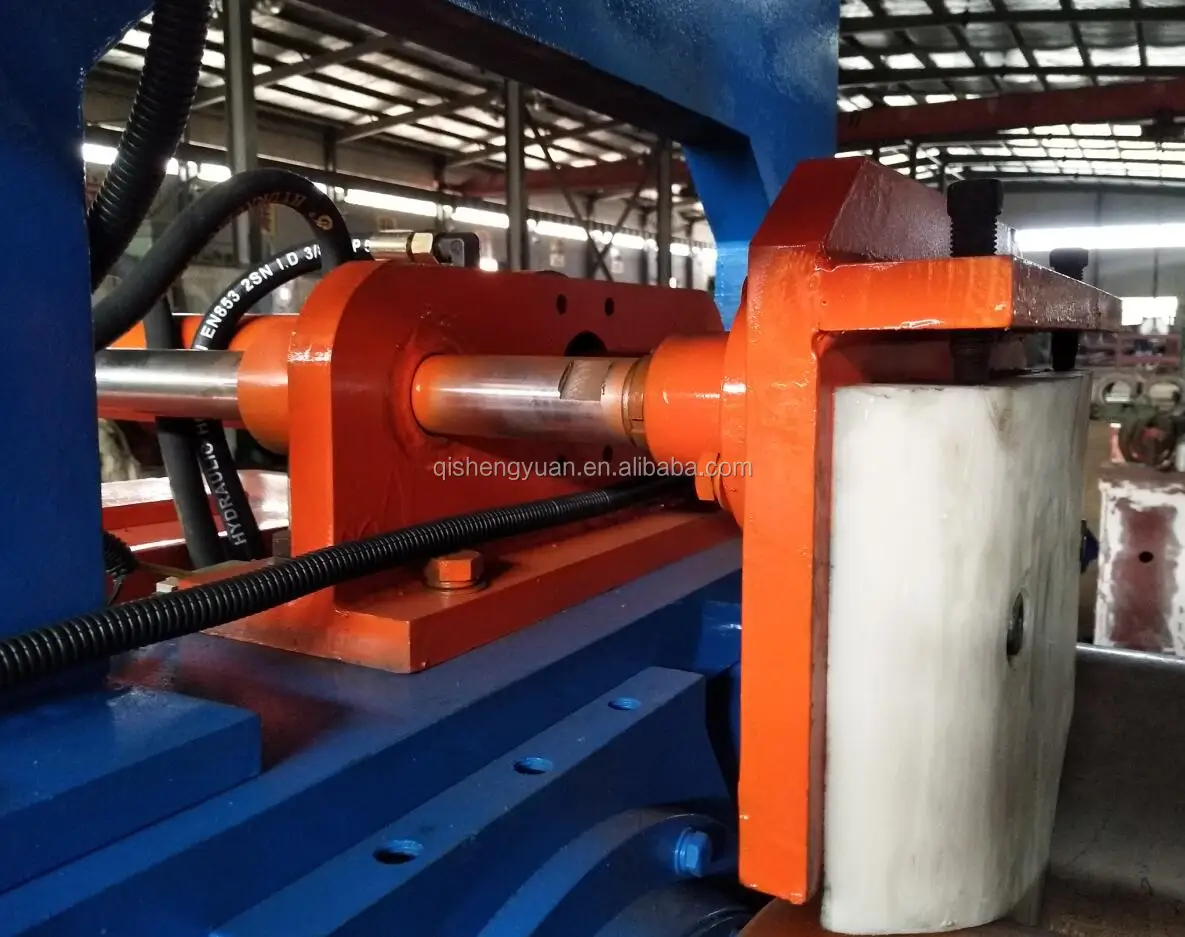

* The machine is equipped with hydraulic and electric power steering gear. When an emergency occurs, press the switch, and the
machine immediately brakes or reversals, safe and reliable.
* The lubricating system uses a single circulating lubricant to reduce the oil leakage.
* The roller material is vanadium titanium alloy cold hard cast iron, the surface is hard and wear-resisting roller has drilling
or hollow way to heat or cool, so that the roller surface temperature is even;
* The transmission system uses the hard tooth surface reducer, the structure compact noise is low, the efficiency is high.
* The roller adopts adjustable bearing, low energy consumption, convenient maintenance and long service life.
* The machine is equipped with hydraulic and electric power steering gear. When an emergency occurs, press the switch, and the
machine immediately brakes or reversals, safe and reliable.
* The lubricating system uses a single circulating lubricant to reduce the oil leakage.
we have in stock open mills ,do you need normal coniguration or electric heating type ?
