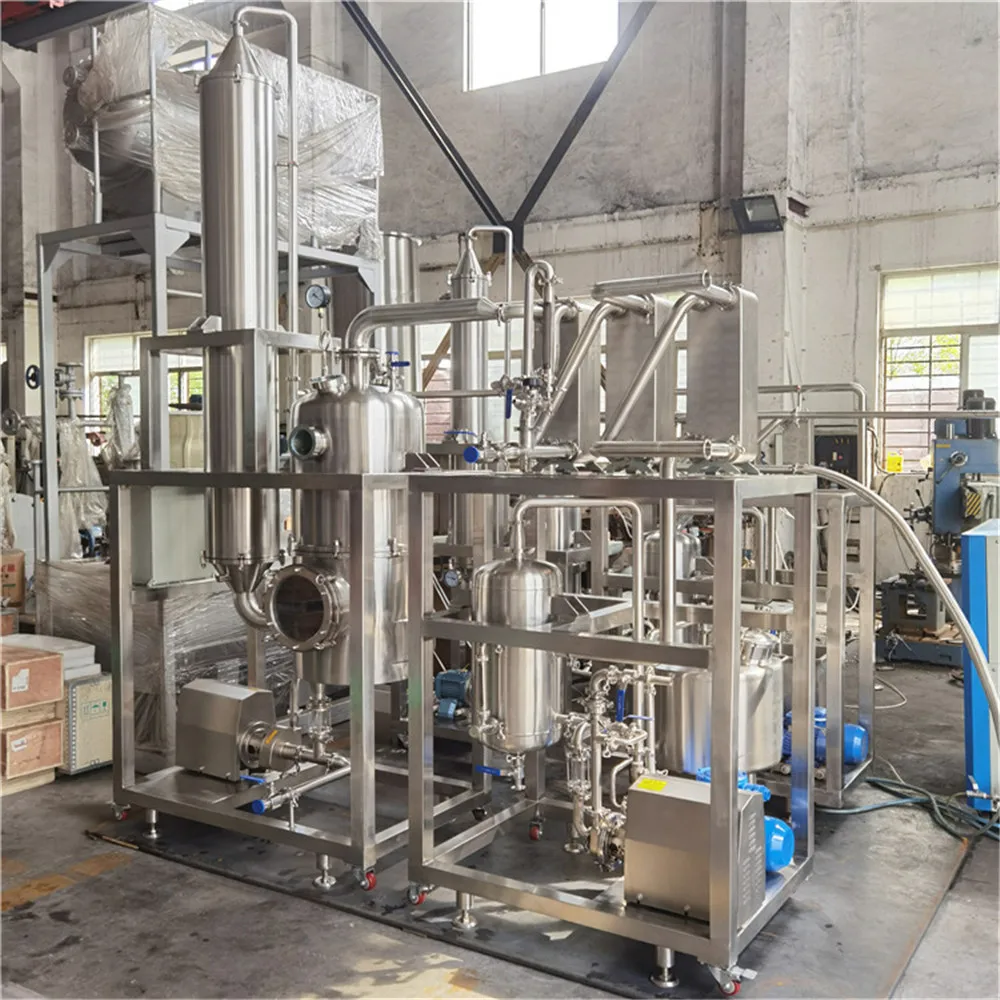

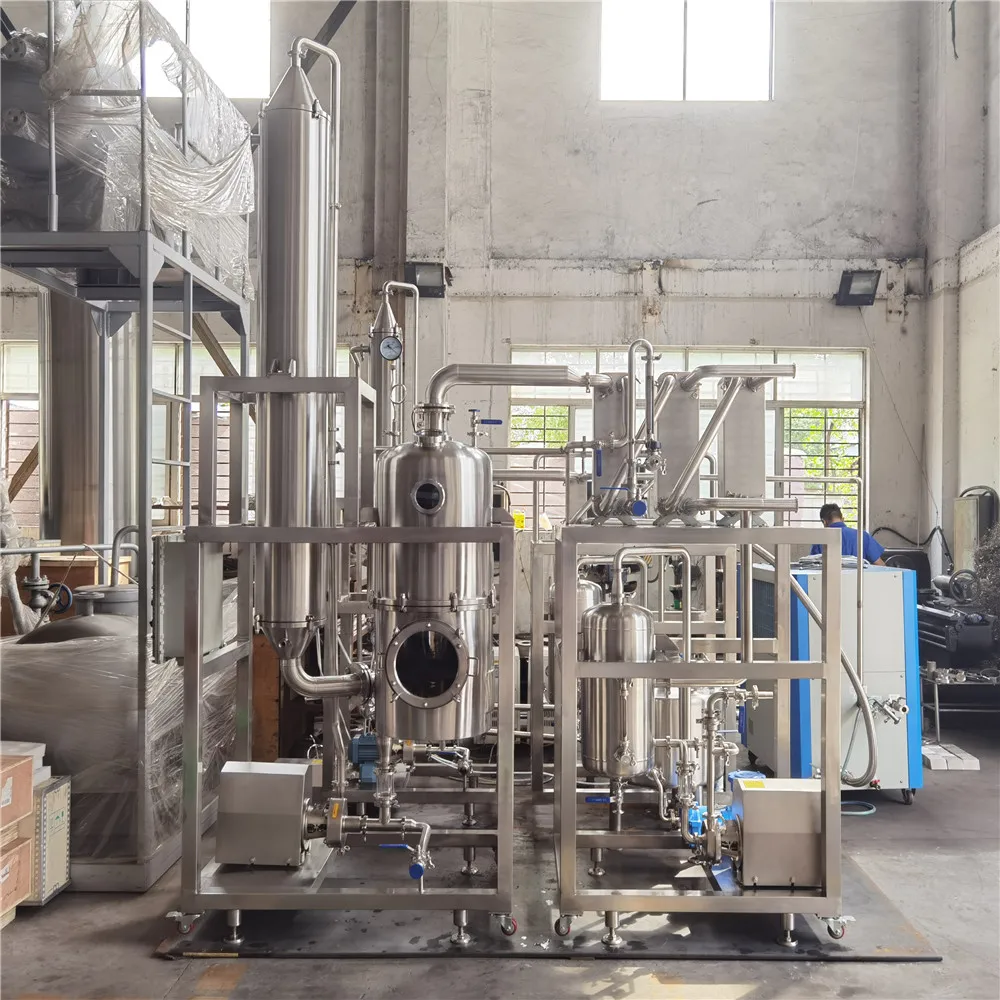

customize falling film evaporator improve recovery efficiency vegetable oil extraction machine vacuum concentrate tank

Product name

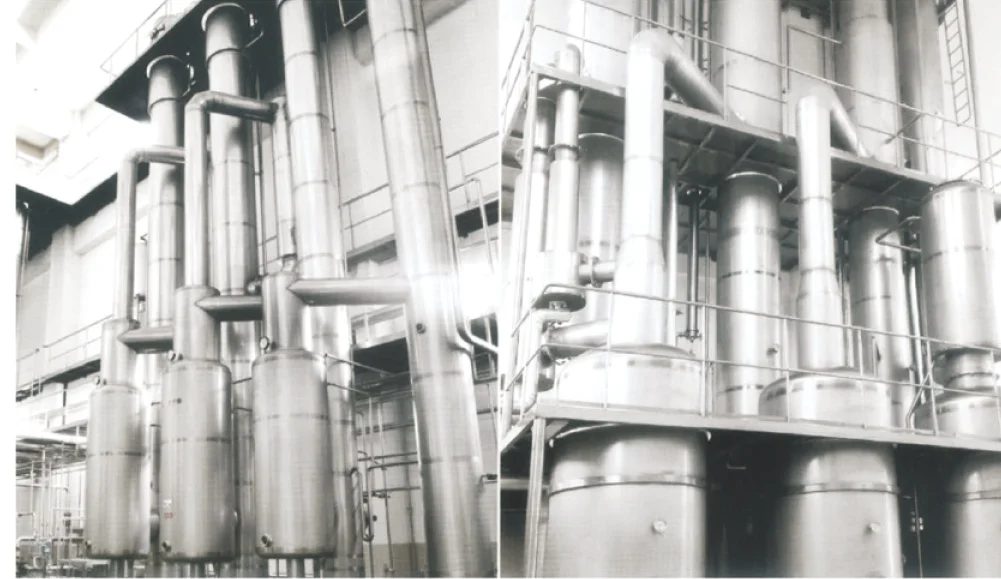

Triple- effect concentration

Features

1. Continuous feeding and discharging, the system is stable and easy to operate. When working in this series of equipment, it only needs to adjust various parameters as required at the intial feeding stage and at the same time ensure continuous and stable supply of materials, convenient adjustment, continuous concentration, and meet the requirements of qualified specific gravity and can simultaneously recover the solvent.
2. The concentration ratio is large (up to 1.25-1.28), the thermal efficiency is high, and the energy saving effect is remarkable. In the structure of the system, we adopt an optimized design scheme to make the evaporation heat transfer coefficient reach
3400-3800w (m2-k),which is very suitable flow, and beneficial for concentration of Chinese herbal extracts. The main reason is that the material are in the heating tube. The film forms a rapid flow, and the heating temperature difference is small(only 8-10 degree), the evaporation temperature is low, and the material can form a rapid flash after-entering the evaporator. The residence time and heating time of the chemical liquid in the heating tube are short, and the viscosity of the material is wide(50-500cp). The heat is uniform and difficult to crystallize and coke, the damage to the active ingredient is small, the heat energy is utilized sufficiently, and the energy saving effect is remarkable.
3. Easy to adopt advanced control methods. Because the series concentrating process mainly uses the temperature of each effect as the control parameter, the parameter of the system are stable during operation, and it is easy to adopt advanced automatic control
(PLC and human-machine interface control), and the control equipment cost is relatively low, for the production of traditional Chinese medicine. Achieve greater automatic control with greater convenience.
4. The structure design is advanced and reasonable. In terms of structure, we adopt an optimized design scheme. We use advanced liquid distribution device to distribute the liquid in the pipe during the feeding, so that the material can enter the heating
pipes evenly. At the same time, the inner wall mirror with high quality imported is selected. The tube is used as a heating tube, so that the flow resistance of the material in the tube is small, the speed is fast, and the scale is not easily precipitated. In order to increase the yield of concentration, the system is equipped with an advanced mist trap to eliminate the ability of
entertainment of the mist, the separation efficiency can reach 96-99% and the resistance drop is small.

MOQ

1set

OEM

Accept customization
