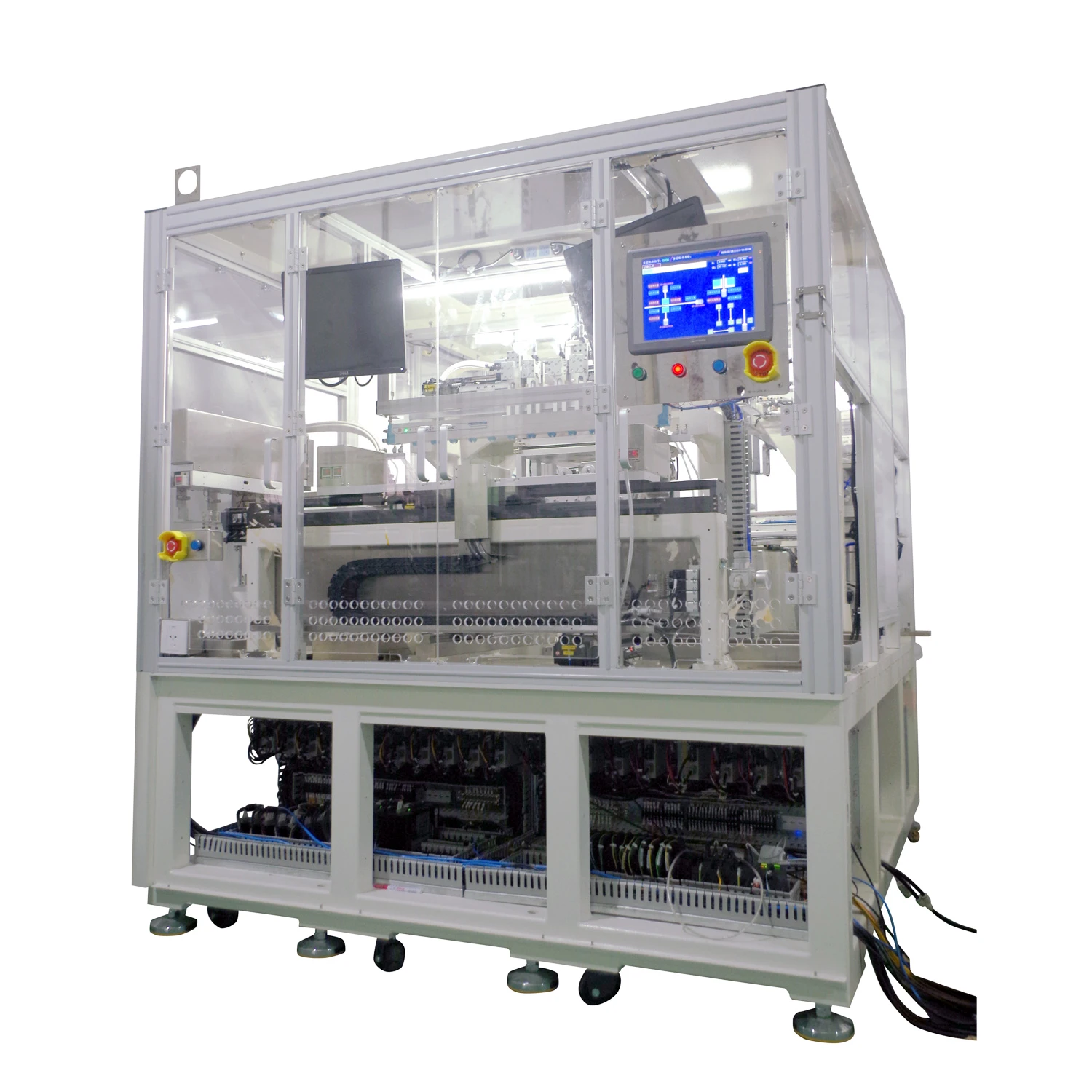

1000#Fully automatic LCD grinding cleaning laminating  machine, Fully automatic LCD cleaning equipment for mobile phone customize

Product Description:

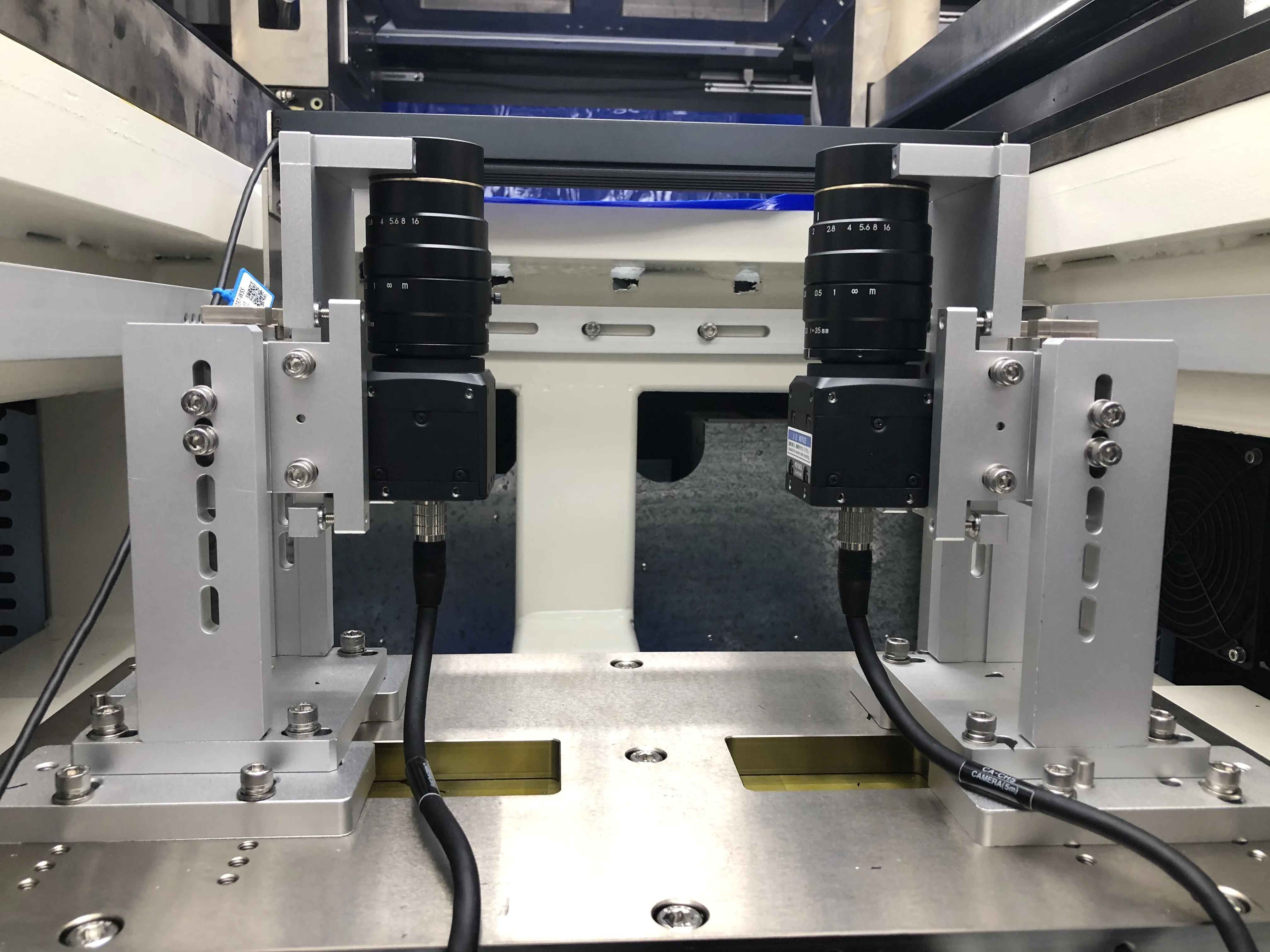

1. It is used for cleaning and attaching polarizers on the surface of small-sized 3-8 inches LCDs. It is attached at the same time in the double station and adopts the CCD alignment method.
2. The full-automatic high-speed cleaning partial sticking production line is mainly composed of a Tray disc / jam feeder, an LCD washing machine, and a polarizer attaching machine.The main function of the Tray feeding machine is to put the collected products into the next process in an orderly manner through the mechanical arm and automatically organize the Tray ; the main function of the LCD cleaning machine is to clean the upper and lower surfaces of the LCD glass, which is convenient SMT and other processes.The main function of the automatic polarizer attachment machine is to automatically mount various polarizers on the substrate; no manual operation is required halfway, and the entire process of LCD glass cleaning and polarizer attachment is automatically completed by this production line.

2000#Fully automatic LCD grinding cleaning laminating  machine, Fully automatic LCD cleaning equipment for mobile phone customize

Product Application:

The device is mainly used for attaching polarizers of small-size LCD panels.





Technical Parameters:

Glass requirements	Max:8″(Y axes:180 * X axes:120)mm  Min:3″(Y axes:70 * X axes:50)mm  LCD thickness:0.2-2.2mm
Polarizer requirements	Max:8″(Y axes:180 * X axes:120)mm  Min:3″(Y axes:70* X axes:50)mm  POL thickness:0.07-0.45mm(Without protective film)
Attachment accuracy of polarizer	X axes :±0.05 mm            Y axes :±0.05 mm
Air source	Pressure:0.5-0.7Mpa  Gas consumption:about 7000L/Min
Water source	Water pressure:0.2-0.4Mpa  Water consumption:about20L/Min
Power Requirement	Feeding machine:1 phase  AC220V  Cleaning machine:3 phase  AC380V Paste machine:3 phase  AC380V





Electrical Parameters:

Machine	Dimensions	Electricity	Power	Compressed air
LCD Feeding machine	L1600*W1650*H2155mm	Single phase 220V/50Hz	3kw	0.5~0.7kpa 400L/min
LCD grinding cleaning machine	L3020*W1200*H2150mm	Three-phase five-wire system 380V	6kw	0.5~0.7kpa 3000L/min
Polarizer attaching machine (CF)	L2700*W2181*H2307mm	Three-phase five-wire system 380V	16.5kw	0.5~0.7kpa 1200L/min
Polarizer attaching machine (TFT)	L2700*W2181*H2307mm	Three-phase five-wire system 380V	16.5kw	0.5~0.7kpa 1200L/min







Vacuum Gas Source Water Source Parameters:

Machine	Vacuum source	Air inlet	DI water source	Exhaust vent	Drain
LCD Feeding machine	≤-60KPA	12mm	/	/	/
LCD grinding cleaning machine	Comes with vacuum source	1.5 inch air inlet	1 inch water inlet	3 inch exhaust	2 inch drain
Polarizer attaching machine (CF)	≤-60KPA	12mm	/	/	/
Polarizer attaching machine (TFT)	≤-60KPA	12mm	/	/	/

3000#Fully automatic LCD grinding cleaning laminating  machine, Fully automatic LCD cleaning equipment for mobile phone customizet machinery

4000#Fully automatic LCD grinding cleaning laminating  machine, Fully automatic LCD cleaning equipment for mobile phone customizeent machinery

Features:
1. Connected production reduces defects caused by intermediate links.
2. The degree of automation is high, and the efficiency and yield are greatly improved.
3. It can clean the organic matters on the LCD mirror surface.
4. The cleaning section uses frictionless magnetic wheels to prevent dust from polluting the glass. The servo motor cooperates with the timing belt to accurately transmit.
5. Reduce secondary pollution in the middle of the glass, and have a higher guarantee for the cleanliness of the attachment.
6. Complete glass cleaning and polarizing film attachment in one line, reducing manual operation.
7. High intelligence, the complete machine debugging is completed in the touch screen, and the debugging parameters are digitized.
8. It can store various specifications of glass formulas, and the line changing speed is fast.
9. It can automatically connect with various COG, FOG, feeder and other equipment in the industry.

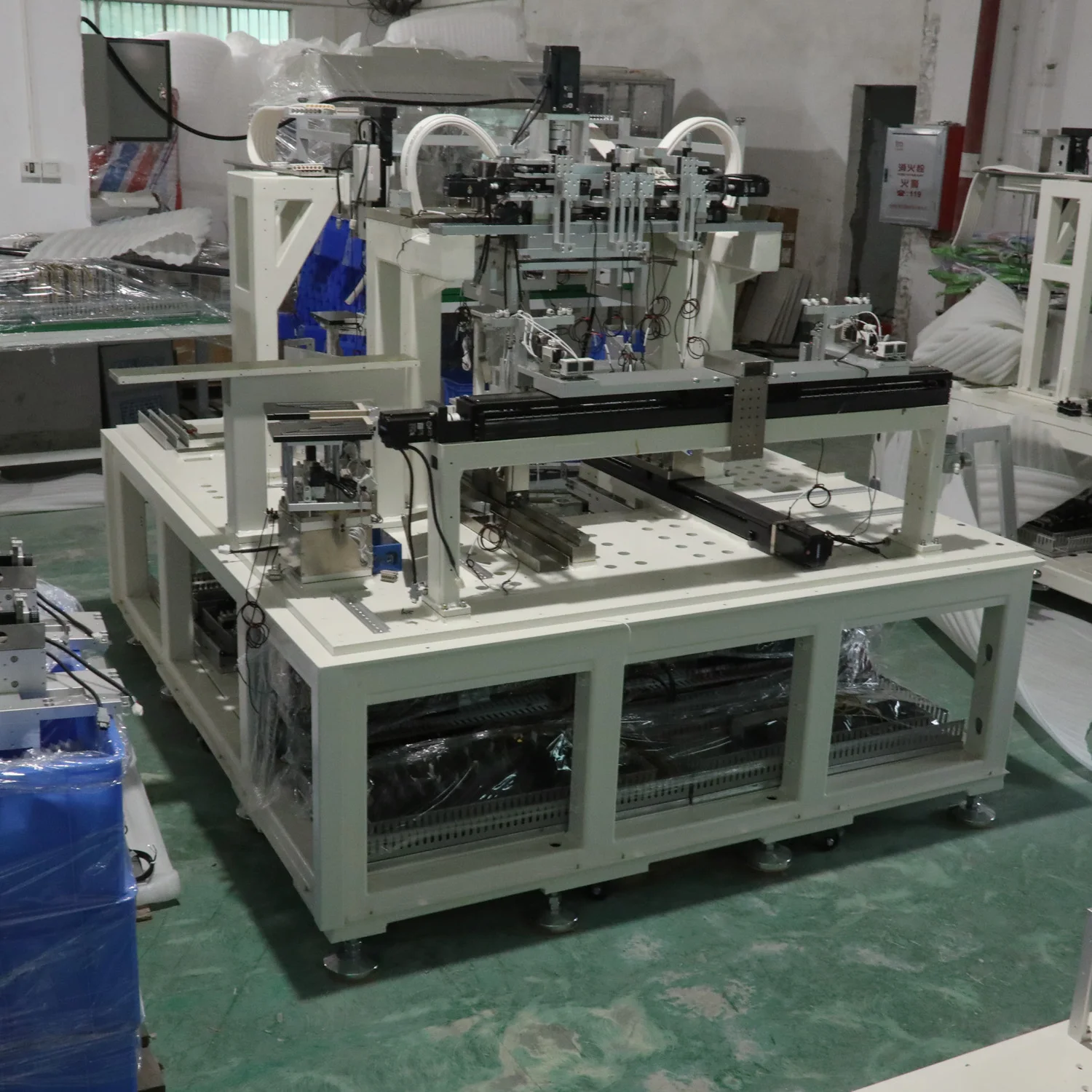

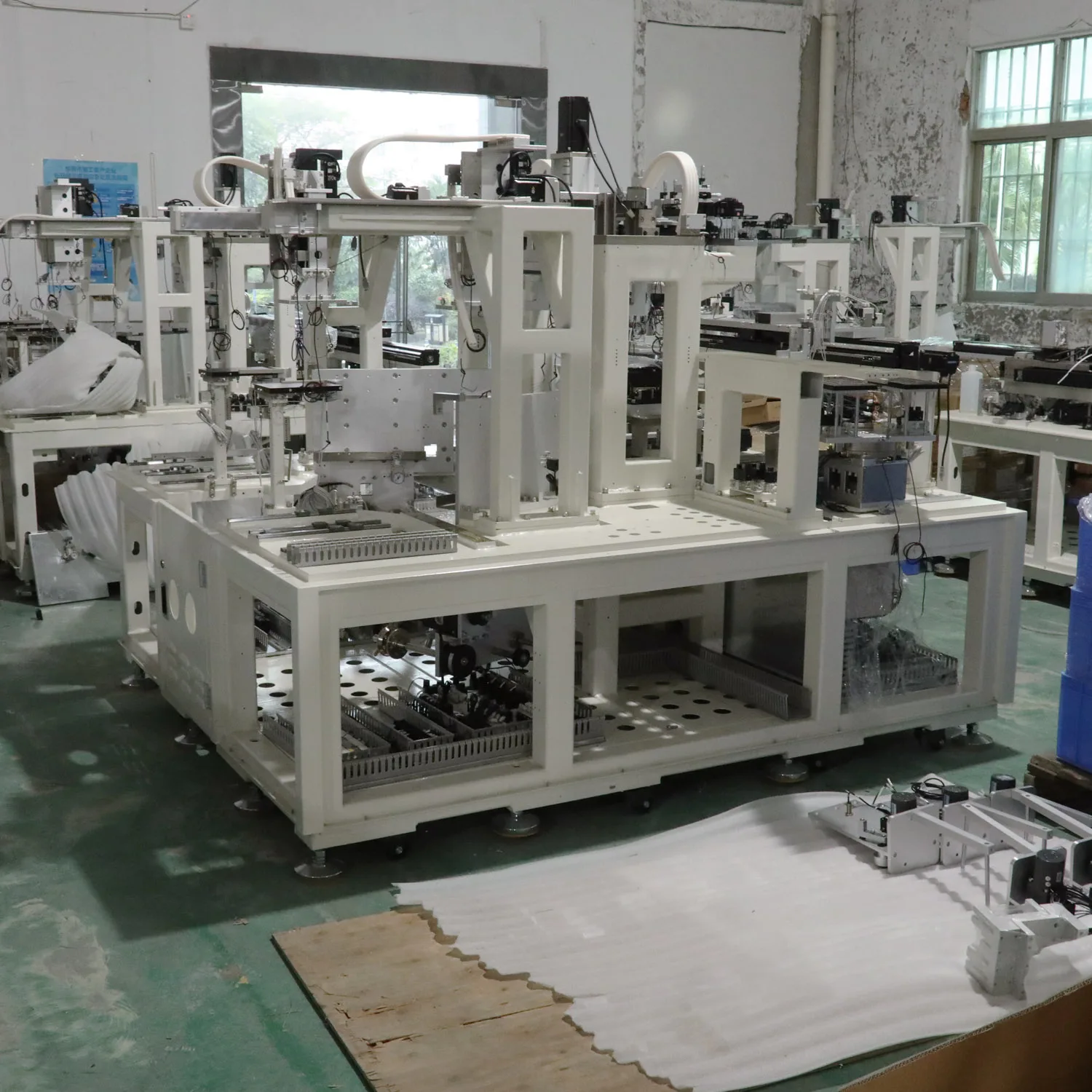

Production Workshop:
