Product Overview
Description
Product Description

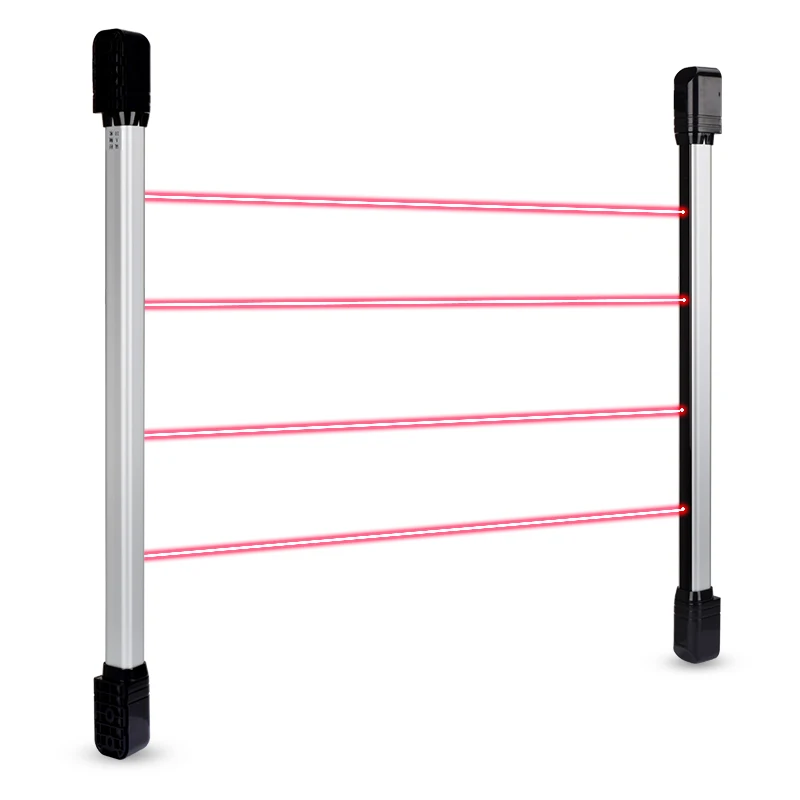

Digital frequency conversion infrared grating detectorInfrared grating alarm system Anti theft warning system for doors and windows Infrared detector
Infrared grating (also known as electronic grating or infrared fence) (also known as "infrared railings") is a kind of active infrared radiation (what is infrared radiation, please see the details below). It uses multiple beams of infrared light, and the transmitter emits infrared light to the receiver in the way of "low frequency emission, time division detection", Once a person or object blocks any two or more adjacent beams of light emitted by the transmitter for more than 30ms, the receiver will immediately output an alarm signal. When a small animal or object blocks one of the beams of light, the alarm will not output an alarm signal.
Product name: Digital frequency conversion infrared grating detector | Infrared beam number: Two beams/Four beams/Six beams/Eight beams/Ten beams | |||||||
Installation distance: 5 meters--120 meters | Working voltage: 8-33VDC | |||||||
Working current: The emitter:I≤35mA/ receiver:I≤45mA | Response speed: ≤80ms | |||||||
response time:≥ 1.5sec | Variable frequency: 4 frequency PWM | |||||||

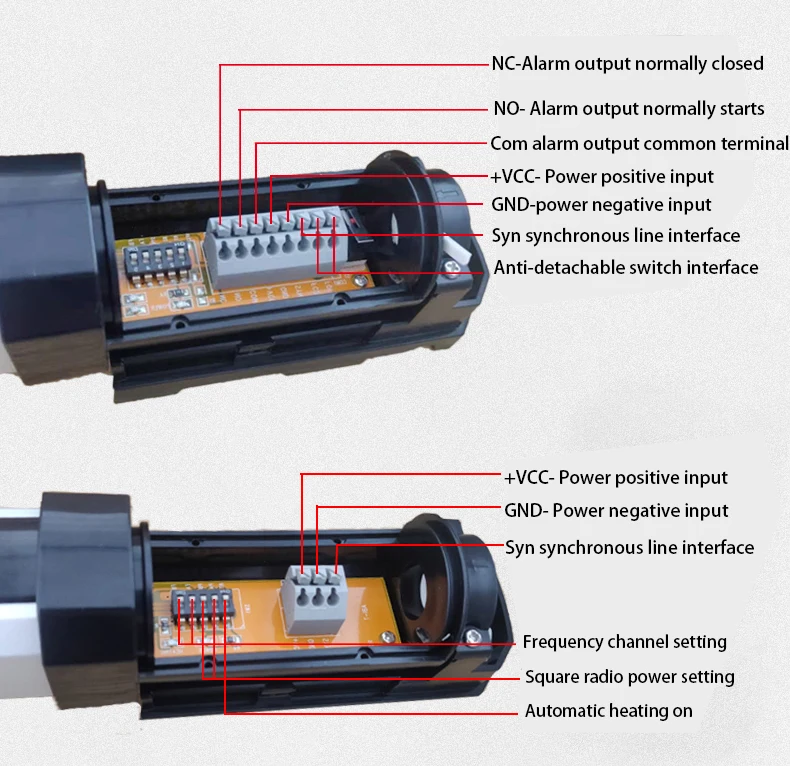

Alarm Output: Normally open and normally closed output (COM, no, NC) | Resistive rated load: 3A 125VAC/24VDC | |||||||

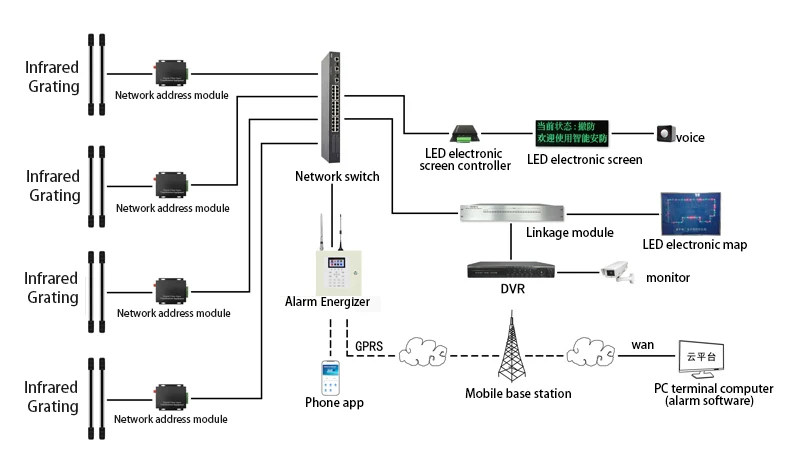

Alarm continuous: Wired or wireless (optional wireless mode, frequency 315MHz or 433MHz) | Adjustable range of optical axis: Horizontal 180 degrees (90 degrees left and right) | |||||||
Auxiliary function: Power indicator, ALA alarm indicator, RT heating indicator, beep alarm | Other functions : Optional automatic heating defrost (2 beam has no heating function) | |||||||

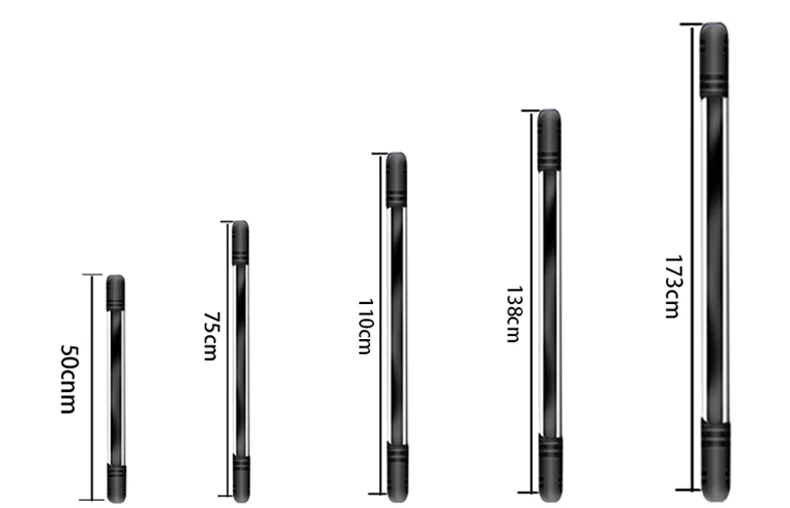

Size (mm): 49*32*33 750*32*33 1100*32*33 1380*32*33 1730*32*33 | ||||||||

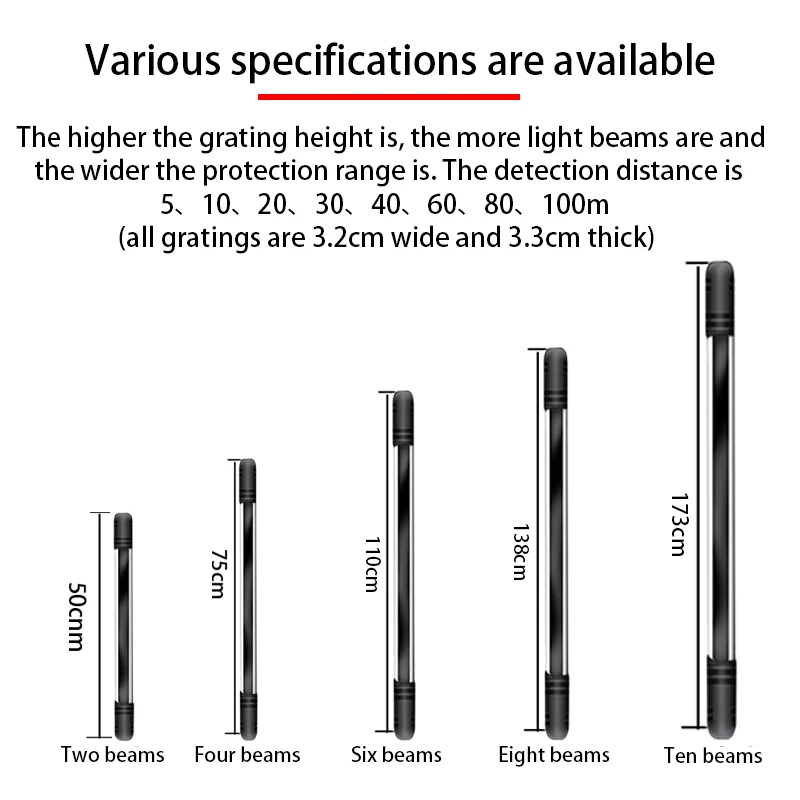

Various specifications are available
The detection range is 5 , 10 , 20 , 30 , 40 , 60 , 80 and 100 meters
All in stock , please consult our customer service for details !
All in stock , please consult our customer service for details !

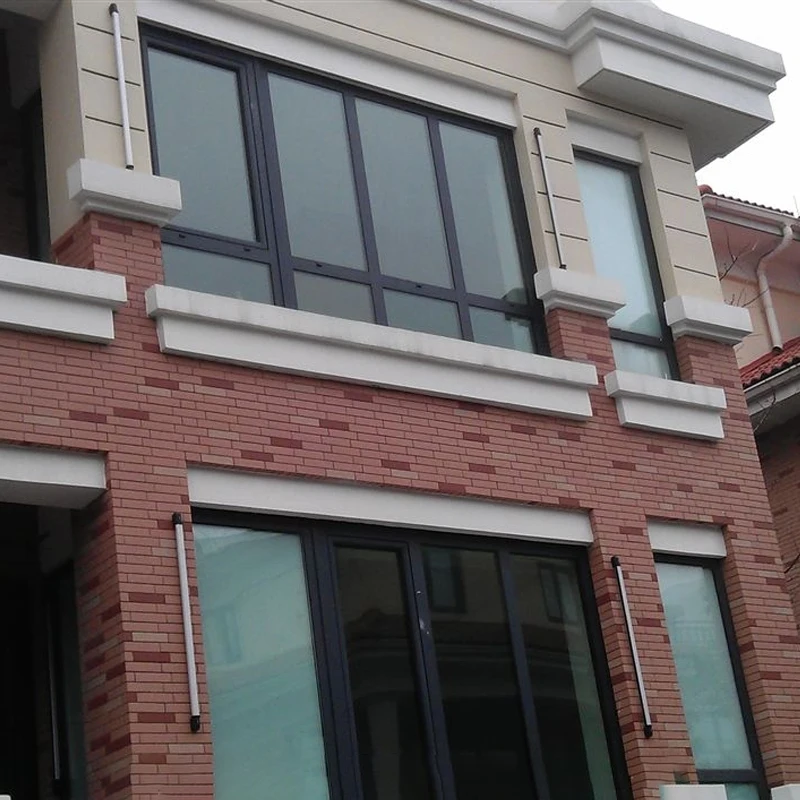

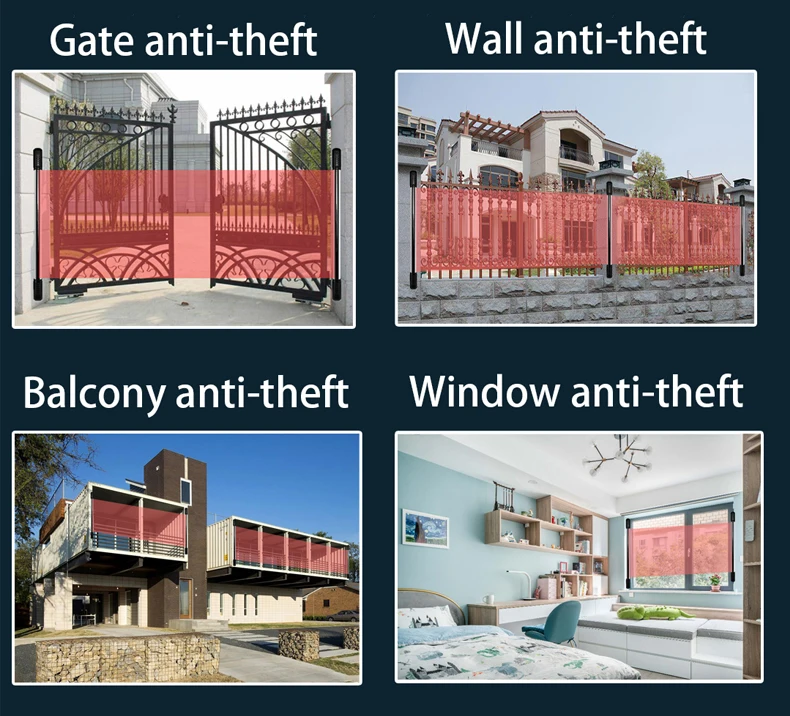

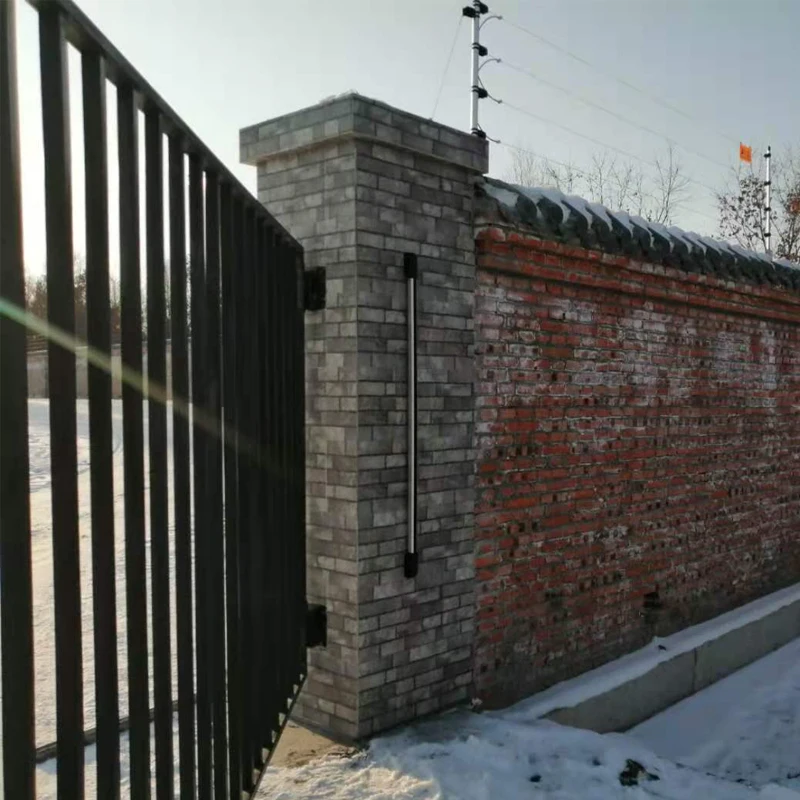

Applicable place / case
This product is a universal indoor and outdoor digital frequency conversion infrared photoelectric fence detector , belongs to the planar infrared protection detector , the main control chip and sensor and other key components are imported parts,leading the industry wide voltage range , suitable for villas , residential areas ,factories , schools , institutions and other protection sites

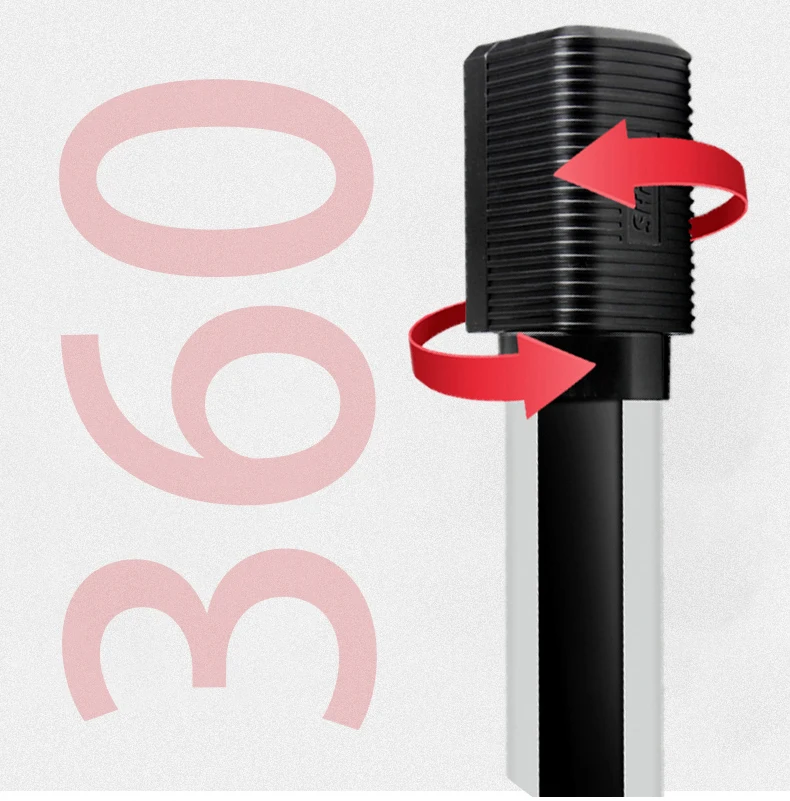

360 Rotation adjustable
Omnidirectional rotation of focus , left and right can be arbitrary rotation 360 , convenient installation , projection of focus
in all directions makes installation easier
in all directions makes installation easier

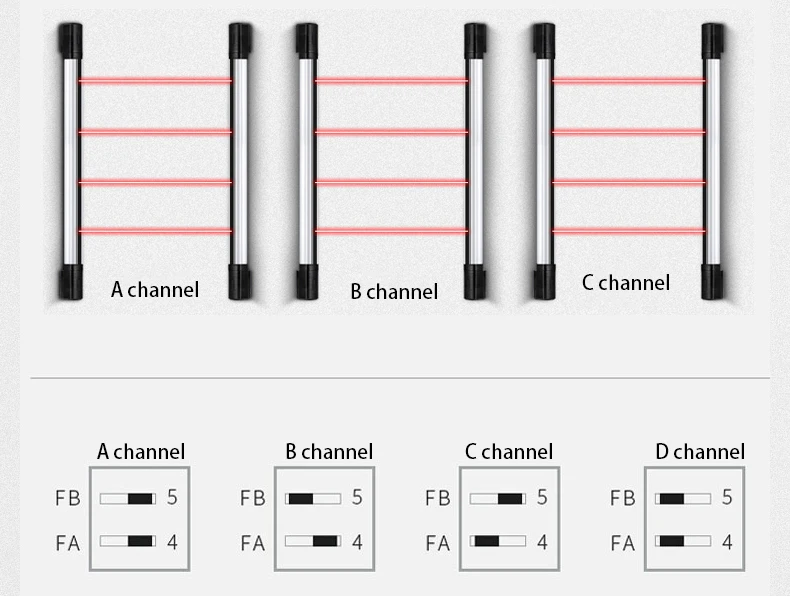

Four section frequency conversion technology
When installing multiple pairs of gratings , adjacent gratings can be adjusted into infrared beams of different frequencies , and the wire prevents interference between gratings and gratings

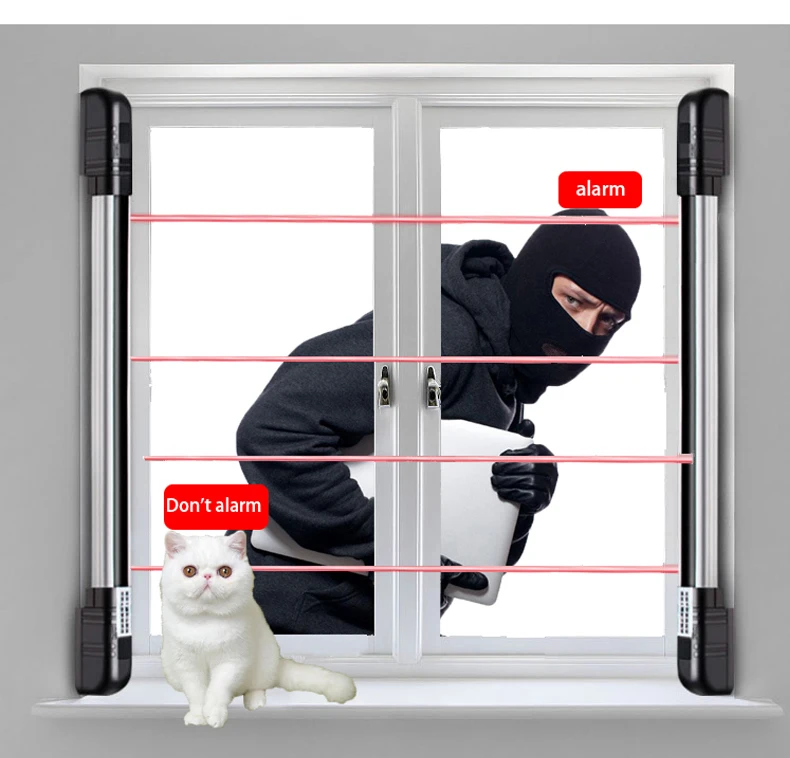

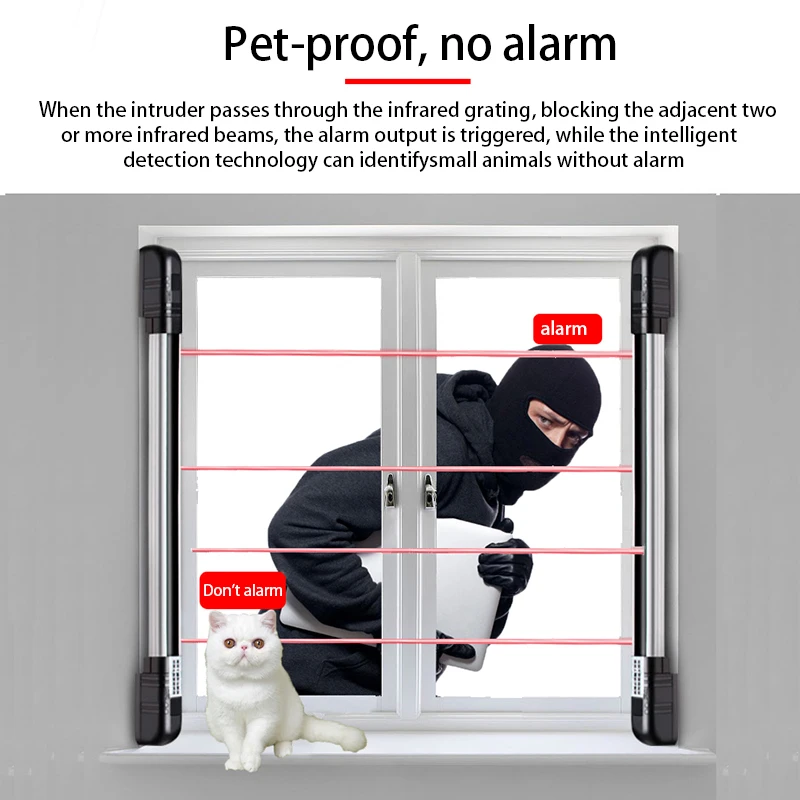

Pet-proof , no alarm
When the intruder passes through the infrared grating , blocking the adjacent two or more infrared beams , the alarm output is triggered , while the intelligent detection technology can identify small animals without alarm
High grade waterproof , dust proof , insect proof , moisture proof ,anti dismantling Stronger environmental applicability , no
fear of Wind and rain
fear of Wind and rain
Detail display
