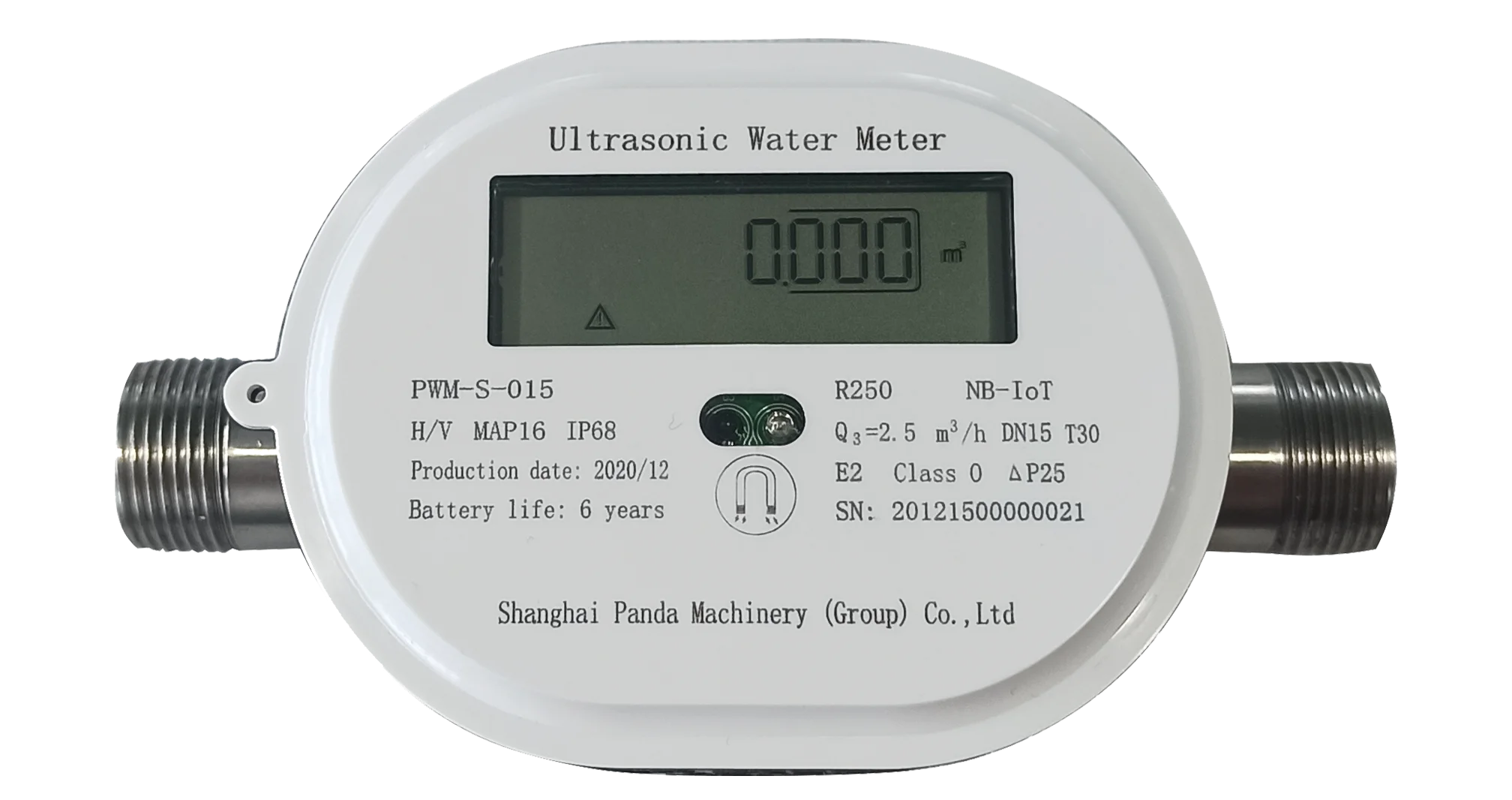

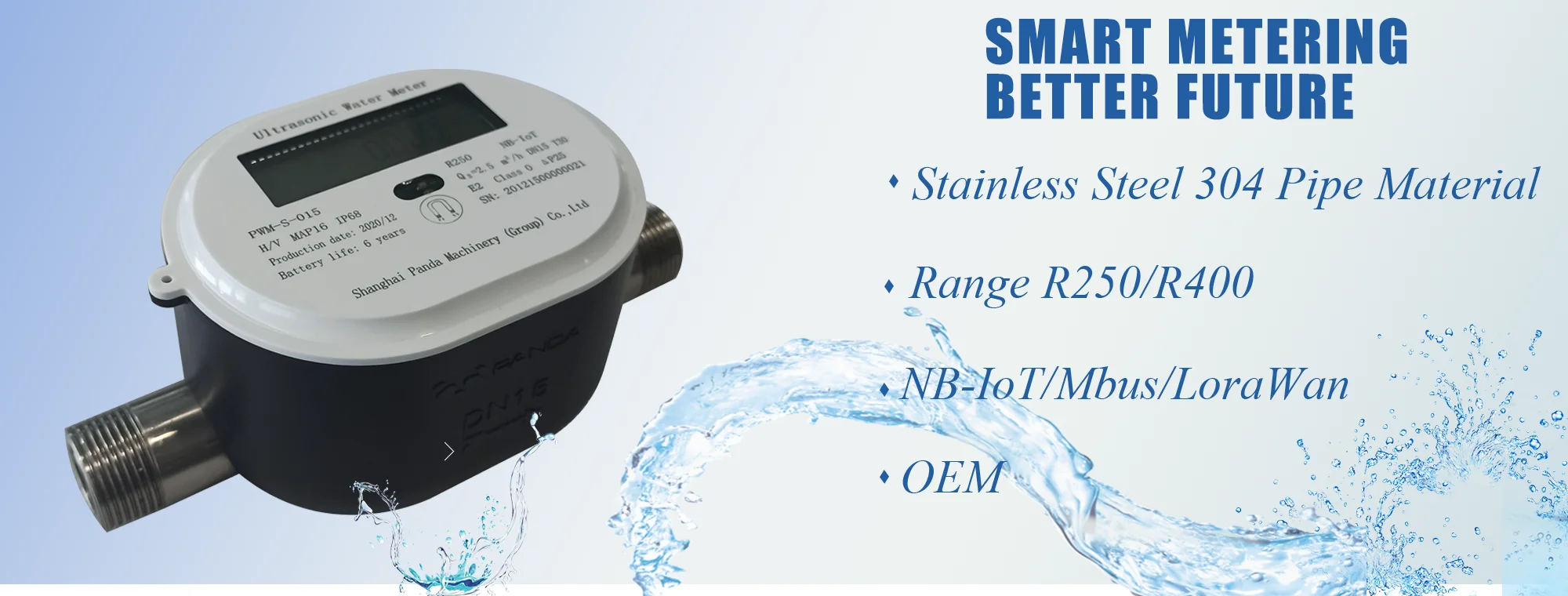

Ультразвуковой счетчик воды Цифровой Счетчик Воды холодный Ультразвуковой счетчик воды цена IP 68 SS 304
- Category: Test Instruments >>>
- Supplier: Shanghai,Panda,Machinery,(group),Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features:
* Full Stainless Steel Body
* Range Is Up To 400
* Low Starting Flow.
* No Moving Parts, Accuracy Will Not Change After Long Term Working
* With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm and Battery Under voltage Alarm
* Low Consumption Design, Battery Can Continuously Work For 6 Years
* With Optic Electric Interface,Hand-held Infrared Meter Reading Tool Can Read Directly
* Built-in Wireless NB-IoT
* Stainless Steel 316 L Is Optional,Meet The Measurement Of Direct Drinking Water
* Bi-directional Measuring Forward And Reverse Flow
* According To Sanitary Standard For Drinking Water
* Range Is Up To 400
* Low Starting Flow.
* No Moving Parts, Accuracy Will Not Change After Long Term Working
* With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm and Battery Under voltage Alarm
* Low Consumption Design, Battery Can Continuously Work For 6 Years
* With Optic Electric Interface,Hand-held Infrared Meter Reading Tool Can Read Directly
* Built-in Wireless NB-IoT
* Stainless Steel 316 L Is Optional,Meet The Measurement Of Direct Drinking Water
* Bi-directional Measuring Forward And Reverse Flow
* According To Sanitary Standard For Drinking Water
Max.Working Pressure | 1.6Mpa |
Temperature Class | T30 |
Accuracy Class | ISO 4064, Accuracy Class 2 |
Body Material | Stainless SS304（opt. SS316 or SS316L) |
Battery Life | 6 Years(Consumption≤0.3mW) |
Protection Class | IP68 |
Environmental Temperature | -40～+70℃，≤100%RH |
Pressure Loss | ΔP16、ΔP25（Based on different dynamic flow） |
Climatic And Mechanical Environment | Class O |
Electromagnetic Class | E2 |
Communication | NB-IoT, Opt. M-bus、RS485（ModBus）or Wirless LoRa，OCT Pulse etc. |
Display | 8 digits LCD display volume, flow rate, power alarm, flow direction, output etc. |
Connection | Thread |
Flow Profile Sensitivity Class | U5/D3 |
Data Storage | Store the latest 2 years’ data including day, month and year, The data can be permanently saved even powered off |
Frequency | 1-4 times/second |

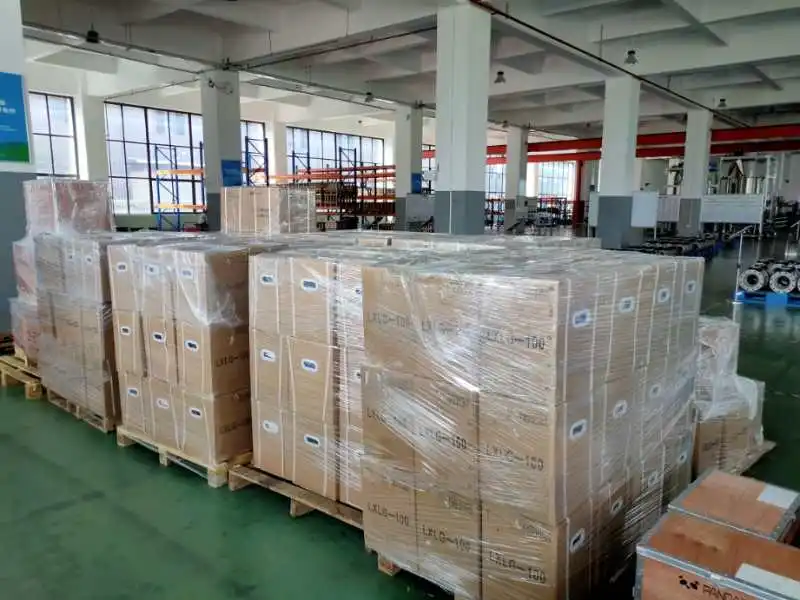

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

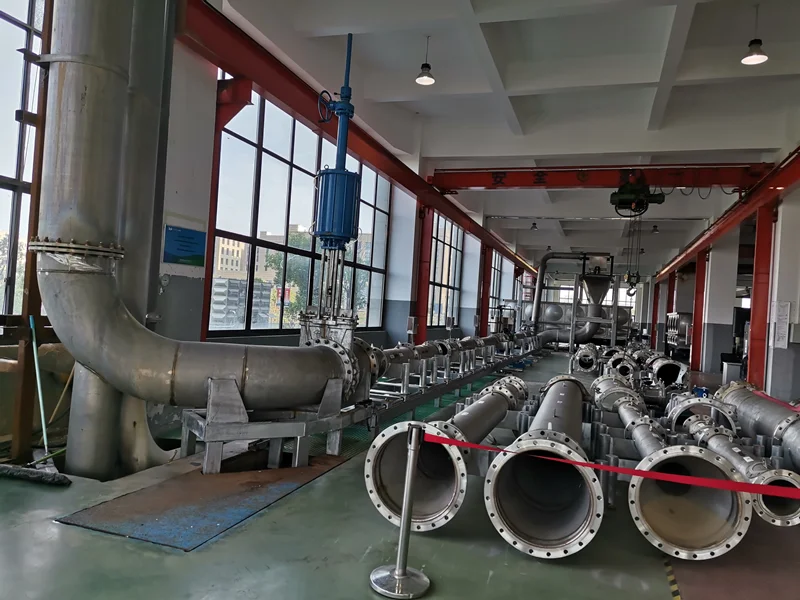

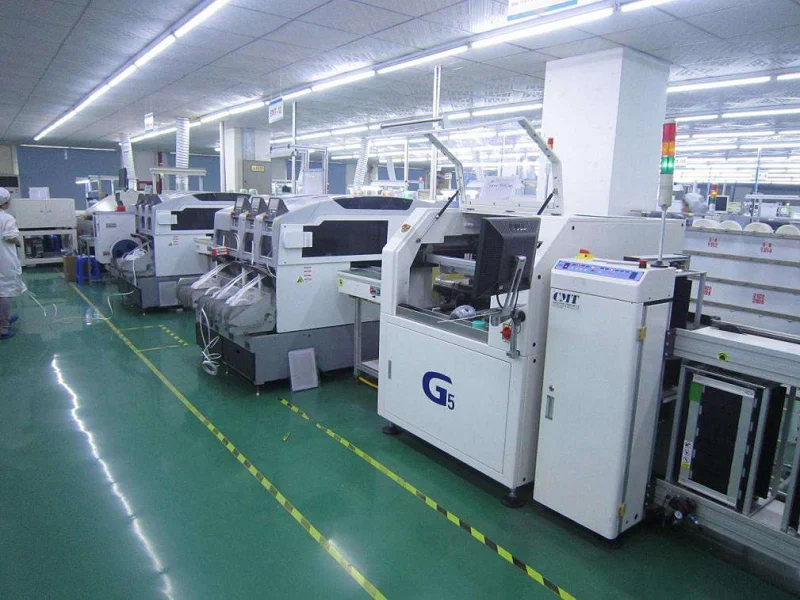

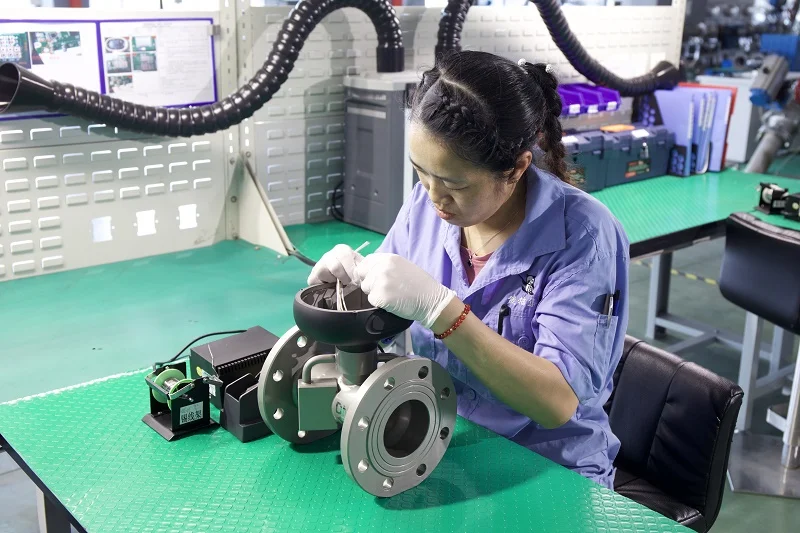

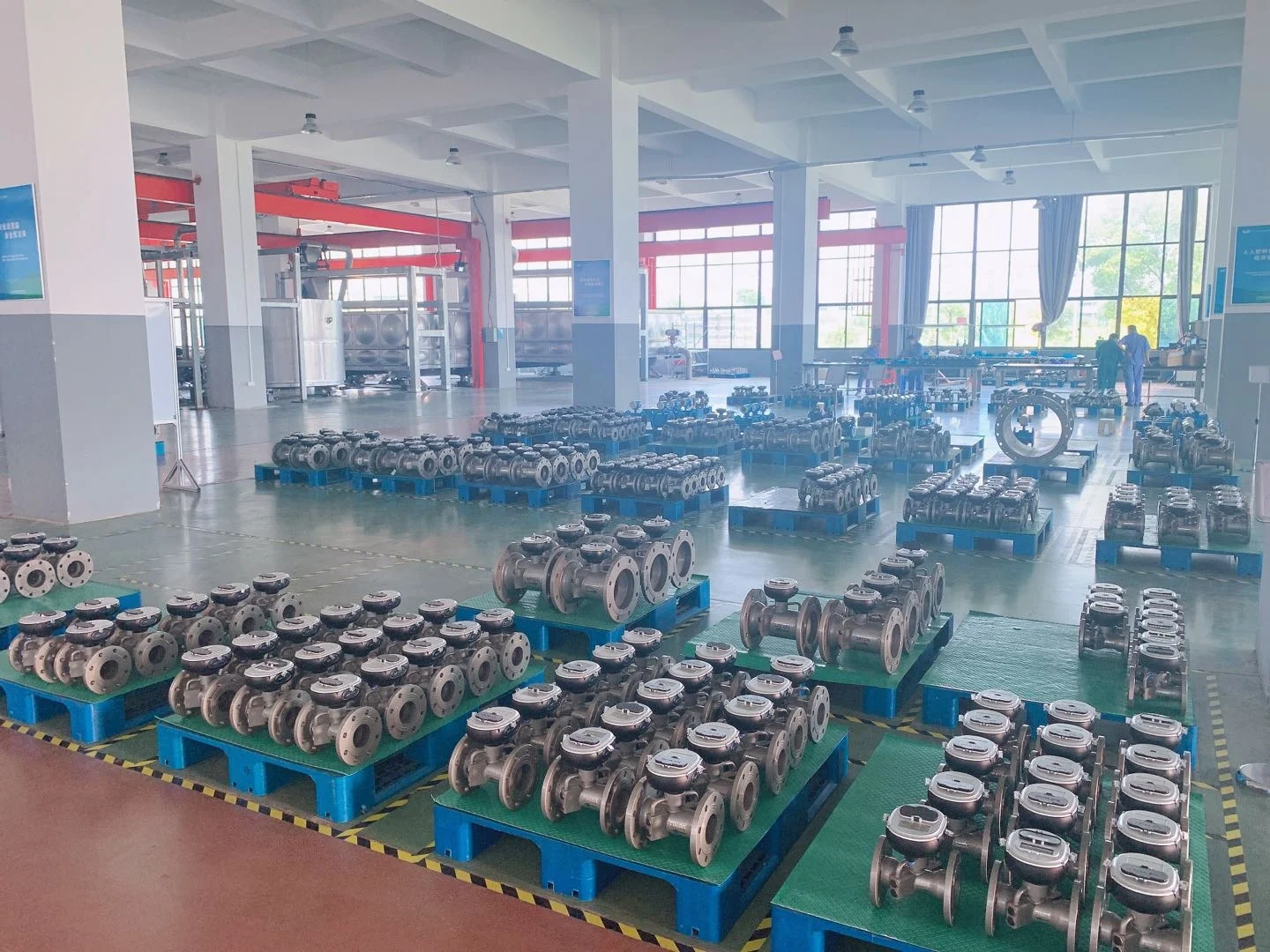

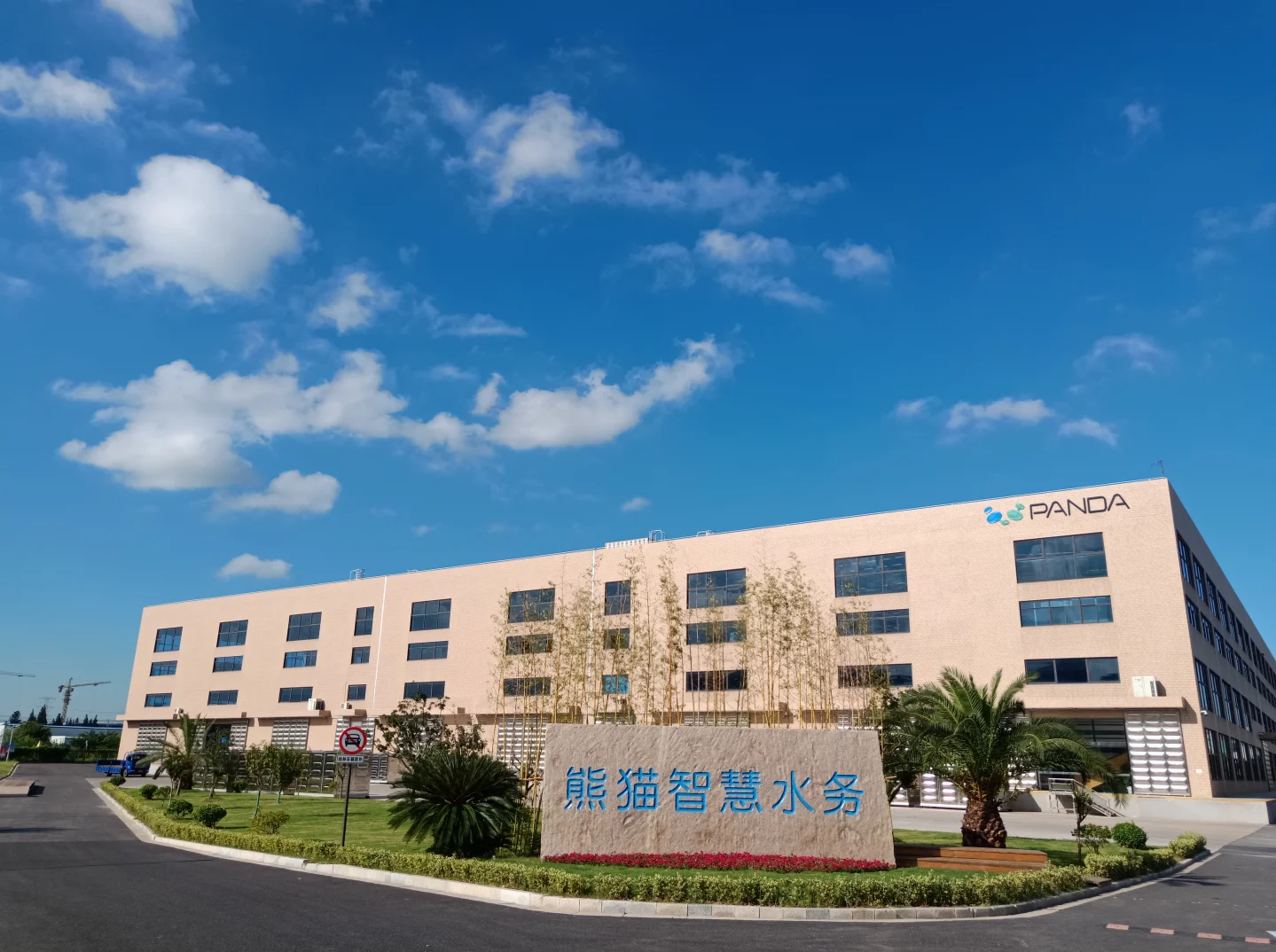

Company Profile
Shanghai Panda Machinery(Group) Co.,Ltd is a high-tech enterprise in Shanghai, No.1 market shares of building pumps in China.President Xuecong, Chi founded the company in 2000. Through 20 years development, We have been a leading group including from researching, manufacturing pumps, complete equipments, water meters, flow meters to intelligent management platform which consistsof raw water monitoring, water supply control, DMA, pipe GIS, Secondary water supply and Billing. We have been providing advancedsmart watering solutions for thousands of water supply companies. Also we take proud of our high-tech products that are servicing water supply and drainage, municipal infrastructure, HAVC, chemicals, electrics, mining, thermal energy efficiency monitoring fields etc.

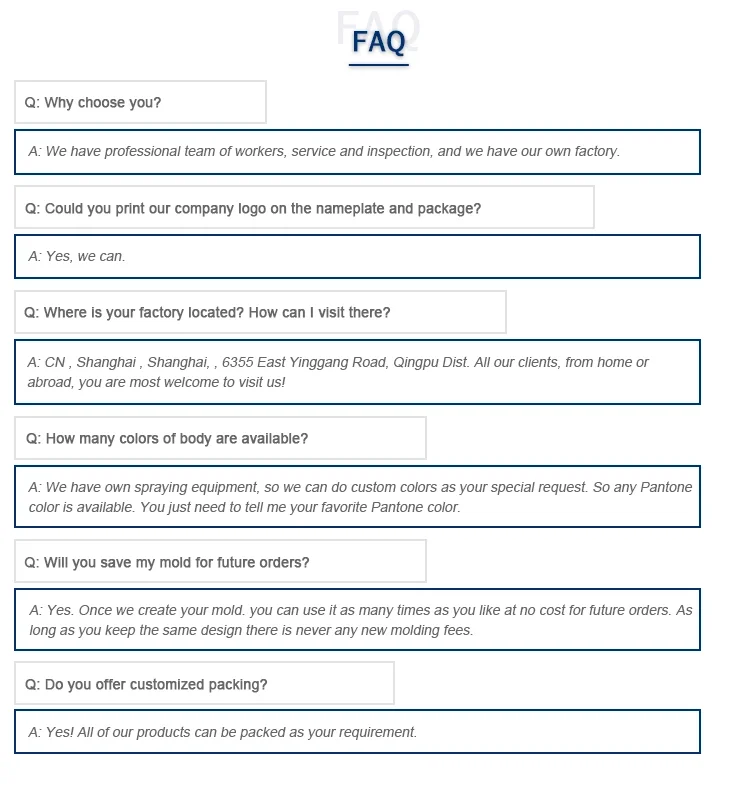

FAQ
