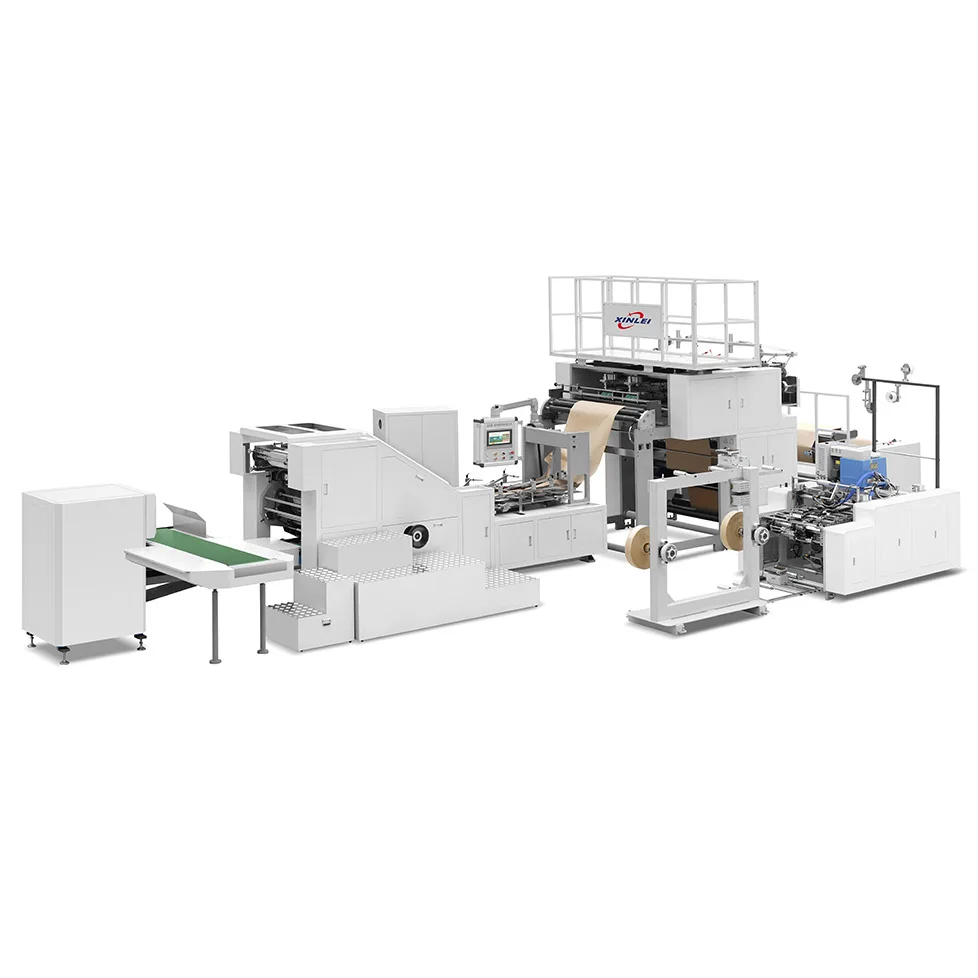

This machine is used for roll primary color paper or printing roll paper such as kraft paper. Paper rolls such as food paper are completed by this machine at one time. Automatic center gluing, raw material into tube, cut to length, bottom indentation, bottom folding. Glue on the bottom and shape the bottom of the bag. Finished bag finishing is completed at one time. This machine is more convenient to operate, more efficient and more stable. It is an environmentally friendly paper bag machine equipment that produces various paper bags, snack food bags, bread bags, dried fruit bags, etc.
Main feature
1.Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control
2.Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4.The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
5.The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.
Technical parameters
Model
XL-FD450Q
Cutting Length
270-530mm
Paper Bag Width
210-450mm
Bottom width
90-180mm
Paper bag thickness
80-150g/㎡
Mechanical speed
30-220pcs/min
Paper bag speed
30-150pcs/min
Paper roll width
660-1290mm
Paper diameter
1300mm
Inner diameter of paper
76mm
Total power
380V 3phase 4line 41.5kw
Total Weight
9000kg
Overall size
14000*6000*2400mm
