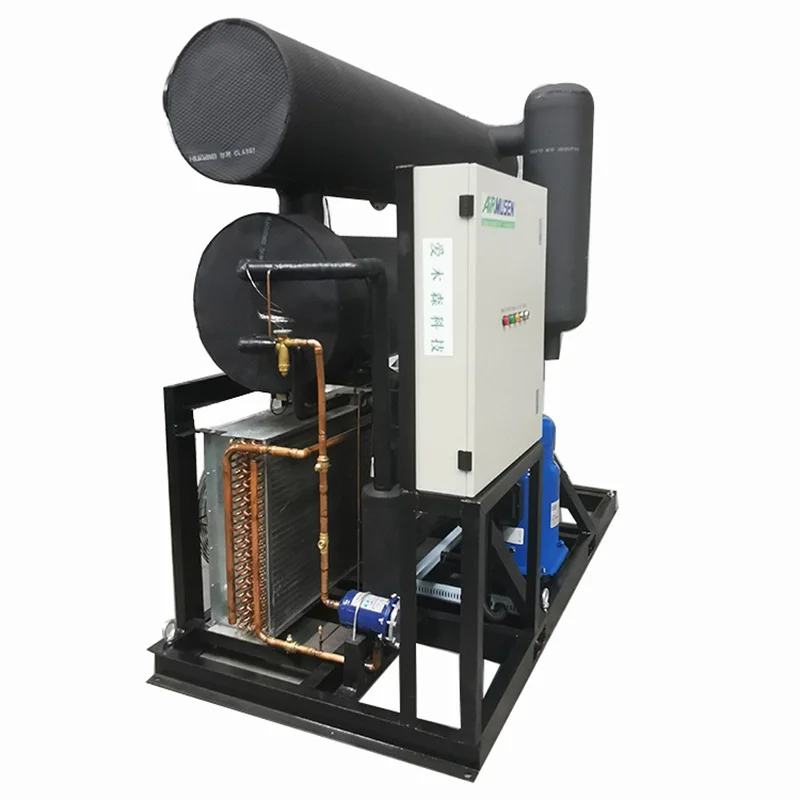

Normal temperature air cooled refrigerated air dryer
NA series cold dryers use the principle of refrigeration to separate out the saturated moisture in the compressed air, and then expel the condensate through the automatic discharge device, so as to achieve the purpose of drying the compressed air.
Refrigerant: R22(Optional: R407C,R410,R134a)
Installation method: no foundation installation in the room, flat concrete floor, no less than 1.5 meters around the refrigerator, keep ventilation on all sides


Product Specification


No.
Description
Data
1
Compressor Power
25 hp
2
Displacement capacity
100 m^3/min
3
Supply power
380V/50HZ
4
Dimension(mm):
3060*1170*1880 mm
5
Weight(kg):
1900 kg
6
Connection diameter:
DN150
7
Inlet temperature:
≤45℃
8
Ambient temperature:
≤45℃
9
Working pressure:
≤0.8Mpa
10
Pressure dew point:
3~10℃
11
Refrigerant:
R22(R134a/R407C/R410 for option)
12
Cooling mode:
Air cooled


Technical Parameters


Model
Capacity M^3/min
Power HP
Power supply V/HZ
Connection diameter
Dimension (mm)
Weight KG
L
W
H
EAD-3NA
3.8
1.2
220/50
Rc1’’
800
520
809
120
EAD-6NA
6.5
2.2
220/50
Rc1-1/2’’
1000
650
960
200
EAD-10NA
10.9
3.0
220/50
Rc2’’
1250
650
1030
260
EAD-13NA
13.5
3.5
380/50
Rc2’’
1250
650
1030
270
EAD-15NA
17
3.8
380/50
DN65
1250
650
1030
280
EAD-20NA
23
5
380/50
DN80
1830
760
1696
450
EAD-25NA
27
6.3
380/50
DN80
1830
760
1696
480
EAD-30NA
33
7.5
380/50
DN80
1850
960
1900
580
EAD-40NA
45
10
380/50
DN100
2180
960
1930
770
EAD-50NA
55
12.5
380/50
DN125
2300
1060
1990
980
EAD-60NA
65
15
380/50
DN125
2450
1250
2300
1100
EAD-80NA
85
20
380/50
DN125
2460
1200
2231
1650
EAD-100NA
100
25
380/50
DN150
3060
1170
1880
1900








Q1: Are you factory or trade company?
A1: We are manufacture specialized in developing and producing various of air compressors
and compressed air treatments.

Q2: What the exactly address of your factory?
A2: Our company is located in No.19,Gongao first Road,Xiniupo ,Dalang town,Dongguan City, Guangdong Province,China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your inquire.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T Paid before delivery.

Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB,EXW, etc.
