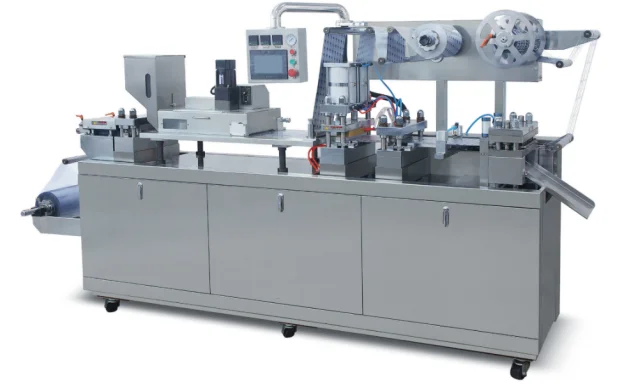

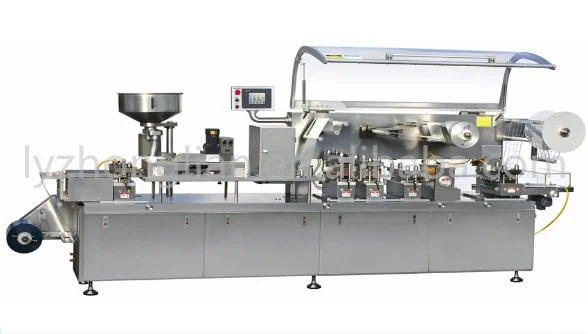

Factory price Professional aluminum foil blister packing machine DPP 350 High Speed Aluminum Plastic Roll Type Packaging Machine
- Category: Blister Packaging Machines >>>
- Supplier: Liaoning,Zonelink,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Model | DPP-350 | DPP-400 |
Cutting Frequency (Times/min) | 6-35 | 10-50 |
Max. Forming Areas And Depth (mm) | 340×150×26 (standard 340×150×14) | 390×150×26 (standard 380×150×14) |
Travel Range (mm) | 40-160 (Can be lengthened to 180mm as user's requirements) | 40-160 (Can be lengthened to 180mm as user's requirements) |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) | 80×57 (Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.7 | 0.4-0.6 |
Air Supply | ≥0.35m3/min | ≥0.3m3/min |
Total Power | 380V/220V 50Hz 7.5kw | 380V/220V 50Hz 6.2kw |
Main Motor Power (kw) | 1.5 | 1.5 |
PVC Sheet (mm) | 0.15-0.5×350 | 0.15-0.5×400 |
PTP Aluminum Foil (mm) | 0.02-0.035×350 | 0.02-0.035×400 |
Dialysis Paper (mm) | 50-100g×350 | 50-100g×400 |
Mould Cooling | Tap Water Or Circulating Water | Tap Water Or Circulating Water |
Overall Dimensions (mm) | 3300×800×1600 (L×W×H) | 3300×850×1600(L×W×H) |
Weight (kg) | 1900 | 2300 |
Product Features

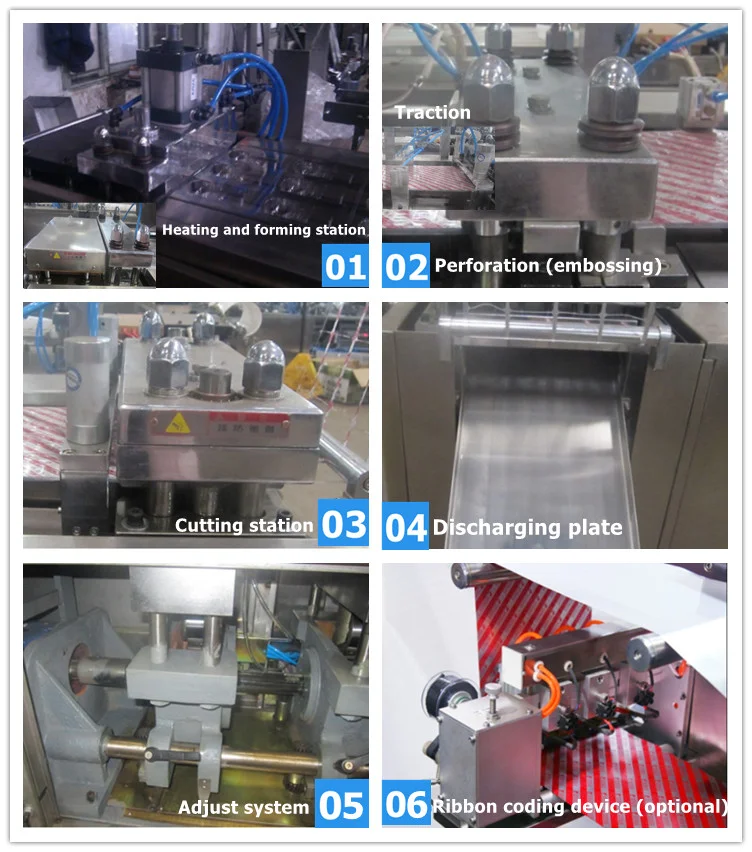

1.Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, and it equipped with a staff gauge, easy to adjust and can be performed quickly and accurately.
2.Manipulator towing adopted culms double pendulum device and increased traction adjustable range (it can get to as long as 180mm), which can fit for blister packing of different sizes. All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.
3.Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocate with special automatic feeder to fit for certain packing such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.
4.Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving.
Detachable design makes the machine easy to be carried and installed according to user's requirement.
