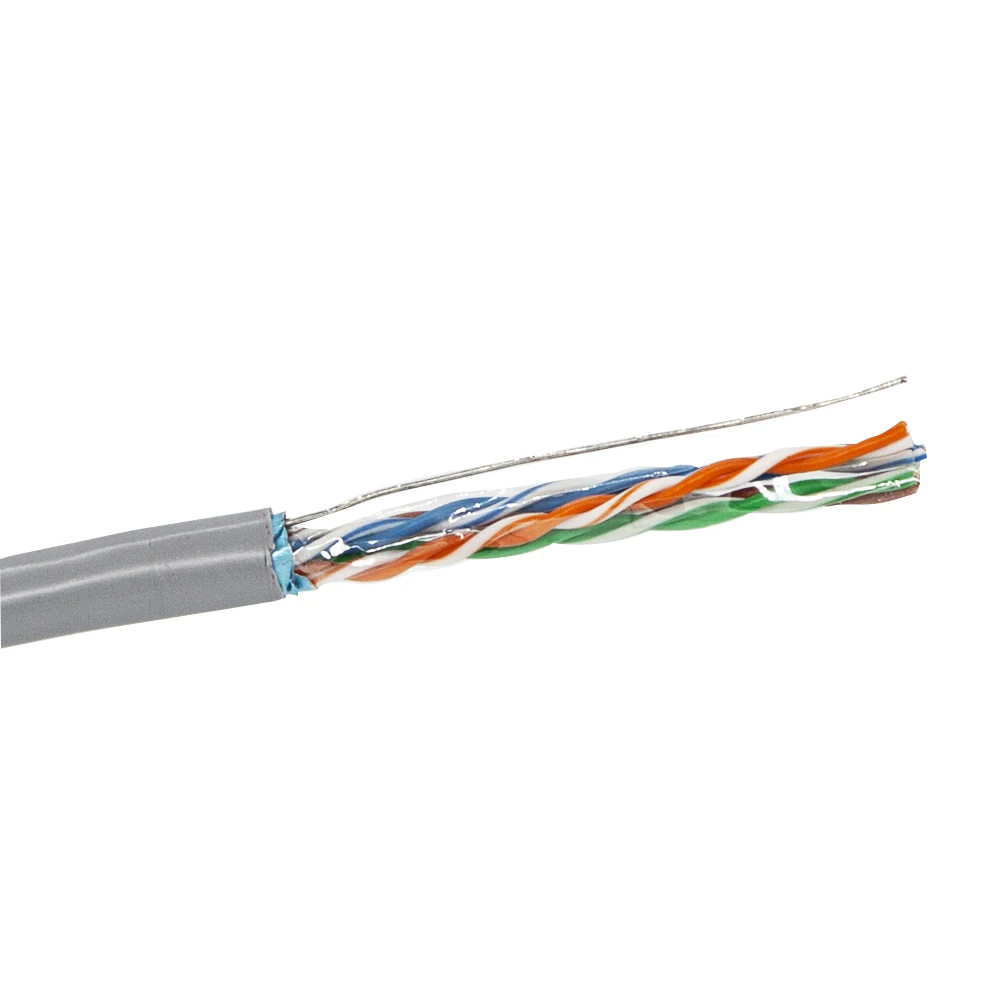

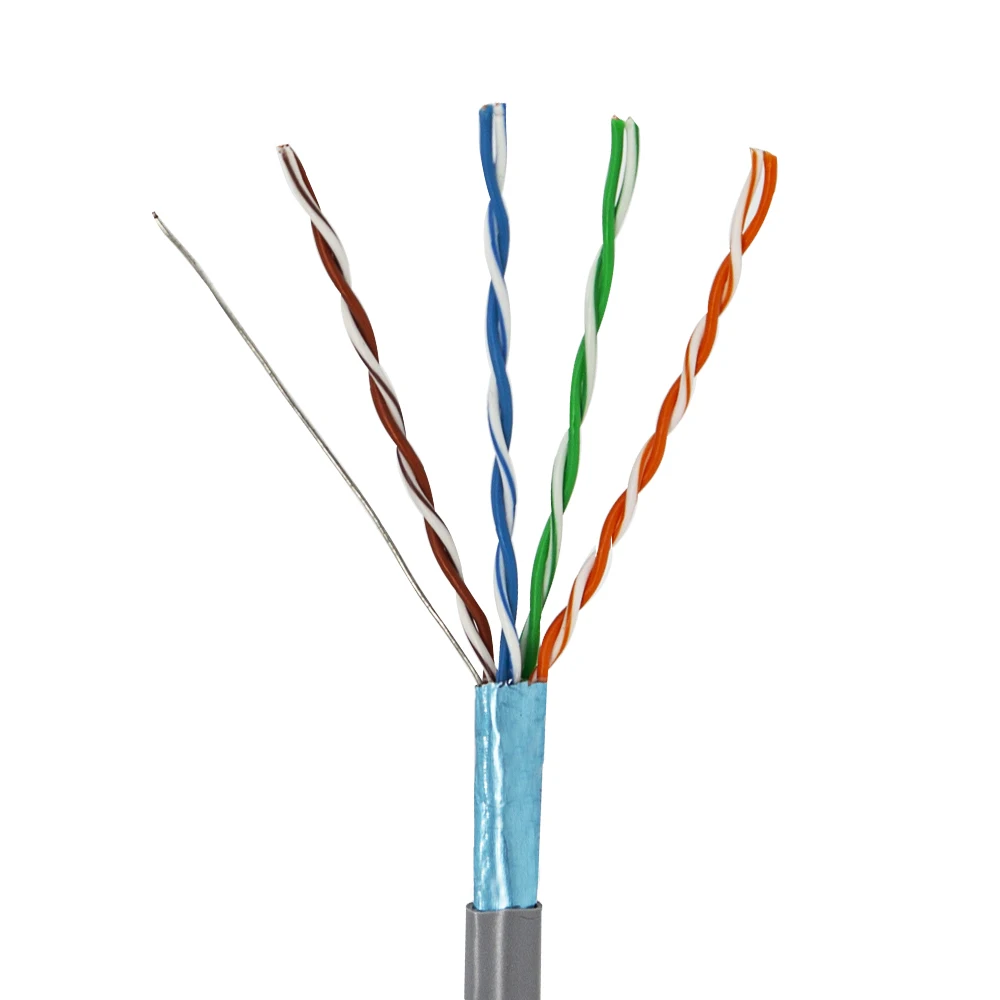

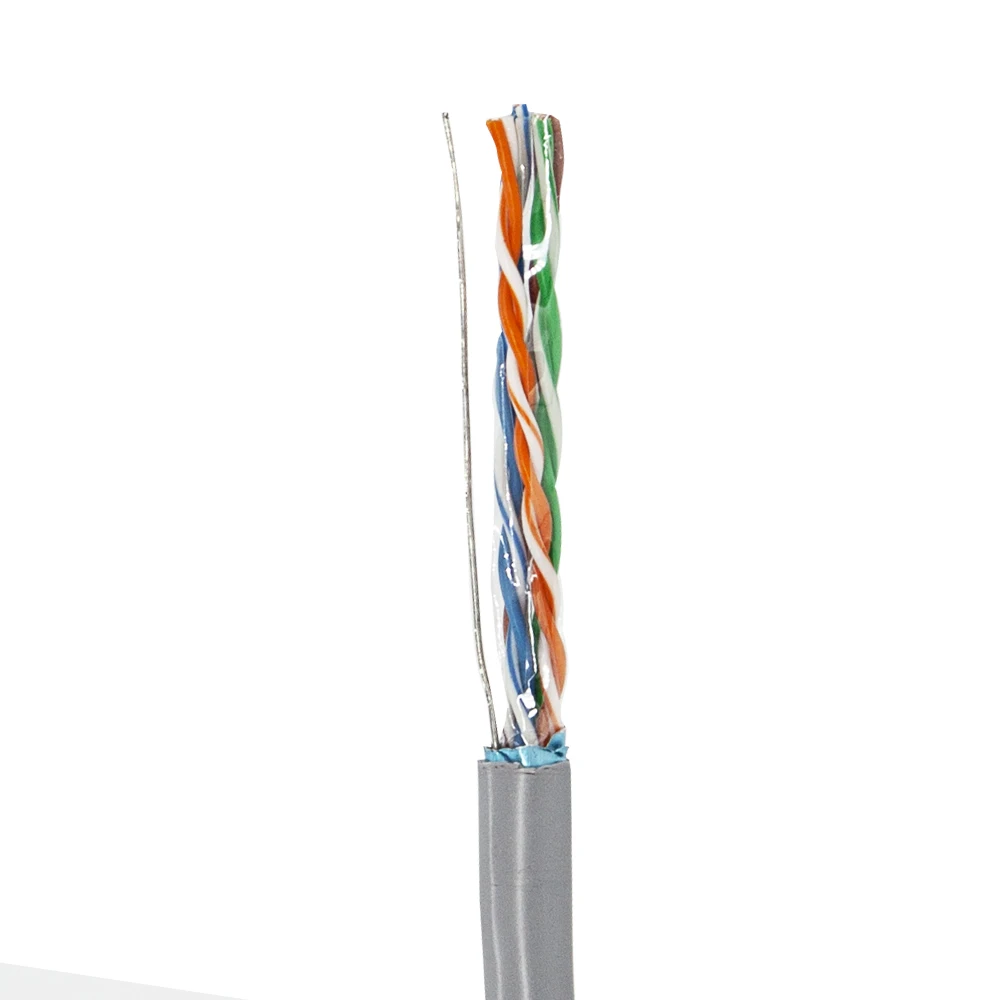

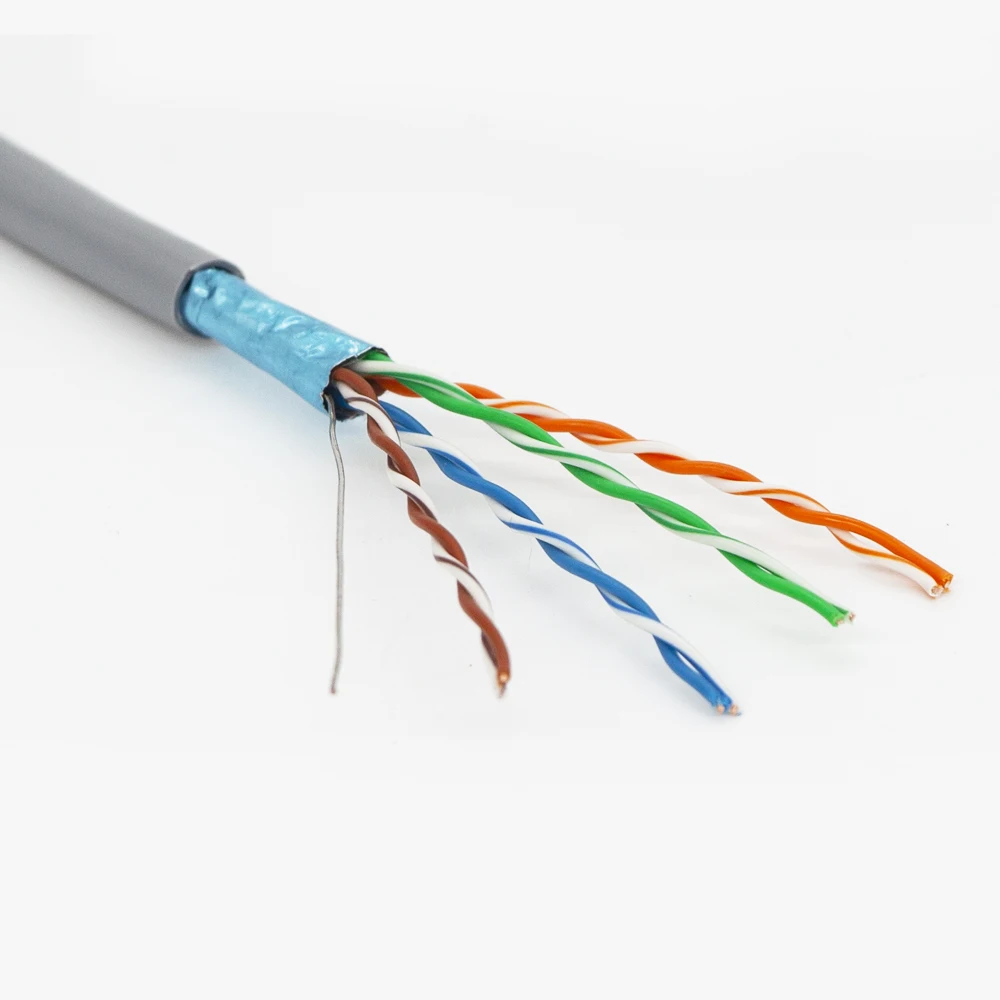

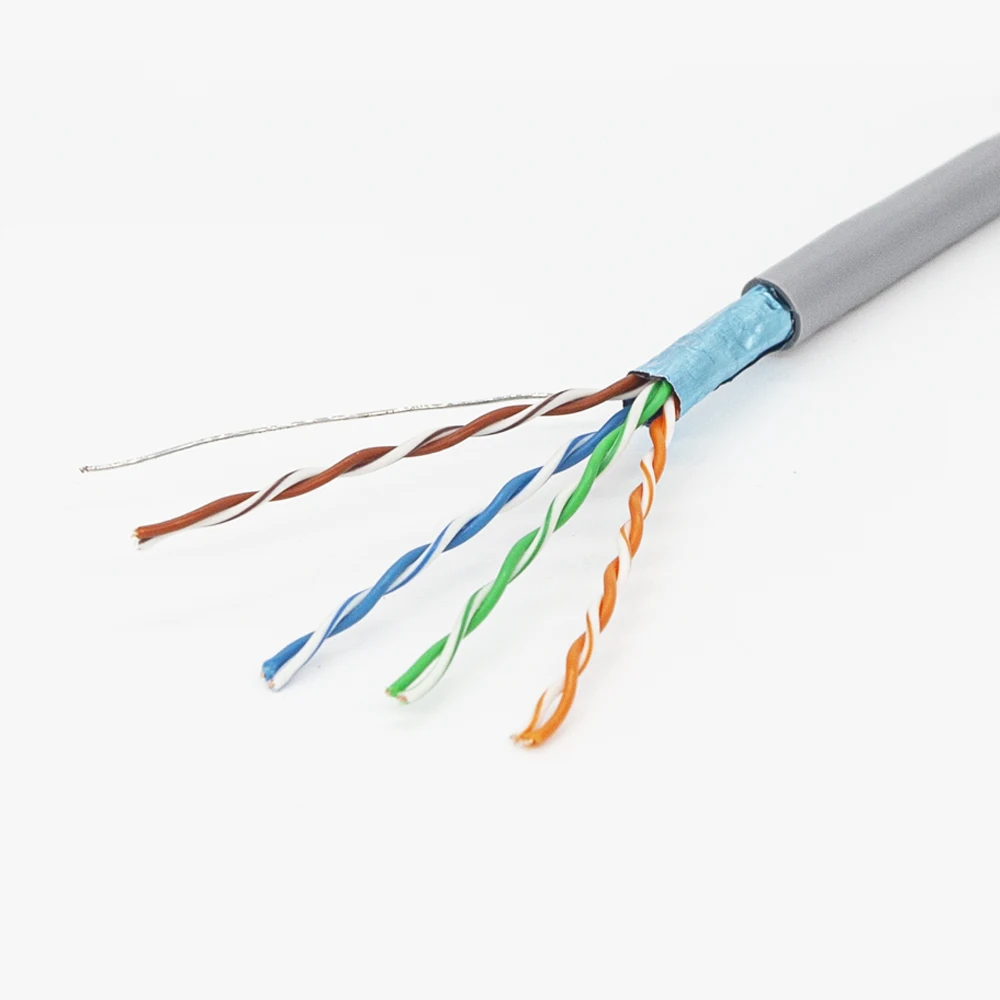

Solid Wire Bare Copper Cu Network Patch Cable Cat 5e F/UTP Shielded 4 Pair Twist PVC/LSZH LAN Cable
- Category: >>>
- Supplier: Dongguan Linoya Data Technology Co. Ltd.
Share on (1600266325359):
Product Overview
Description
Product Overview
Linoya Category 6 FTP cables are manufactured and tested to the TIA/EIA 568-B,EN50173-1 and ISO/IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded 23AWG polyethylene insulated conductors. These are twisted together to from 4 pairs with varying lay lengths. These pairs are then formed around a central "X" shaped polyethylene filler. This filler assists in maintaining and enhancing the cables performance. The printing detail along the outer sheath includes the cable part code, specification detail and our new 305 to 0 meters marked system. As the cable is dispensed from the box the sequential marking counts down from 305 to 0 meters, as well as assessing the amount of cable remaining in partly used boxes
Specification
Conductor Size | 23AWG |
Conductor Type | 100% Solid bare copper |
Conductor Diameter | 0.570±0.008mm |
Insulation Type | Polyethylene |
Insulation Diameter | 1.03±0.10mm |
Insulation Minimum Thickness | 0.23mm |
Central Element | Polyethylene Cross Filler |
Outer Sheath | PVC/LSZH |
Average Thickness | 0.60±0.05mm |
Overall Diameter | 6.00±0.30mm |
Temperature Rating | 75℃ |
Impedance | 100 Ohms |
