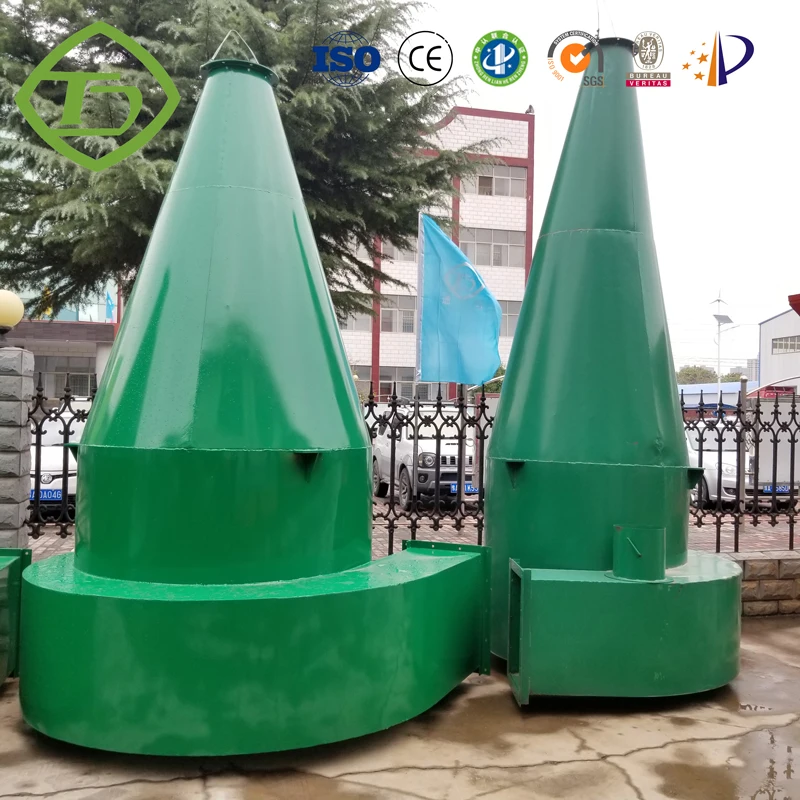

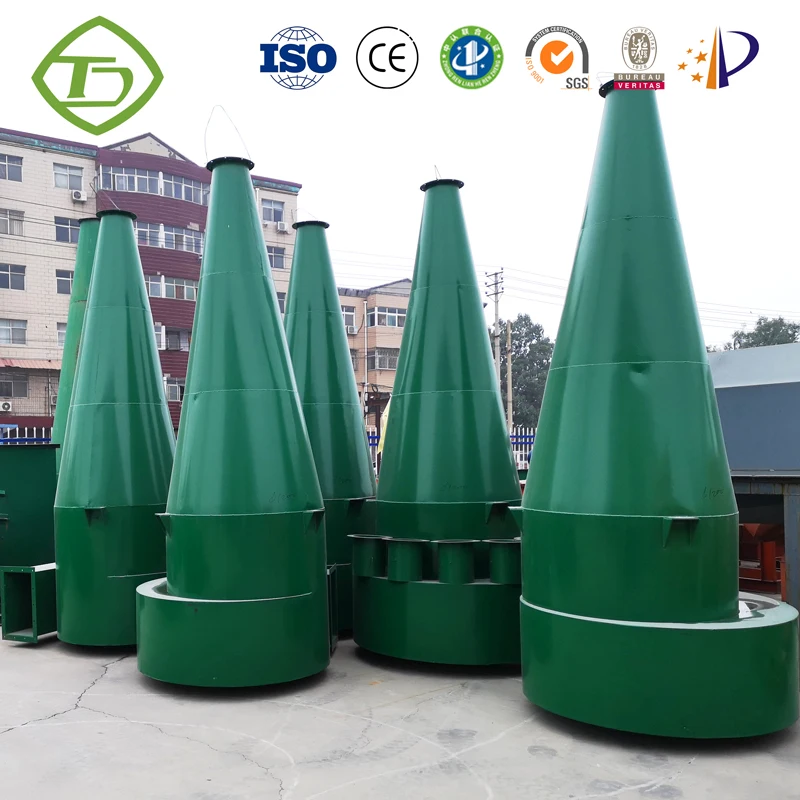

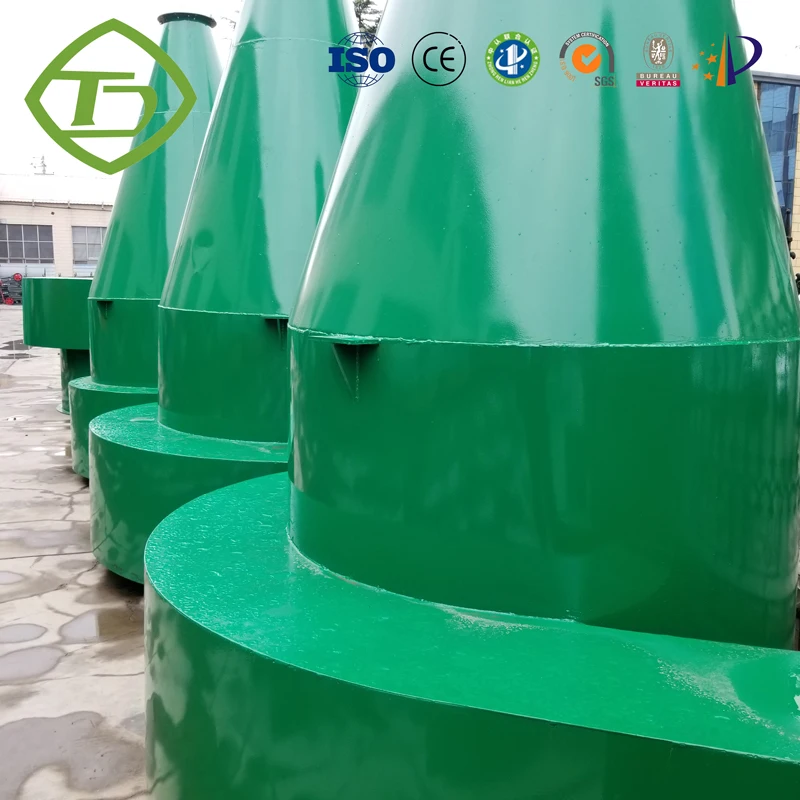

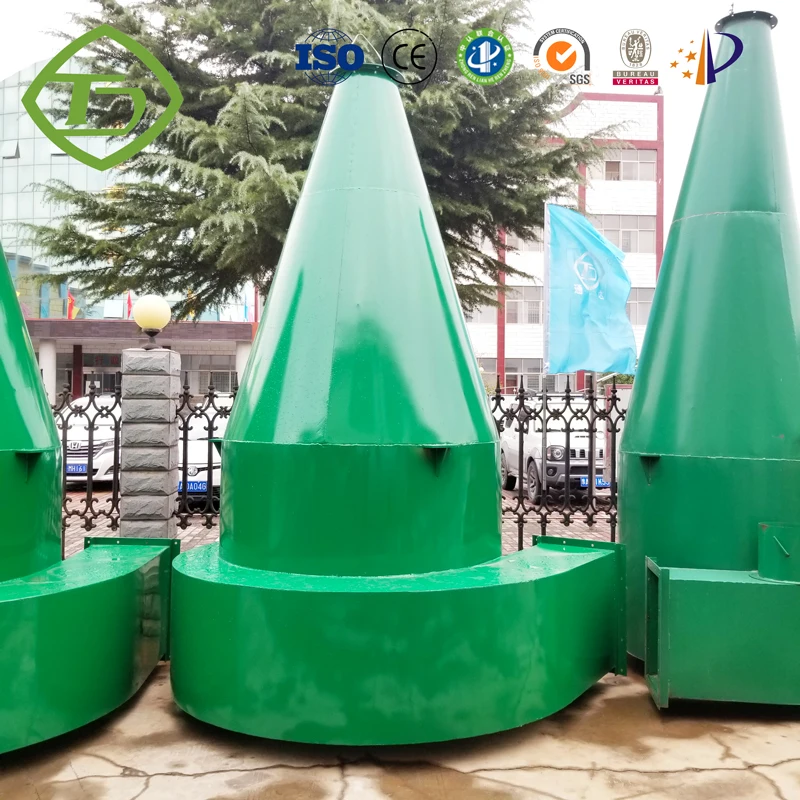

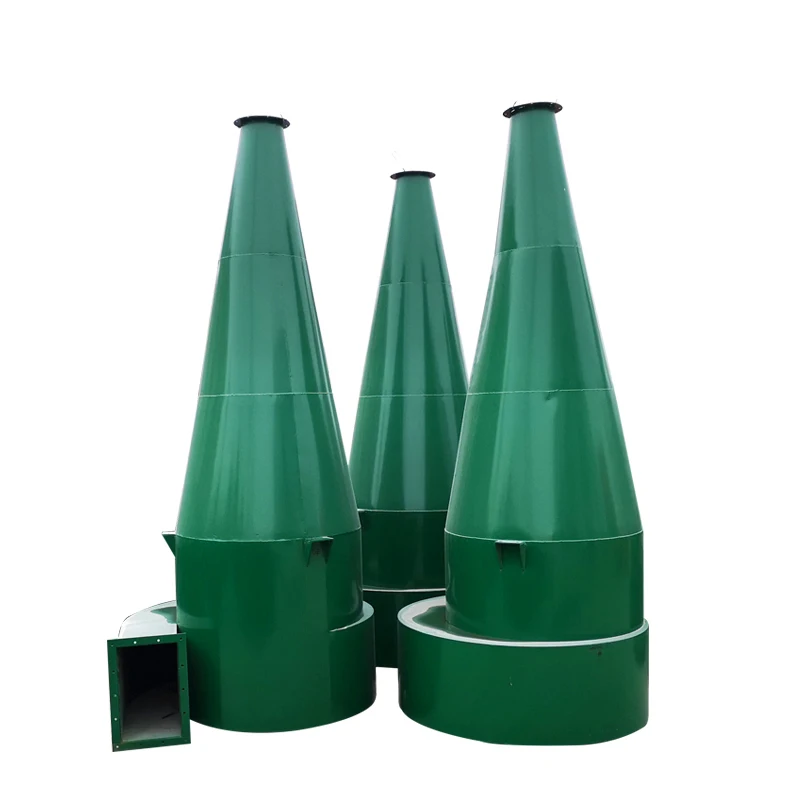

Separate Dust Particles Cyclone Portable Separator Dust Collector

Product introduction

The cyclone dust collector is the collection of dust caused by the fan in the drying and cooling process of organic manure and compound fertilizer.

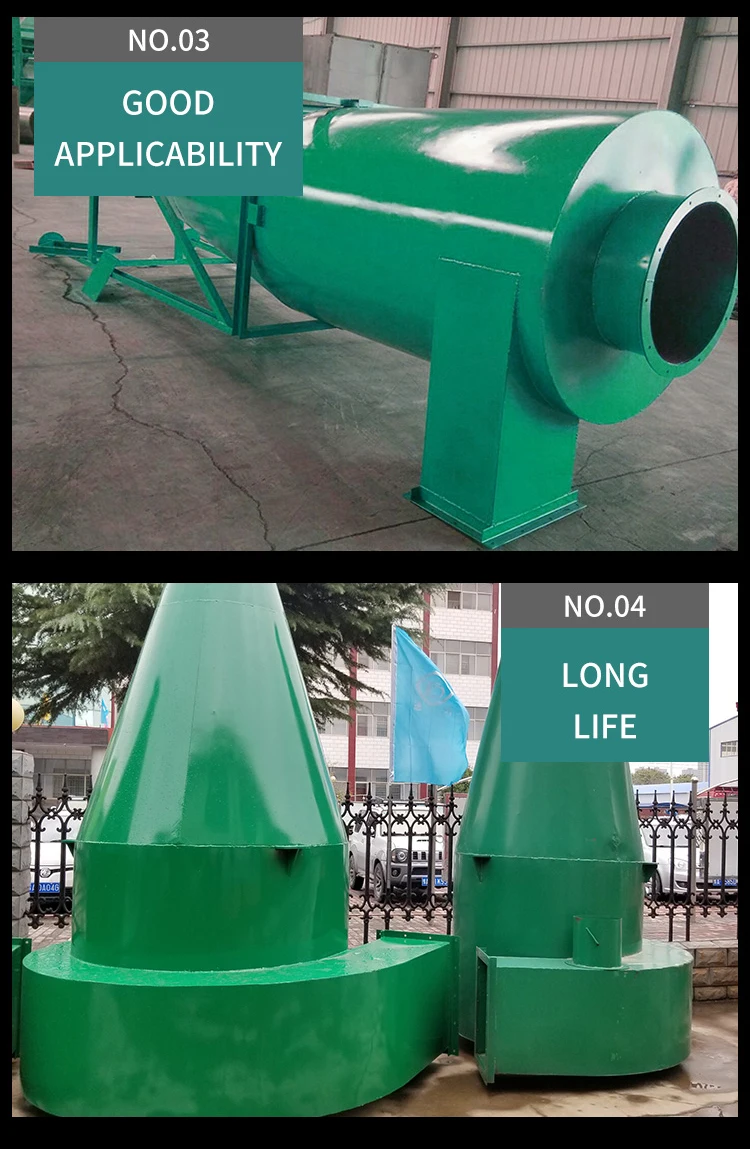

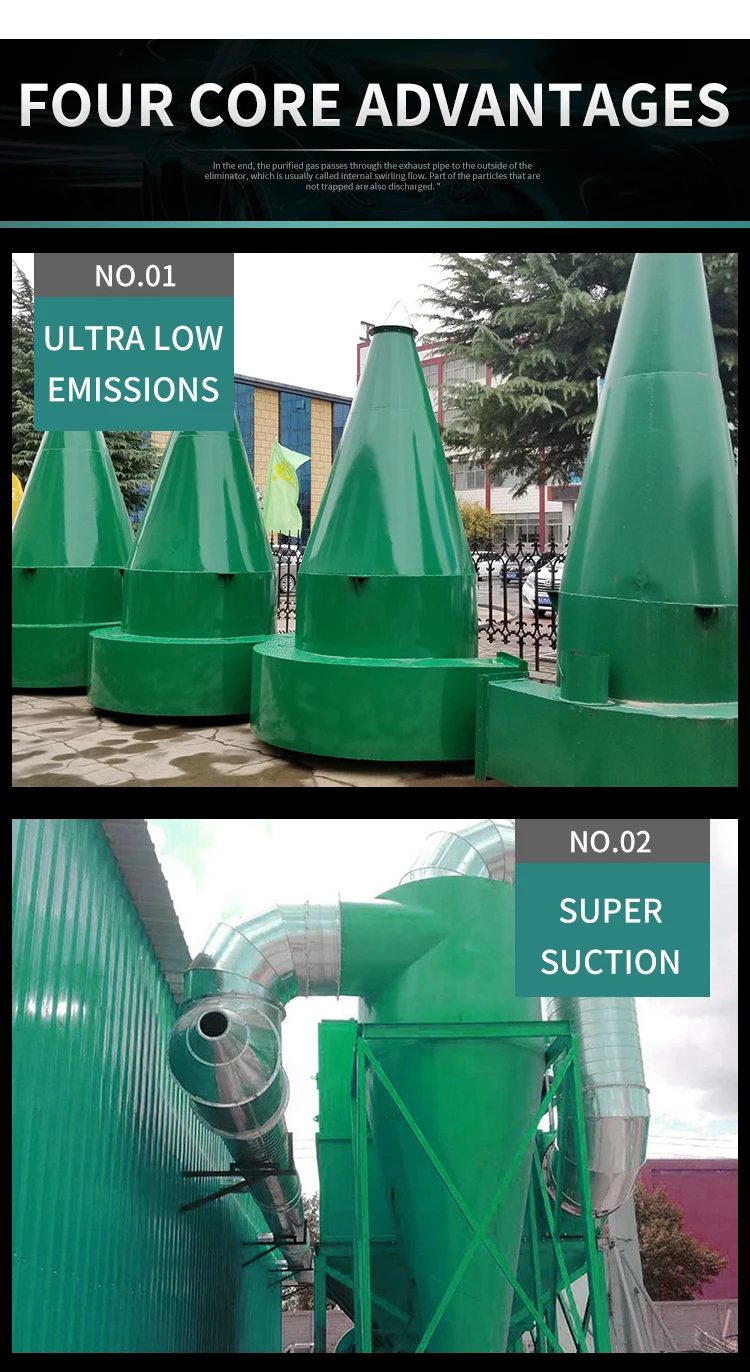

Performance characteristics

1.There are no moving parts inside the cyclone. Easy to maintain.

2.When used as a pre-duster, it can be installed vertically and is easy to use.

3.It can withstand high temperatures of 400 ° C. It can withstand higher temperatures if it is made of special high temperature resistant materials.

4.After the wear-resistant lining is installed in the dust collector, it can be used to purify flue gas containing high abrasive dust.

5.In the case of handling the same air volume, the volume is small, the structure is simple, and the price is low.

6.When handling large air volumes, it is convenient to use multiple units in parallel, and the efficiency resistance is not affected.

7.After the wear-resistant lining is installed in the dust collector, it can be used to purify flue gas containing high abrasive dust.

8.Dry cleaning can help to recover valuable dust.

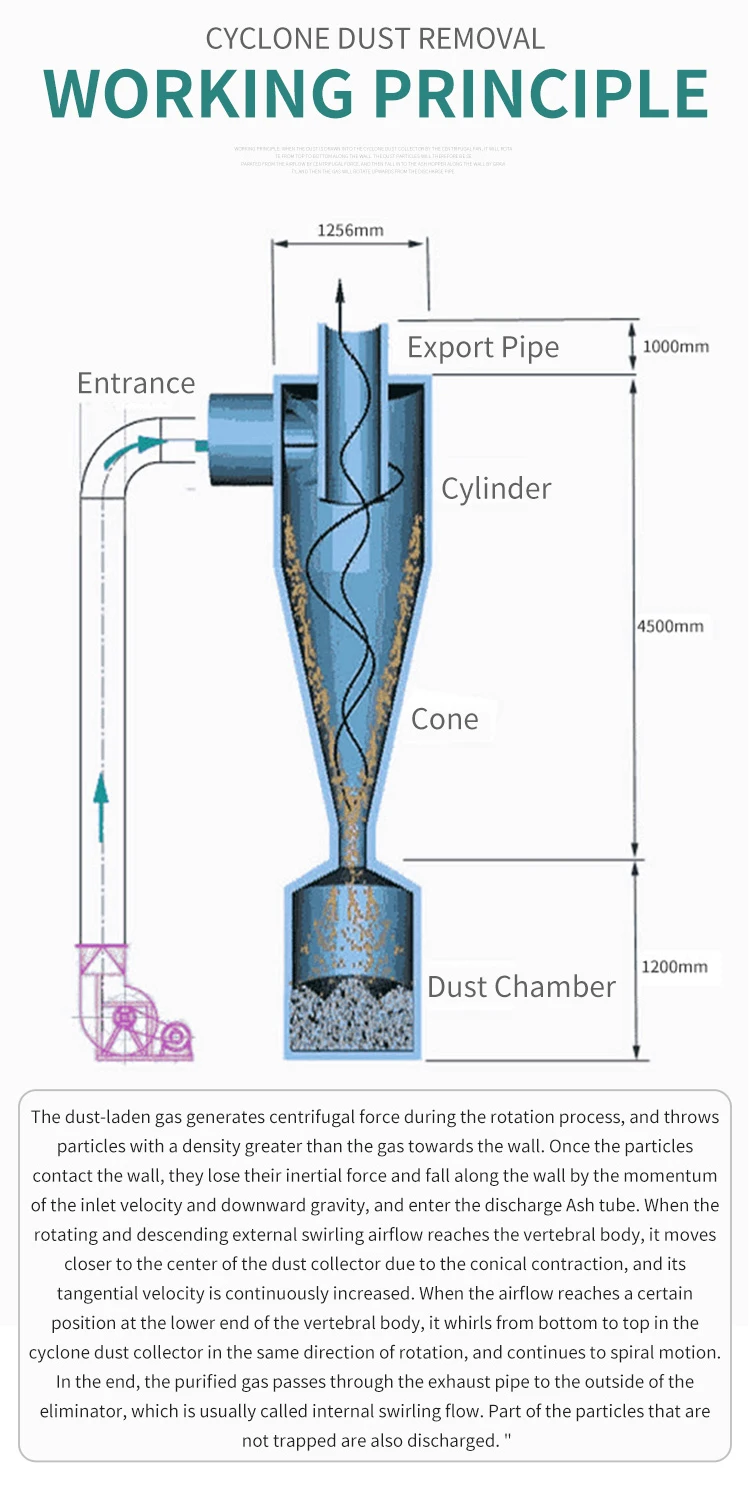

Working principle

The cyclone is composed of an intake pipe, an exhaust pipe, a cylinder, a cone and a ash bucket. Cyclone dust collectors are simple in construction, easy to manufacture, install and maintain, and have low equipment investment and operating costs. They have been widely used to separate solid and liquid particles from gas streams or to separate solid particles from liquids. Under normal operating conditions, the centrifugal force acting on the particles is 5 to 2500 times that of gravity, so the efficiency of the cyclone is significantly higher than that of the gravity sedimentation chamber. Based on this principle, a cyclone dust removal device with a dust removal efficiency of more than 90% was successfully developed. In mechanical dust collectors, cyclone dust collectors are the most efficient. It is suitable for the removal of non-viscous and non-fibrous dust, mostly used to remove particles above 5μm. The parallel multi-tube cyclone device also has a dust removal efficiency of 80-85% for 3μm particles. Cyclone dust collectors constructed of special metal or ceramic materials resistant to high temperature, abrasion and corrosion can be operated at temperatures up to 1000° C and pressures up to 500 *105 Pa. From the aspects of technology and economy, the control range of cyclone dust collector pressure loss is generally 500-2000Pa. Therefore, it is a medium-efficiency dust collector and can be used for purifying high-temperature flue gas. It is a widely used dust collector and is widely used in boiler flue gas dust removal, multi-stage dust removal and pre-dust removal. Its main disadvantage is the low removal efficiency of fine dust particles (<5μm).

Notice:

And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.

The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.

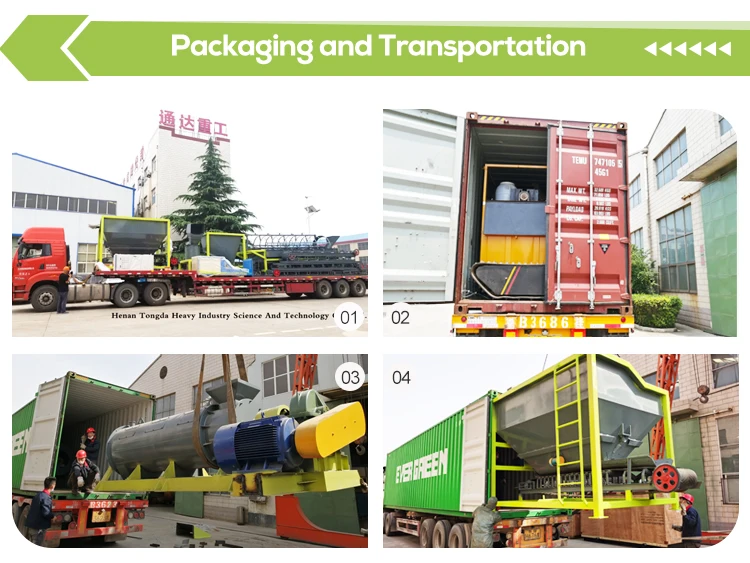

Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.

1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online brochure is available under request and we warmly welcome you to visit our company.
2.How about price?
We can give you the lowest price than market one, of course, the discount is based on the quantity.
3. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
4. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized accoridng to your specific requirements, putting your logo on is also available and region agents are welcomed.
5.About the aftersale service, how can you solve the problems occurred of your overseas customer in time?
The machine warranty is 12 months, we have engineers available to help you solve your problems during that period.
