HUASHUN ZTM 50 Automatic pipe taper reducing machine for table or chair leg
- Category: Tube End Forming Machines >>>
- Supplier: Zhangjiagang,Huashun,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products
Pipe Taper Reducing Machine Sample
Main Products

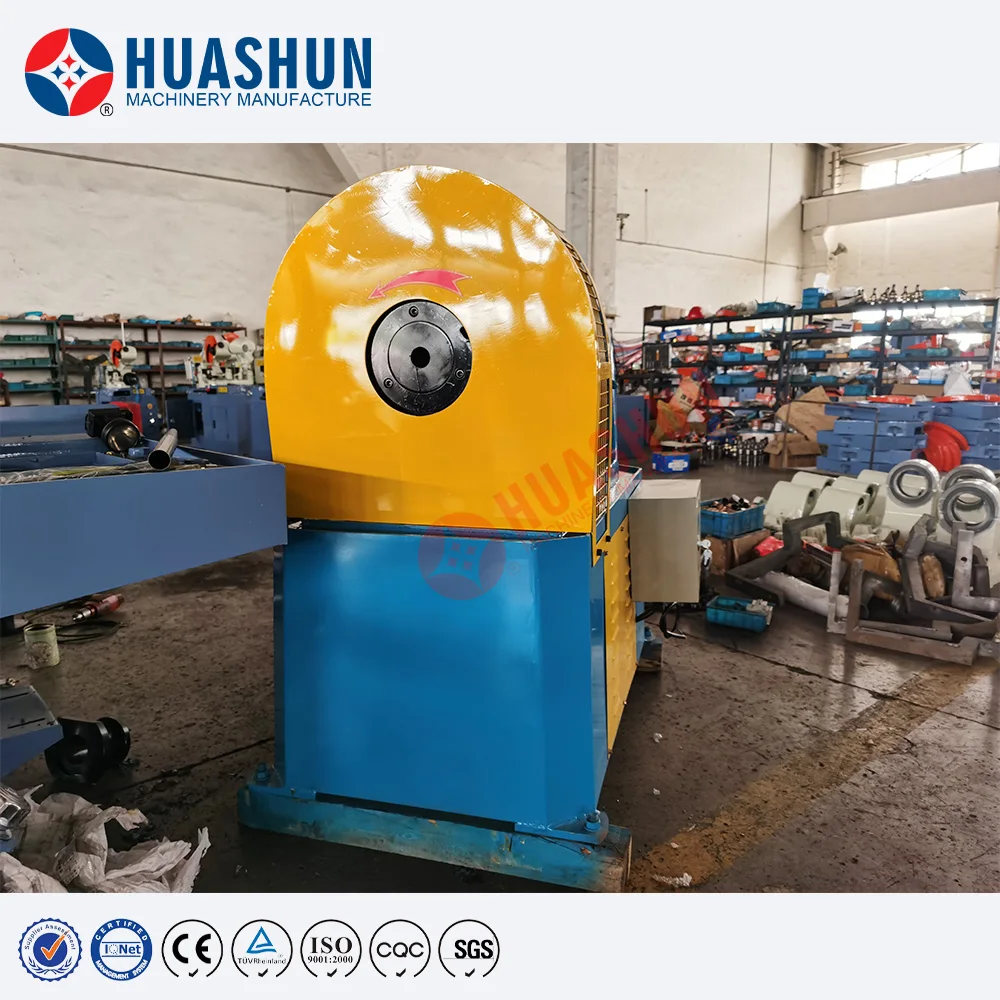

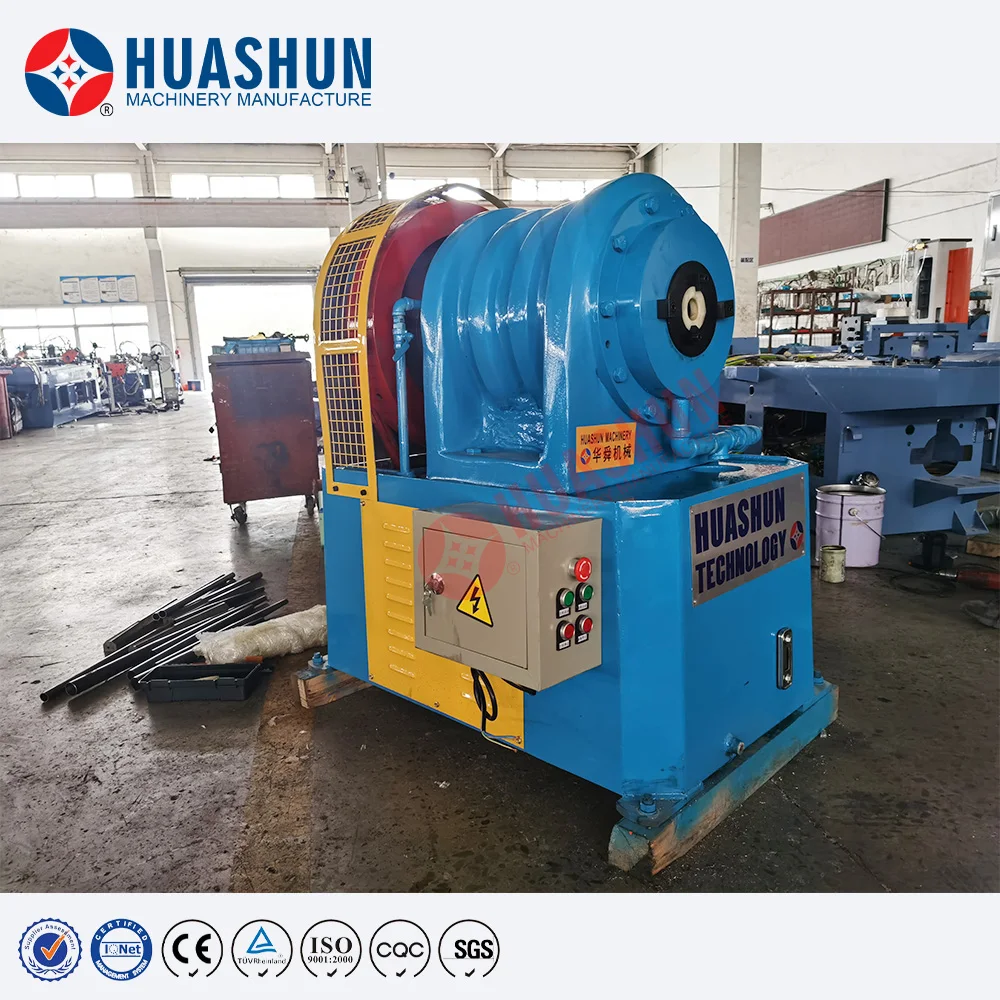

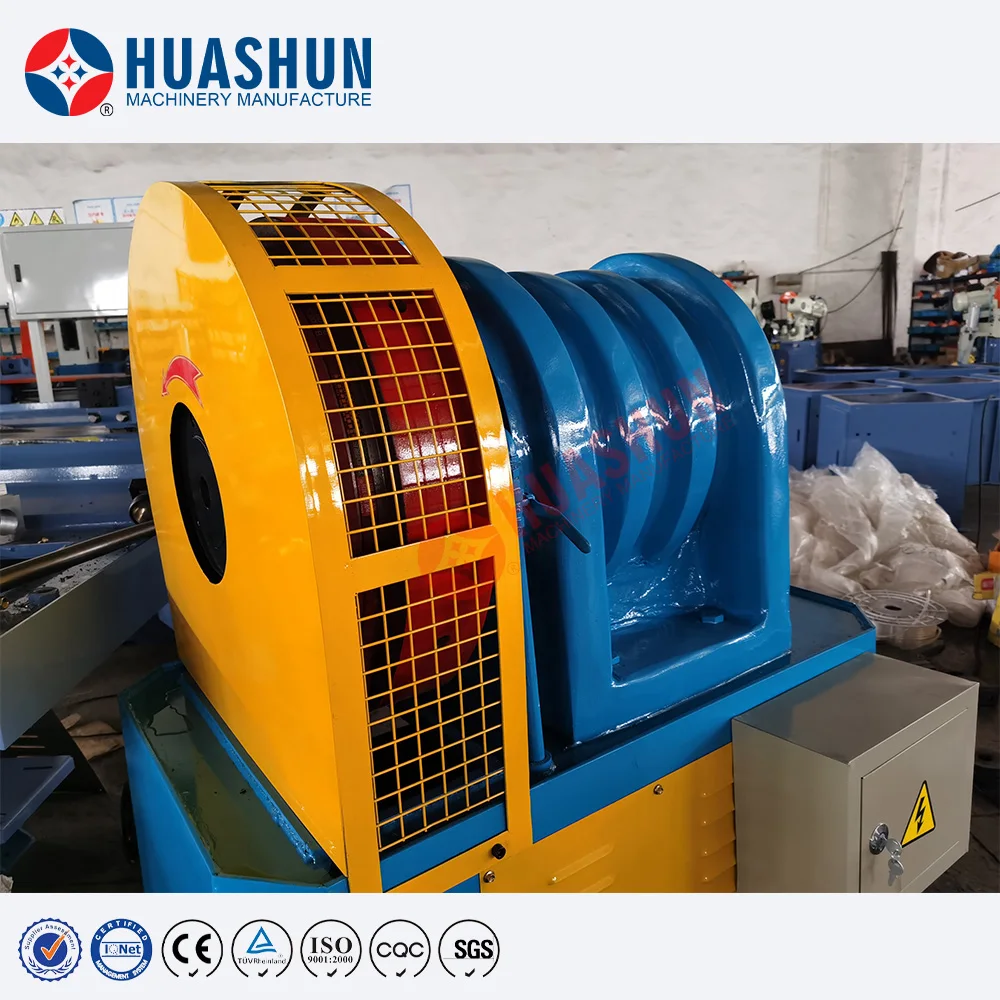

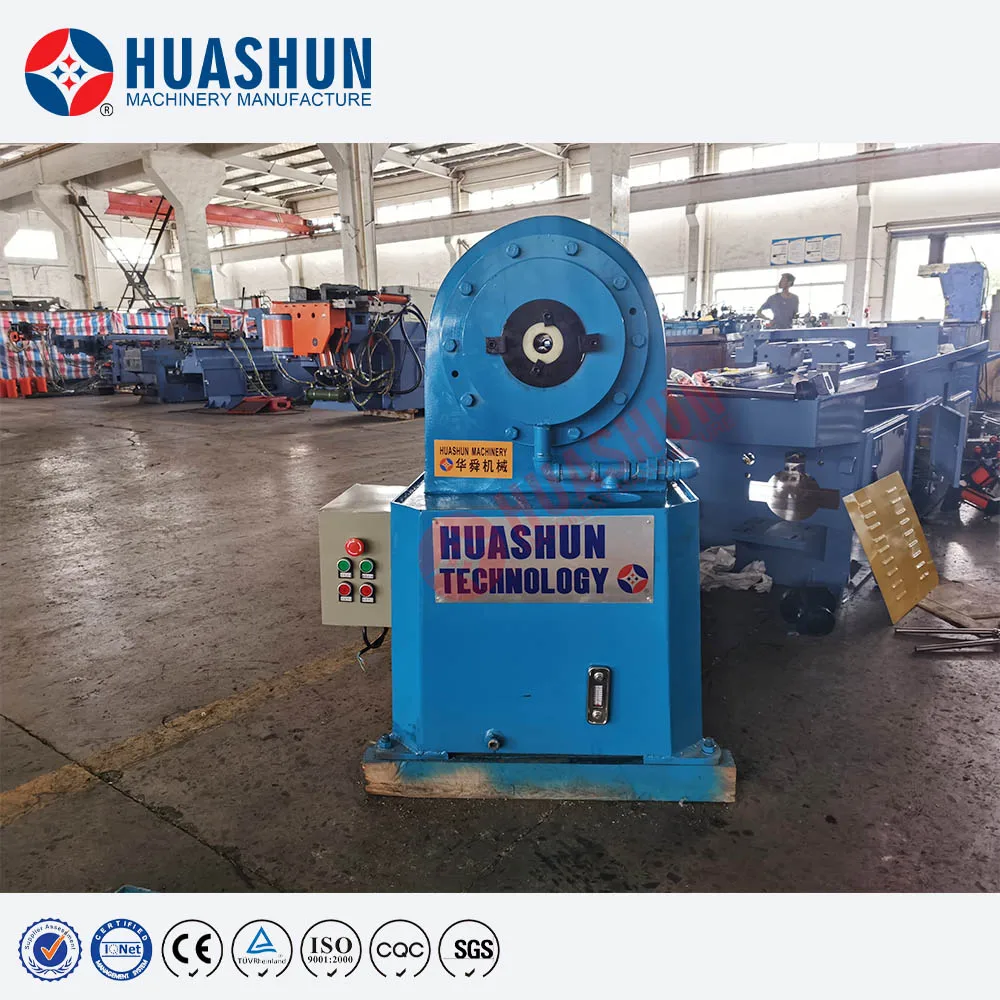

ZTM-50 Automatic pipe taper reducing machine.
1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.
2.Microcomputer controlling; Hydraulic driving.
3.Automatic and manual operations are available.
4.English or Chinese subtitles; man-machine conversion operation, easy.
5.Adopting linear slider rail, stable propulsion.
6.High accuracy and efficiency.
2.Microcomputer controlling; Hydraulic driving.
3.Automatic and manual operations are available.
4.English or Chinese subtitles; man-machine conversion operation, easy.
5.Adopting linear slider rail, stable propulsion.
6.High accuracy and efficiency.
Machine Details
Adjustable screw.
The mold specifications can be easily adjusted back and forth, and the machine design structure is reasonable, firm,reliable, and transportable.

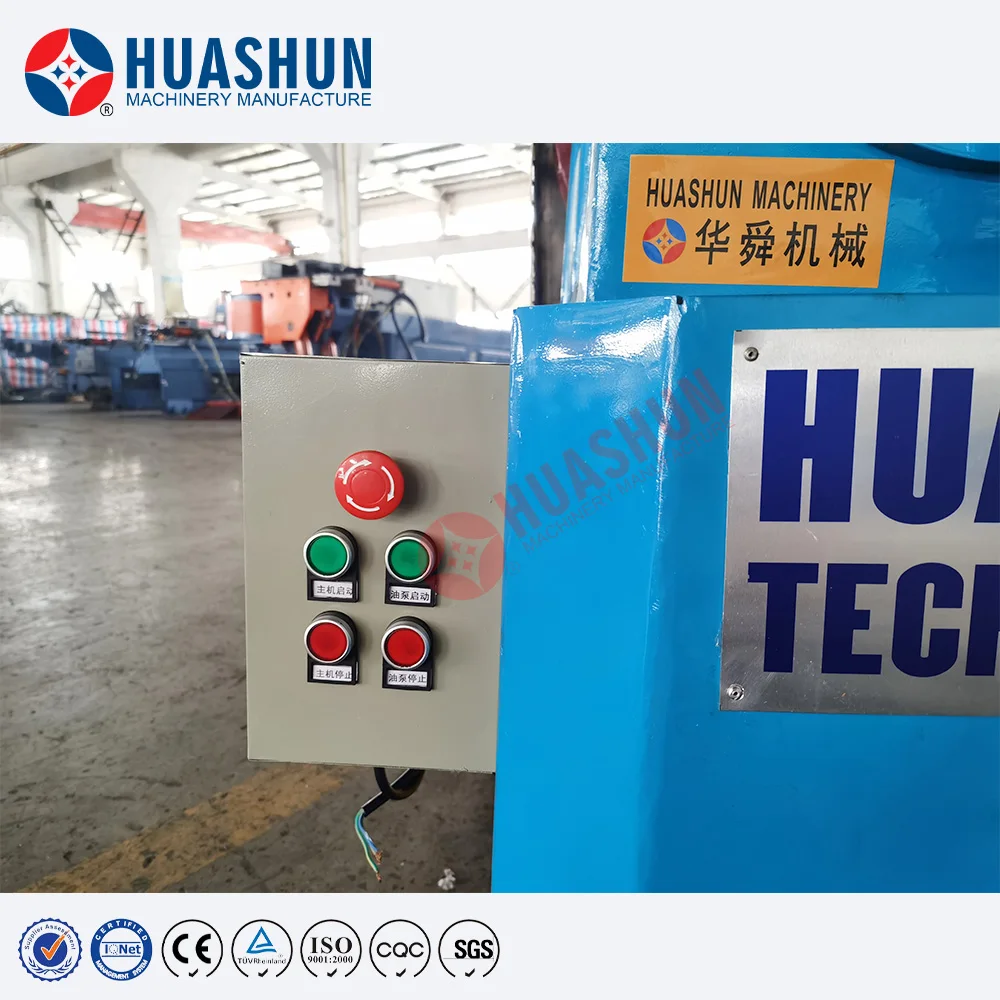

One key switch electric box.
One-button control,simple and easy to operate,easy taper tube,grade motor,high power and great strength.It can process stainless steel thick tubes.
Carved mould.
Engraving machine production imported material.
More durable，not easy to wear.
Want to know more details about our machine, inquiry us now!
Product Paramenters
Specification | HS-ZTM-50-420 | ||
Max Tube Size | mm | Φ50×2 | |
Max Processing Length Limit | mm | 420 | |
Processing Time | s | 7-30 | |
Spindle speed | RPM | 248 | |
Main Motor Power | kw | 4 | |
Hydraulic Motor Power | kw | 1.5 | |
Hydraulic Pressure | Mpa | 12 | |
Recommend Products
Pipe End Forming Machine.
Pipe End Forming Machine DTM-40
Pipe End Forming Machine TM-2-60
Pipe End Forming Machine TM-3-40
Pipe End Forming Machine TM-4-100
Pipe End Forming Machine TM-40
Pipe End Forming Machine TM-60
Pipe End Forming Machine TM-3-40
Pipe End Forming Machine TM-4-100
Pipe End Forming Machine TM-40
Pipe End Forming Machine TM-60
Pipe End Forming Machine ZTM-50
If you want to know more model types machine, inquiry us now!
Why Choose Us
Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Huashun Machinery started factory in 2000 from producing pipe bending machine, and then expands the whole line of pipe equipments.Lead the manufacturing of pipe equipments after 19 years' of development.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Factory.
It is located in Zhangjiagang City, along the Economic circle of Yangtse River Delta, Located on the National Road,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our factory is combined with manufacture, sales, service, and supply of Pipe equipments, We are devoted to providing a one-stop sales model to customer; We give more important care on our customer's satisfaction. So far, over 108 countries and regions have enjoyed our products and service. Our success has been mainly achieved by following the corporate philosophy of being firmly committed to "Integrity is the base, Customer is the first".
Certificates.
Certificates.
FAQ
Q:Are you manufacturer or trading company?
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
