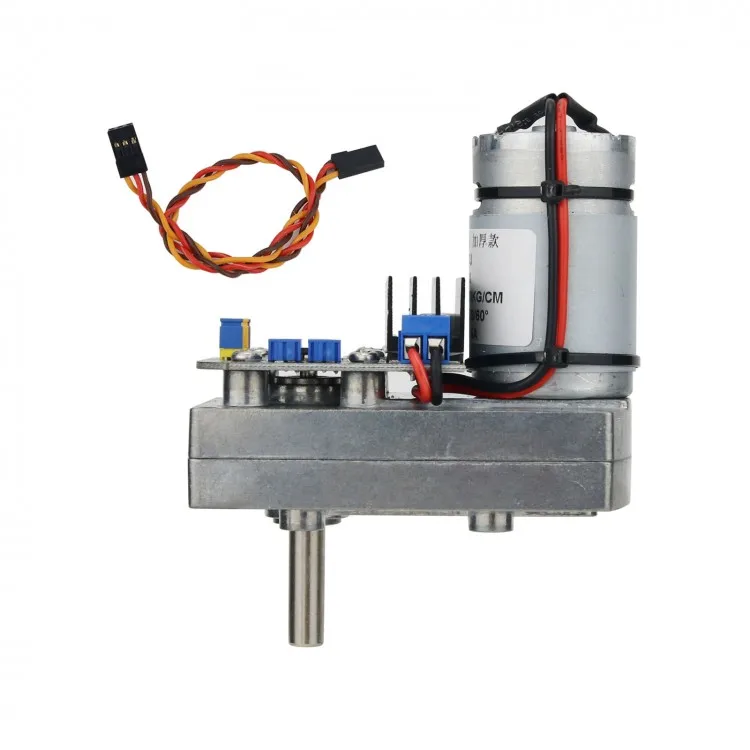

DH-03X 400KG/CM Thicker Digital Servo Thick Metal Gear High Torque Servo For RC Industrial Robots

Share on:

Price:RUB 4,667.13
Price in USD:Details


Product Overview


DH-03X 400KG/CM Thicker Digital Servo Thick Metal Gear High Torque Servo For RC Industrial Robots


Product Description


Download Instructions:
http://pan.baidu.com/s/1kUZusM7 Password: apdt

- High torque digital servo with thickened base.
- Adjustable current limit protection, 12-24V wide voltage power supply (the lower the voltage, the slower the speed, the smaller the torque).
- Unique power stabilization technology ensures the continuous operation of servo, which is completely different from other servos using fuse protection. Has solved the problem that the servo cannot continue to work once the fuse is blown.
- Multiple upgrades and improvements, more stable performance, smooth operation, super anti-interference ability.

- After over-current protection is activated, the servo will stop running for 3-4S, and then the servo will release the over-current protection and resume movement by itself. Please turn off power supply in time after the over-current protection is activated to reduce the load and avoid damage to the servo; Or stay away from the scope of servo swing arm to avoid being hit by the servo!
- Can be made into 360-degree continuous rotating servo
- Customizable servo drive board, brushed motor and brushless motor drive can be made

Technical Parameters:

- Rated voltage: DC 12-24V (12V MIN.-30V MAX.)
- No-load current: <500MA (current limit 10A, it is recommended to use a switching power supply or battery greater than 5A)
- Limit angles:
* 1.0-2MS control mode: 300 degrees (adjustable electronic limit)
* 0.5-2.5MS control mode: 300 degrees (adjustable electronic limit)
* 0-5V analog voltage control: 300 degrees (adjustable electronic limit)
- Control Ways:
* 1.0-2.0MS pulse mode: suitable for model airplane remote control receiver control
* 0.5-2.5MS pulse mode: suitable for multi-channel servo controller control
* Analog voltage mode: 0-5V analog voltage input control (pulse frequency: 50-333HZ)
- Materials: gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 560g
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000,000 times/normal torque
- Maximum torque: Optional 110KG/CM, 200KG/CM, 300KG/CM, 400KG/CM

Using Instruction Video:

Package Included:
- 1 x Set of Digital Servo

- Battery is not included in the package.

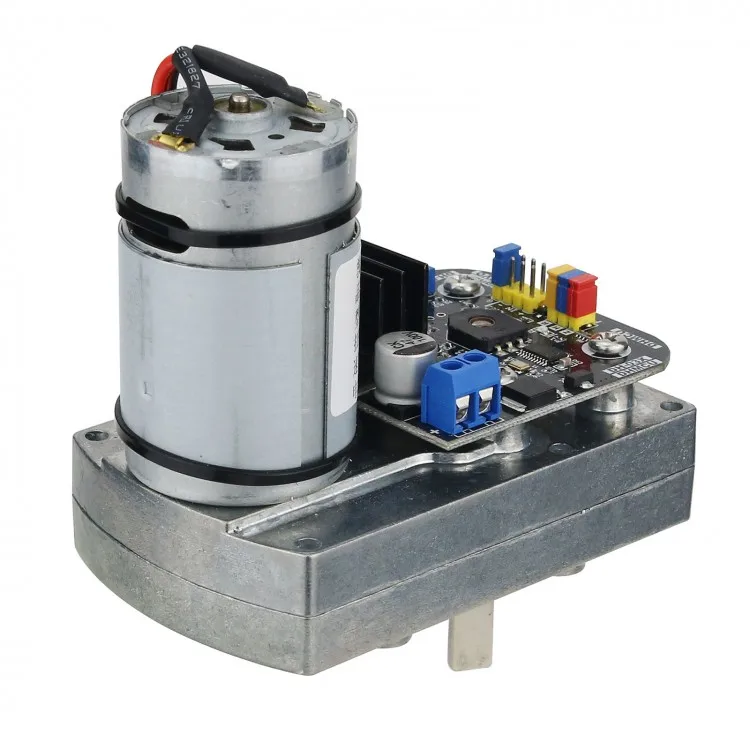

Detail photo
