Original Stock DELL NX3240 Storage Intel Xeon Bronze 3104 6 core 1.7G 8MB DELL Storage NX3240

Share on:

Price in USD:Details


Product Overview


Product Description

 Original Stock  DELL NX3240 Storage Intel Xeon Bronze 3104 6 core 1.7G 8MB  DELL Storage NX3240

NX3240-1  (4)





NX3240-1  (1).jpgNX3240-1  (4).jpgNX3240-1  (6).jpg

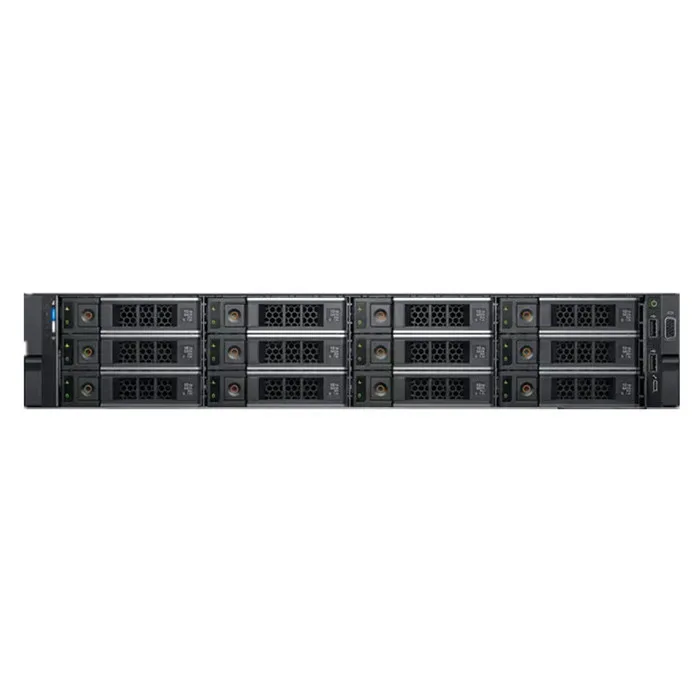

Dell Storage NX3240
Product Configurations
StorageUp to 12x3.5" HDDs in front bay, 4x3.5" HDDs in mid bay and 2x3.5” HDDs in rear bay (2.5” OS HDDs in carrier)
Max Internal Capacity192TB raw capacity (with 12TB NL-SAS)
Types of DataFile and Block (Microsoft iSCSI target)
Drive CapacitiesSATA (7.2K): 2TB, 4TB
NL-SAS (7.2K): 4TB, 8TB,
8TB FIPS, 10TB, 12TB SAS (10K): 600GB, 1.2TB,
1.2TB FIPs, 1.8TB SAS (15K): 600GB
External ExpansionNot preconfigured for external expansion. To enable expansion add supported SAS HBA or PERC H840 card and attach MD1400/MD1420 expansion modules
Technical Highlights
Form Factor2U rack-mount system
 Single and Dual
ProcessorIntel Xeon Bronze 3104, 1.7G, 6C/6T, 8M Cache or Intel Xeon3106 1,7G, 8C/8T, 11M Cache or Intel Xeon Silver 4114, 2.2G, 10C/20T, 14M Cache
File Access ProtocolsCIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)
Block Access ProtocolsMicrosoft iSCSI target
OS supportedMicrosoft Windows Storage Server 2016 Standard Edition
Internal RAID optionsStandard options: OS HDDs (on rear 2.5” HDDs) is always RAID1. Data HDDs can be configured from factory in RAID5 or RAID6 (minimum 4 HDDs)
PERC H730 (internal drives)
External RAIDPERC H830 (optional)
AC Power/Max CurrentRedundant and non-redundant hot-plug 750W and Redundant 1100W PSU
BezelLCD Bezel with Quick Sync 2 (at-the-box management)
DimensionsHeight: 86.8mm (3.42”)
Width: 482.0mm (18.98”, with rack ears)
Maximum Depth: 715.5mm
Maximum weight: 28.1 kg (61.95 lbs)
AvailabilityHot-plug hard drives, hot-plug redundant power, hot-plug redundant cooling, ECC memory
Cluster SupportNot recommended
SlotsFour PCIe 3.0 slots (four with x8 bandwidth)
Systems/Data Management
ManagementDell OpenManage Essentials, iDRAC9 Enterprise
Data protection featureReplication (DFS-R), Snapshots (VSS)
Optional TPM 1.2/2.0
