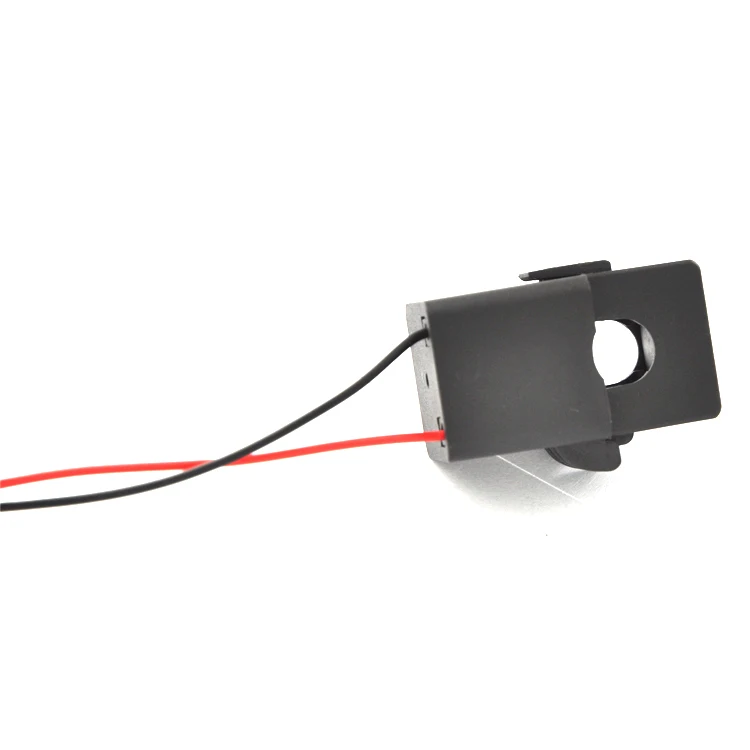

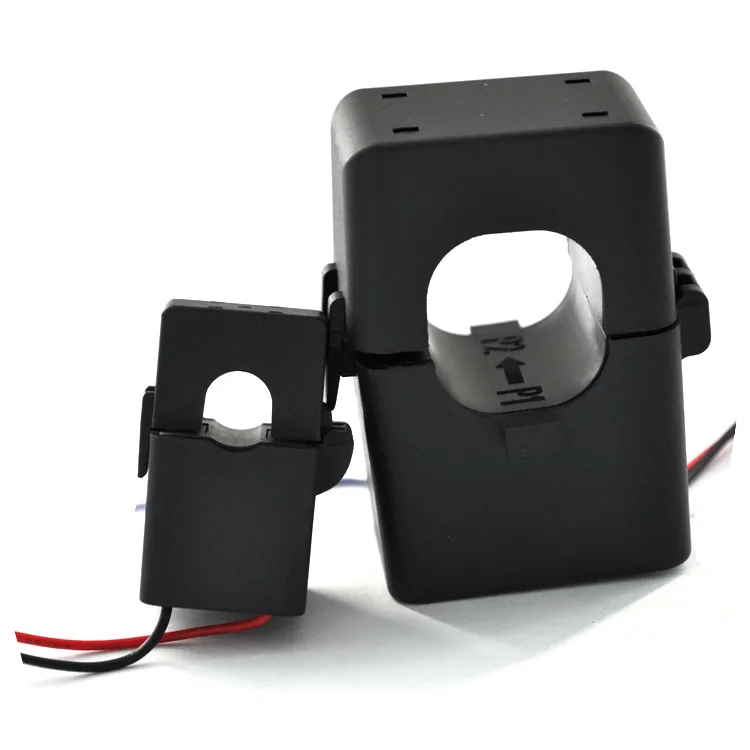

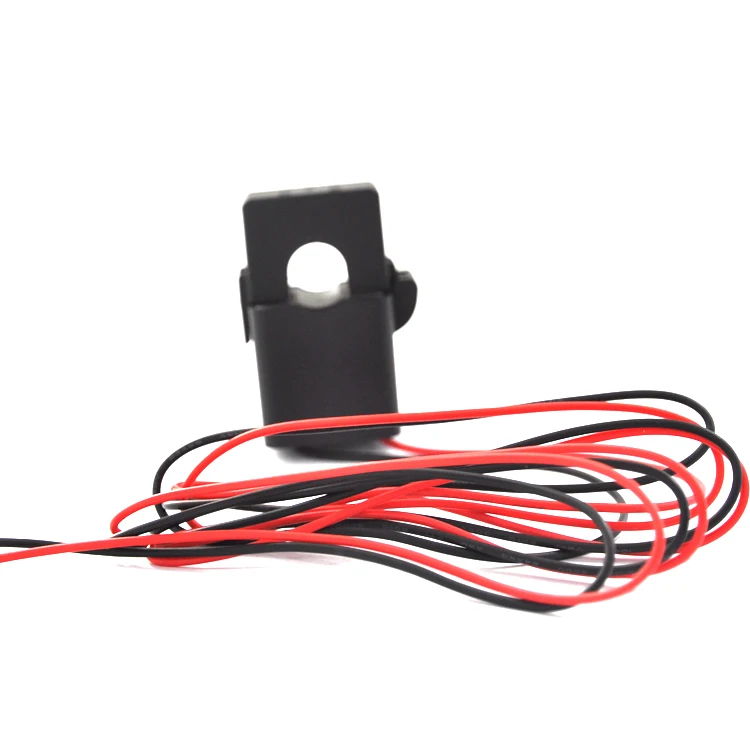

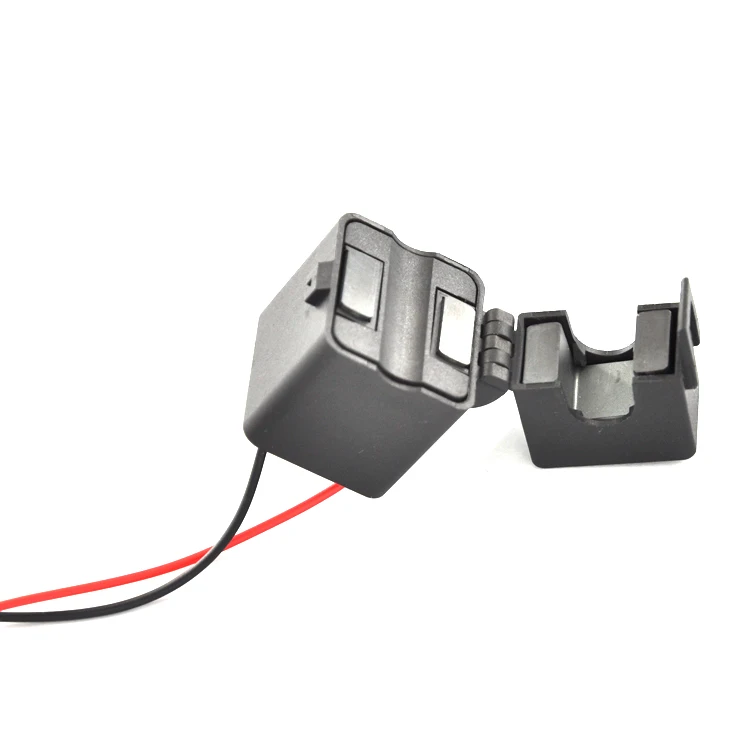

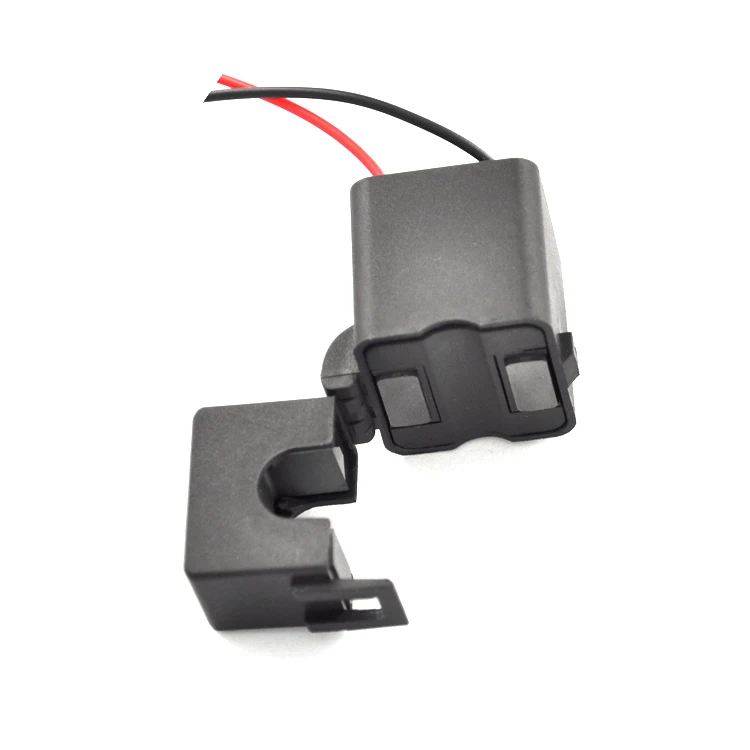

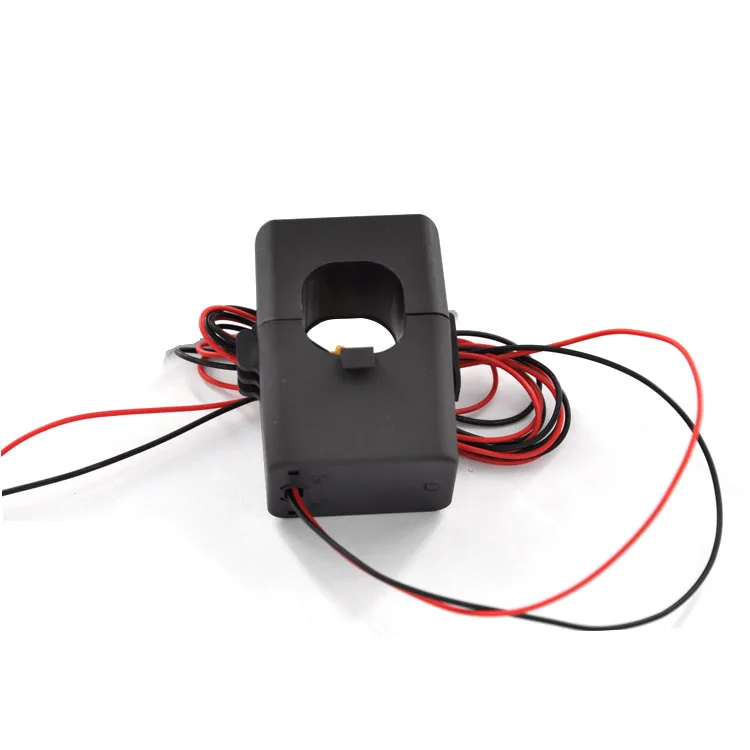

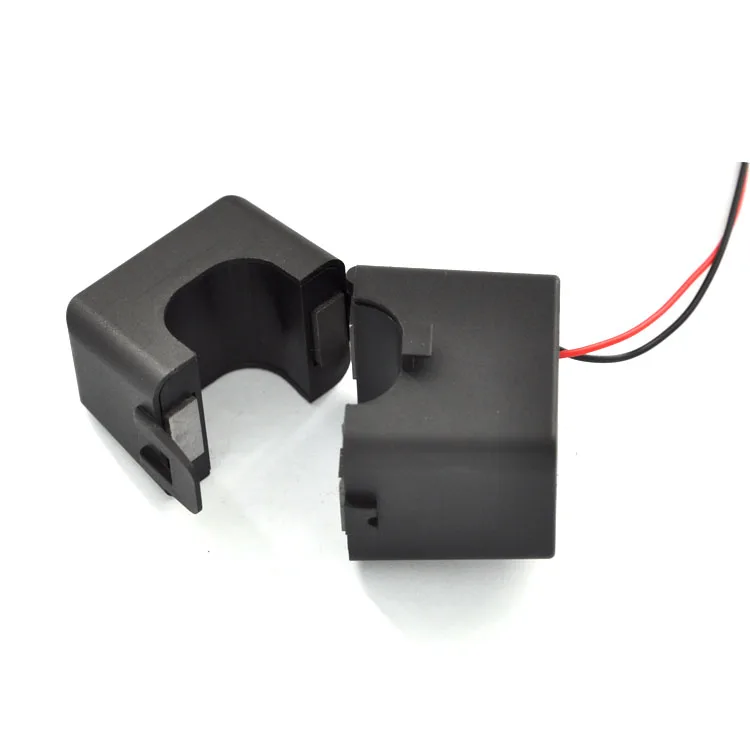

toroidal core ring coil ce certificated current sensor 30a 0.333v split core cts clamp on cts

 Introductions:

Open loop current transformer

Installation: Continuous line, no power failure

High precision and good linearity

Flame retardant (meet the UL94-V0)

Environmental protection (meet the RoHS)

Small weight and size

Guideline:

Chinese standard: GB1208-2006;

Industry standard: JBT 10665-2006.

Application:

Suitable for existing line modification and need to convert large current into small current for precise measurement or as an electrical safety protection.

Notes:

The primary current and secondary load connected to the transformer do not exceed the rated capacity, maybe cause reduced accuracy or saturation

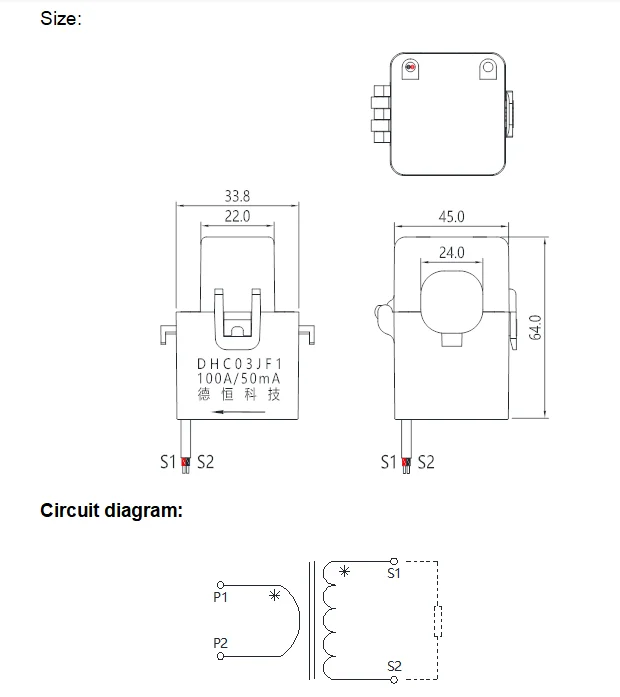

Size:

  Note:This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.

Specification:

   we are professional manufacturer of sensor including current transformer, hall sensor, fluxgate sensor, rogowski coil sensor, EV charging equipment as so on, Also we can provide customized service for you.
