ST STM32F746G DISCO, 32F746GDISCOVERY Discovery Kit With STM32F746NG MCU

Product Overview

Description

Description

The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.

The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

• STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package


• On-board ST-LINK/V2-1 supporting USB re-enumeration capability


• Mbed-enabled (mbed.org)


• USB functions: virtual COM port, mass storage, debug port

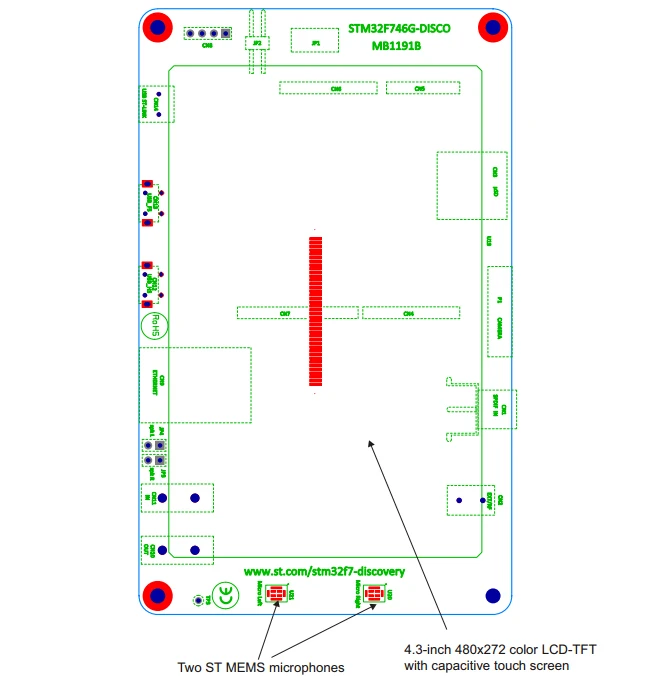

• 4.3-inch 480x272 color LCD-TFT with capacitive touch screen


• Camera connector


• SAI audio codec


• Audio line in and line out jack


• Stereo speaker outputs


• Two ST MEMS microphones


• SPDIF RCA input connector


• Two pushbuttons (user and reset)


• 128-Mbit Quad-SPI Flash memory


• 128-Mbit SDRAM (64 Mbits accessible)


• Connector for microSD card


• RF-EEPROM daughterboard connector


• USB OTG HS with Micro-AB connectors


• USB OTG FS with Micro-AB connectors


• Ethernet connector compliant with IEEE-802.3-2002


• Five power supply options:



  • ST LINK/V2-1


  • USB FS connector


  • USB HS connector


  • VIN from Arduino connector


  • External 5 V from connector






• Power supply output for external applications: 3.3 V or 5 V


• Arduino Uno V3 connectors


• Comprehensive free software including a variety of examples, part of STM32Cube package


• Supported by a wide choice of integrated development environments

---

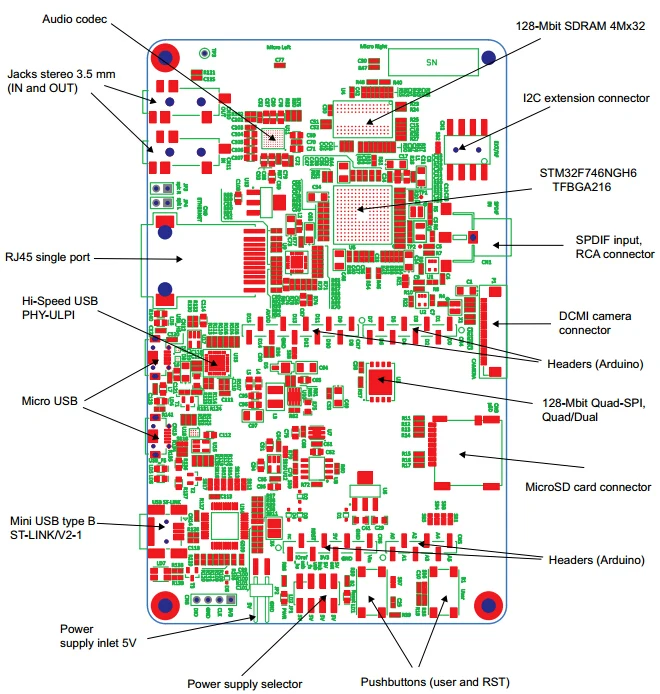

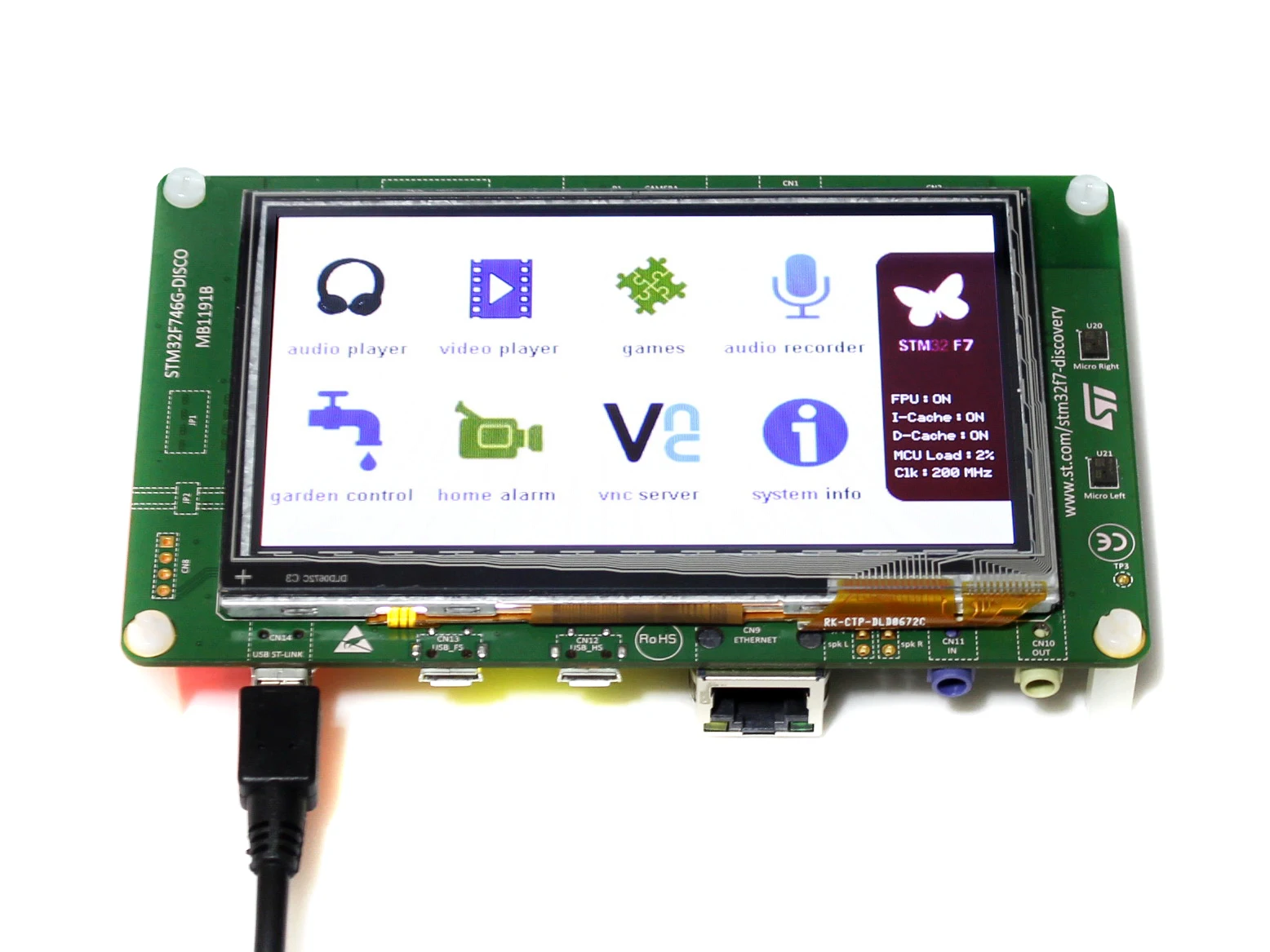

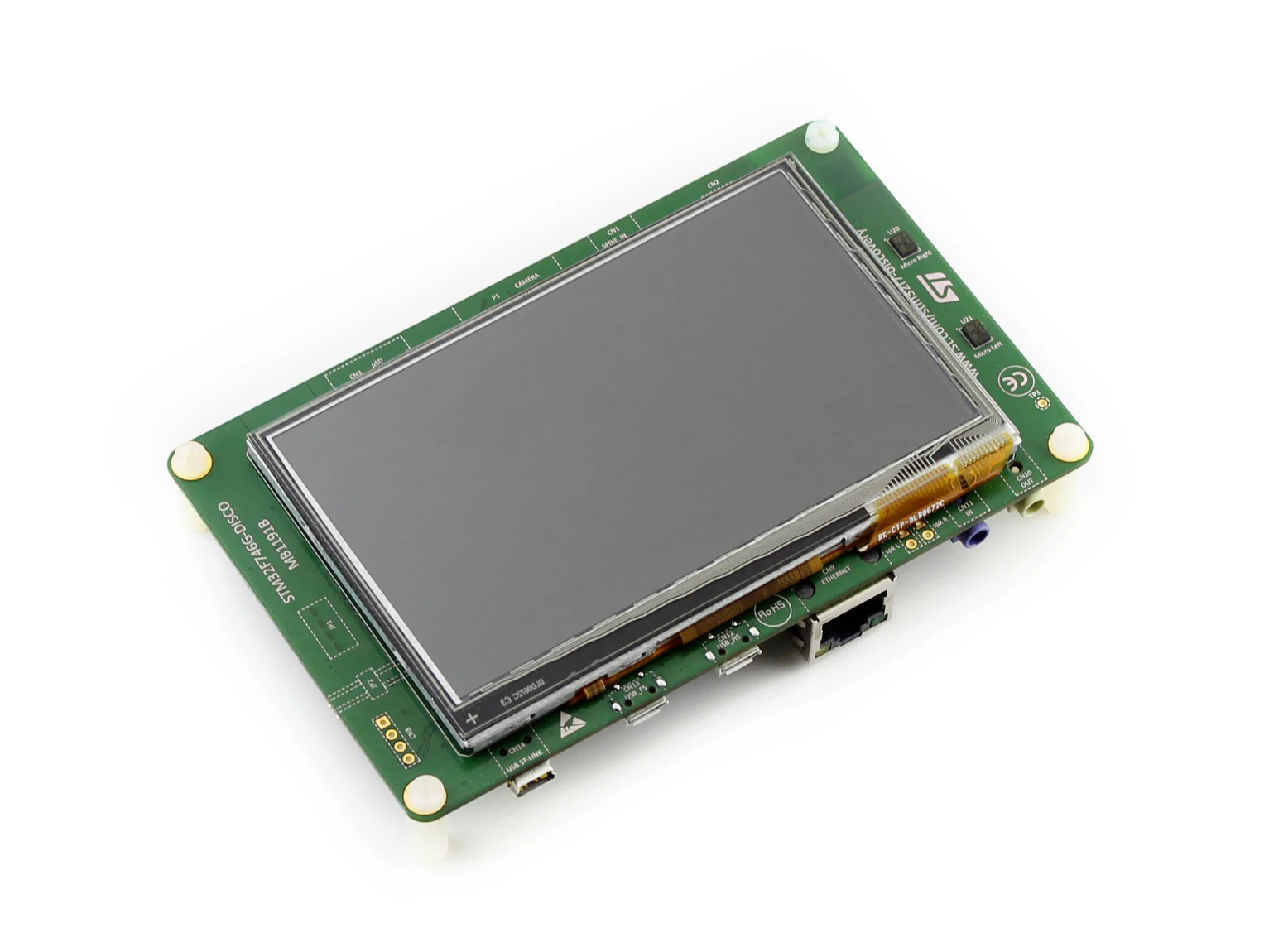

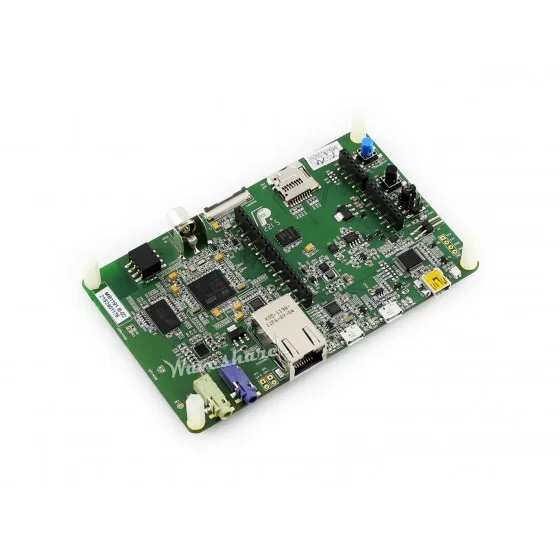

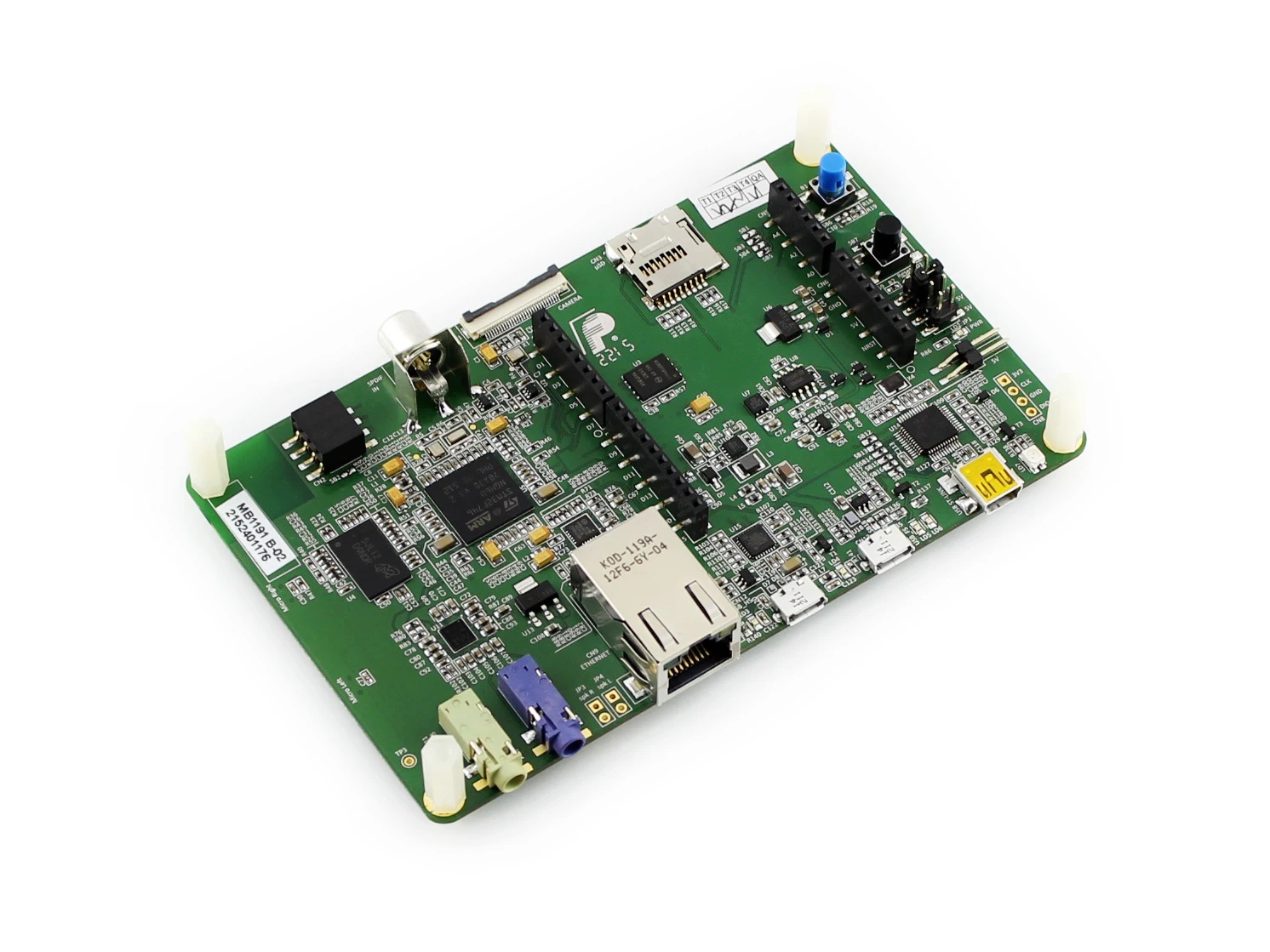

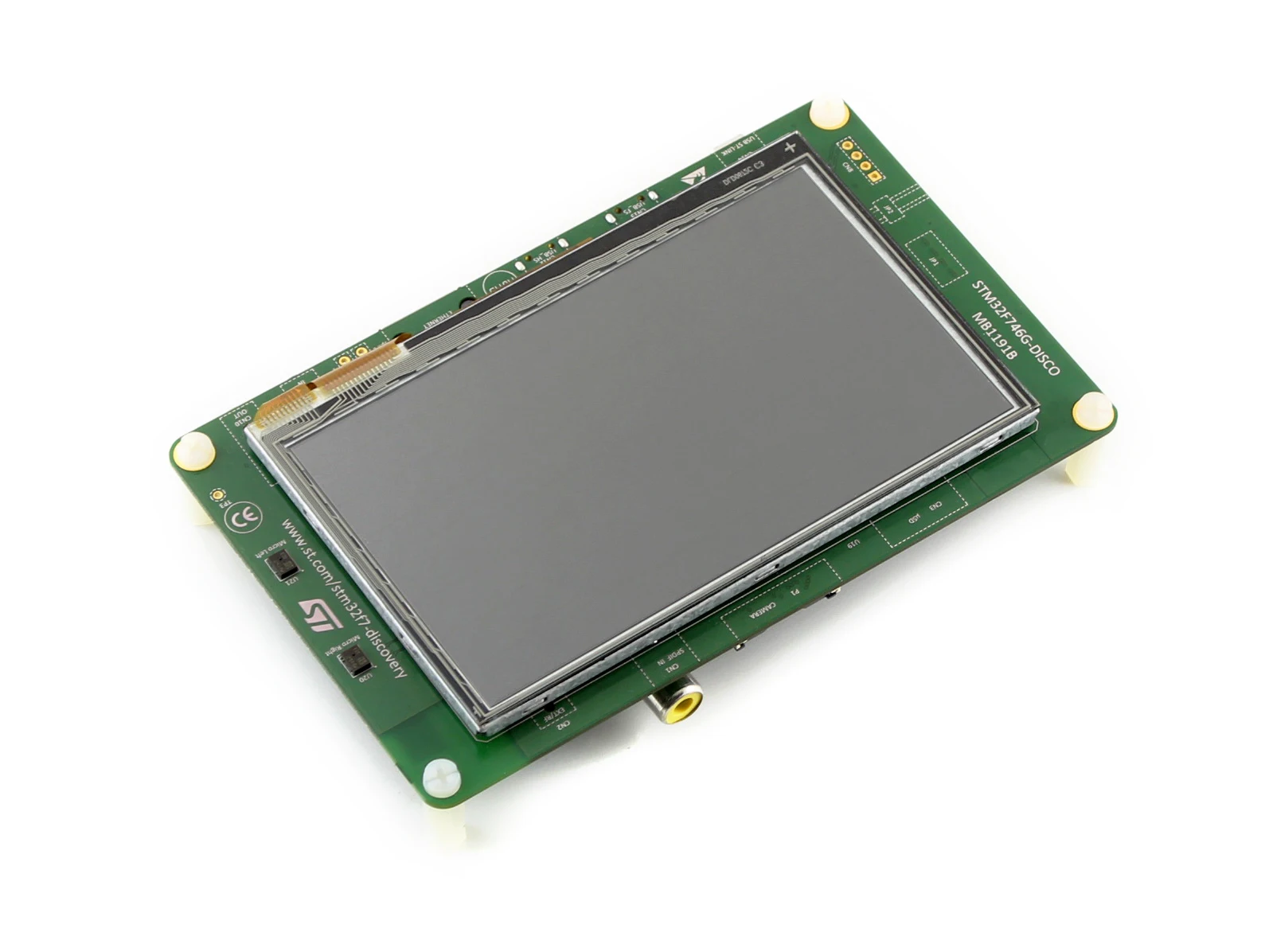

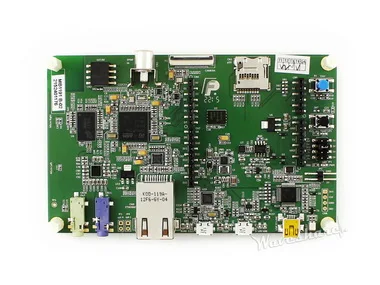

Photos

---

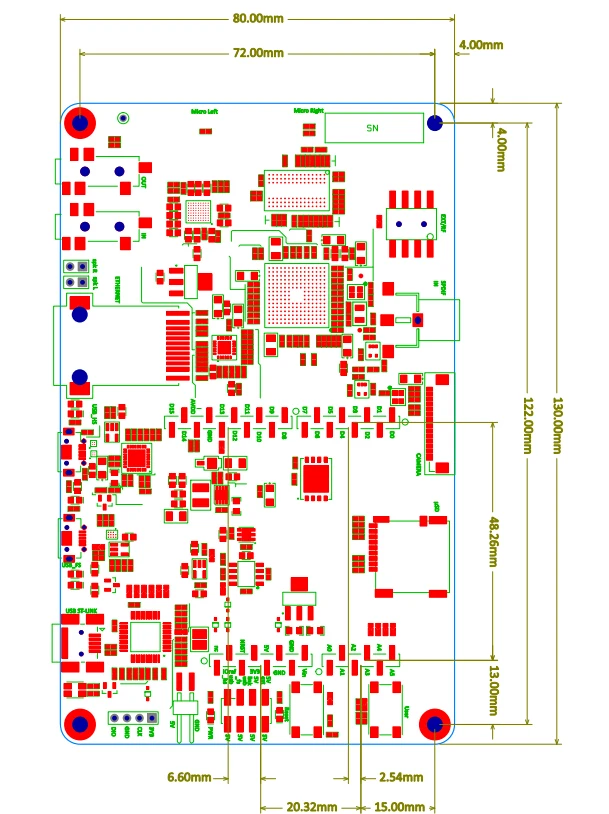

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/STM32F746G-DISCO



PACKAGE CONTENT

Weight: 0.189 kg
