Agitated Nutsche Filter & Dryer ANFD/Manufacturer Providing Overseas services
- Category: Other Industrial Filtration Equipment >>>
- Supplier: Changzhou,Sost,International,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Function:
1,Feeding;
2,Filter:Solid-liquid separation under vacuum or pressure;
3,Smoothing:\u2029The agitator scraper rotates in the reverse direction to smooth the cracks on the surfaceof the filter cake to avoid shortcircuit of the washing liquid along the cracks;
4,Slurry Mxing and Washing:By rotating the spray ball the cleaning liquid is evenly sprayed in the container, which can realize internal cleaning and filter cake leaching. The filter cake is mixed with the eluent by the lifting agitator,so that the material is fully washed;
5,Drying:In a vacuum state,the agitator rotates forward to scrape the filter cake layer by layer,and the equipment heating system uniformly heats the filter cake to accelerate the evaporation of the eluent and the material to be fully dried;

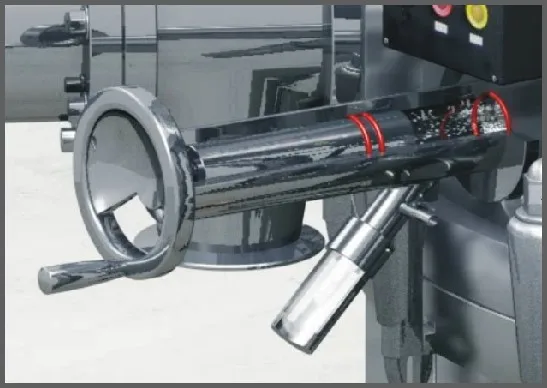

6,Sampling on line:\u2029During the drying process, the powder sampling valve can be used for material sampling Inspection; 7,Automatic Discharging:\u2029After the drying is completed, the agitator rotates forward to scrape loose and push the material to discharge automatically from the discharge port on the side of the equipment;
8,CIP Onine Cleaning and SIP Online Sterilization;
1,Feeding;
2,Filter:Solid-liquid separation under vacuum or pressure;
3,Smoothing:\u2029The agitator scraper rotates in the reverse direction to smooth the cracks on the surfaceof the filter cake to avoid shortcircuit of the washing liquid along the cracks;
4,Slurry Mxing and Washing:By rotating the spray ball the cleaning liquid is evenly sprayed in the container, which can realize internal cleaning and filter cake leaching. The filter cake is mixed with the eluent by the lifting agitator,so that the material is fully washed;
5,Drying:In a vacuum state,the agitator rotates forward to scrape the filter cake layer by layer,and the equipment heating system uniformly heats the filter cake to accelerate the evaporation of the eluent and the material to be fully dried;
6,Sampling on line:\u2029During the drying process, the powder sampling valve can be used for material sampling Inspection; 7,Automatic Discharging:\u2029After the drying is completed, the agitator rotates forward to scrape loose and push the material to discharge automatically from the discharge port on the side of the equipment;
8,CIP Onine Cleaning and SIP Online Sterilization;
Features:
1,Various processes such as fltration, washing and drying can be completed in the equipment,and the whole process is continuous operation,which is suitable for aseptic and non-sterile pharmaceutical, chemical and other industries;
2,\u2029It is suitable for working conditions where the solid content is high and the solid phase and the liquid phase need to be recycled separately;
3,\u2029The design and assembly of the equipment are carried out in strict accordance with the national GMP requirements, fully comply with the requirements of the pharmaceutical production process,and the system is safe, stable and reliable;\u2029
4,The inner surface of the equipment in contact with the material is flat,\u2029smcoth. without dead ends. and is easy to clean and disinfect. After mechanicalfine polishing or electrolytic polishing,the inner surface of the equipment Ra=0.35UM,and the outer surface of the equipment Ra=0.80UM;\u2029
5,The equipment does not pollute theenvironment outside the device。 and measures such as dust preventon,leakago prevention. heat insulation and noise reduction shallbe properly taken。In a fully enclosed working state, the motor, reducer,and lifting device are protectled by a cover,and the jacket layer is added with thermal insulation cotton for heat insulation or cold preservation, reducing heat loss and heat exchange wth the outside world and impact on the environment;\u2029

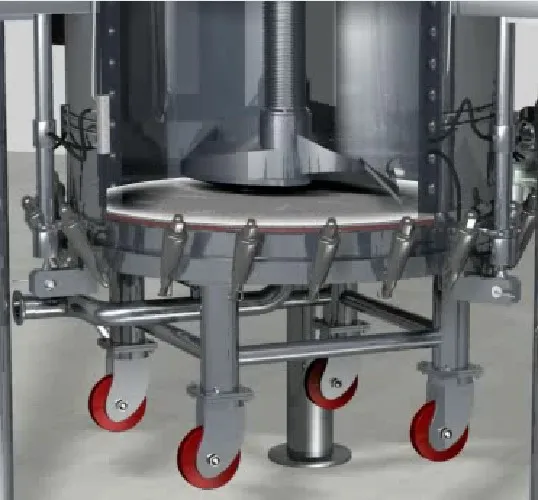

6,The horizontaly laid fter material is used to filter thoroughly and\u2029without residual liquid. The filter material has a unique sealing Structure, which makes it easy andquick to replace the filter materal;
7,Strictly use safo and reliable explosion-proof electrical appliances,\u2029and are equipped with pulleys to eliminate static electricity,safety interlock functions, safety devices, etc.\u2029
8,Dry double end face mechanical seal, nitrogen protection and cooling, the stirring shaft is equipped with bellows protection;
9,Automatic discharging to avoid pollution;\u2029
10,With online cleaning and online sterllzation functions;\u2029
1,Various processes such as fltration, washing and drying can be completed in the equipment,and the whole process is continuous operation,which is suitable for aseptic and non-sterile pharmaceutical, chemical and other industries;
2,\u2029It is suitable for working conditions where the solid content is high and the solid phase and the liquid phase need to be recycled separately;
3,\u2029The design and assembly of the equipment are carried out in strict accordance with the national GMP requirements, fully comply with the requirements of the pharmaceutical production process,and the system is safe, stable and reliable;\u2029
4,The inner surface of the equipment in contact with the material is flat,\u2029smcoth. without dead ends. and is easy to clean and disinfect. After mechanicalfine polishing or electrolytic polishing,the inner surface of the equipment Ra=0.35UM,and the outer surface of the equipment Ra=0.80UM;\u2029
5,The equipment does not pollute theenvironment outside the device。 and measures such as dust preventon,leakago prevention. heat insulation and noise reduction shallbe properly taken。In a fully enclosed working state, the motor, reducer,and lifting device are protectled by a cover,and the jacket layer is added with thermal insulation cotton for heat insulation or cold preservation, reducing heat loss and heat exchange wth the outside world and impact on the environment;\u2029
6,The horizontaly laid fter material is used to filter thoroughly and\u2029without residual liquid. The filter material has a unique sealing Structure, which makes it easy andquick to replace the filter materal;
7,Strictly use safo and reliable explosion-proof electrical appliances,\u2029and are equipped with pulleys to eliminate static electricity,safety interlock functions, safety devices, etc.\u2029
8,Dry double end face mechanical seal, nitrogen protection and cooling, the stirring shaft is equipped with bellows protection;
9,Automatic discharging to avoid pollution;\u2029
10,With online cleaning and online sterllzation functions;\u2029
Specification
Volume | Diameter | Filter Area | Net Weight | Height |
200L | 600mm | 0.275㎡ | 1800kg | 3200mm |
600L | 1000mm | 0.785㎡ | 2750kg | 3750mm |
1000L | 1200mm | 1㎡ | 3750kg | 4000mm |
2000L | 1600mm | 2㎡ | 5750kg | 4500mm |
3000L | 2000mm | 3㎡ | 8250kg | 4750mm |
5000L | 2400mm | 4.5㎡ | 11000kg | 4750mm |
6000L | 2600mm | 5.25㎡ | 12600kg | 5000mm |
10000L | 3200mm | 8㎡ | 18000kg | 5500mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
