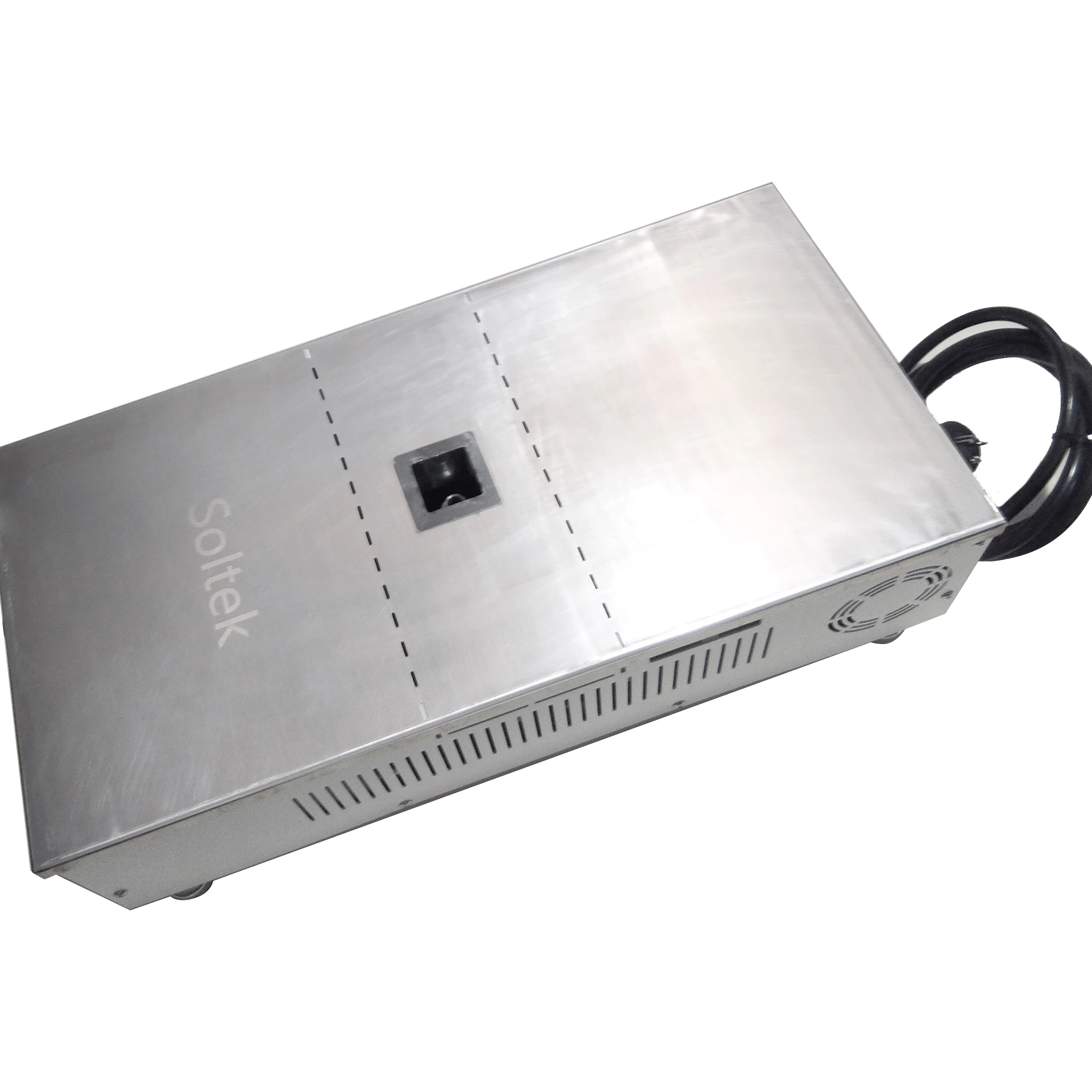

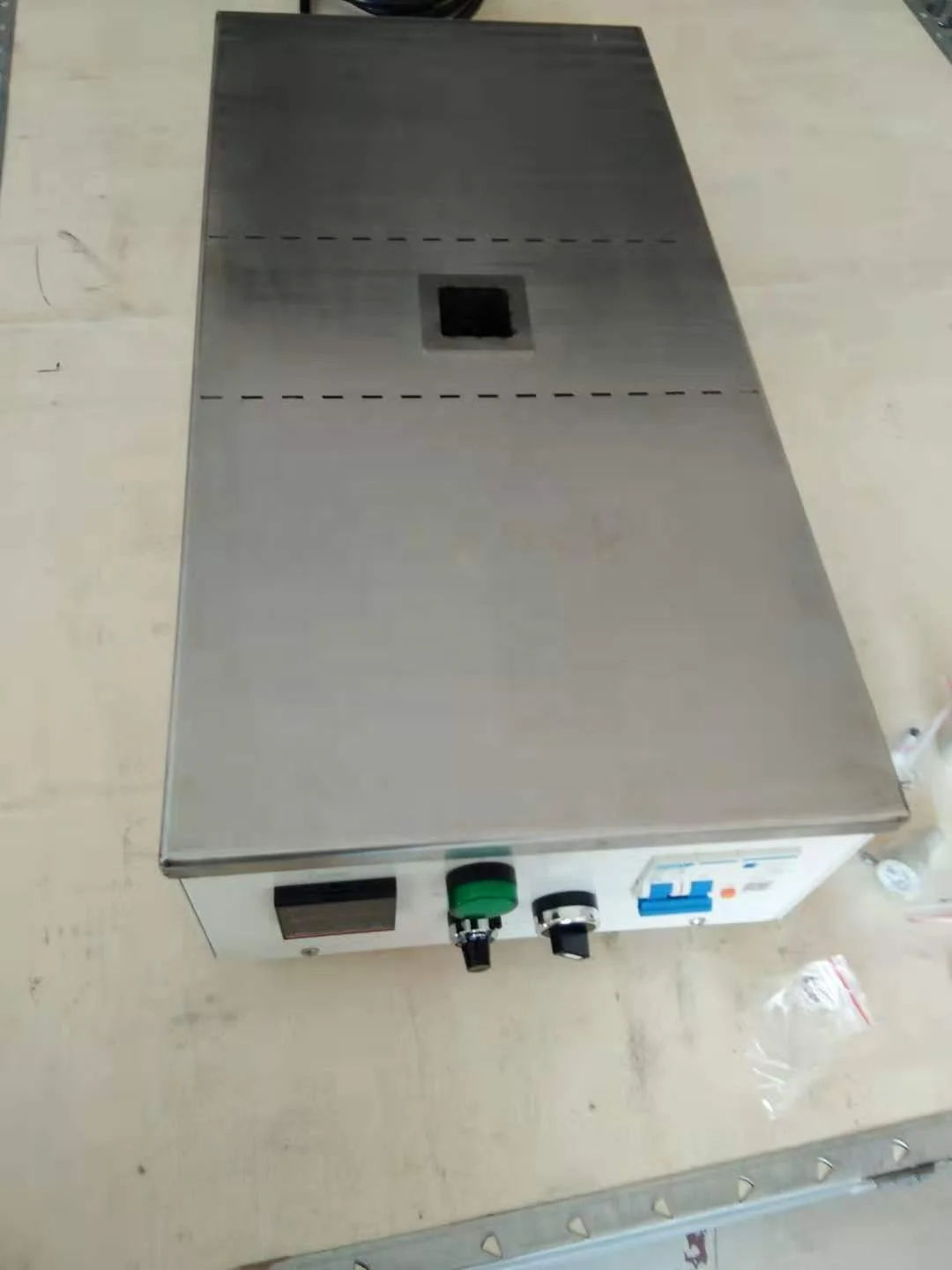

Mini selective wave soldering machine with nitrogen protection

Product Overview

Description

Specifications :



Power Source: AC 110/220V (option)

                          50/60HZ, 1PHASE,1.5KW



Pot capacity:10-15 Kgs



Variable Temperature range 0- 399 Degrees , can be set any degree freely, with intelligent control,



Dimensions L750 x W200 x H230mm



Net Weight 20 Kgs

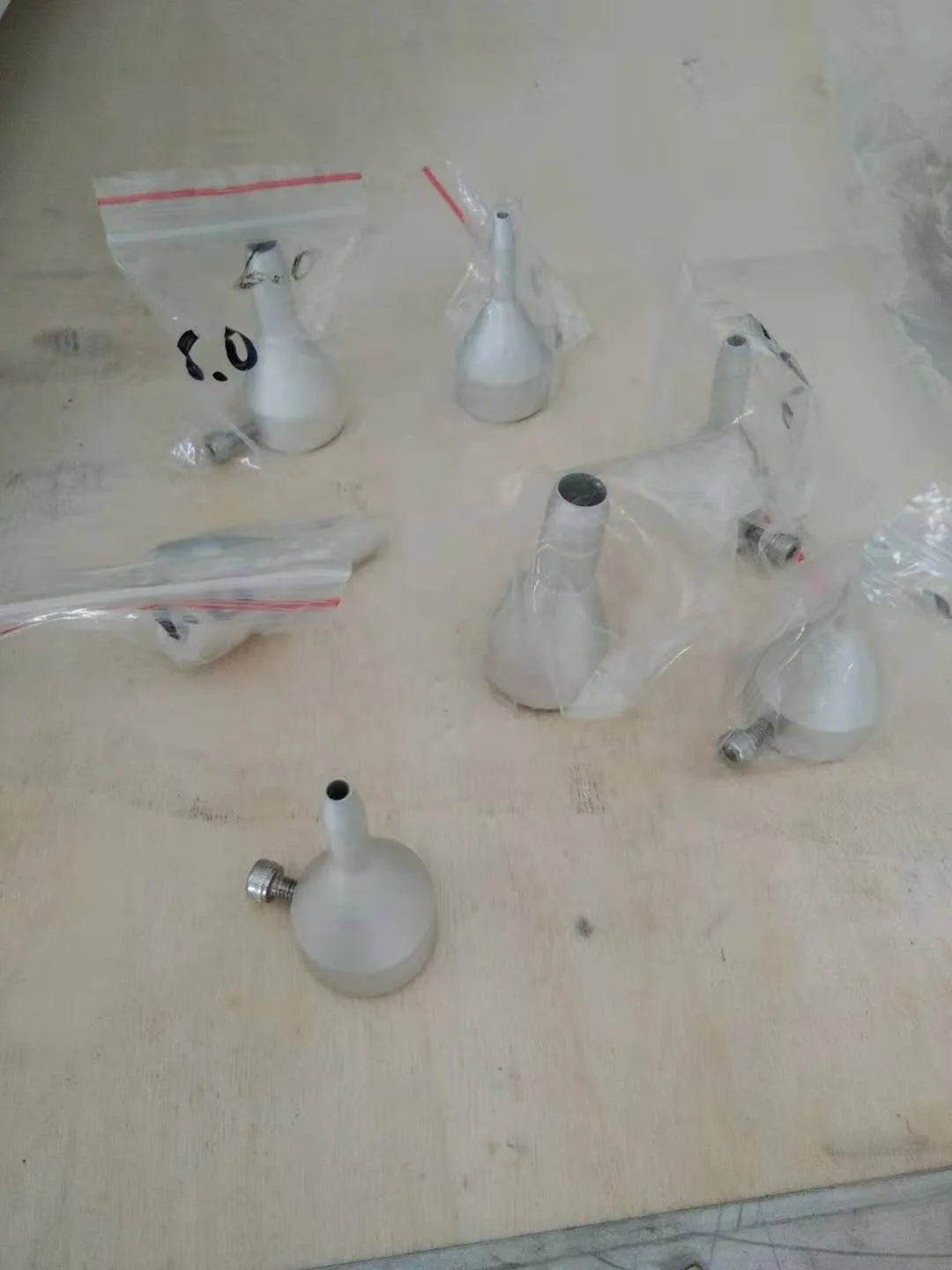

Nozzle : Round-diameter 2.0/2.5/3.0/3.5/4.0/5.0/7.0/8.0 mm

              Rectangular-customize



With Nitrogen protection



Option:

1-PCB operation support frame

2-Flux spray unit

3-Preheat unit
