HC series high power high torque high quality industrial gearmotor
US $30.00-$500.00
Chinese Manufacturer reduction gearbox Speed Reducer with Motor
- Category: Gearboxes >>>
- Supplier: Zhengzhou,AOKMAN,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Category

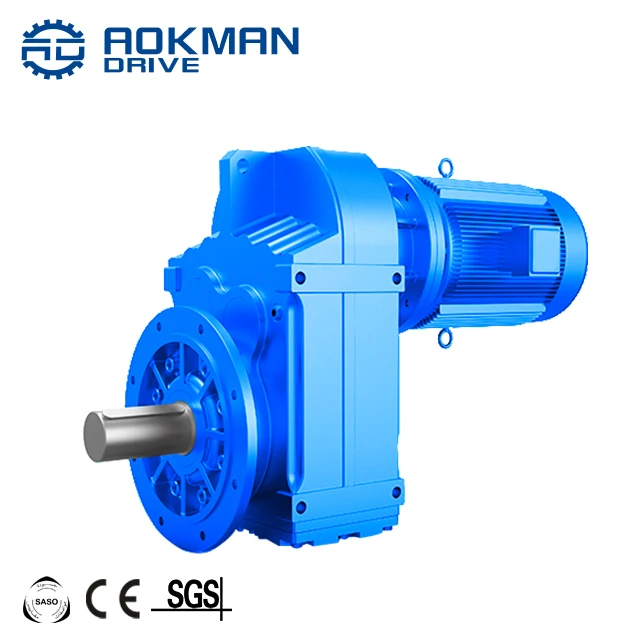

Chinese Manufacturer reduction gearbox Speed Reducer with Motor
Product Feature
• High efficiency and save power.
• High modular design, flexible mounting mode.
• Integrated casting housing,compact dimension, stable transmitting and low noise level.
• Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
• Advanced gear grinding and modified profile, high loading support and more safe operation.

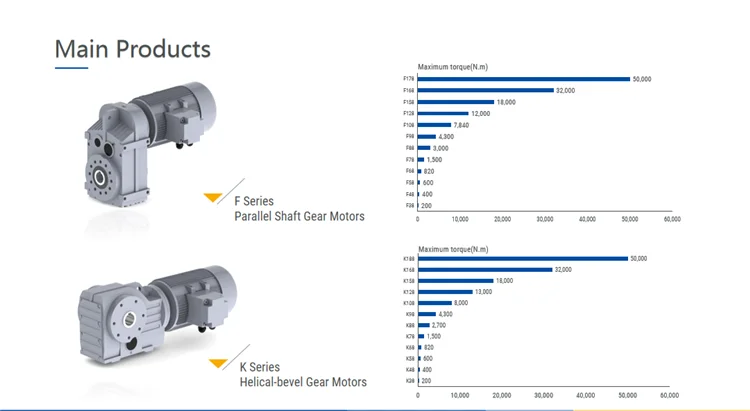

Output Shaft Dia. |
| Input Shaft Dia. | Power(kW) | Ratio | Max. Torque(Nm) | |
| Solid Shaft | Hollow Shaft |
|
|
|
|
F38 | 25mm | 30mm | 16mm | 0.18~3.0 | 3.81~128.51 | 200 |
F48 | 30mm | 35mm | 16mm | 0.18~3.0 | 5.06~189.39 | 400 |
F58 | 35mm | 40mm | 19mm | 0.18~5.5 | 5.18~199.70 | 600 |
F68 | 40mm | 40mm | 19mm | 0.18~5.5 | 4.21~228.99 | 820 |
F78 | 50mm | 50mm | 24mm | 0.37~11 | 4.30~281.71 | 1500 |
F88 | 60mm | 60mm | 28mm | 0.75~22 | 4.20~271.92 | 3000 |
F98 | 70mm | 70mm | 38mm | 1.1~30 | 4.68~276.64 | 4300 |
F108 | 90mm | 90mm | 42mm | 2.2~45 | 6.20~255.25 | 7840 |
F128 | 110mm | 100mm | 55mm | 7.5~90 | 4.63~172.33 | 12000 |
F158 | 120mm | 120mm | 70mm | 11~200 | 12.07~270.1 | 18000 |
Product Application
F series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
It has been widely used in harbor and shipping,electric power,coal mining,cement and construction,paper and light industry.
Supply Ability10000Set/Sets per Month AOKMAN F Series Speed Reducer Gearbox
Packaging & Delivery
Packaging Details:Plastic Bags, Plywood Cases
Port:Shanghai/Ningbo
About Us
1. More than 40+ years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
Tel: +86-371-53667898
Fax: +86-371-86027652
Mobile: +86-18736055280 (WhatsApp / WeChat / Viber)
Skype: aokman-gearbox
Address: No.1394, Hanghai Road, Zhengzhou, China
