150m Trip beam Photoelectric Infrared Wired Connection Beam Detector ABE 150
- Category: >>>
- Supplier: Shenzhen Miye Yun Technology Co. Ltd.
Share on (1600267876754):
Product Overview
Description

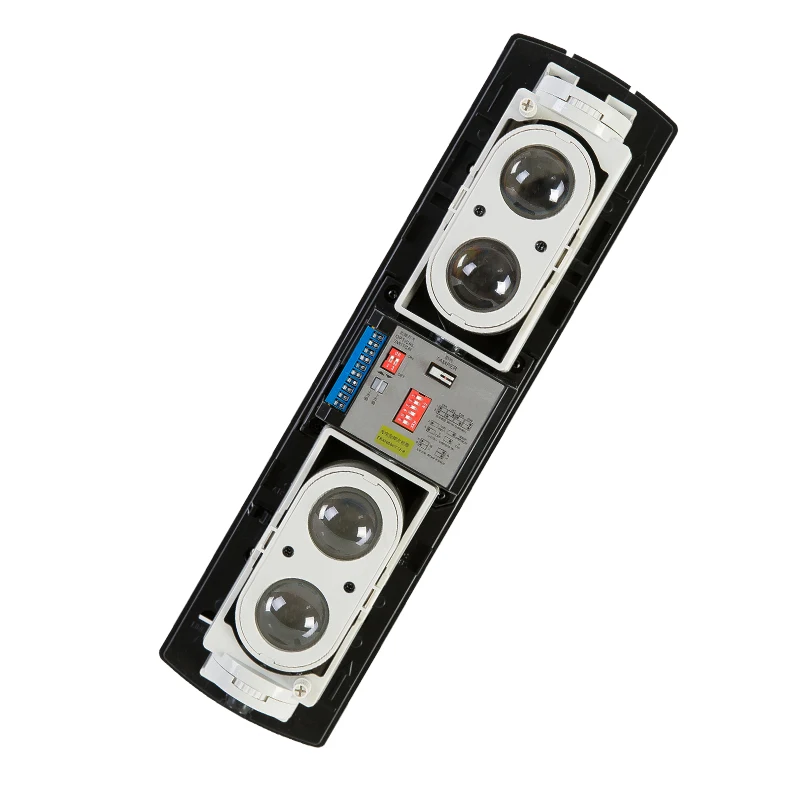

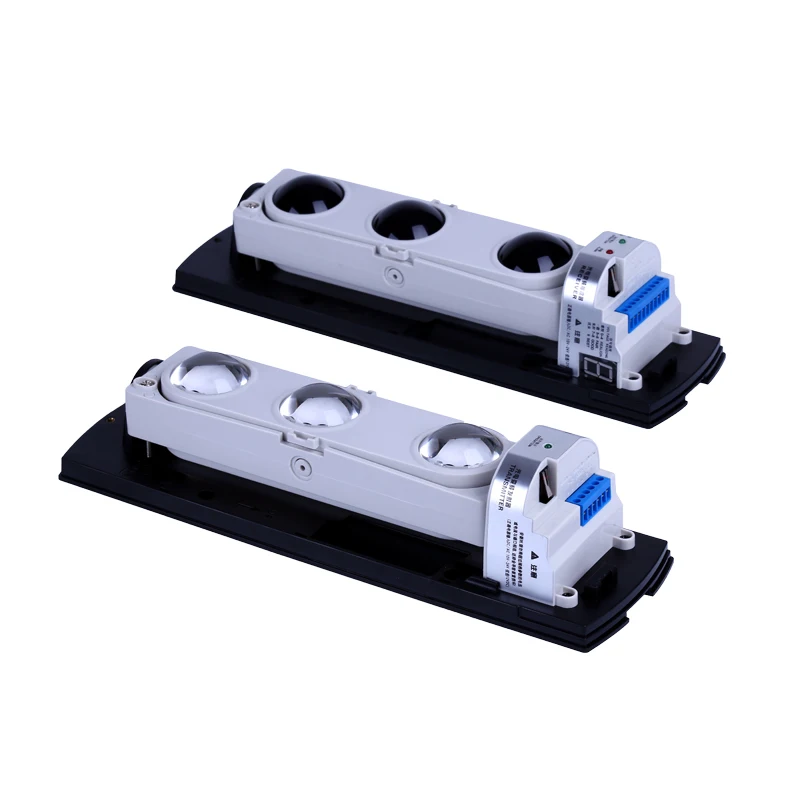

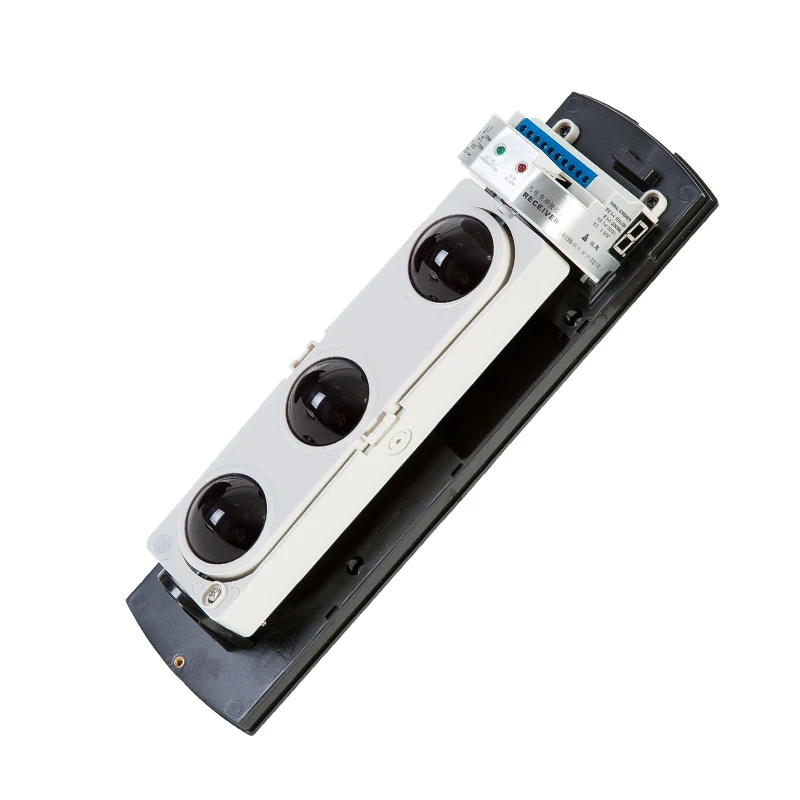

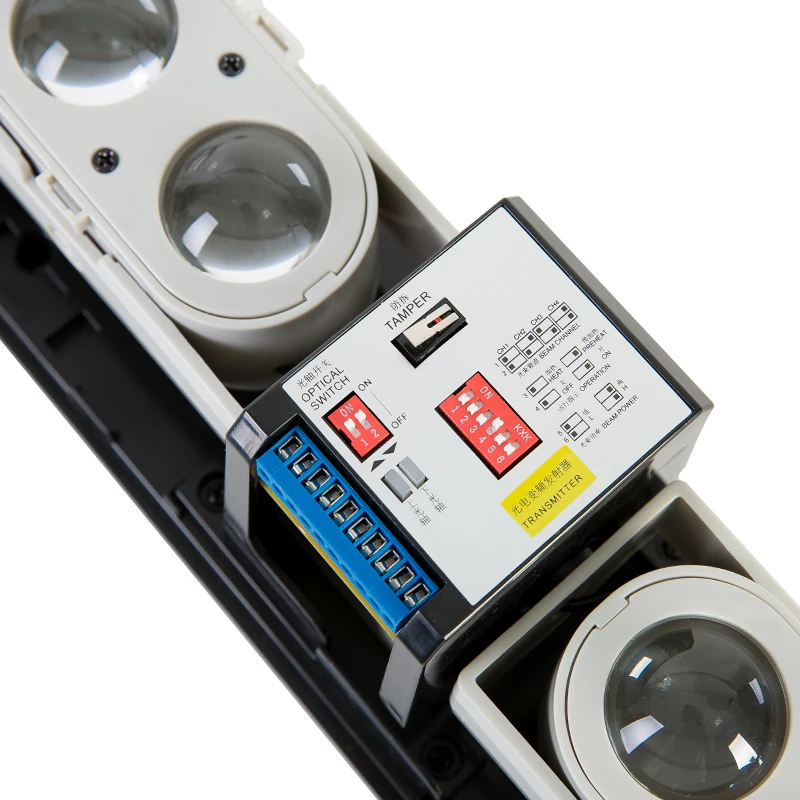

150m Trip-beam Photoelectric Infrared Wired Connection Beam Detector ABE-150
This product is optimized and improved on the basis of traditional infrared through-beam detectors according to the needs of customers, overcomes various weaknesses, and has stronger performance and technical advantages:
1. ABS material, anti-sliding and anti-impact: built-in strong light filtering system, anti-glare, avoid being affected by sunlight or car lights.
2. Anti-white light interference: Built-in strong light filtering system, anti-glare, avoid being affected by sunlight or car lights.
3. Optical focus, powerful concentration: the detection range can be set by one button or flexibly set through RS485 communication, intelligent object recognition, with real-time detection data LCD digital display function.
4. Four-stage frequency modulation, anti-false alarm: using digital frequency conversion technology, automatically adjust the transmission power according to changes in the external environment to ensure stable operation of the product in harsh environments.
5. Accurate signal and intensity display: The new digital frequency conversion beam uses a digital tube to display the signal intensity of the beam, which is more intuitive and convenient.
6. IP65 protection level: The shell is fully sealed design, waterproof, insect-proof, dust-proof, and anti-dismantling design, which is more adaptable to the environment.
1. ABS material, anti-sliding and anti-impact: built-in strong light filtering system, anti-glare, avoid being affected by sunlight or car lights.
2. Anti-white light interference: Built-in strong light filtering system, anti-glare, avoid being affected by sunlight or car lights.
3. Optical focus, powerful concentration: the detection range can be set by one button or flexibly set through RS485 communication, intelligent object recognition, with real-time detection data LCD digital display function.
4. Four-stage frequency modulation, anti-false alarm: using digital frequency conversion technology, automatically adjust the transmission power according to changes in the external environment to ensure stable operation of the product in harsh environments.
5. Accurate signal and intensity display: The new digital frequency conversion beam uses a digital tube to display the signal intensity of the beam, which is more intuitive and convenient.
6. IP65 protection level: The shell is fully sealed design, waterproof, insect-proof, dust-proof, and anti-dismantling design, which is more adaptable to the environment.
Product Description
Specification
Model No. | A | ABT-30M | ABT-60M | ABT-80M | ABT-100M | ABT-150 | |||||
Distance | Outdoor | 30m | 60m | 80m | 100m | 150m | |||||
Indoor | 60m | 120m | 160m | 200m | 300m | ||||||
Detection method | Simultaneous interruption of dual-beam infared sensor | ||||||||||
Interruption time | 50ms, 100ms, 250ms, 500ms (optional) | ||||||||||
Beam frequency | 4 chanels for option | ||||||||||
Working voltage | 10v-24v DC | ||||||||||
Working current | 90mA max | ||||||||||
Alarm period | 2s,50ms (optional) | ||||||||||
Alarm output | Relay output 1c, contact output. DC30V/0.5AMax. | ||||||||||
Tamper alarm | NC. Works when cover is removed | ||||||||||
IP rating | IP65 | ||||||||||
Operation temperature | -25℃ ~55℃ | ||||||||||
Humidity | 95% max | ||||||||||
Correction angle | Horizontally 180°, vertically 20° | ||||||||||
Installation Location | Indoor/outdoor, wall/pole | ||||||||||
Weight | 900g | ||||||||||
