HGW25CC HG25 HGR25C линейная направляющая шарового типа с большой нагрузкой
- Category: >>>
- Supplier: Dongguan Pinsi Machinery Co. Ltd.
Share on (1600267957258):
Product Overview
Description
Product Overview

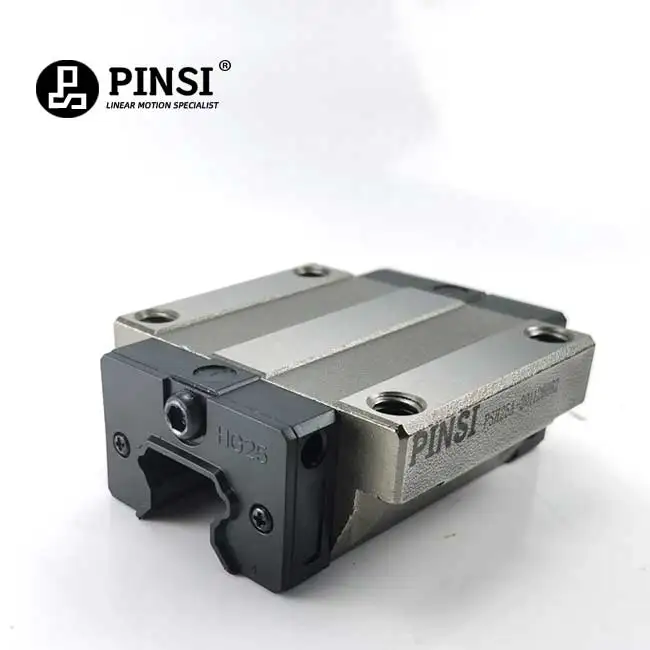

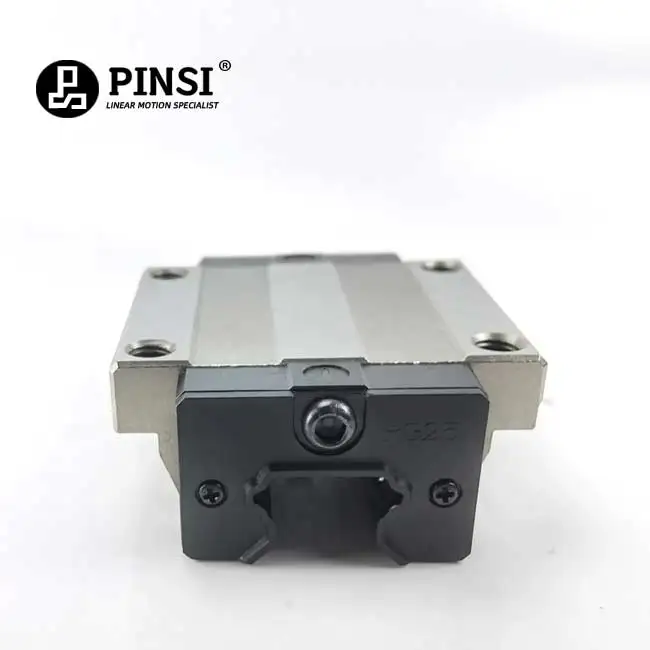

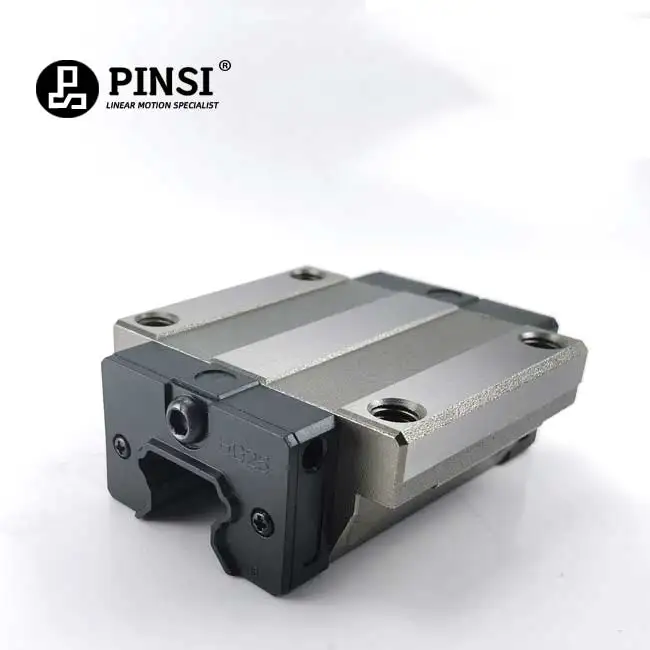

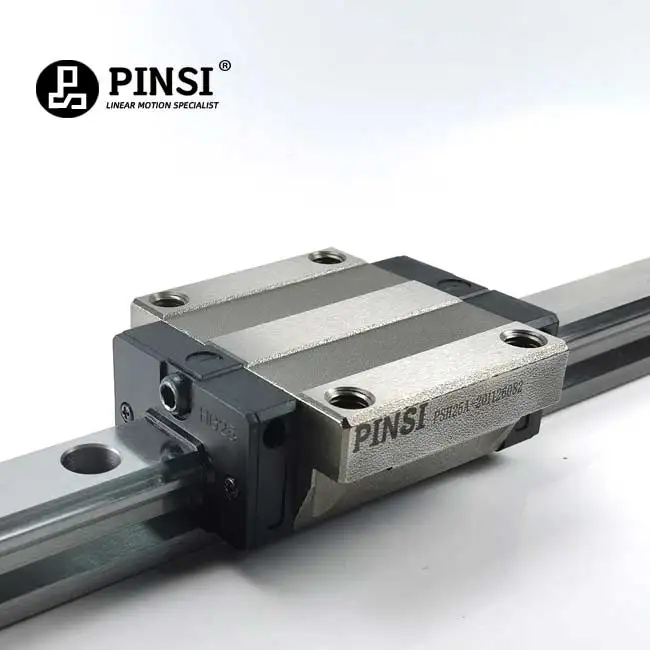

HGW25CC linear guide slide block
HG series linear guideway is a four-row single circular arc tooth contact linear guideway, which integrates the optimal structure design and precision linear guideway for heavy load.
Compared with other linear guideways, the load and rigidity capacity are improved. With four direction load features, and automatic self-aligning function, can absorb the installation surface
Assembly error, get the demand of high precision. High speed, high load, high rigidity and high precision concept has become the future of the world's industrial products development
Four-column heavy load linear guide rail is a product developed based on this concept.
Compared with other linear guideways, the load and rigidity capacity are improved. With four direction load features, and automatic self-aligning function, can absorb the installation surface
Assembly error, get the demand of high precision. High speed, high load, high rigidity and high precision concept has become the future of the world's industrial products development
Four-column heavy load linear guide rail is a product developed based on this concept.
FEATURES AT A GLANCE
Features of HG series
Automatic self-aligning ability
It is interchangeable
Highly rigid in all directions
It is interchangeable
Highly rigid in all directions

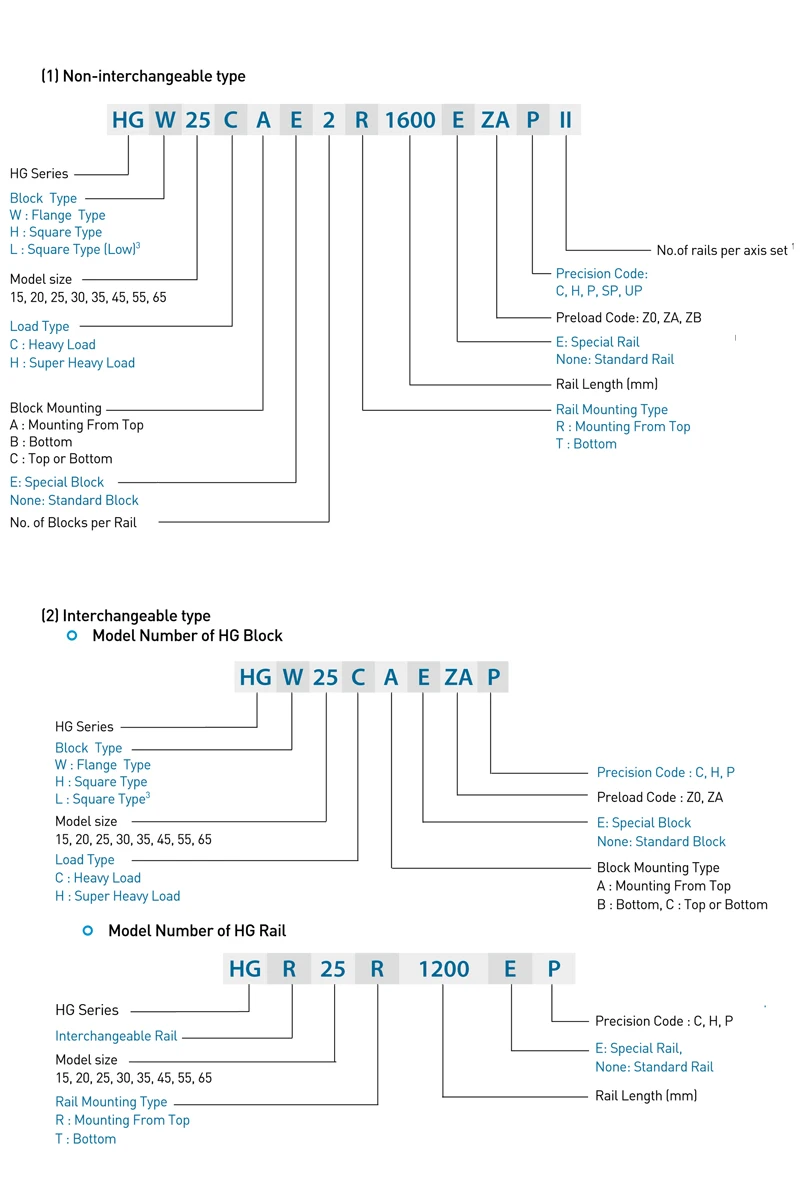

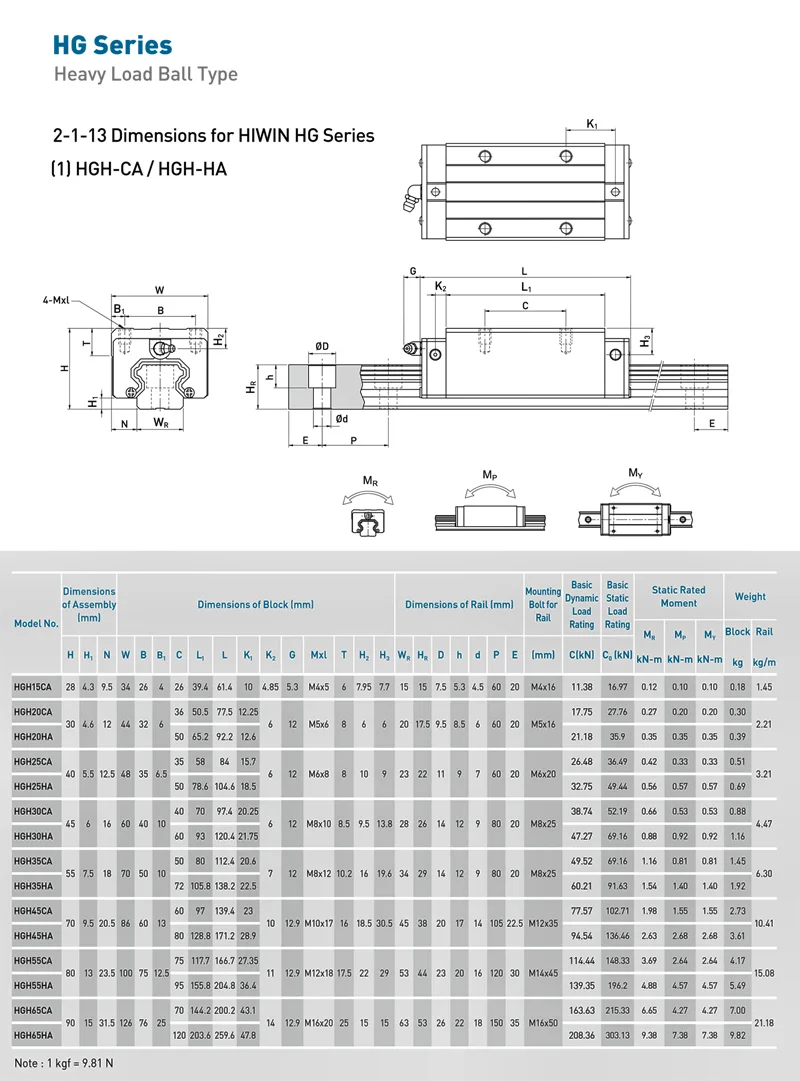

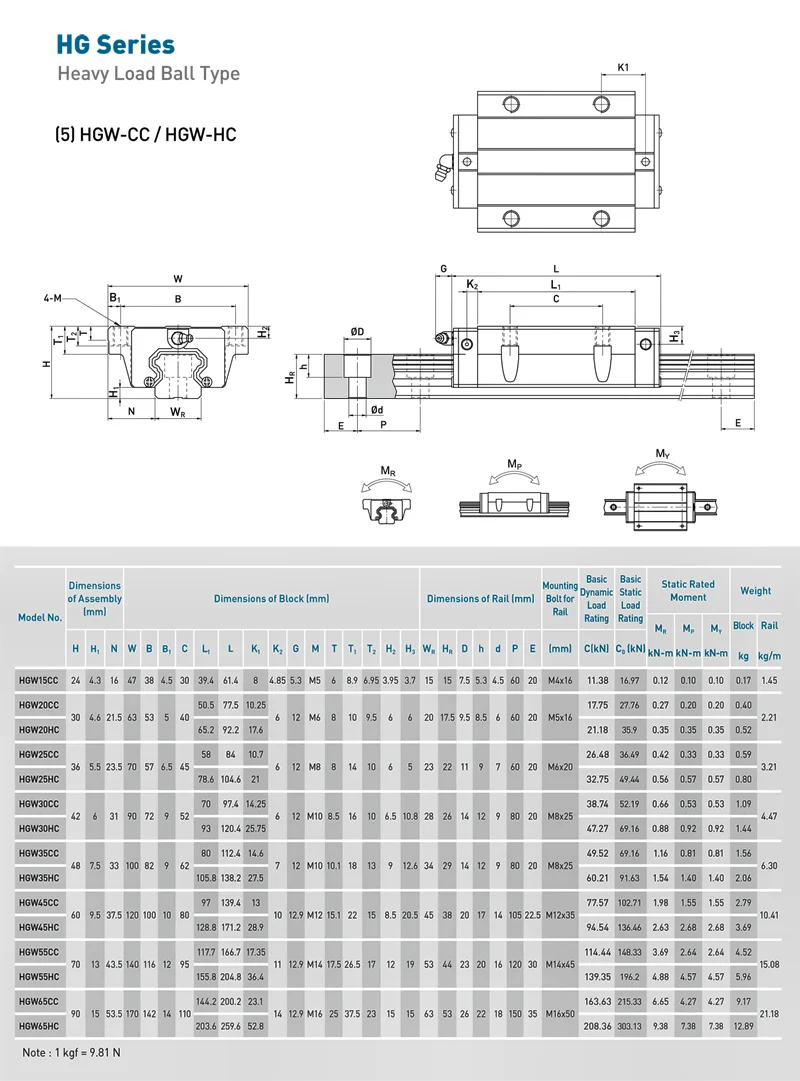

Product Diagram
Product Diagram
Product Diagram
PRODUCT SPECIFICATIONS
No | Item | Component size (mm) | ||
1 | Combination of high | 36 | ||
2 | Width of the slider | 70 | ||
3 | Slider mounting hole spacing | 57X45 | ||
4 | Installation hole screw position | M8 | ||
5 | Dimensions of guide rail retaining bolts | M6x20 | ||

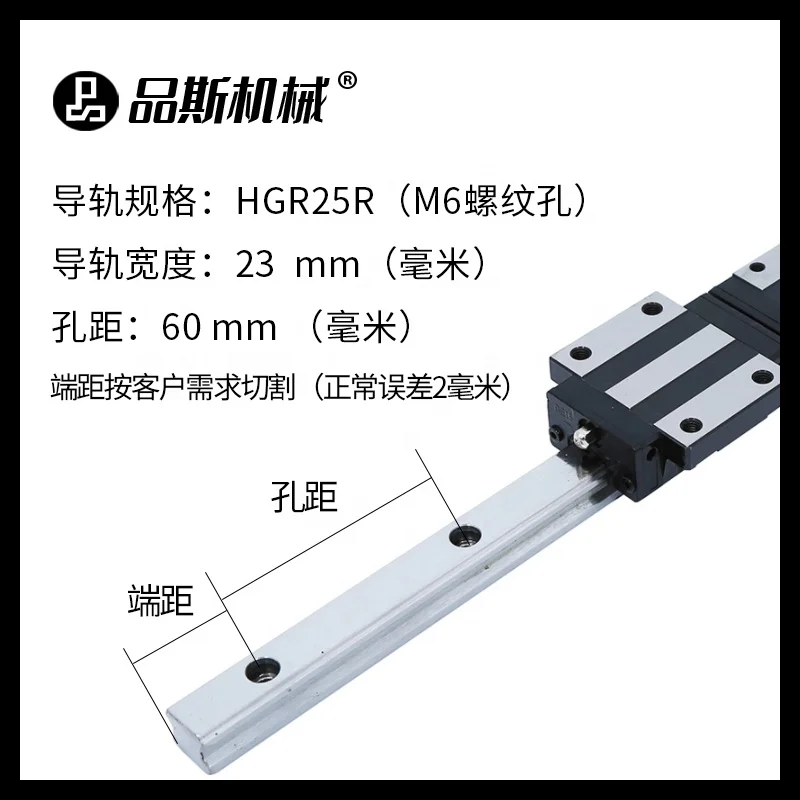

6 | Guideway mounting hole spacing | 60 | ||
7 | The slider weight | 0.59 kg | ||
8 | The rails Weight | 3.21 kg/m |
PRODUCT CONFIGURATION

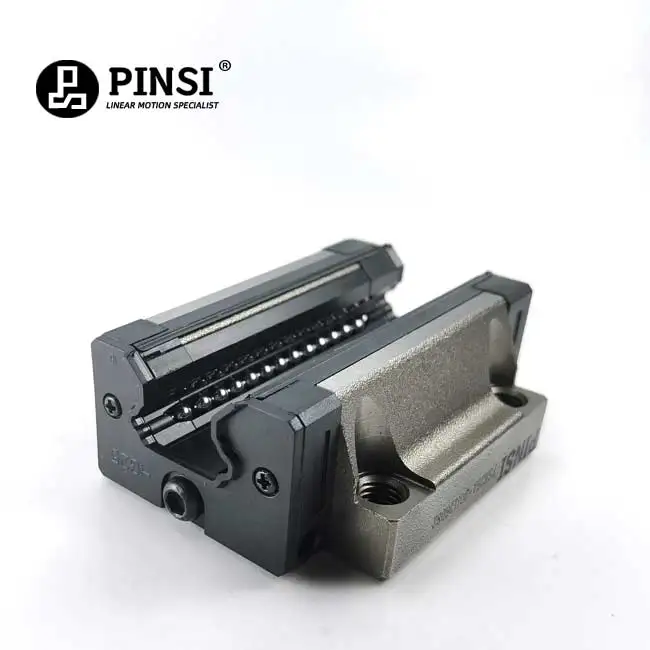

Rolling cycle system
Lubrication system
Dust control system
FAQ
Q1：I have many models and sizes. May I ask about them
A1：You are very welcome to consult
Q2：The length of the guide rails I need to order is different. How should I purchase them?
A2：You just need to tell the customer service the required length of specifications, customer service will help you calculate the price
