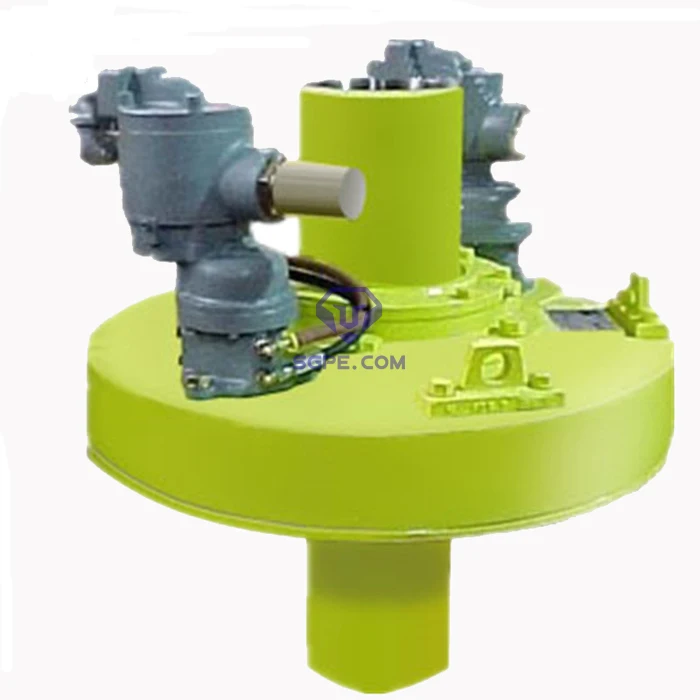

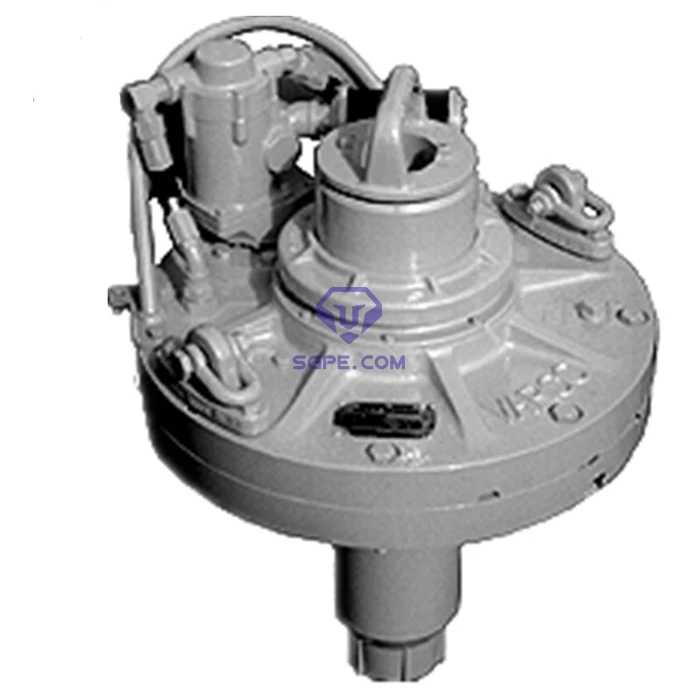

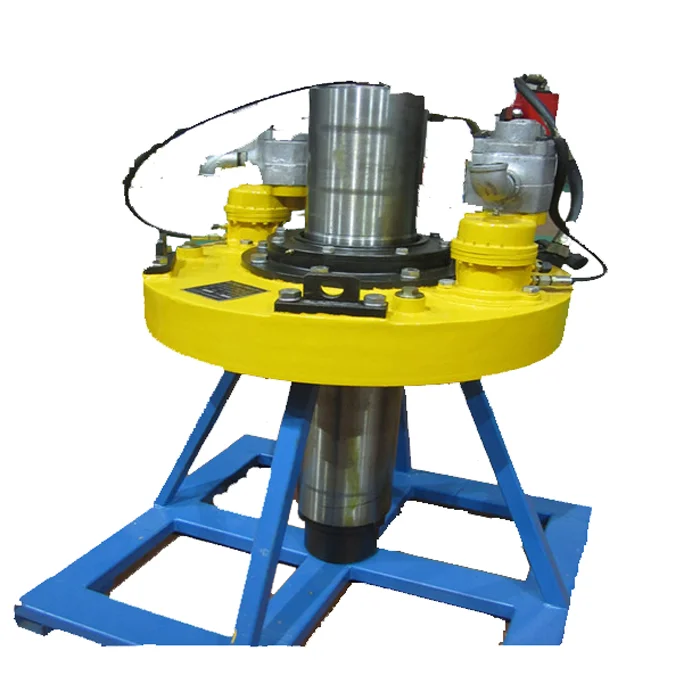

API Oillfield Equipment Drill Pipe Kelly Spinners Type 6800
Kelly spinner is a special equipment to connect single pipe automatically by companying with mouse hole clamping device.
1. It unitizes air or hydraulic motor to drive kelly to rotate and features safe, saving time and labor.

2.It is designed and manufactured according to API Spec 8A Specification for Drilling and Production Hoisting Equipment.


Product display




Product Paramenters


Model
FXD
QF2
Q3
A6C
6600
6800
Drive mode
Pneumatic Driven
Hydraulic Driven
Max. static load
2250kN
2250kN
Pressure
MPa
0.5-0.9
0.5-0.9
0.5-0.9
13.8
Psi
72-130
72-130
72-130
2000
Brake torque
Nm
1200
1600
1650
1500
1500
1650
ft.ibf
885
1180
1215
1100
1100
1215
Idle speed
rpm
76
72
72
170
130
110
Rotating direction
Single
Double
Double
Double
consumption/flow
m3/min
9.3
20
20
9.3 m3/min
15 m3/min
91 LPM
ft3/min
328
706
706
328 ft3/min
529 ft3/min
24 GPM
Stem connection
6-5/8 REG LH
6-5/8 REG LH
Size
mm
845*740*725
558*558*935
860*725*980
768*768*1225
740*710*978
740*710*978
in
33*29*28
22*22*37
34*28*39
30*30*48
29*28*38.5
29*28*38.5
Weight
Kg
383
450
520
540
500
504
lb
844
992
1146
1190
1100
1110
