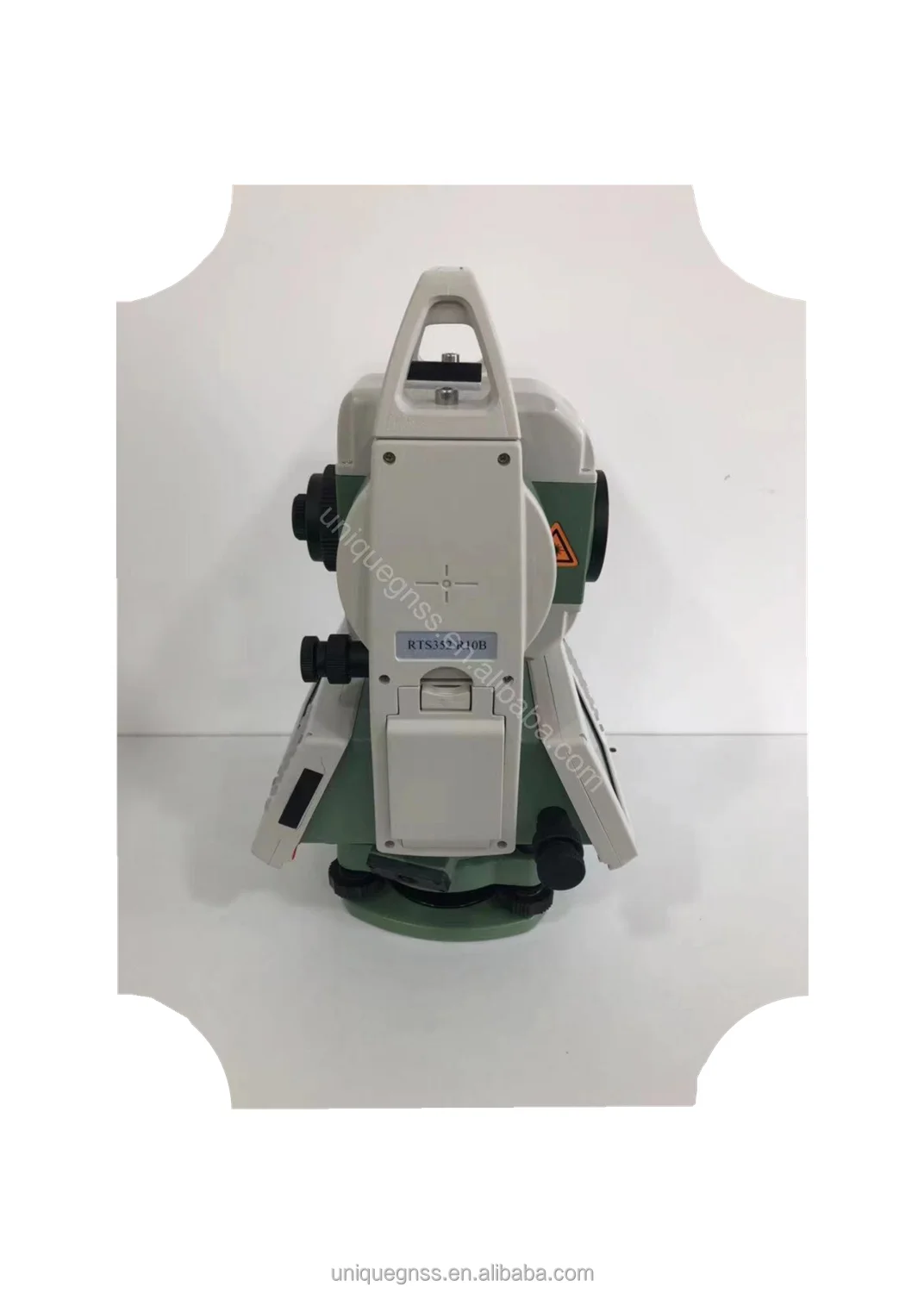

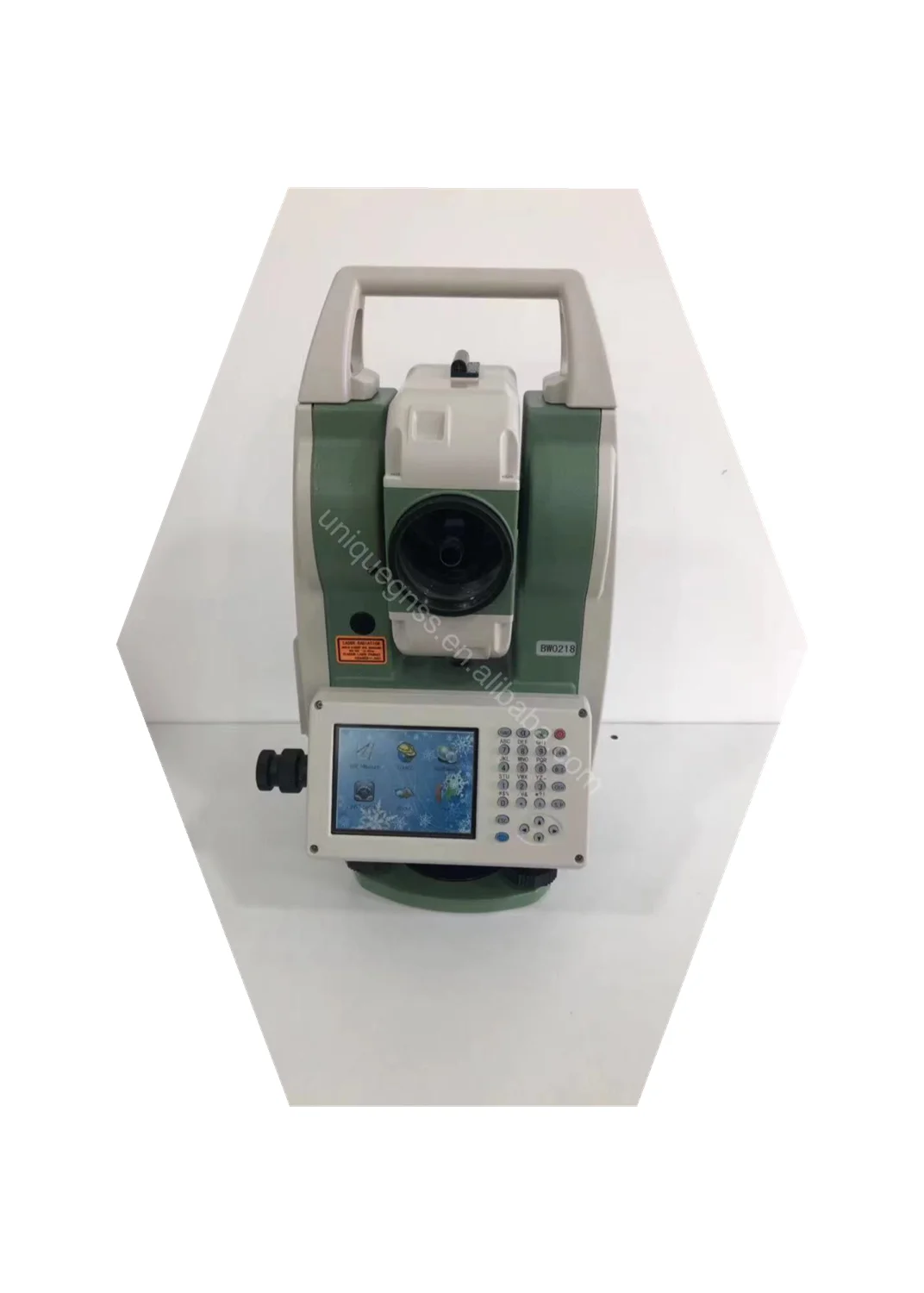

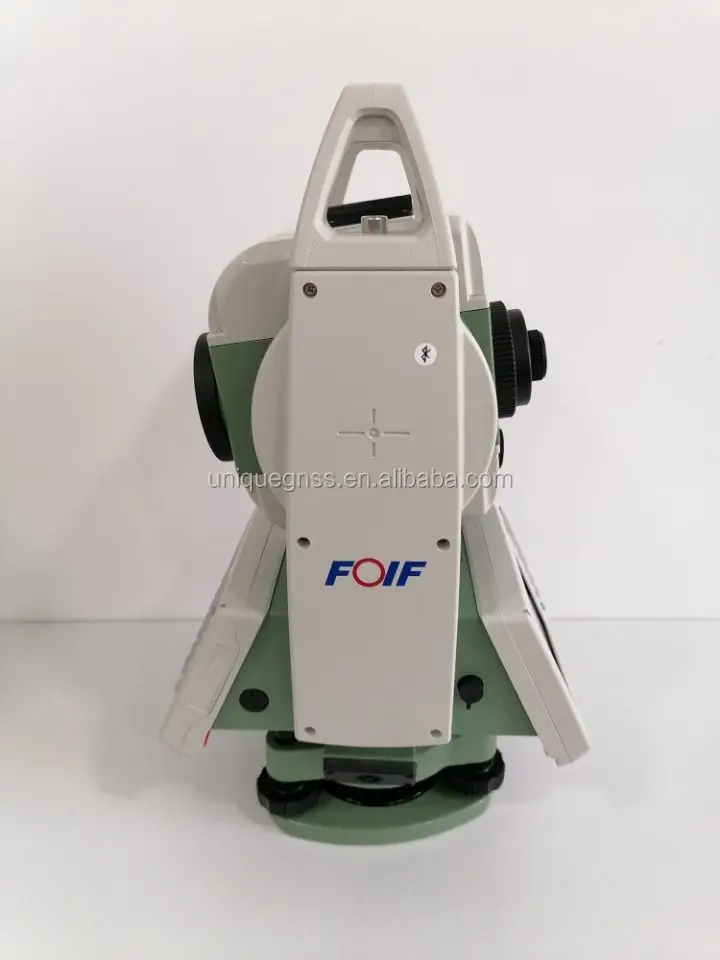

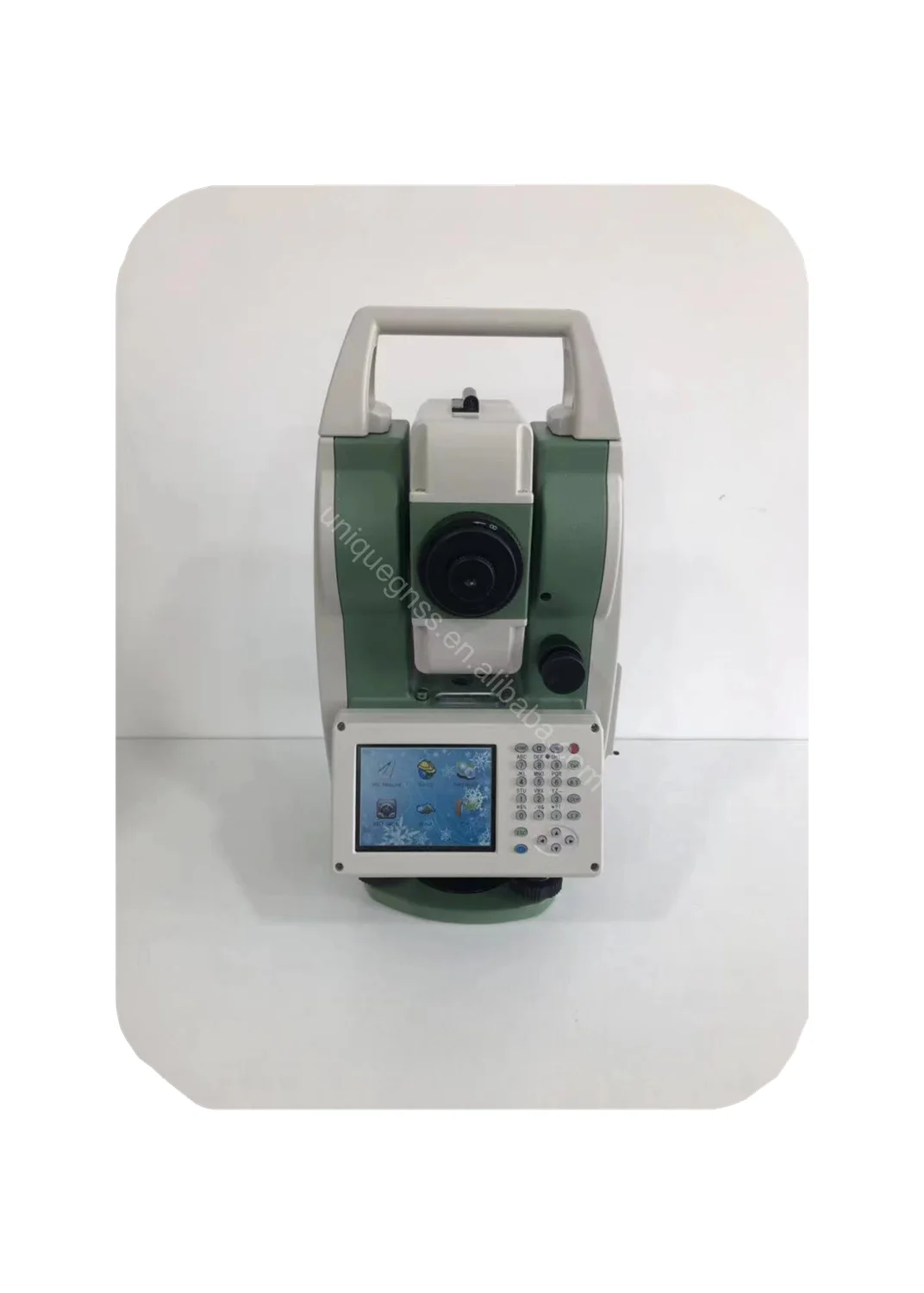

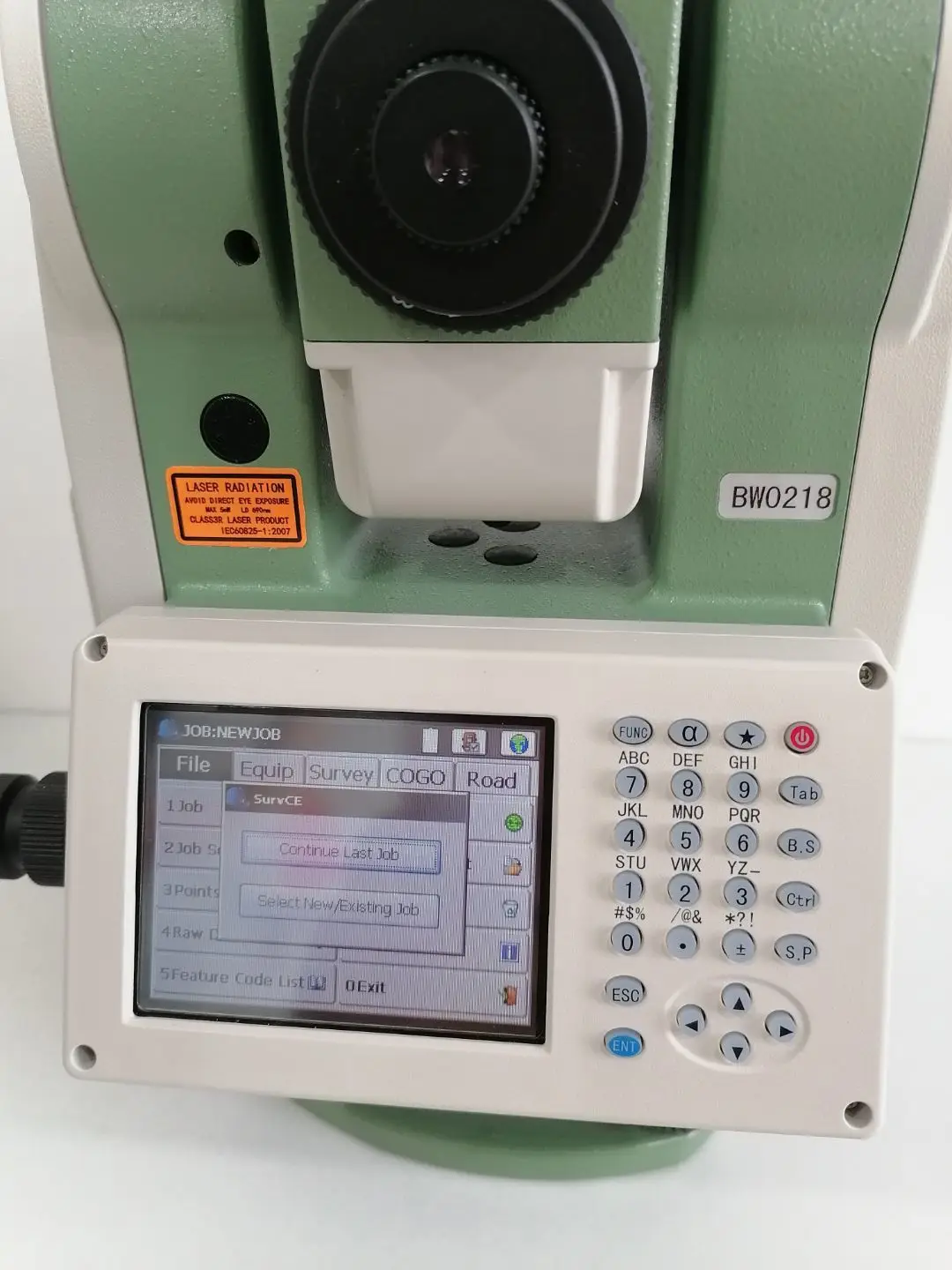

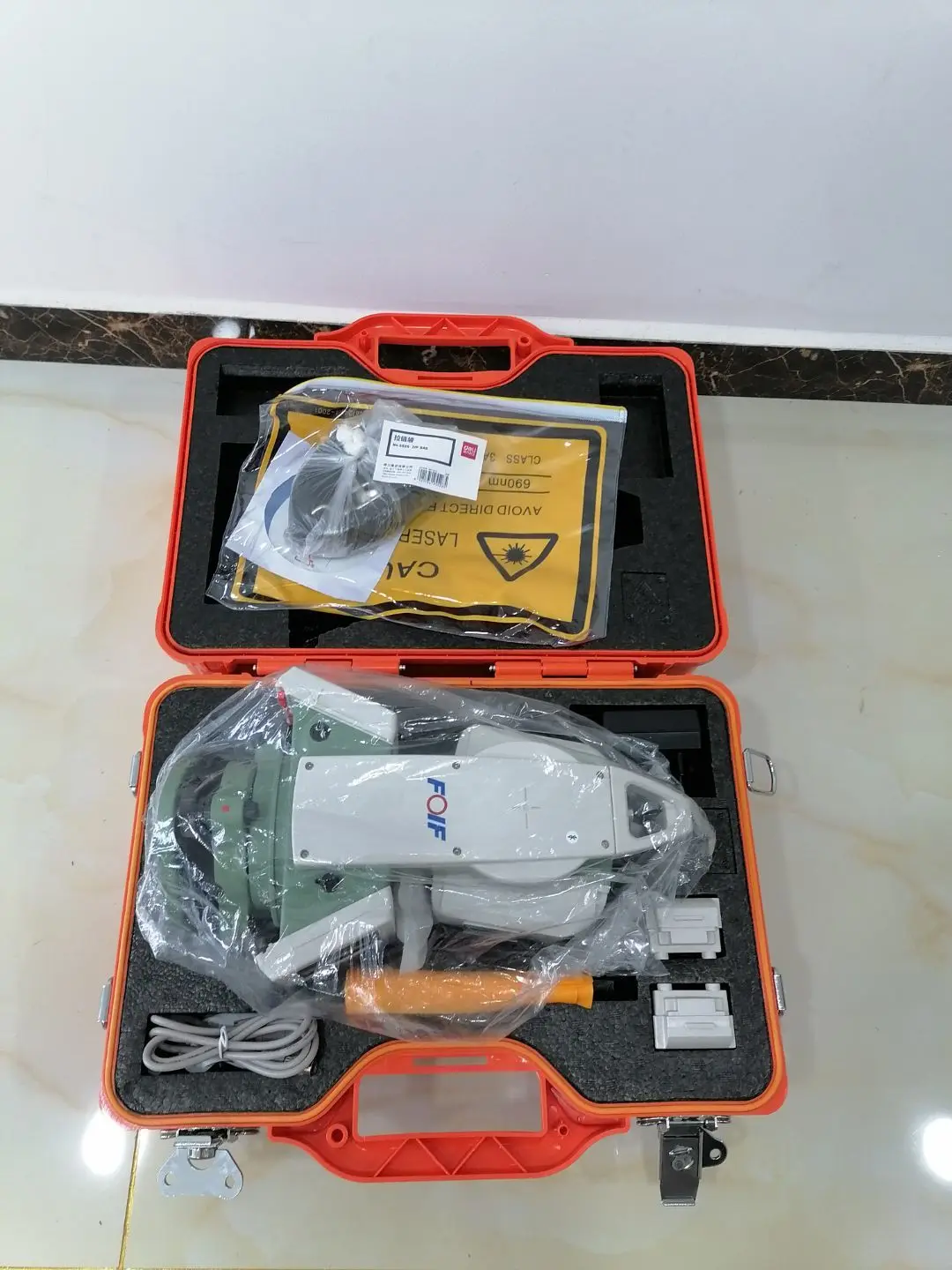

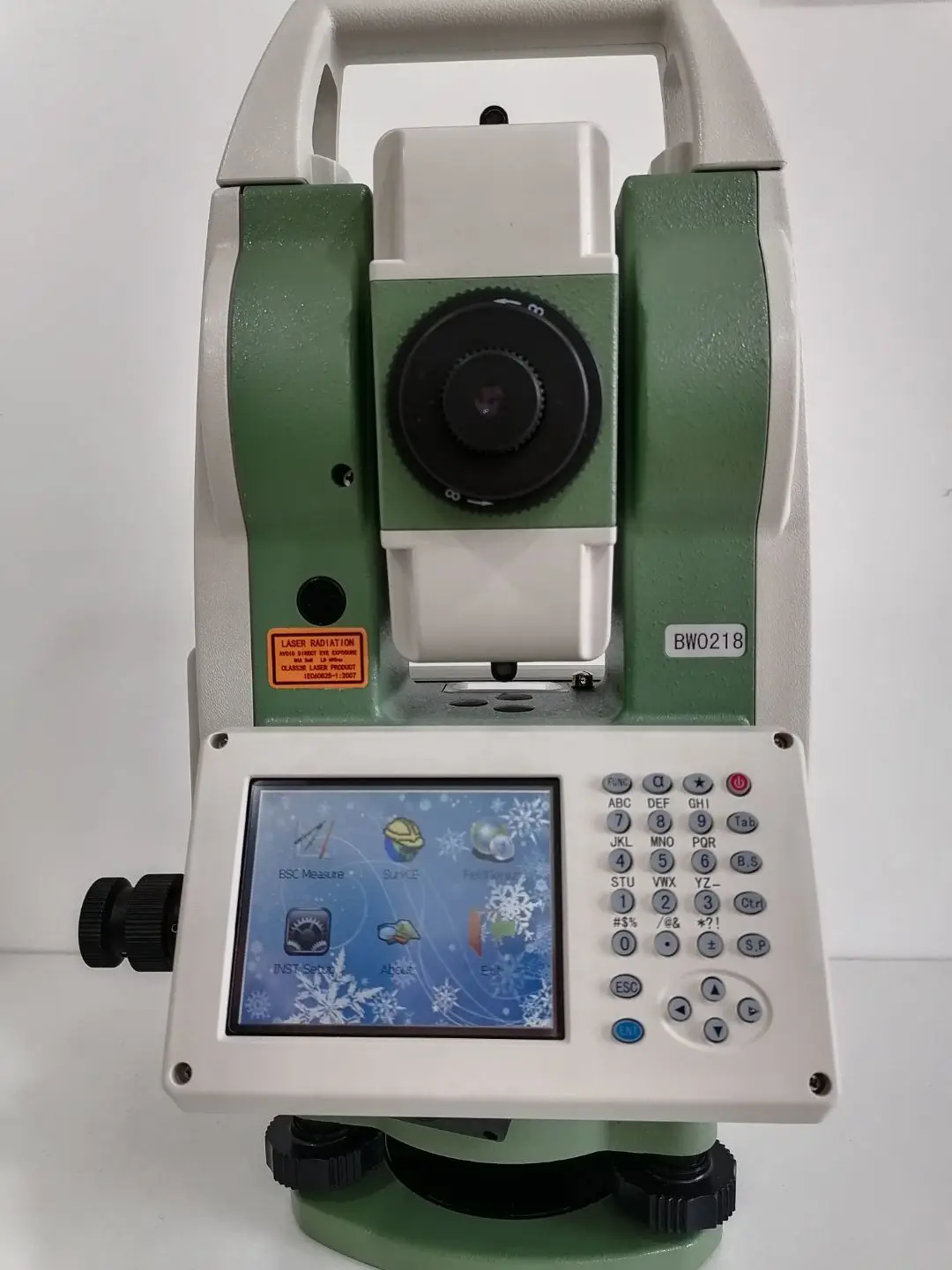

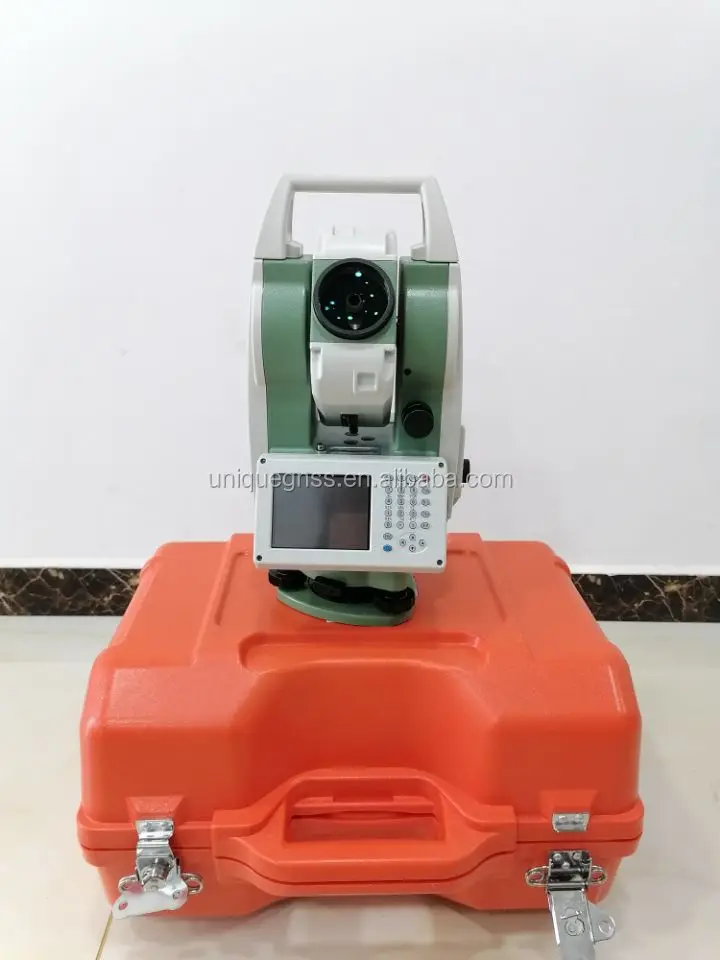

survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352
survey equipment FOIF total station RTS352

survey equipment FOIF total station RTS352

Share on (1600268135941):


Price:

Quantity:


Product Overview

Description





Product Features





□ Compact design with Windows CE 7.0 operating system

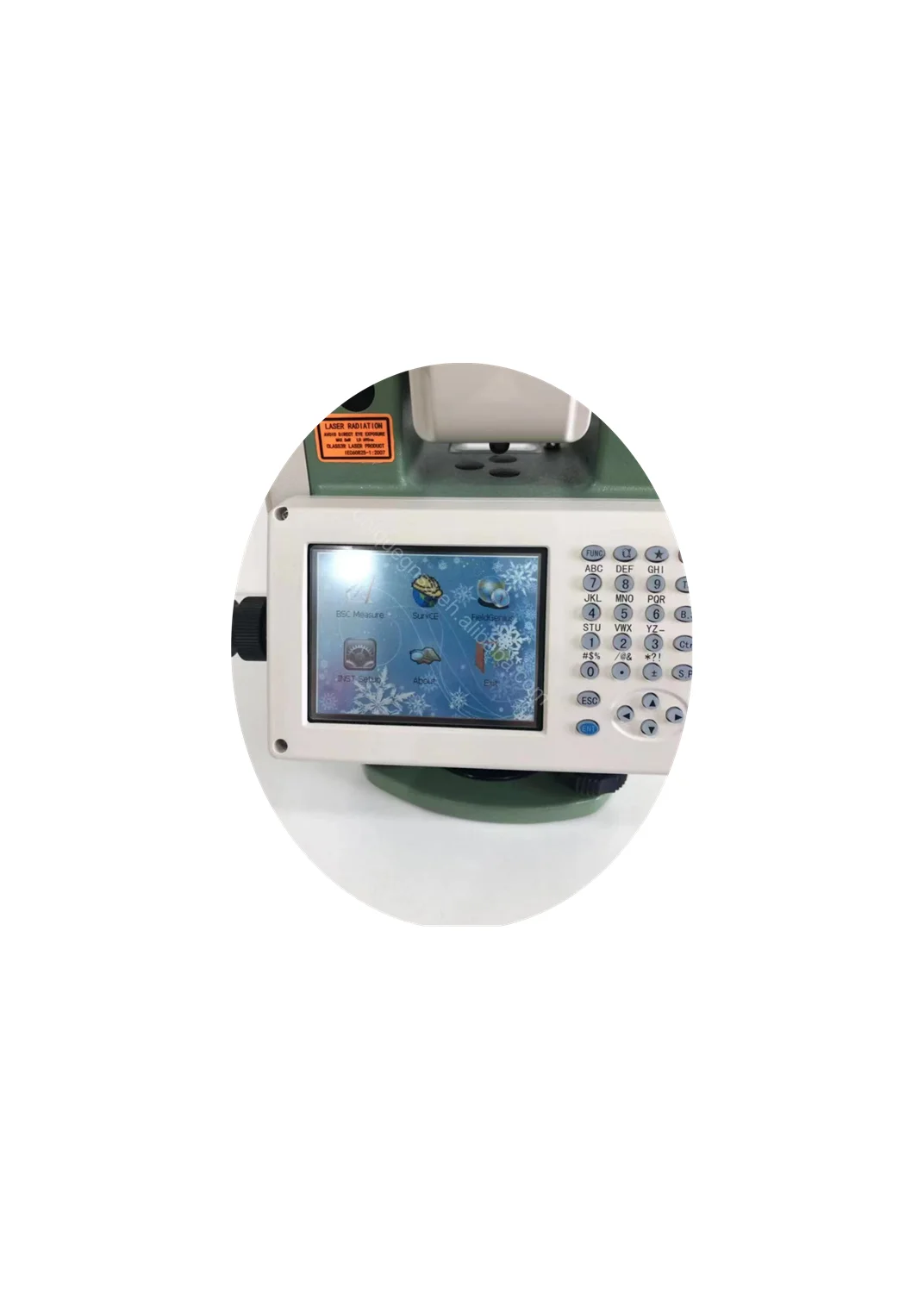

□ 3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display





□ Professional onboard software: FOIF Fieldgenius,FOIF Survey or Carlson SurvCE
□ Long reflectorless measuring distance reaches to 1000m





□ Illuminated keyboard with light sensor, turn on in dark surroundings automatically
□ Multiple data interfaces,USB host, USB slave, RS-232C or Bluetooth connections are available







□ Smart battery managing system, display battery life in real-time
□ Guide light system for fast stake out measurement


PRODUCT SPECIFICATIONS


Technical data
Telescope
Length/Image
156mm/Erect
 Objective aperture
φ45mm
Magnification
30X
 Field of view
1°30′
Shortest focus distance
1.0m
Angle measurement
Reading system
Absolute encoder
Angle unit
360°/400gon/6400mil, selectable
Display resolution
0.1″/0.5″/1″(or 0.02mgon/0.1mgon/0.2mgon)
Accuracy
2″
Distance measurement(R600)
 Display resolution(m/inch selectable)
0.1mm/1mm
Laser class Prism
 Class 1
 Reflectorless/Reflective sheet
Class 3R
  Measurement range (Good condition )
Reflectorless
1 to 600m
Reflective sheet/RP60
1 to 800m
Single prism
1 to 5000m
Accuracy
 Prism
2mm+2ppm
Reflective sheet/RP60
3mm+2ppm

Reflectorless
1-150m:3mm+2ppm;
>300m:10mm+5ppm
150-300m:5mm+3ppm;
Measuring time
Initial:2s
Prism
 typ.1.0-1.5s
Reflective sheet/RP60
typ.1.5s
Reflectorless
typ.1.5-5s, max. 20s
Distance measurement(R1000)
Laser class
Prism standard mode/Prism long mode
Class1/Class 2
Reflective sheet
Class 2
Reflectorless standard mode
Class 2
Reflectorless long mode
Class 3R
Measurement range (Good condition)
Single prism
1 to 5000m
Reflective sheet/RP60
1 to 800m
Reflectorless
1 to 1000m
Accuracy
Prism
2mm+2ppm
Reflective sheet/RP60
3mm+2ppm



Reflectorless

1-150m: 3mm+2ppm ;
150-300m: 5mm+3ppm;
300-500m:10mm+5ppm;
>500m: 20mm+10ppm ;



Level vial sensitivity
Plate level vial
30″/2mm
Circular level vial
8′/2mm
Compensator
Dual axis compensator
Working range
±3′
Setting accuracy
1″
Laser plummet(Standard)
Accuracy
±1.0mm/1.5m
Laser class
 Class 2/IEC60825-1
Laser brightness
 Adjustable
Laser wave length
635nm
Optical plummet(Factory optional)
Accuracy
±0.8mm/1.5m
Erect
Magnification
3 x
Field of view
4°
Focus range
0.5m to ∞
Display
3.5" colour TFT LCD (320 x 240 dots) touch screen
transflective sunlight readable display
Power
Battery
3400mAh Li-ion Rechargeable
Output voltage
7.4V DC
Continuous operation time
(Single distance measurement every 30 seconds)
8 hours
Charger
FDJ6-LI(100V /240V )
Charging time(at +20℃)
Approx. 4 hours
Application programs
Data collection/Stake out/Resection/REM/MLM/Point to line
AREA/Z coordinate/OFFset/3D Road/Traverse adjustment
Tape measurement/section/Axis positioning measurement
Others
CPU
ARM Cortex A8
Memory
4GB internal memory
Sensors
 Built-in temperature and pressure sensors
Keyboard
Alphanumerical illuminated key board, both sides
Guide Light System
 Factory optional
Weight(including batteries)
5.5kg
Dimensions(WxDxH)
185x220x360mm
Operating temperature
-20℃ to +50℃
Storage temperature
-40℃ to +70℃
Interface
USB host/USB slave/RS-232C/Bluetooth(Optional)
Water and dust protection
IP55(IEC60529)
Data transfer&processing software
FOIF Geomatics Office(FGO)
Data collector
F58, fully rugged PDA(Optional)
