 Introduction

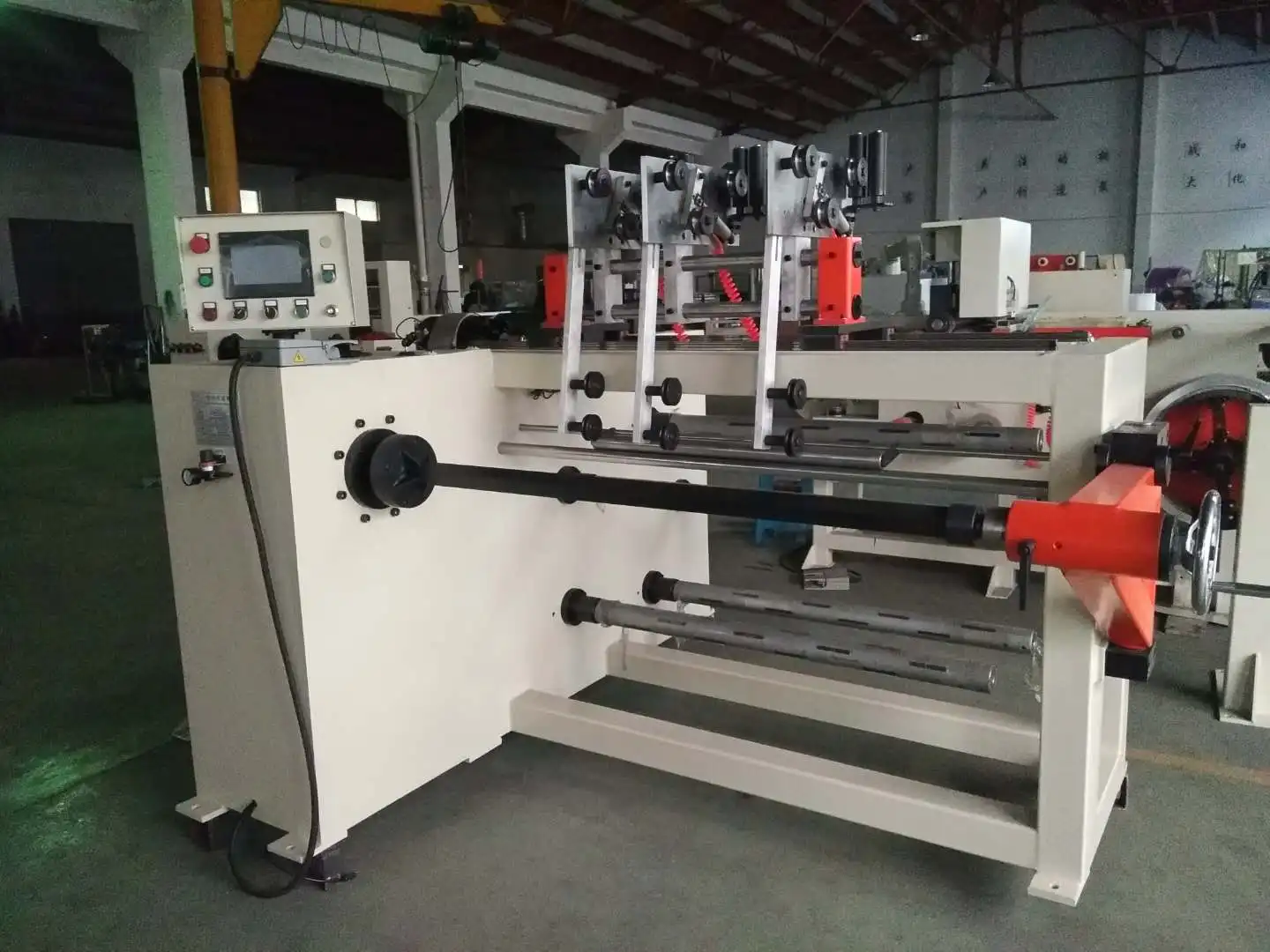

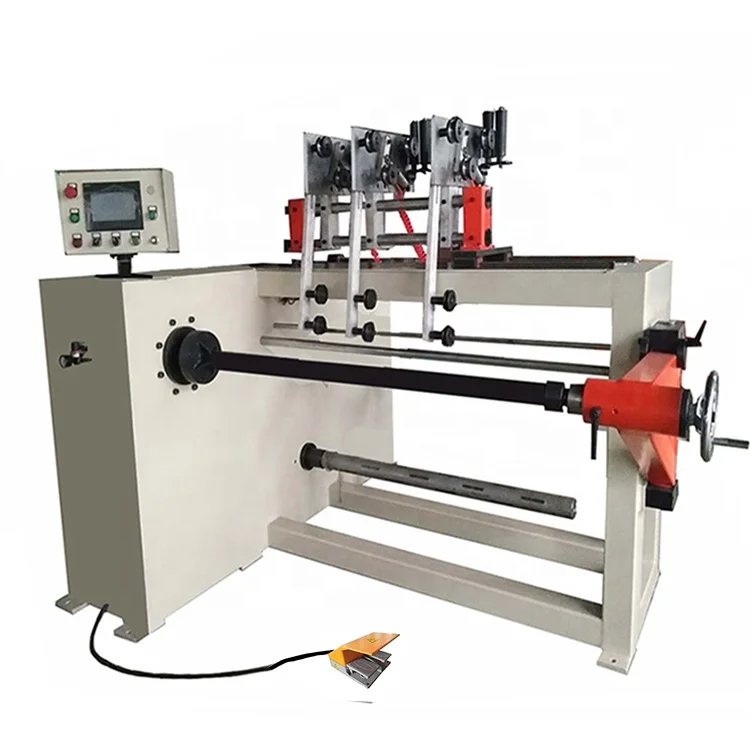

High Effective Automatic PLC Control Wire Winder Oil Transformer Coil Winding Machine ZPX400-3, adopting automatic wire laying and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformer, instrument transformer, reactor and similar products. This wire winding machine can wind 3 coils simultaneously.

Main Components

1. Main frame

2. Winding unit

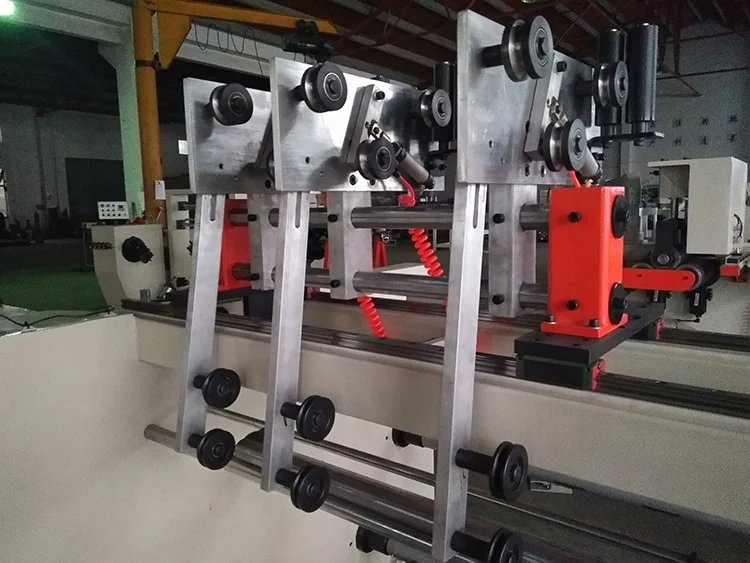

3. Automatic winding displacement unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

7. Pedal switch

Technical Parameter

Typical standard specifications of ZPX400-3 are shown below, however these can be modified as requested.
