Product Overview
Description
Product Description

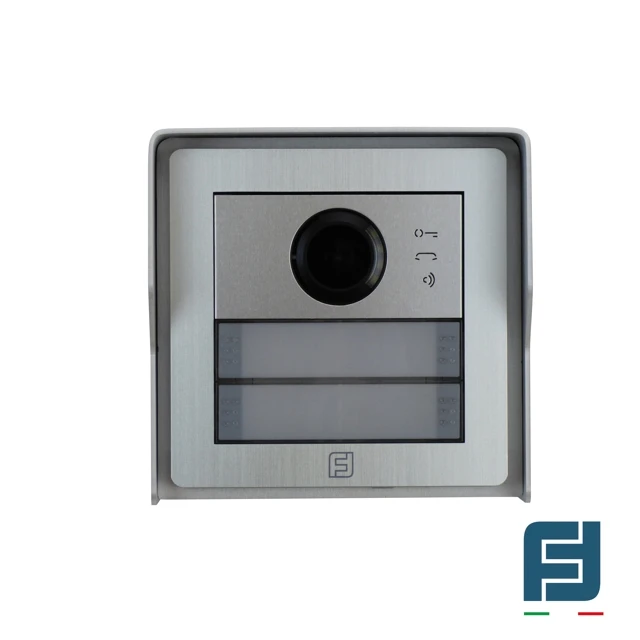

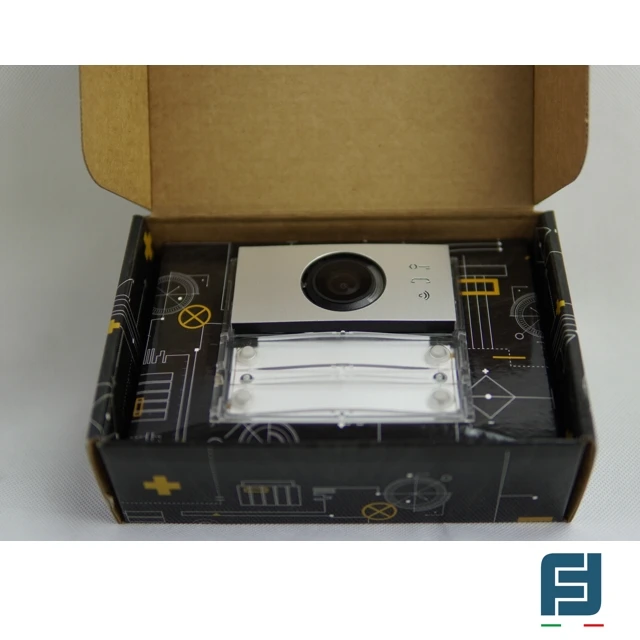

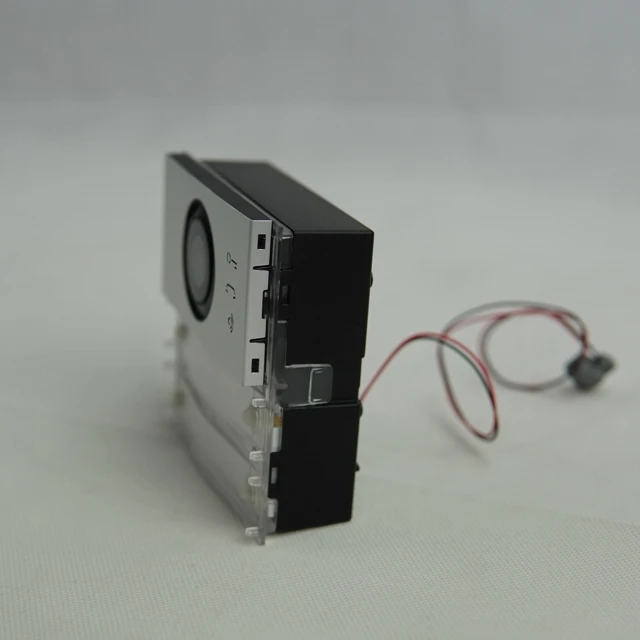

CV2124AB audio video module
Audio-video module, Alba door station line, including electric door speaker and wide angle camera, ready for the installation of 1 or 2 buttons (art. AB20 or AB21) up to 4 calls if programmed in double-call way. To be completed with item AB21 or AB20.
It manages the system "Duo extended" range for installations up to 20.000 users and 250 m as max distance between door station and internal station. It is self powered with automatic address learning.
It manages the system "Duo extended" range for installations up to 20.000 users and 250 m as max distance between door station and internal station. It is self powered with automatic address learning.
Specification
item | value |
Warranty | 2 years |
After-sale Service | Online technical support |
Project Solution Capability | total solution for projects |
Application | Villa |
Place of Origin | Italy |
Brand Name | Farfisa |
Model Number | CV2124AB |
Design Style | Contemporary |
Dimensions cm (lxhxd) | 9,9X9,1X0,9 |
material | anodised aluminium |
focal length | 2.7 mm |
wision angle | about 110° |
number of buttons | max 4 |
backlighting color | white |
Recommend Products
FP51SAB smart proximity reader
Proximity reader module of Alba range with RFID and Bluetooth techologies, it allows to control accesses even by card/tag or by smart phones provided with "Smart Access" app. It can be installed in composition with other modules and accessories of Alba
series or as stand alone. Provided with 1 relay, with programmable timer. If it is in a Alba videointercom composition, it is able to manage outputs of the main audio-video Alba module or even up to 4 remote actuators (art. 2281Q). The Bluetooth technology can be used not only to program cards/tags, access via smart phone but also it allows it to work as a "programmer unit" for the
configuration of all DUO devices in the system. Memory capacity is for 2000 cards or transponders and 50 "smart" users. Provided with 5 cards. Power supply via Duo bus or through PRS210 transformer in case of stand-alone installation.
series or as stand alone. Provided with 1 relay, with programmable timer. If it is in a Alba videointercom composition, it is able to manage outputs of the main audio-video Alba module or even up to 4 remote actuators (art. 2281Q). The Bluetooth technology can be used not only to program cards/tags, access via smart phone but also it allows it to work as a "programmer unit" for the
configuration of all DUO devices in the system. Memory capacity is for 2000 cards or transponders and 50 "smart" users. Provided with 5 cards. Power supply via Duo bus or through PRS210 transformer in case of stand-alone installation.
PD2100AB digital keypad
Digital keypad module of Alba range. It allows to call the internal unit through the coding of the corresponding number and door opening through reserved code. Stand alone for access control, the module can be combined in Duo Systems with display module,
CA2124AB audio module or CV2124AB audio-video module or combined with myCom AB3G module. The selection if standalone or combined with Duo or myCom module is to be made easily through jumper. Backlit module with white high readability LED's, PD2100AB includes high visibility big buttons.
Supplied with 2 relays on board, it manages up to 1000 codes each relay. If it is combined with Duo audio or audio-video module,
it allows to manage the 2 internal relays and even other Alba modules and can enable even remote relays (for example art. 2281Q).
If the module is combined with XE2921, the keypad can use a system clock: access control functions can be timed.
Manual or via Bluetooth programming (XE2920 or XE2921 is required).
Power: through external power supply or through Alba bus if it is in composition (self-power). Selection of one of these 2 power
ways can be easily made through jumper.
As for Duo System, it manages "Duo plus", therefore it can be used as main door panel on 20000 users installations with 250 m as
max distance between external and internal stations.
CA2124AB audio module or CV2124AB audio-video module or combined with myCom AB3G module. The selection if standalone or combined with Duo or myCom module is to be made easily through jumper. Backlit module with white high readability LED's, PD2100AB includes high visibility big buttons.
Supplied with 2 relays on board, it manages up to 1000 codes each relay. If it is combined with Duo audio or audio-video module,
it allows to manage the 2 internal relays and even other Alba modules and can enable even remote relays (for example art. 2281Q).
If the module is combined with XE2921, the keypad can use a system clock: access control functions can be timed.
Manual or via Bluetooth programming (XE2920 or XE2921 is required).
Power: through external power supply or through Alba bus if it is in composition (self-power). Selection of one of these 2 power
ways can be easily made through jumper.
As for Duo System, it manages "Duo plus", therefore it can be used as main door panel on 20000 users installations with 250 m as
max distance between external and internal stations.
CT2138AB additional buttons module
Additional push buttons module, Alba door station. With 4 buttons for 4 calls (to be completed with art. AB20 and AB21) that, properly programmed can be activated in double button way, in order to allow 8 additional calls. To be mounted together with CA2124AB audio module or CV2138AB audio-video module. Auto programming allowed.
