PLC Control TIG Welding Copper Strip Coil Winder LV Cast Resin Transformer Foil Winding Machine
- Category: Foil Winding Machine >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (1600268629587):
Product Overview
Description
Product Description
PLC Control TIG Welding Copper Strip Coil Winder LV Cast Resin Transformer Foil Winding Machine
Introduction

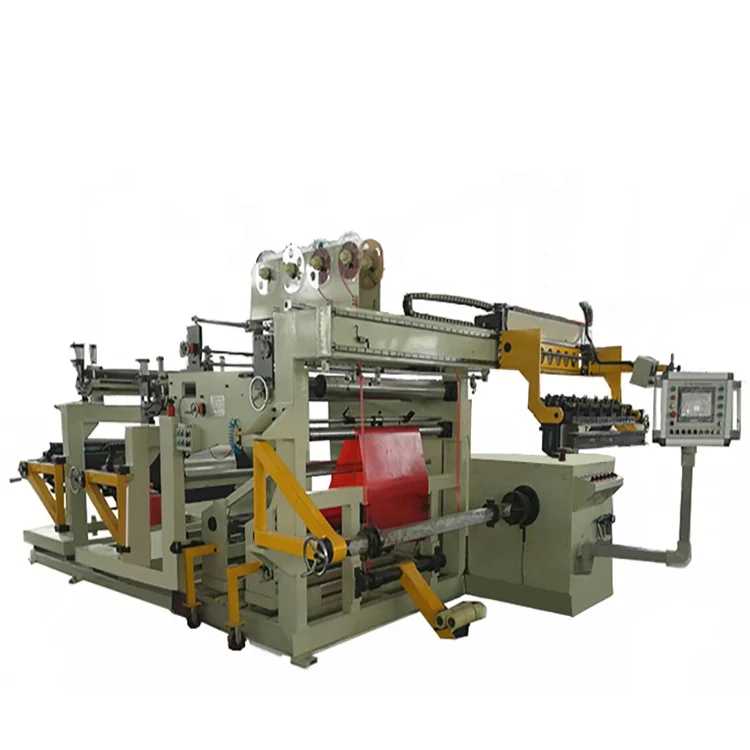

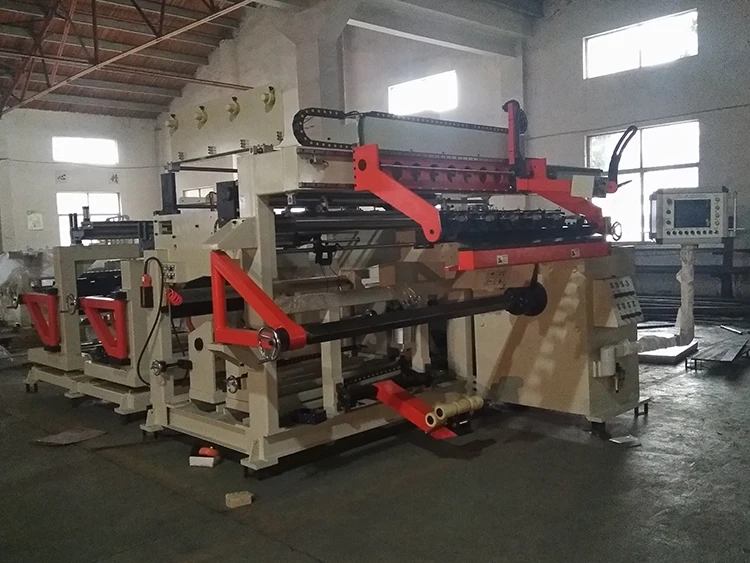

PLC Control TIG Welding Copper Strip Coil Winder LV Cast Resin Transformer Foil Winding Machine BRJ1200-2 is used to wind transformer foil coils and other similar products, the foil conductor can be copper or aluminum strip. This kind of foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). Bus bars are welded with TIG welding process. The automatic foil edge alignment makes sure that the coil edges are straight and smooth when winding. Control system is based on PLC. It is easy to operate the machine through a touch screen.

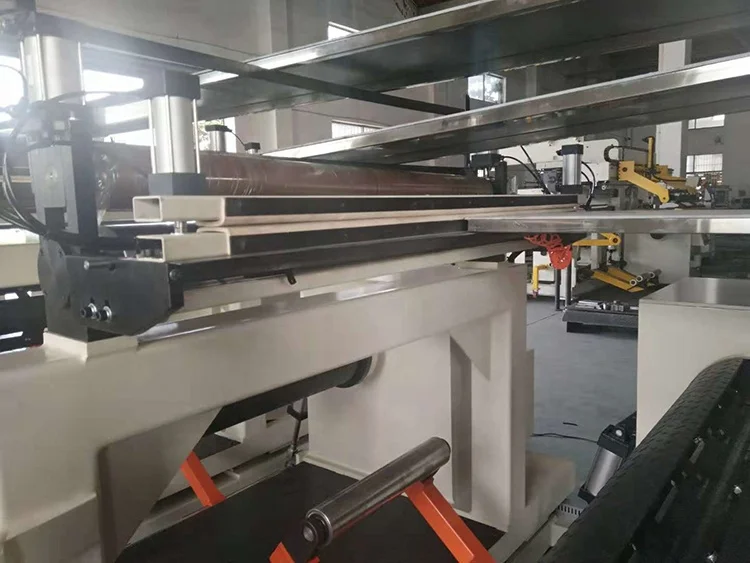

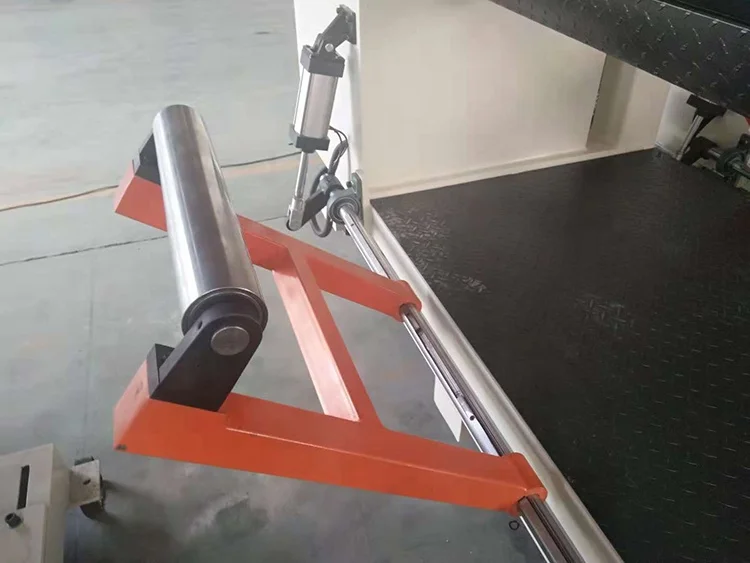

Main Components
1.Main frame
2.Winding unit

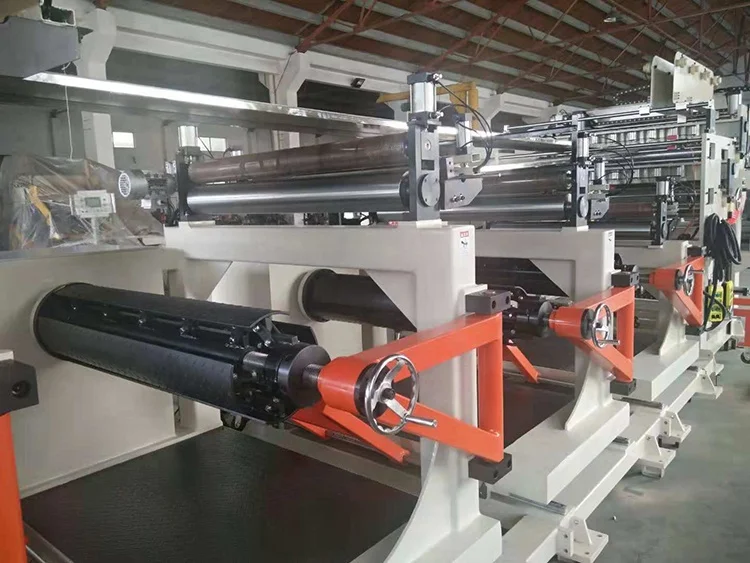

3.Foil decoiler
4.Insulation decoiler
5.Edge filling strip feeder
6.Cleaning system
7.Cutting system
8.Foil deburring system
9.Edge alignment system
10.Automatic welding unit
11.Electronic control system
12.Pneumatic system
Technical Parameters
Typical standard specifications of BRJ1200-2 are shown below, however these can be easily modified as requested.
Axial Length (foil width): | 1,200mm |
Max. OD. of Finished Coil: | 1,000mm |
Max. ID. of Finished Coil: | 130mm |
Conductor Foil Material OD.: | 1,000mm |
Conductor Foil Material ID.: | 500mm |
Number of Conductor Decoiler: | 2 |
Foil Decoiler Diameter: | Hydraulic expanding 430-515mm |
Number of Insulation Decoiler: | 2 |
Insulation Material OD.: | ≤400mm |
Insulation Material ID.: | 76mm |
Width of insulation material: | 1,250mm |
Insulation Decoiler shaft: | Expandable (pneumatic open/close action) |
End-fill Strip Feeder: | 8 |
User Interface: | 10inch (254mm) touch screen industrial PC / access controller |
Counting Turns Range: | 0 - 9999.9 |
