Lift table wheels rubber roller heavy duty castors 4 inch rigid
- Category: >>>
- Supplier: Zhongshan Augus Hardware Products Co. Ltd.
Share on (1600268814198):
Product Overview
Description
Products Description
Medium-Heavy Duty 01 Series-Blue Elastic Rubber with Double Bearing

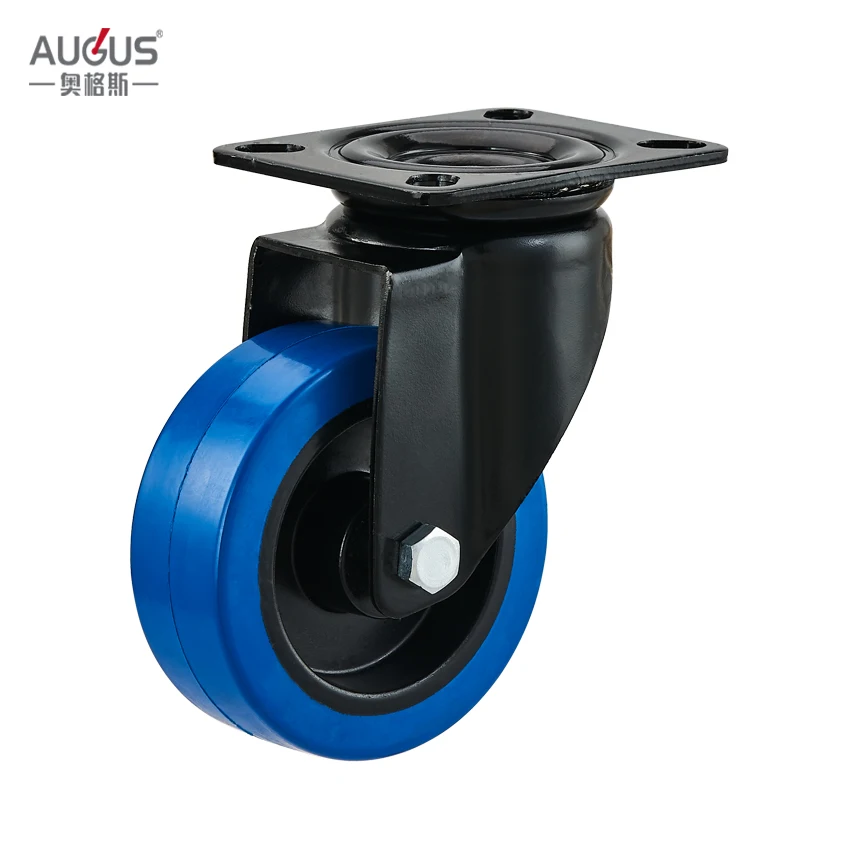

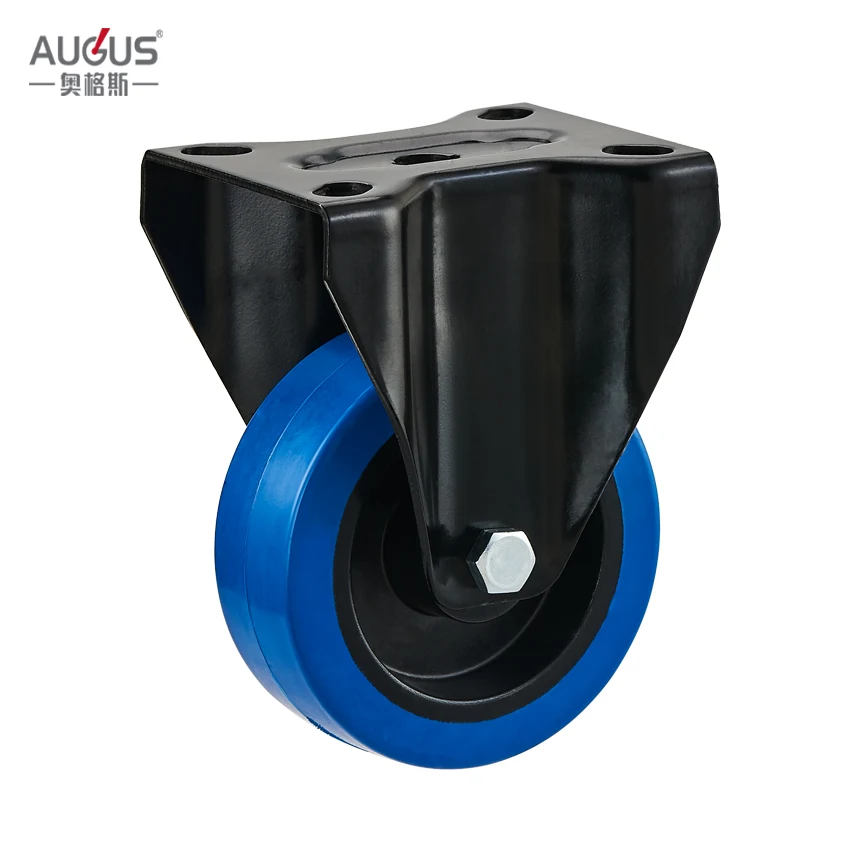

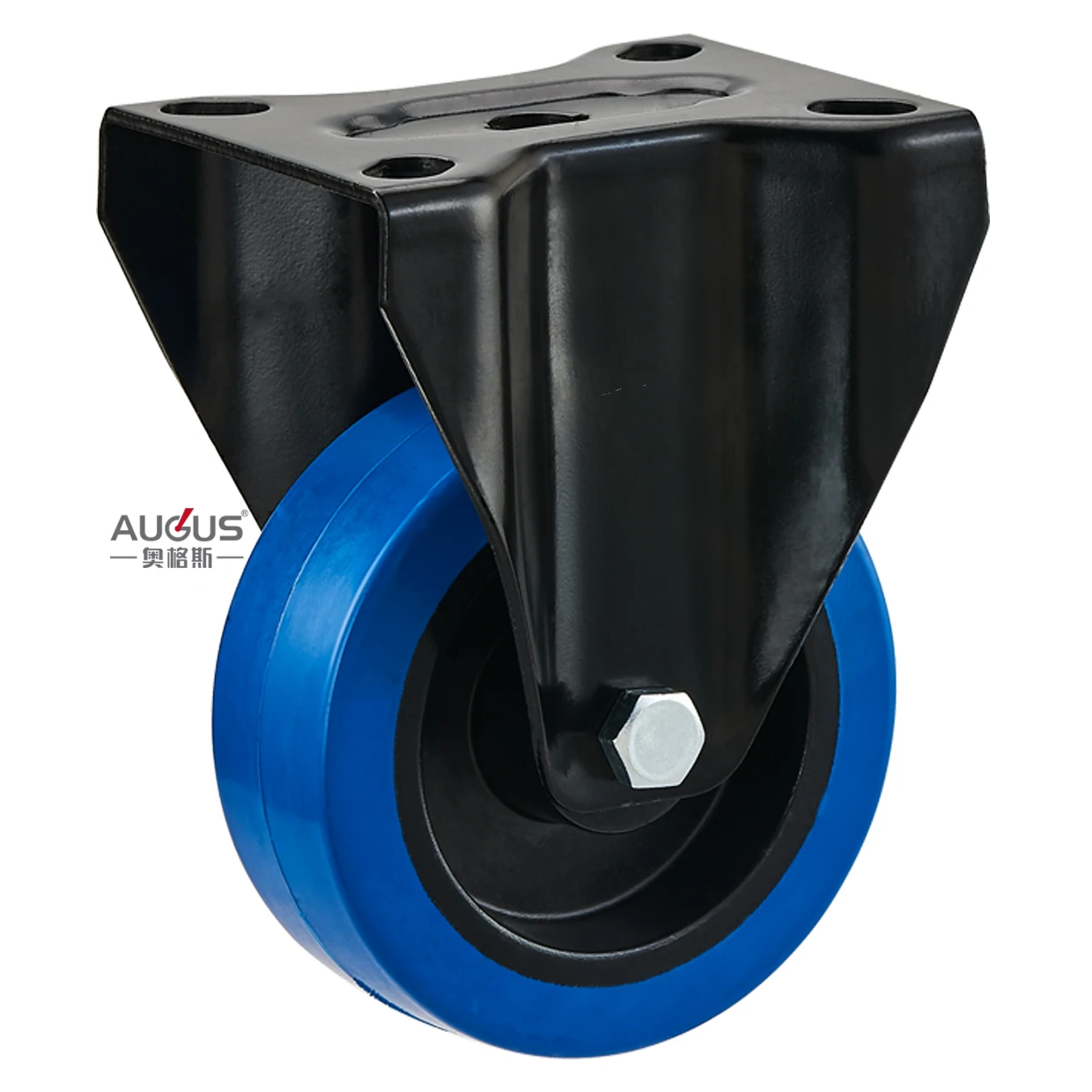

Description: Fix, Swivel, Screw

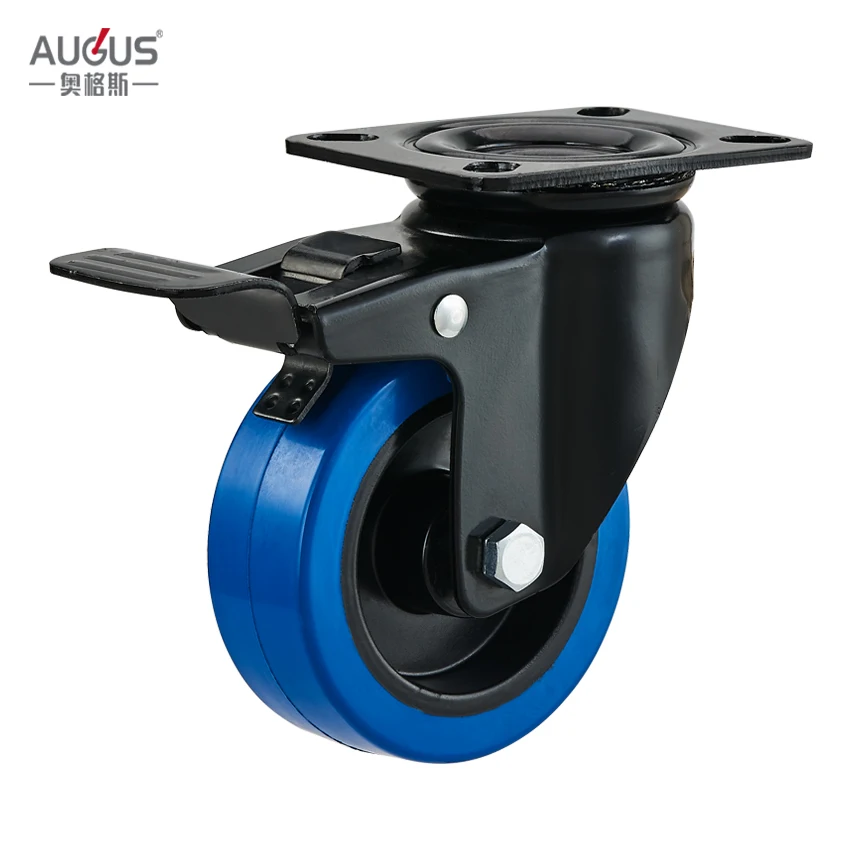

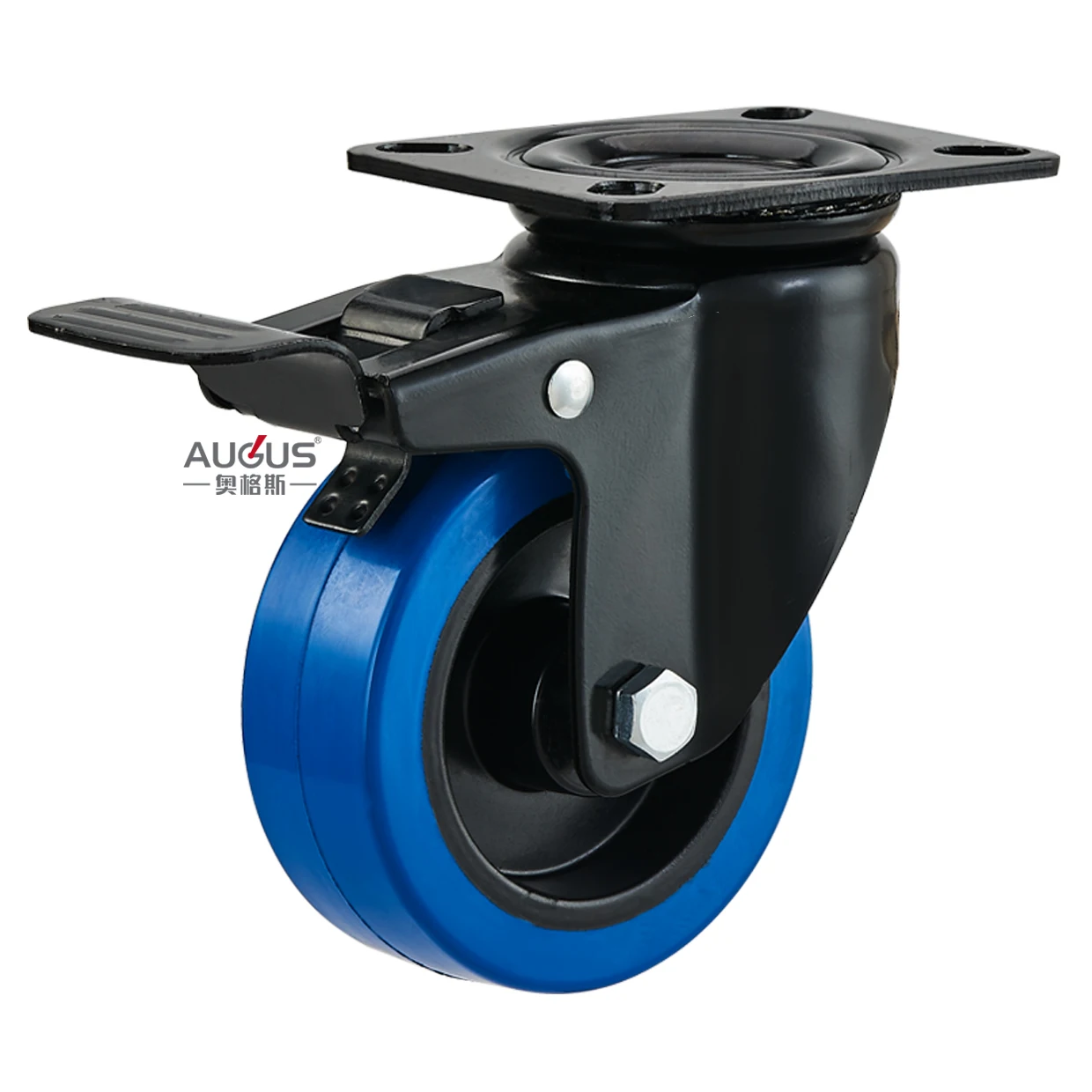

Brake mode: Total brake/Side brake
Bracket mode: The bracket is made of Pressed Steel, blue zinc plated, black lacquer.
Install with axle, nut and bush. The tread is made of Elastic Rubber, the center is made of PP, roller bearing
Install with axle, nut and bush. The tread is made of Elastic Rubber, the center is made of PP, roller bearing
Details Images
Product Paramenters
Details | 3 inch | 4 inch | 5 inch |
Wheel Diameter (mm) | 75 | 100 | 125 |
Tread Width (mm) | 36 | 36 | 36 |
Overall Height (mm) | 113 | 138 | 163 |
Offset (mm) | 32 | 35 | 38 |
Load Capacity (kgs) | 120 | 150 | 180 |
Size of Plate (mm) | 100x80 | 100x80 | 100x80 |
Hole Centre Distance (mm) | 76x56 | 76x56 | 76x56 |
Screw Size (mm) | M16x30 | M16x30 | M16x30 |
