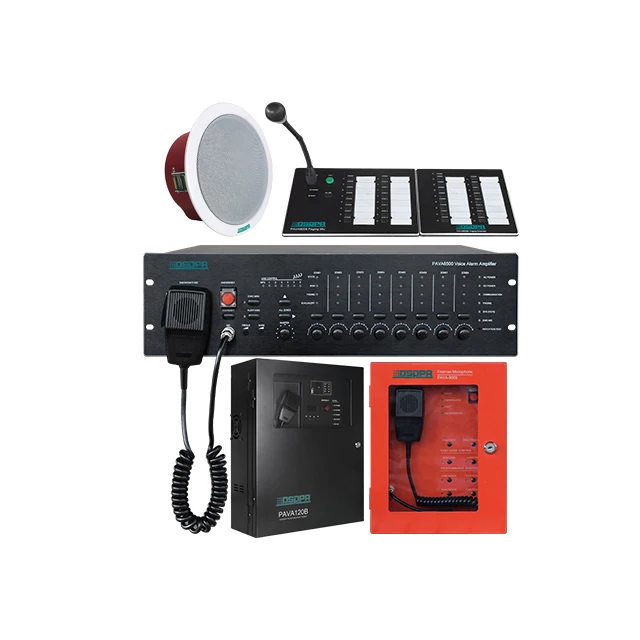

8 Zones digital microprocessor controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast
8 Zones digital microprocessor-controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast
8 Zones digital microprocessor-controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast
8 Zones digital microprocessor-controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast
8 Zones digital microprocessor-controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast

8 Zones digital microprocessor controlled EN54 voice alarm amplifier for voice evacuation announcements Emergency Broadcast

Share on (1600268892399):


Price:$1,252.00 - $1,259.00

Quantity:


Product Overview

Description



Details Images




Feature


● Support Dante protocol, comply with EN54-16 standard
● Built in 500W digital amplifier
● 8 zones speaker output (could be extended up to 160zones)
● One button alarm, built in EVAC message & Chime
● With 6 Aux input and one balanced output
● Support zones or group paging from remote microphone
● Support background music and EMC broadcasting at the same time


Product Paramenters


Model
PAVA8501
PAVA8500E
Rated output power
≥500W（100V）
Input sensitivity
Emergency mic
5mV 600Ω
——
Line
1000mV 10kΩ
Harmonic distortion
Emergency mic
<1% 1kHz
——
Line
<1% 1kHz
Freq. response
Emergency mic
80Hz-15kHz（±3dB）
——
Line
50Hz-18kHz（±3dB）
Signal to noise ratio
Emergency mic
>75dB（A weighting）
——
Line
>80dB（A weighting）
Line output
Output voltage
1000mV
——
Frequency range
80Hz-15kHz（±3dB）
——
Harmonic distortion
<1% 1kHz
——
System connection control contact output/input
System fault relay output
Short circuit, no voltage
Emergency mode relay output
Short circuit, no voltage
Fire reset input
Short circuit, t≥0.5S, no voltage
8 channel dry contact output
Short circuit, no voltage
8 dry contact input
Short circuit mode
Short circuit input, no voltage
Level mode
3.3V~24V
Voice message
Data format
WAV
——
Storage form
SD card
——
Storage time
>10 years
——
Battery charging / discharging
Rated current
3.8A
——
Maximum amplified current
5A
——
Low voltage protection
20±1V
——
Working power
AC
AC 220-240V/50-60Hz
DC
DC 24V/30A
Package size (L*W*H)
550×510×215mm
Machine size (L*W*H)
483×420×132mm
G.W.
14kg
13.3kg
N.W.
12.05kg
11.75kg
