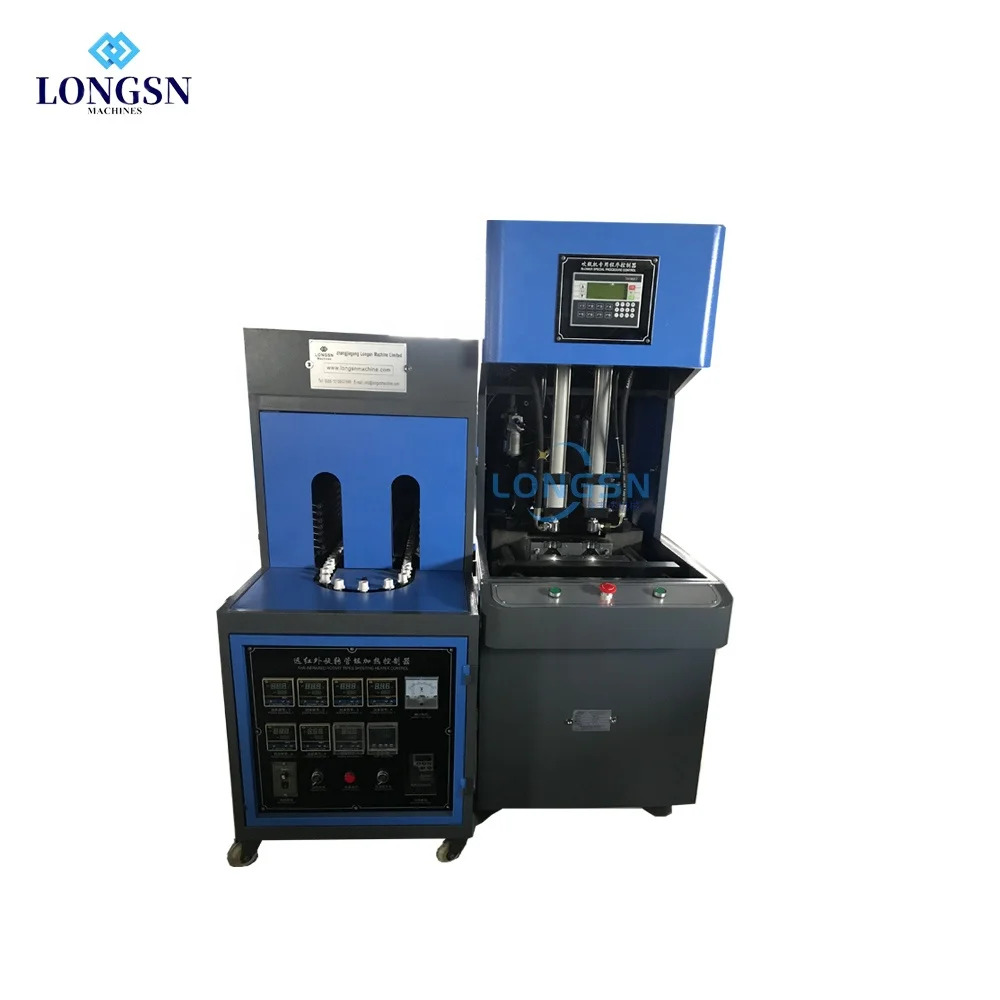

The semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle ,mineral water, oil bottle cosmetics bottle etc.
1.Adopting double crank to adjust mould, heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform, the preform rotated and heated equally. 2.The air system has been divided into two parts: physical movement of machine and blowing movement. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. 3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. 4.The machine can be operated in the step-by-step mode and the semi-auto mode. 5.The machine is small with low investment, easy to operate.
Technical Parameter:
Theoretical output
2000-2200 pcs/h
Finished bottle
Max. bottle volume
2 Liters
Max. neck diameter
150 mm
Max. bottle diameter
200mm
Max. bottle height
380mm
Mold specifications
Cavity
28mm-95mm neck size with 2 cavity
Cavity
95mm-250mm neck size with 1 cavity
Mold thickness
110mm-400mm
Open stroke
420 mm
Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
18kw
Actual power consumption
5-8 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
5HP
Blower size
Length*width*height/weight
1450*590*1650mm/650kg
Oven size
Length*width*height/weight
1680*610*1450mm/350kg
Images:
Packaging & Shipping
Our Services
Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station.
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)
