Sinso heavy duty wired/joystick control watch tower revolving search light
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (1600269874643):
Product Overview
Description

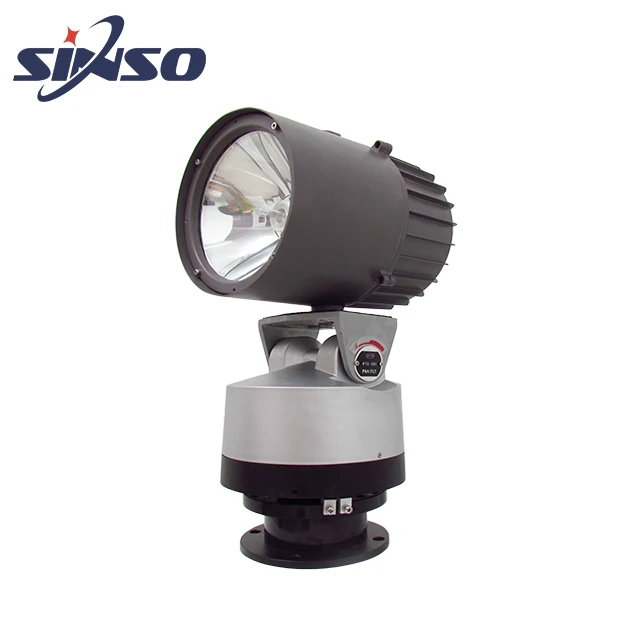

Sinso heavy duty wired/joystick control watch tower revolving search light
Product Paramenters
Auto cruise function:searchlight reciprocating motion during limits
Speed adjustmentArbitrary switching speed, there are three speed adjustment
Continuously variable:moving speed can be arbitrary switching,both horizontal and vertical with continuously variable
Preset function:searchlight move to the important position at once,searchlight move to the position in 8s
4/8 directions adjustment:searchlight move to any position of freedom
Home functioning:auto protect the most important area
Multiple control:searchlight can be control by wireless remote and wired keyboard and software(RS485 interface)
Memory function:auto memory what you have set of the searchlight,like OFF/On and working mode,no need repeated setting.
Speed adjustmentArbitrary switching speed, there are three speed adjustment
Continuously variable:moving speed can be arbitrary switching,both horizontal and vertical with continuously variable
Preset function:searchlight move to the important position at once,searchlight move to the position in 8s
4/8 directions adjustment:searchlight move to any position of freedom
Home functioning:auto protect the most important area
Multiple control:searchlight can be control by wireless remote and wired keyboard and software(RS485 interface)
Memory function:auto memory what you have set of the searchlight,like OFF/On and working mode,no need repeated setting.
Name | wired control searchlight | ||||
Model | SN-222-B | ||||
Control Mode | wireless remote,wiredkeyboard,software(RS485) | ||||
Power | 150W | ||||
Luminous Flux | 10000lm | ||||
Visibility | 1000M | ||||
Rotation angle | Pan:0~355°,Tilt:±35° | ||||
Rotation speed | Pan:0-15°/s,Tilt:0-3°/s | ||||
Input Voltage | 12VDC,24VDC,220VAC,custom made available | ||||
Tempreature(CCT) | warn white,pure white,cool white(3000K,6000K,8000K) | ||||
Work temperature | Normal version:-10℃~+45℃,Low temperature version: -30℃~+45℃, | ||||
Material | Cast Aluminum+ABS | IP grade | ip65 | ||
Beam Angle | 3° | CRI(Ra>) | Ra>95 | ||
Lamp Dia | 20cm | Color | Silver-Gray | ||

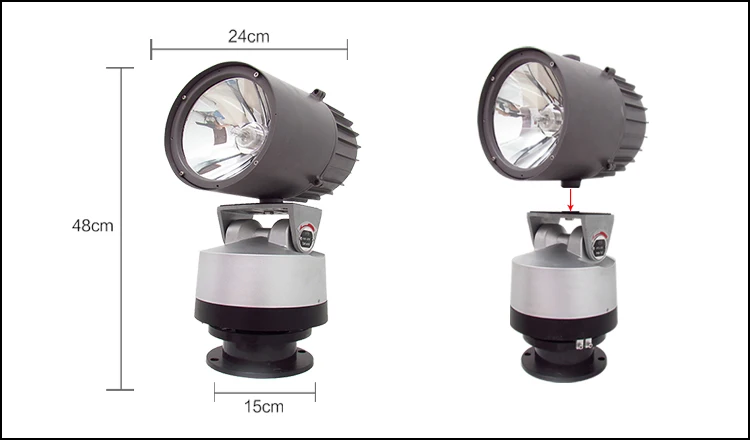

Weight | 6Kg | Dimension | 24*48*15cm | ||
Products Description
wireless remote control
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom

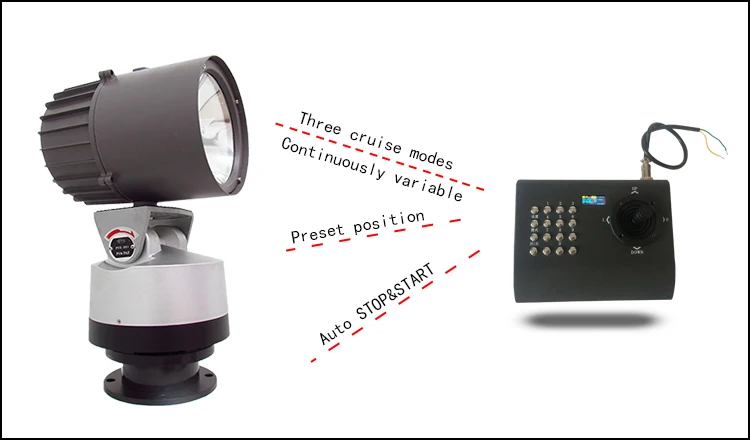

Wired Keyboard
wired keyboard control,control range up to 1200 Meters,keyboard,with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of
freedom
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of
freedom

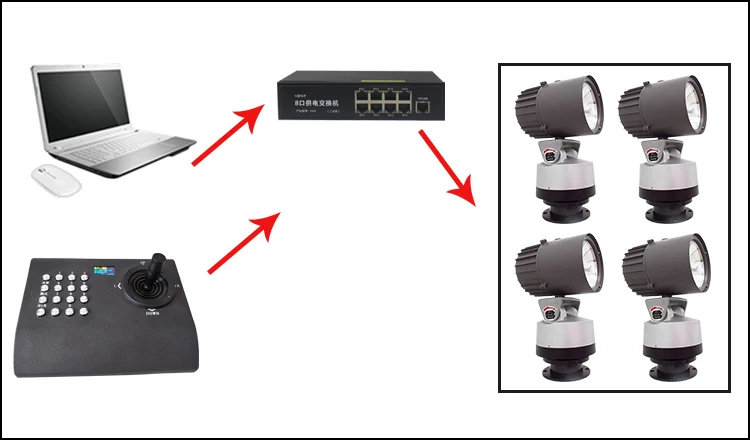

Software control
Software control:RS485 signal,can be control multiple searchlights,can control any device individually(address code),with 99
grouds timing,turn-on / turn-off time and working mode for searchlight can be setting
also with 8 directions adjustment,to be
able to adjust the direction of freedom,also with auto cruise function and speed adjuamnet
grouds timing,turn-on / turn-off time and working mode for searchlight can be setting
also with 8 directions adjustment,to be
able to adjust the direction of freedom,also with auto cruise function and speed adjuamnet

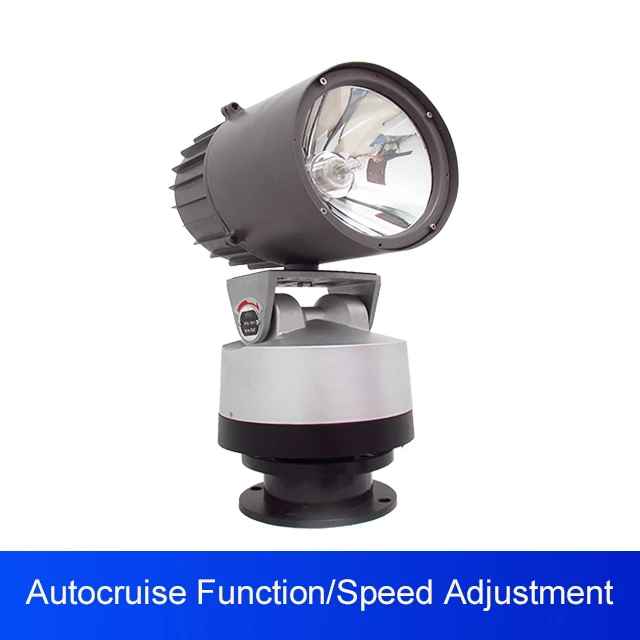

Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed. H:pan:15°/sec, tilt:3°/s, M:pan:5°/sec,
tilt:2.5°/s, L:pan:1°/sec, tilt: 0.5°/s
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed. H:pan:15°/sec, tilt:3°/s, M:pan:5°/sec,
tilt:2.5°/s, L:pan:1°/sec, tilt: 0.5°/s

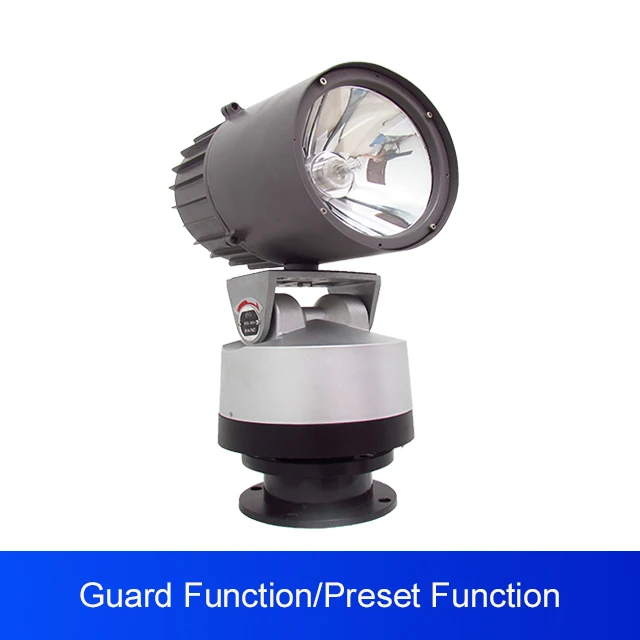

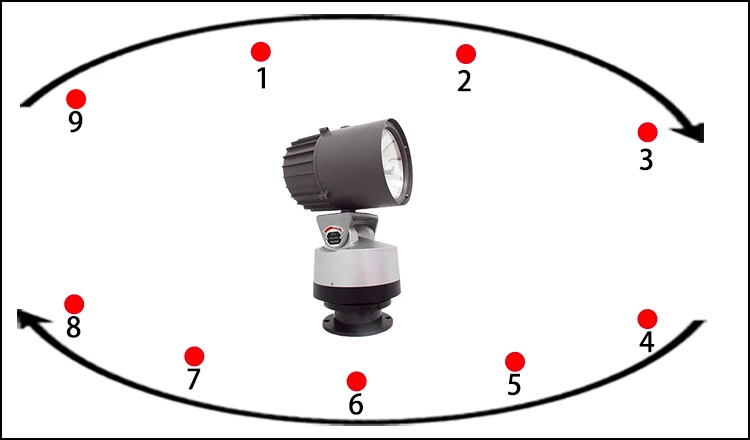

Preset/Auto Scan/Guard Function
Guard Function:searchlight will move to guard position automatically when searchlight without operated for some time.
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard
control
control
Auto Scan:stop and cruise between the presets ,residence time can be set
Auto Stop&Star/Memory/Unattended
Three Auto cruise modes,One-click response and auto memory;
Simulate live action,work with timer to achieve unattended;
Arbitrary switching speed and auto memory during cruise;angle adjustment ,flexible and convenient
Simulate live action,work with timer to achieve unattended;
Arbitrary switching speed and auto memory during cruise;angle adjustment ,flexible and convenient
Material
IP65 protection grade,waterproof and dustproof,No fear of sun and rain;Aluminum material,stable and durable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable
Recommend Products
SN-220/SN-220U
Power:150W,250W Visibility:1000M/2000M Voltage:12V/24VDC,220VAC
Control modes:manual control
PD-021 series
Power:150W
Visibility:2000M Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
SN-2306/SN-2306U series
Power:150W,250W Visibility:1000M/2000M Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired
keyboard,network and so on
keyboard,network and so on

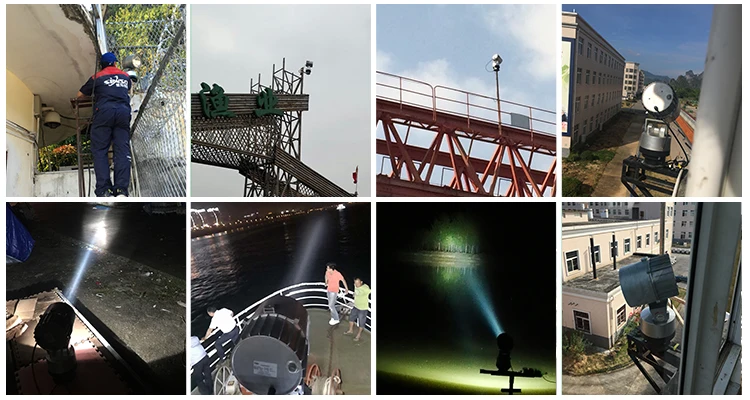

Application
Sinso searchlight used for Homeland&Border Security,Prison Facilities&Prison Security,Maritime Water &Electric Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
