Product Overview

Description



Product Description


Laboratory Type X-Ray Fluorescence Spectrometer with High Quality


Warranty For 2 Years

Original Manufacturer

One-to-one Remote Operation Guidance



Warm Tips:

The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.




The Principle of Energy Dispersive X Fluorescence Spectrometer


The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.

Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.






The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc




Specification parameters
Laboratory Type X-Ray Fluorescence Spectrometer with High Quality
Specification parameters of four models


Brand
MAYZUM
Model
X-MAY05
X-MAY16
X-MAY72
X-MAY72-Pro
Price
$5480
$ 10500
$13420
$19190
Detector Type
Proportional Counter tube
Si-pin (USA)
SSD（USA）
Multichannel Analyzer
Multi channel simulation
Sample Chamber Size
310 *280 * 60 (mm)
380 *380 * 60 (mm)
Test Time
10sec ~ 50sec
Measuring Element
Au,Ag,Pt,Pd,Cu
Au, Ag, Pt, Pd, Cu, Ni,Zn,Rh,Cd,Ru,Fe, Co ,Ir,W.Os,Pb.
72 elements from sodium (Na) touranium (U) between all the elements
Analysis Range
1ppm to 99.99%
Accuracy(Content≥96%)
0.1%
0.05%-0.1%
0.03%
0.01%
Density direct reading
No
Yes. D:0.01g/cm3
No
Sample Form
Solid, powder, liquid
Tube Voltage
5KV ~ 50KV
High Voltage Power Supply
0 ~ 50KV
Camera
HD camera
Filters
Selectable customized switches
Analysis Software
Qualitative and quantitative analysis software
Sample Chamber Size(mm)
310*280*60
290*290*95
380*380*60
External Dimensions(mm)
400 * 430 * 350
410*300*280
480 * 480 * 390
Net Weight
33Kg
30kg
38Kg
Gross Weight
38Kg
35kg
47kg
Instruments Environmental Requirements
Ambient Temperature
-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity
15% ~ 90%
Power Requirements
AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby


Advantages & Characteristics


Laboratory Type X-Ray Fluorescence Spectrometer with High Quality

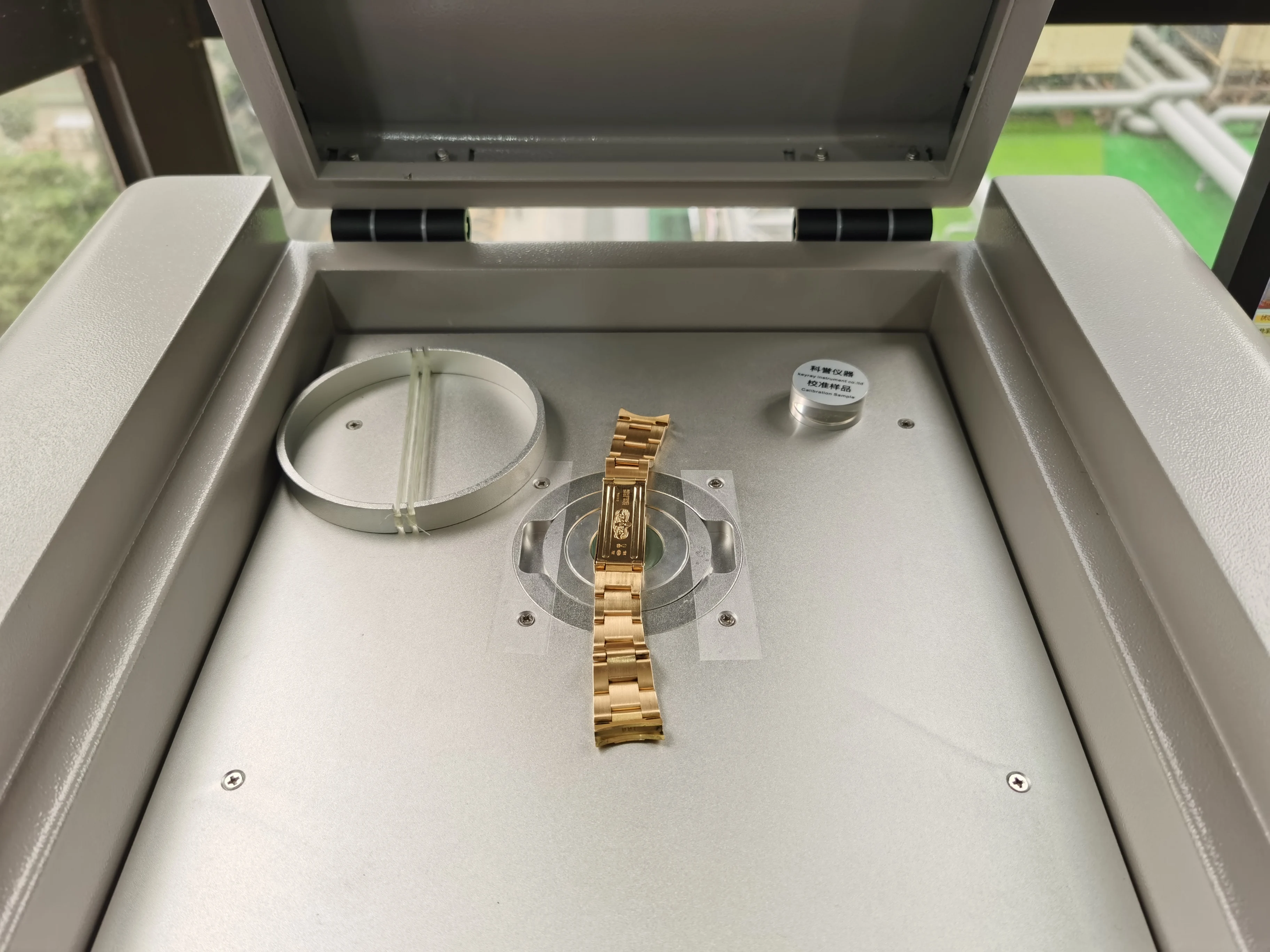

Detailed Images


Laboratory Type X-Ray Fluorescence Spectrometer with High Quality

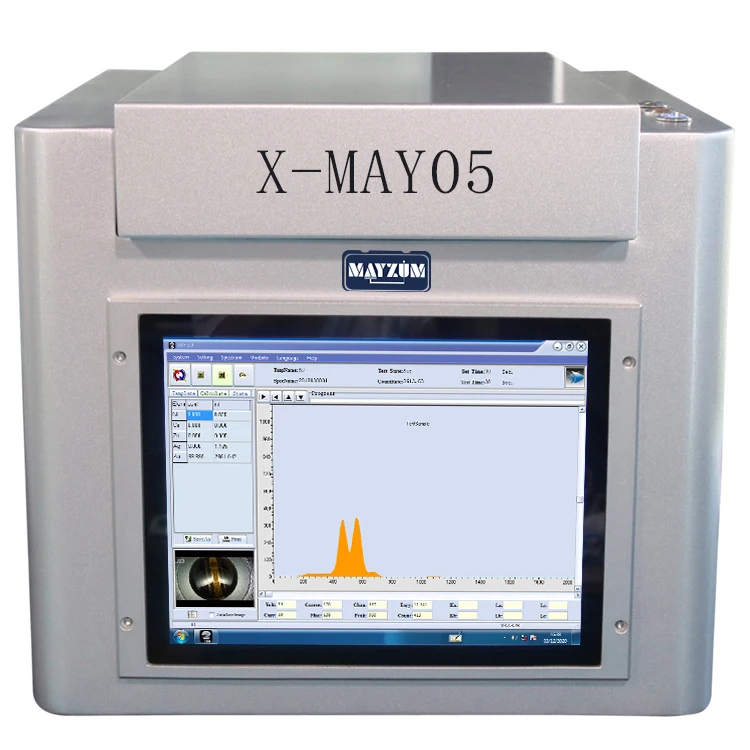

X-MAY05 Basic X-Ray Fluorescence Spectrometer






X-MAY72 and X-MAY72-PRO High Precision X-Ray Fluorescence Spectrometer








Applications&Certifications


Applications
Banks;
Jewelry industry: Jewelry retailers,Jewelry manufacturers;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;



Certification




Our Company


MAYZUM (Our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you

1. Different program functions can be customized according to customer requirements;

2. We can provide OEM service.

3. Looking for brand agent wholesales all over the world.
