Промышленное использование 16x16 дюймов кассета Размер DR плоский панельный детектор для отображения в реальном времени недетективное тестирование изображения в реальном времени
- Category: >>>
- Supplier: Shenzhen Threestars Kiosk Co. ltd.
Share on (1600270244792):
Product Overview
Description
Product Description
Description:

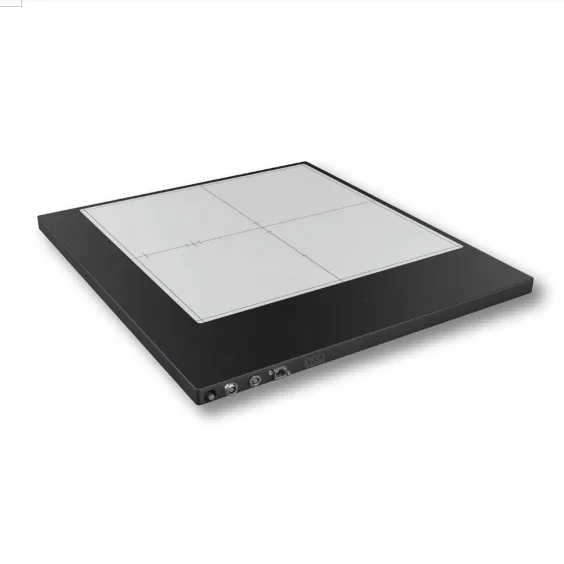

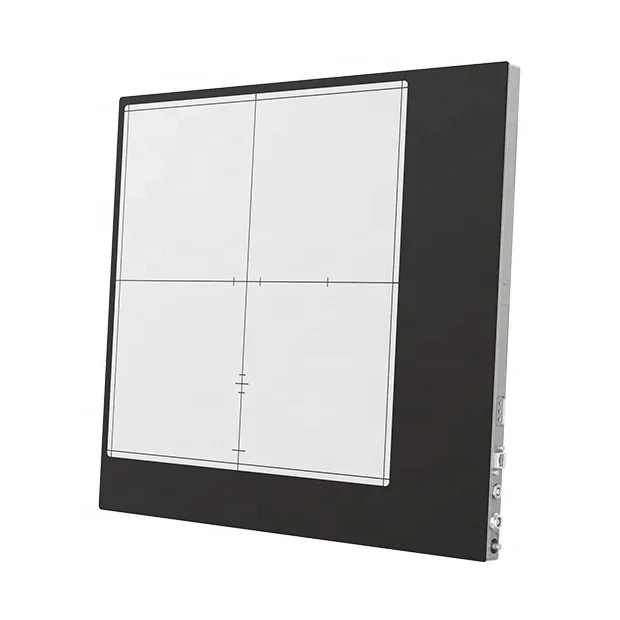

GLM 1616HE is a radiation hard a-Si FPD for real-time imaging. The detector supports frame rates up to 15 fps, and the 16 bit ADC provides high dynamic range and excellent con-trast-to-noise ratio. Data communication is accom plished by GigE. With a wide energy range up to 15 MeV it is suitable for high energy X-ray source as well as Linac
integration. With its outstanding image quality, fast frame rates, and high reliability the GLM 1616HE is suitable for industrial NDT requirements such as high energy inspection or CBCT.
integration. With its outstanding image quality, fast frame rates, and high reliability the GLM 1616HE is suitable for industrial NDT requirements such as high energy inspection or CBCT.
Features:
-Proven radiation hard a-Si sensor technology
-GigE interface without image loss
-Fast speed, high throughput
-Easy software and system integration
-Programmable ROI
-Multiple programmable gain levels
Specification
Basic Technical Specifications:
Detector Technology | Amorphous Silicon |
Scintillator | CsI / DRZ-Plus / PI200 |
Active Area | 410mm x 410mm / 16 x 16 inch |
Number of Pixels | 2048 x 2048 |
Pixel Pitch | 200 um |
AD Conversion | 16 bit |
Trigger Mode | Continuous and pulsed |
Data Interface | GigE |

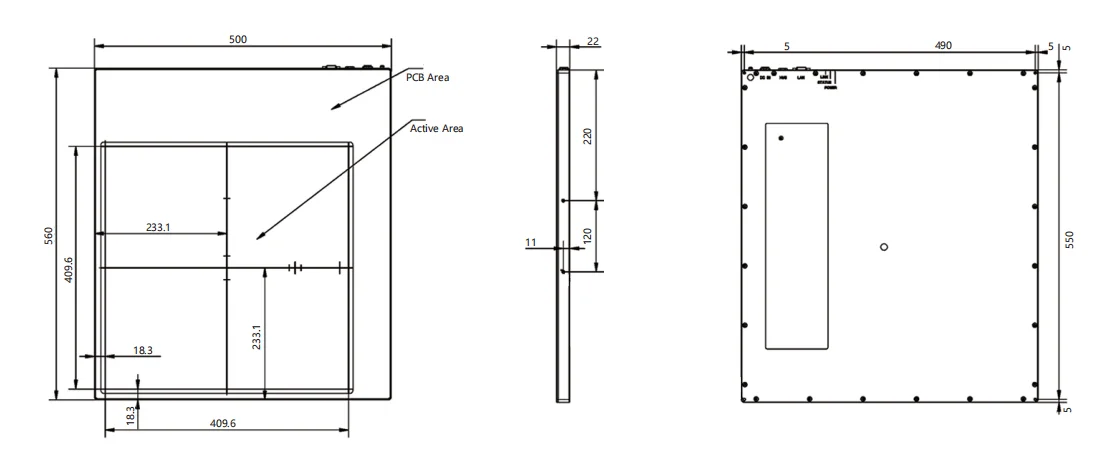

Dimension | ≤ 500mm*560mm*22mm |
Weight | 7.5 Kg |
Power Dissipation | 150 W |

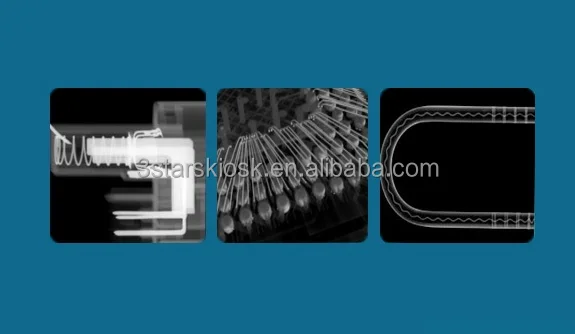

Applicable fields:
* Electronic components
* Composite materials
* Castings
* Very high quality welds
* Defense and nuclear industry
* Aerospace and aerospace industry
* Multiple film techniques
* Composite materials
* Castings
* Very high quality welds
* Defense and nuclear industry
* Aerospace and aerospace industry
* Multiple film techniques
* Welding
* Ship building
* Ship building
* Composite materials
* Concrete and heavy construction work
Our panel structure
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing details:
Protective foam + outer carton
1 unit per carton
G.W./carton: 15 Kg
Carton size: 60*60*28 cm
