Automatic Label Jumbo Paper Roll Cutter Slitter Rewinder Cutting Rewinding Slitting Machine Price
- Category: Paper Product Making Machinery >>>
- Supplier: Jinan,Chengdong,Machinery,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

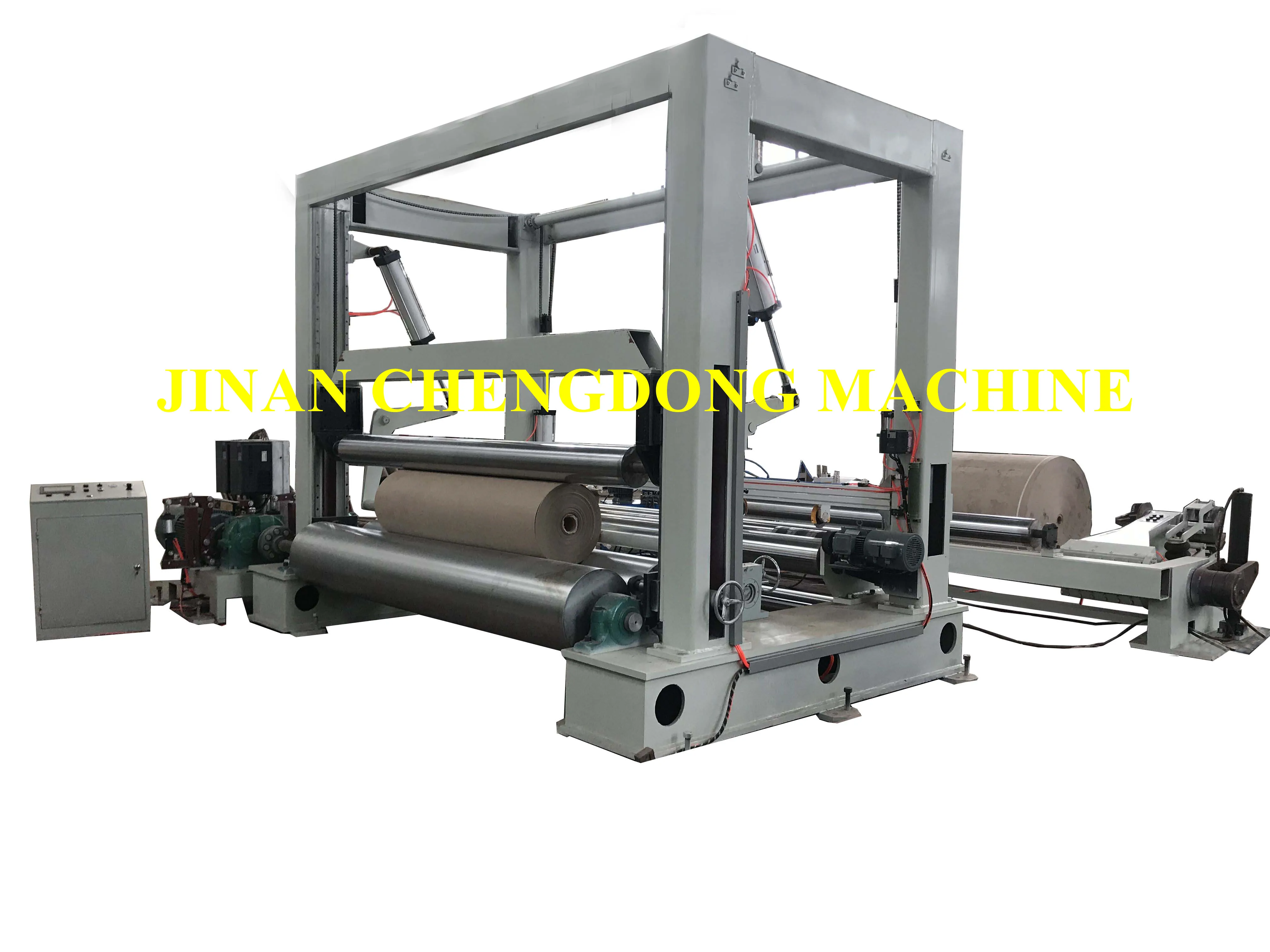

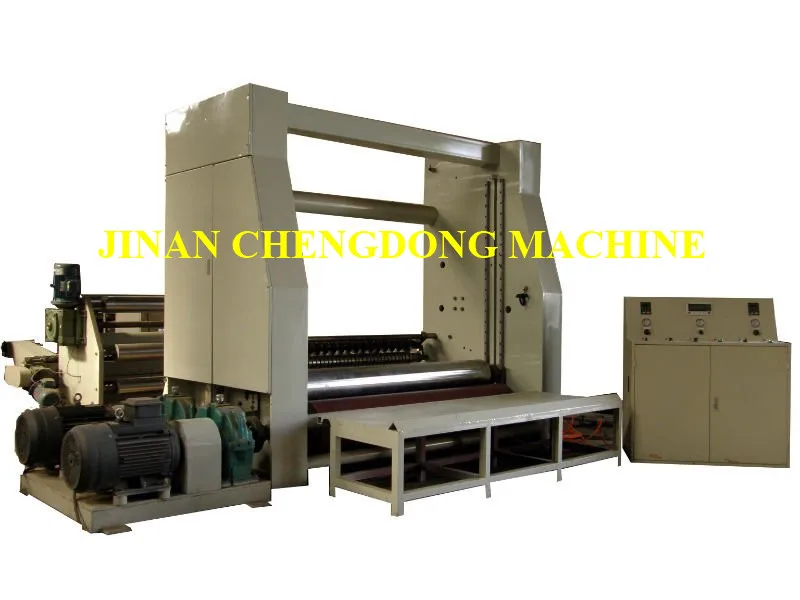

ZFJ Type Paper Roll Slitting and Rewinding Machine
ZFJ paper roll slitting and rewinding machine is used to slit big width paper roll to narrow width paper roll, and then rewind to finished product paper roll which complies to the requirements of width and tightness. It is widely used in paper-making industry, paper tube industry, printing, packaging industry, etc.
FEATURES AT A GLANCE
1.Double bottom roller with curved roller device, ensure 100% slitting.
2. Adopt hydraulic shaft less unwind stand, easy for loading and adjust
3. Unloading type choose hydraulic rotary, more safe and stable
4. Automatic tension constant control, ensure slitting quality
5. Equipped with blade positioning reference function
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Parameter/Model | ZFJ-1300 | ZFJ-1600 | ZFJ-1800 | ZFJ-2200 |
Unwind width | Max.1300mm | Max.1600mm | Max.1800mm | Max.2200mm |
Unwind Diameter | Max.1350mm | Max.1350mm | Max.1350mm | Max.1350mm |
Cutting Width | 50~1300mm | 50~1600mm | 50~1800mm | 50~2200mm |
Rewind Diamter | Max.1350mm | Max.1350mm | Max.1350mm | Max.1350mm |
Rewind air shaft | 76mm | 76mm | 76mm | 76mm |
Paper Gram Weight | 40~510GSM | 40~510MM | 40~510GSM | 40~510GSM |
Working Speed | 180m/min | 200m/min | 200m/min | 200m/min |
Tension Control | Automatic | Automatic | Automatic | Automatic |
PRODUCT CONFIGURATION
Loading part
Slitting part
Rewinding part
Multipoint Pneumatic Brake System
Big Size Cutting blade
Automatic Blade Positioning Device 1
Control Box
Hydraulic System
Motor
Automatic Blade Positioning Device 2
Belt Transfer
Chain Transfer
SALES AND SERVICE NETWORK

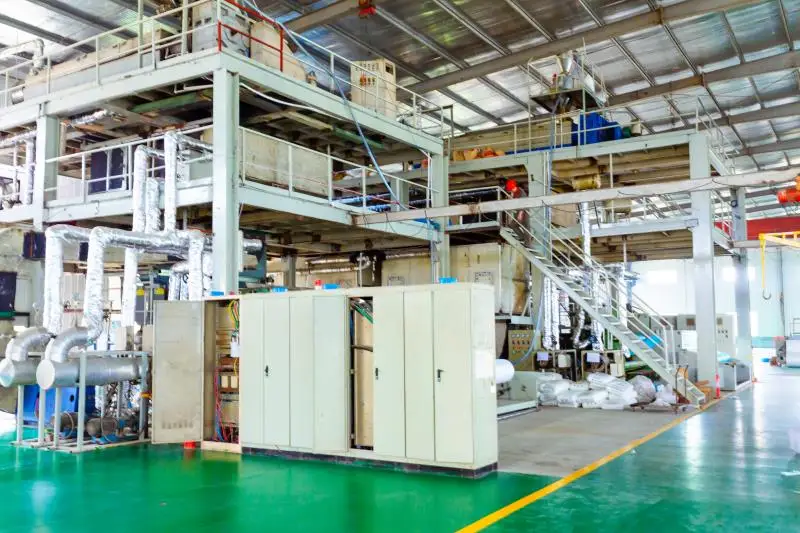

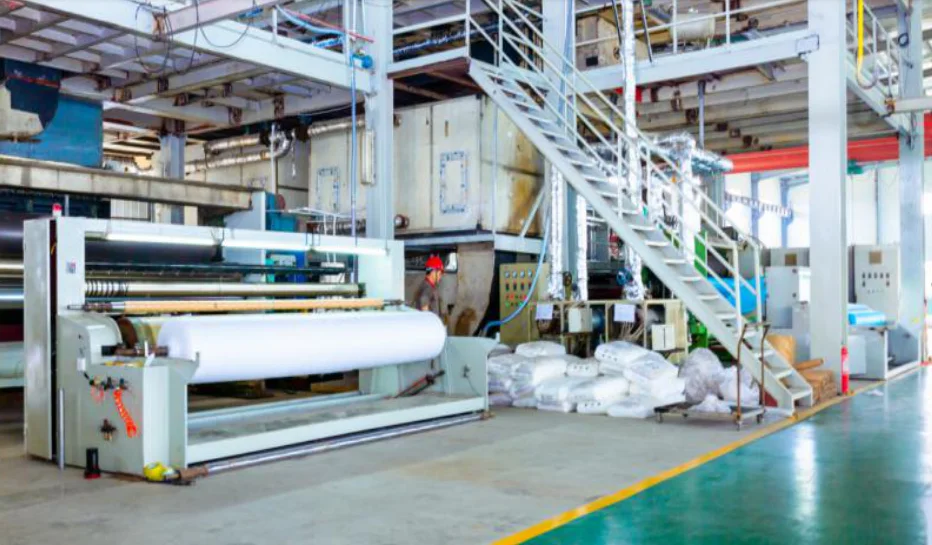

Successful Project
Project in Thailand
Project in India
Project in Russia

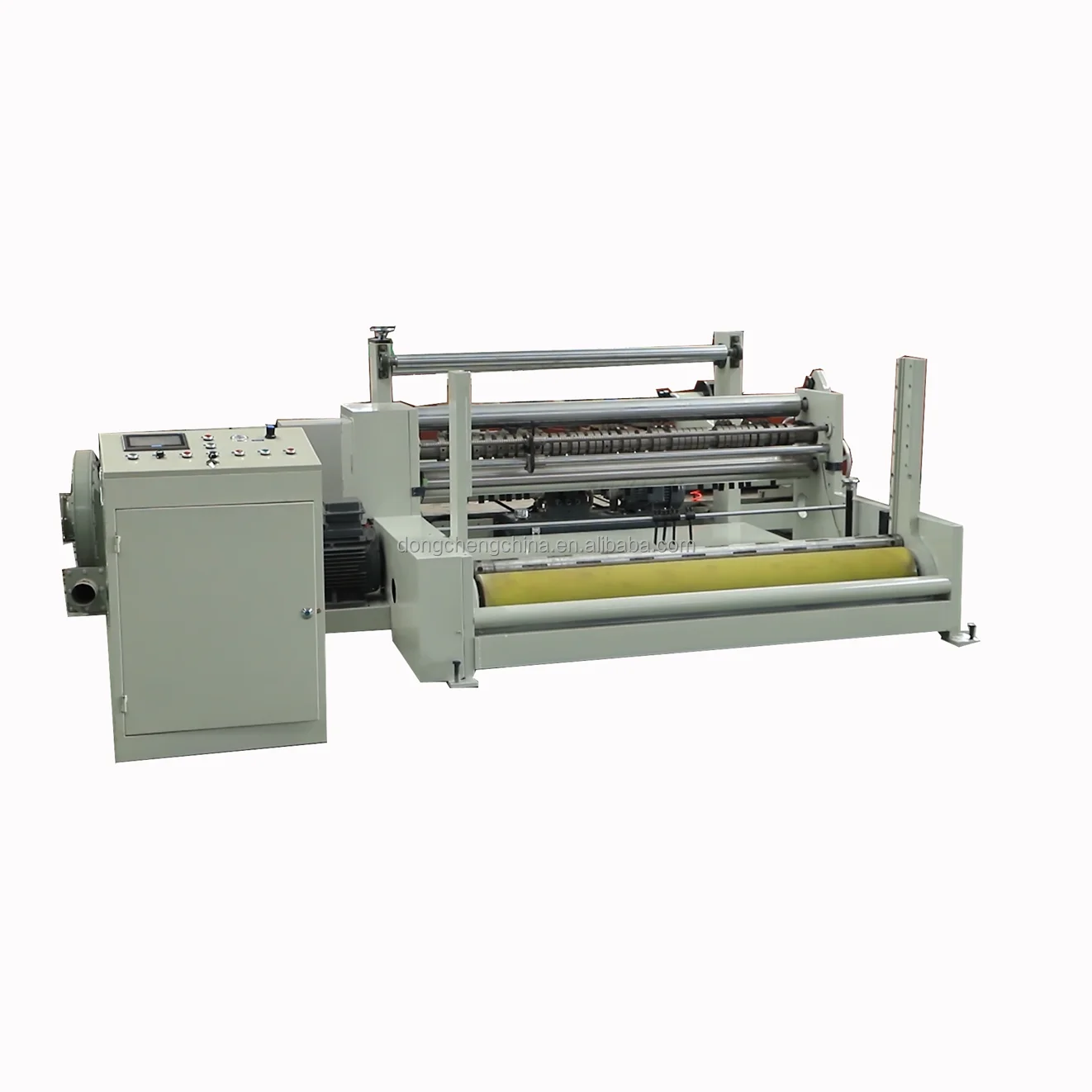

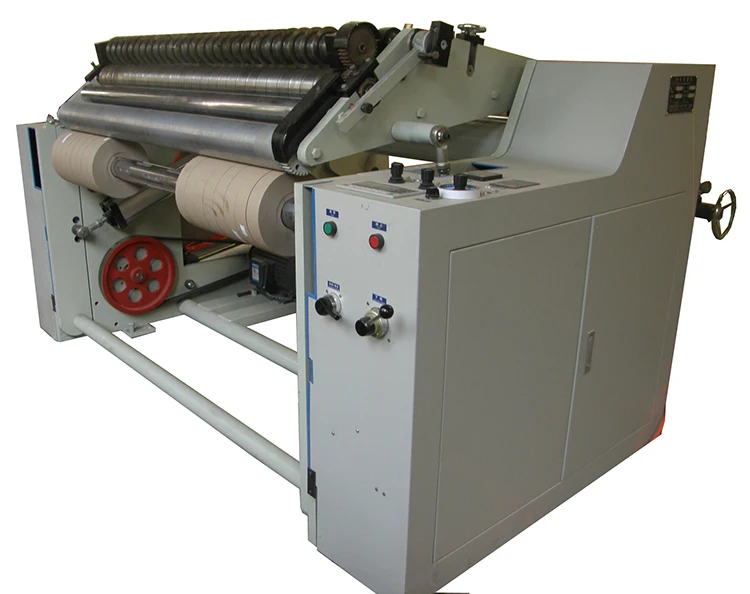

SIMILAR PRODUCTS

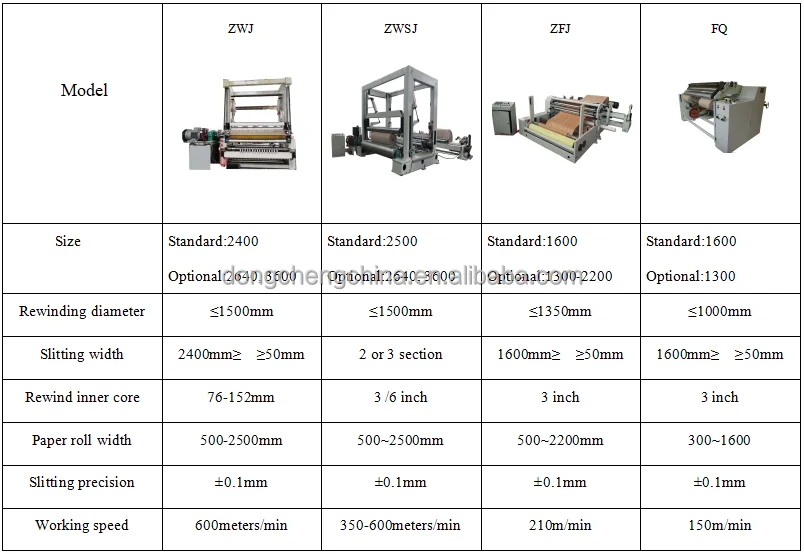

How to choose slitting rewinding machine
Certificate

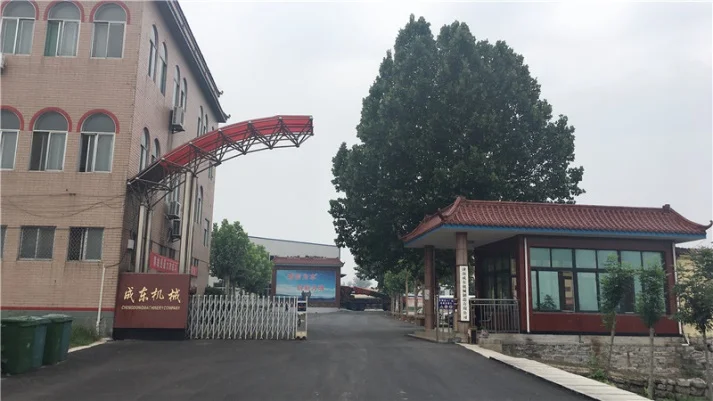

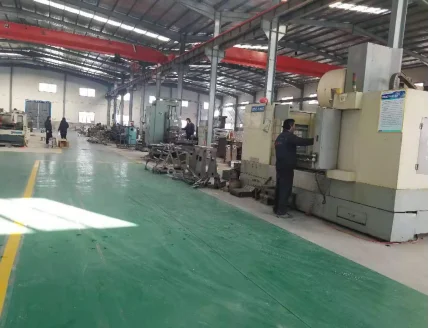

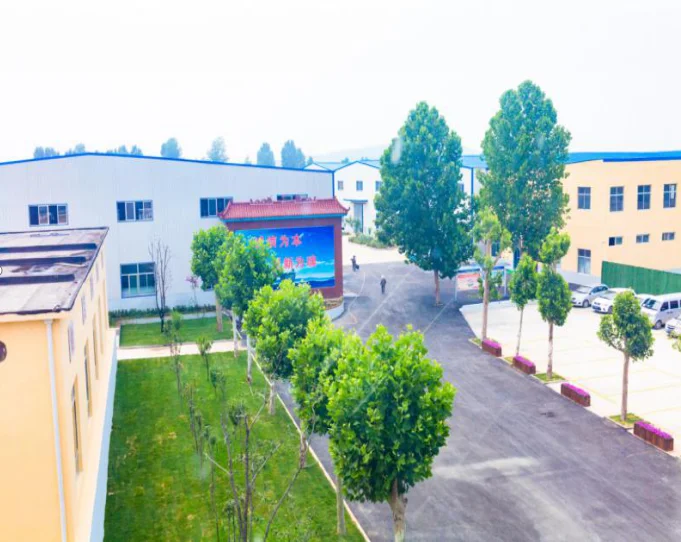

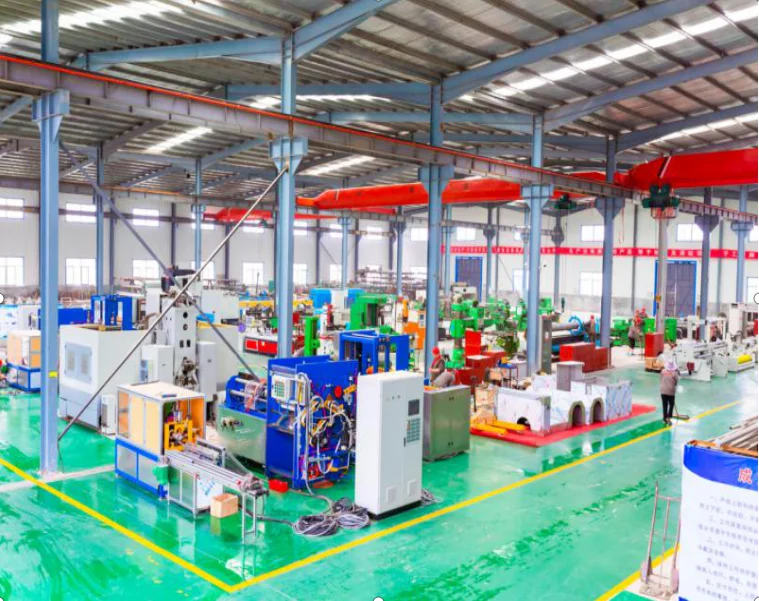

Company Profile
Customer Photos:
