Products Description

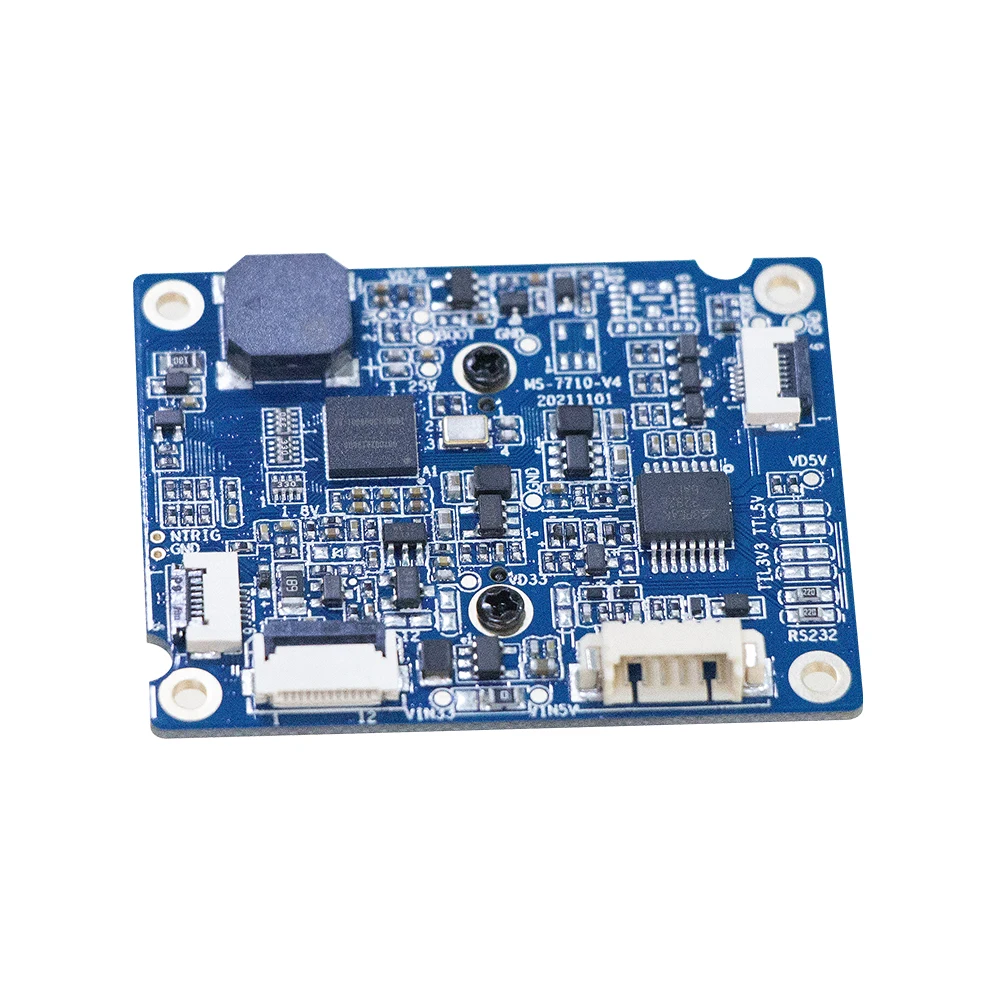

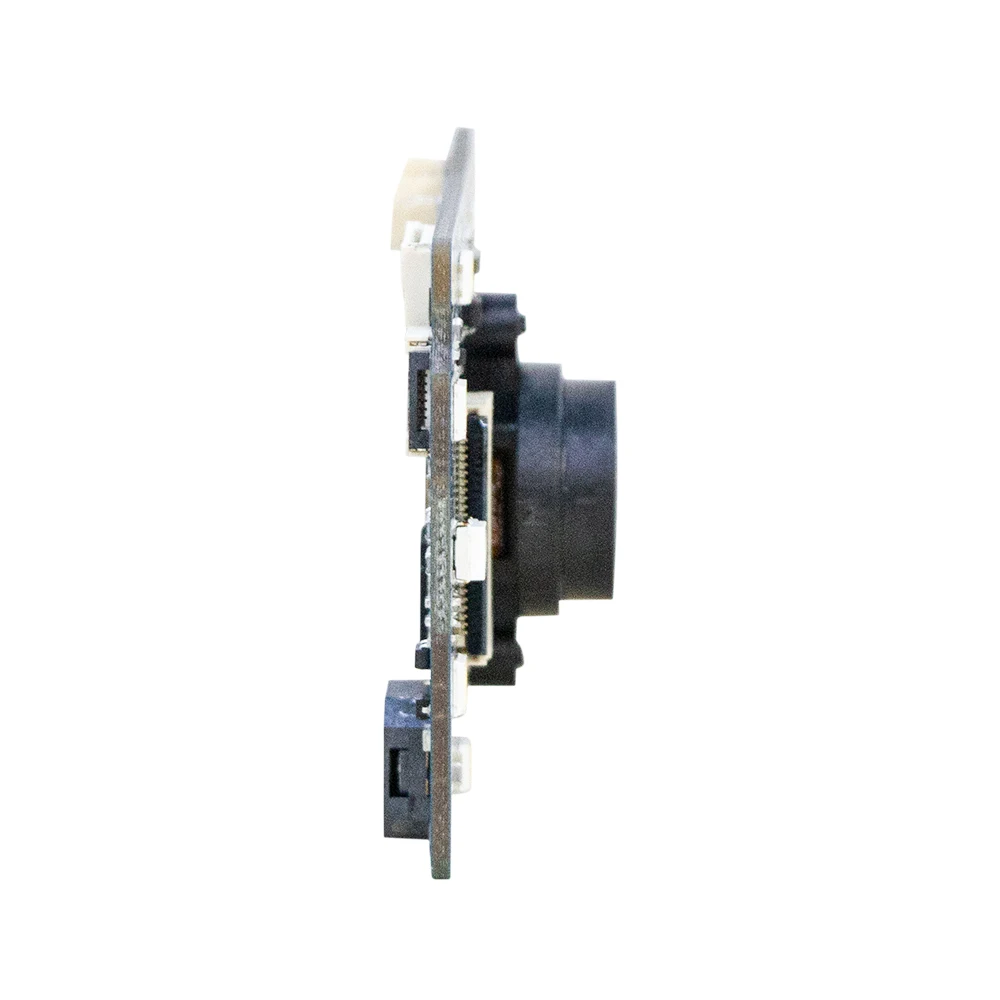

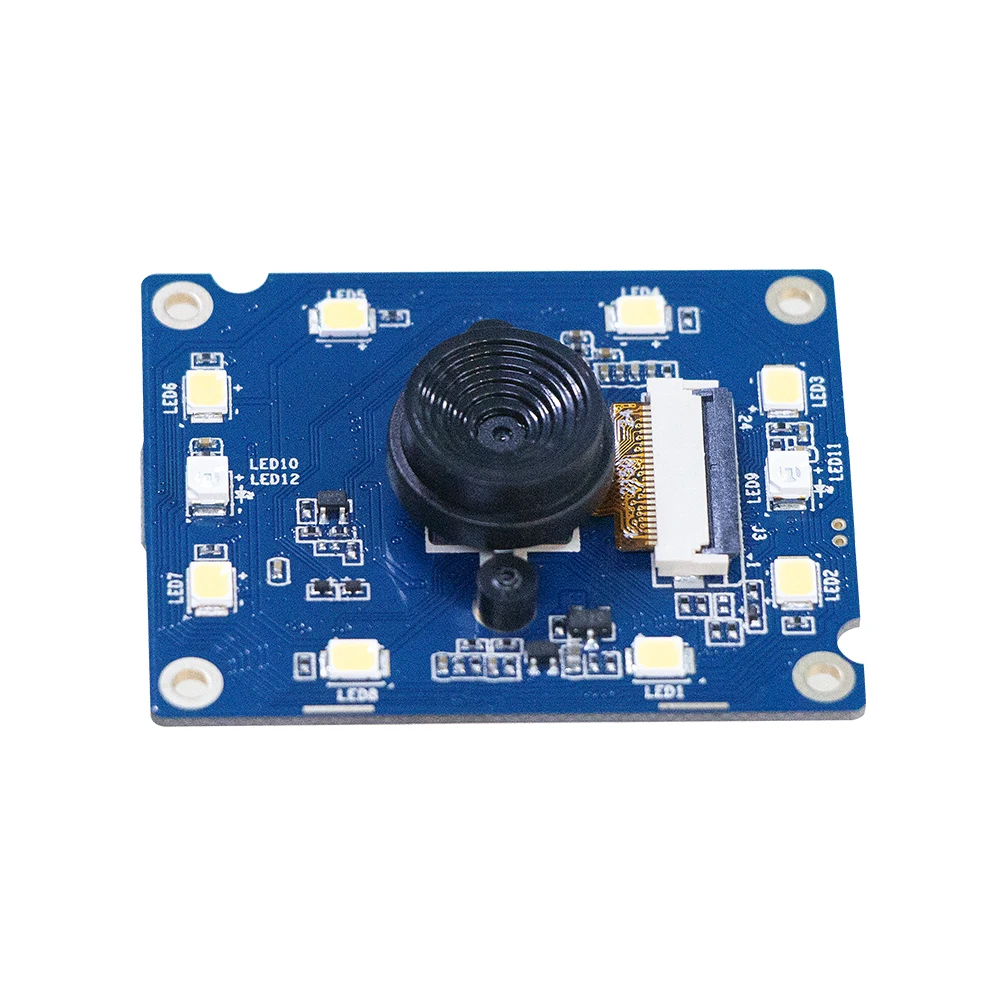

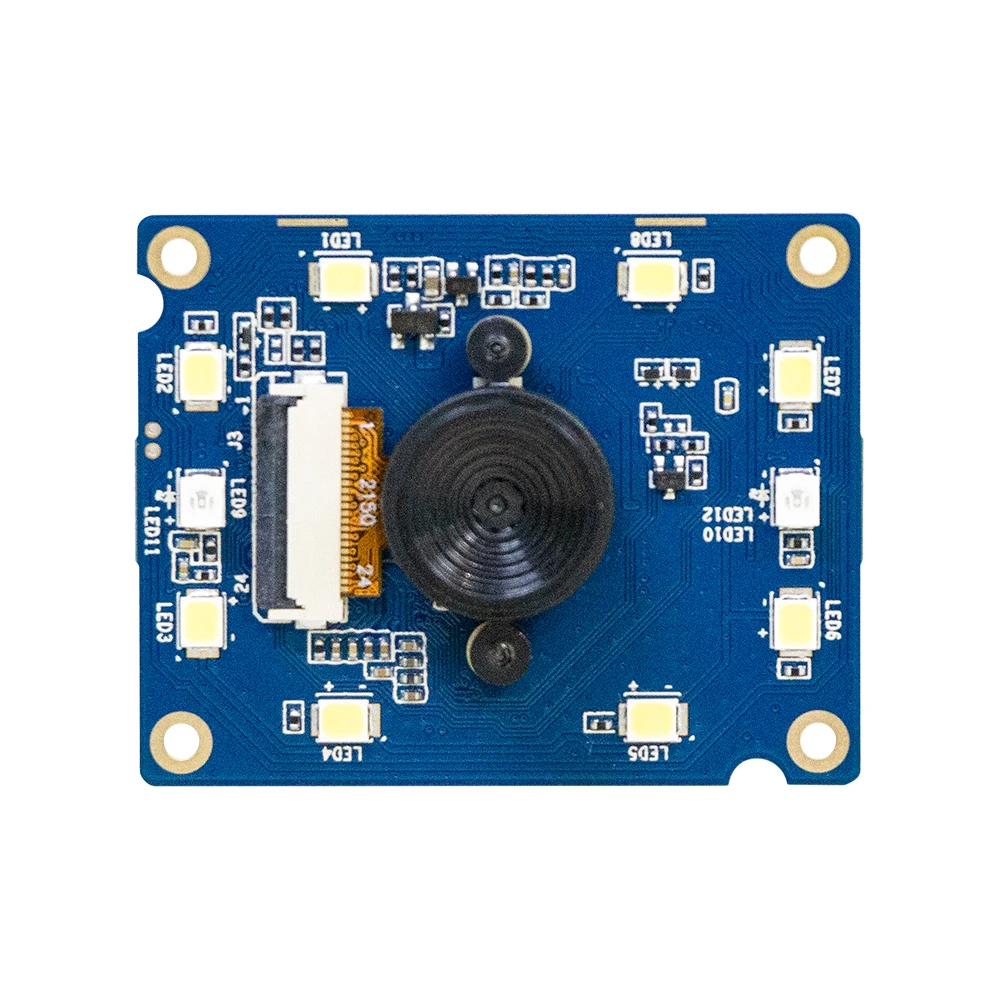

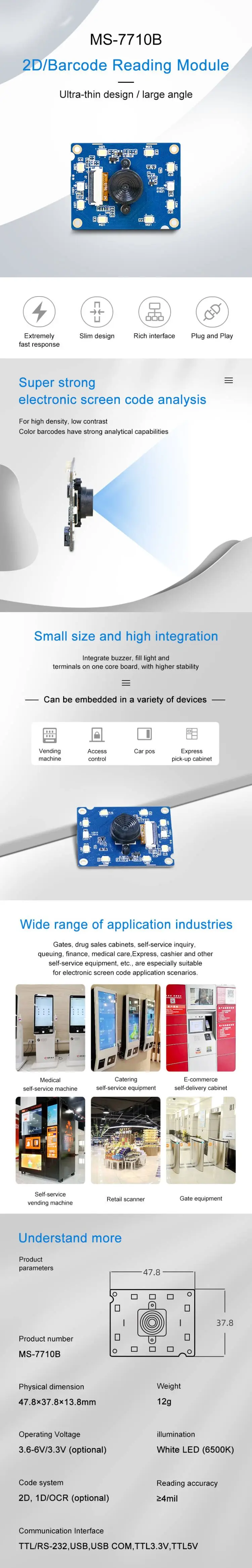

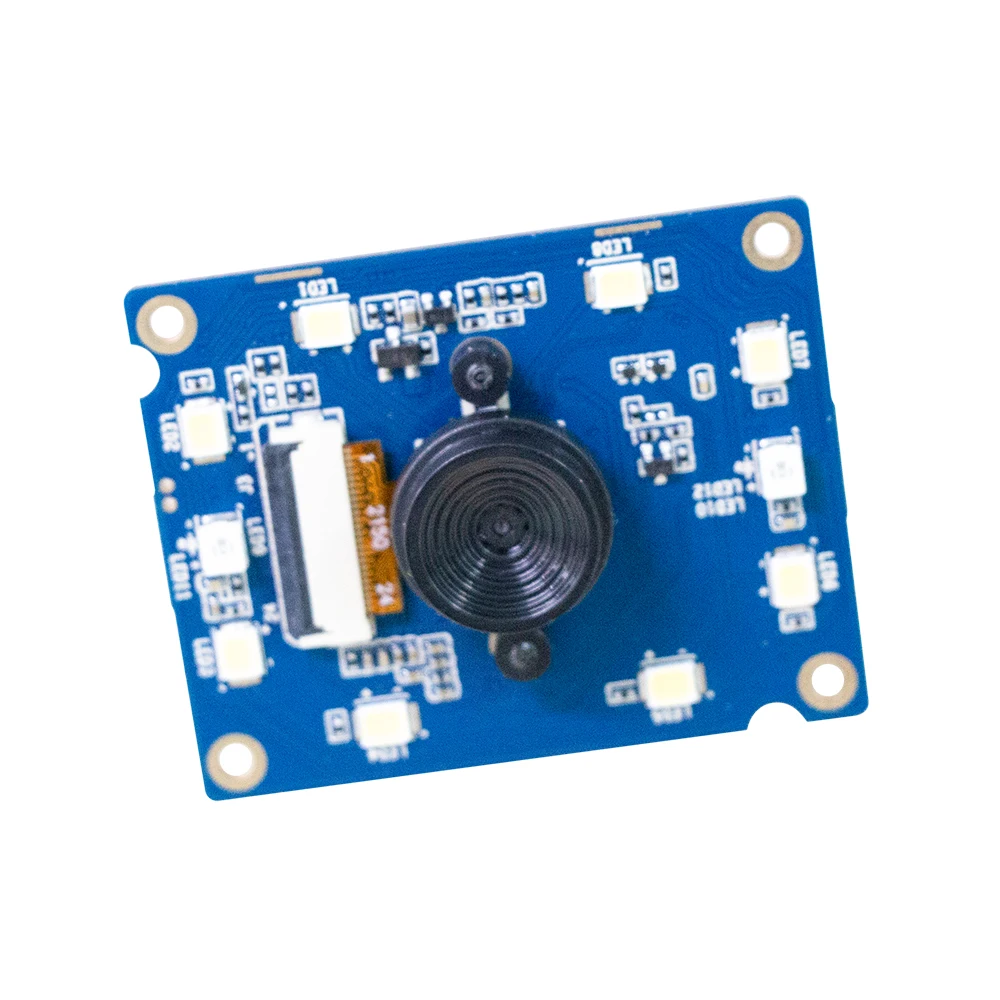

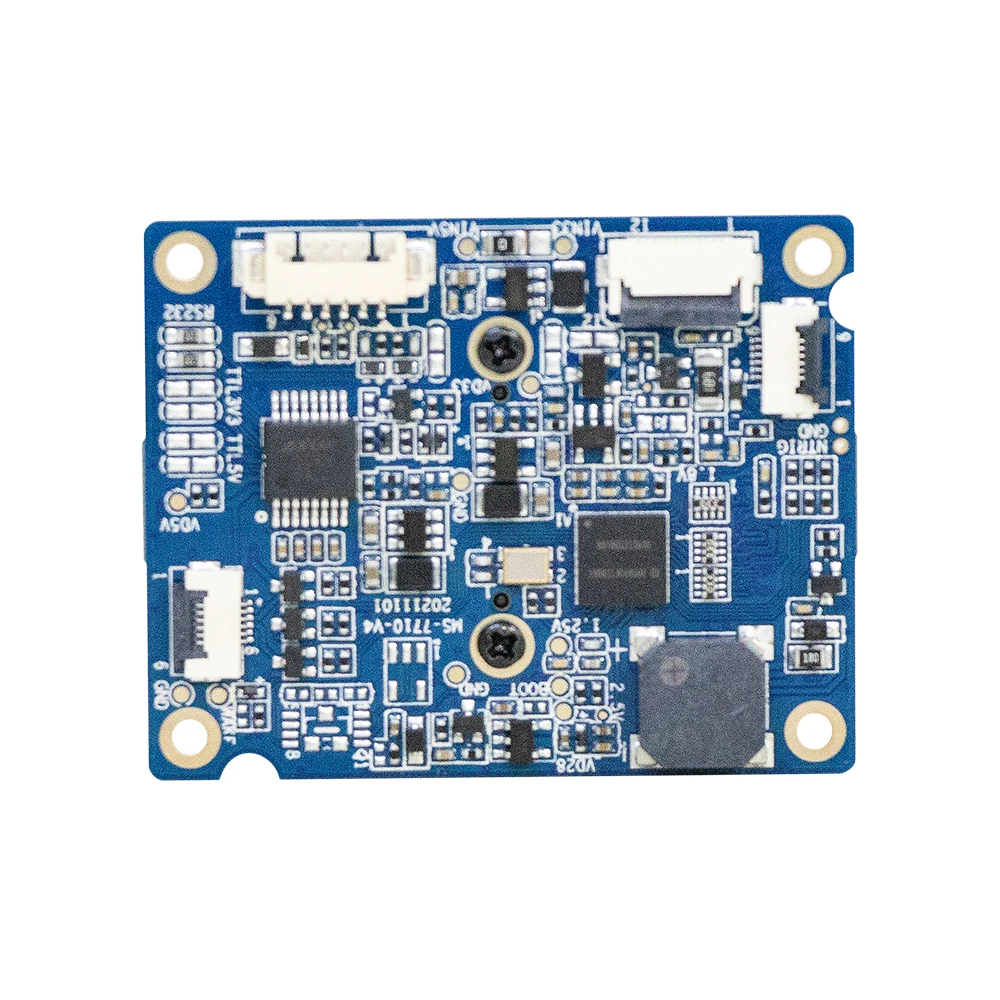

MS-7710B
Barcode Scanner Module Engine
2d barcode scanner for self-service kiosk machine fixed barcode scanner module

Features:
*Leading Industrial Decoding Technology
*Support for Barcode on Paper&Screen
*Multiple interface: USB, USB COM,
TTL 232, RS232, TTL3.3V, TTL5V etc.
*Ultra-thin design with thickness of 21mm
*Support reading of 1D & 2D code scanner



Reliable and accurate self checkout 2d barcode scanner mounted QR code scanner module for self pay kiosk machine fixed barcode scanner


Production Details




Product Specifications


Model
7710BL
7710B
7710BS








Scanning Performance
Image sensor
640×480 CMOS
Lighting
White LED（6500K）
Coding
2D
PDF417, Data Matrix, QR Code etc.
1D
Interleaved 2 of 5, ISBN, Code 93, Code 11,UCC/EAN-128
GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13,
EAN-8, Code 39,UPC-A, UPC-E, Codabar,Standard 2 of 5,
MSI-Plessey,GS1 composite code, etc
OC（Optional）
Comply with OCR-A, OCR-B font standards (*customized version)
Resolution
≥7.5mil
≥4mil
≥3mil
Depth of Field
Alipay Payment code
40-360mm
40-320mm
40-450mm
WeChat Payment Code
35-350mm
35-330mm
35-450mm
Symbol Contrast
≥20%
Bar code sensitivity
Tilt±60°，deflection±55°，rotation 360°
View angle
Diagonal90°
Diagonal72°
Diagonal80°
Motion tolerance
≥0.2m/s
≥0.2m/s
≥2m/s
Mechanical/ Electrical Parameters
interface
TTL/RS-232,USB,USB COM,TTL3.3V,TTL5V
Dimension (mm)
47.8(W)×37.8(D)×13.8(H)mm
Weight
12g
Working voltage
3.6-6V
3.6-6V/3.3V（Optional）
3.6-6V/3.3V（Optional）
Rated Current
(Typical value) Less than 190mA (5V input)
Environmental Parameters
Working temperature
-20℃~+60℃
Storage temperature
-40℃~+70℃
Working humidity
5%~95%（no condensation）
Environment Light
0~100,000LUX
Impact Resistance
Maximum temperature
60°C (140°F )
Minimum temperature
-20°C (-4°F)
Times of cycles
30 minutes high temperature; 30 minutes low temperature
Period
24
Mechanical Impact Resistance
Vibration
2000 G, 0.7 ms, half sinus, 3 axes
Drop Resistan
Can withstand 1.2 m drop to cement ground
Certificate
International certification
FC,ROHS,CE
