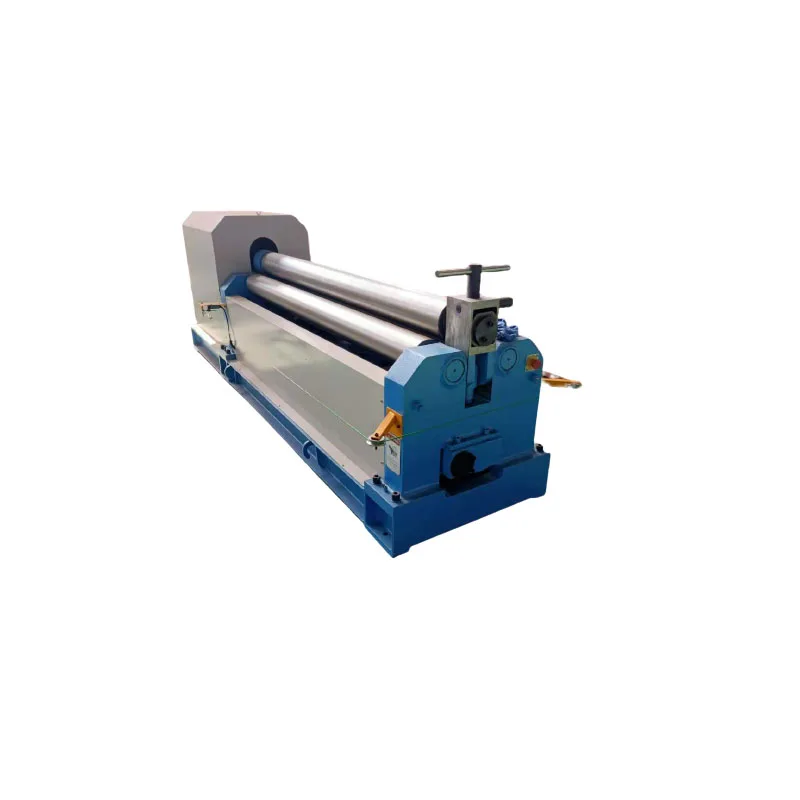

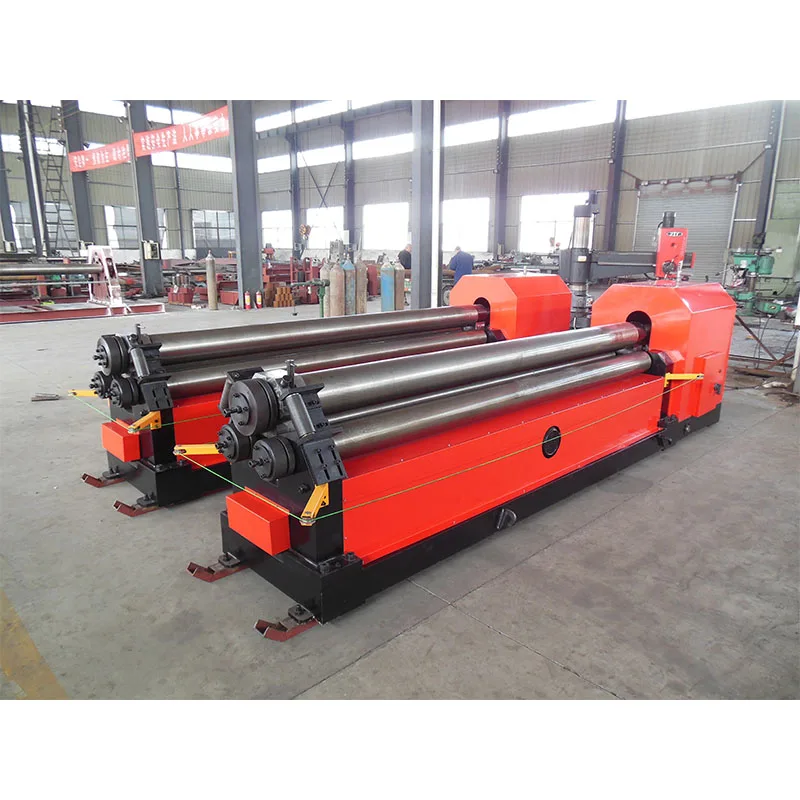

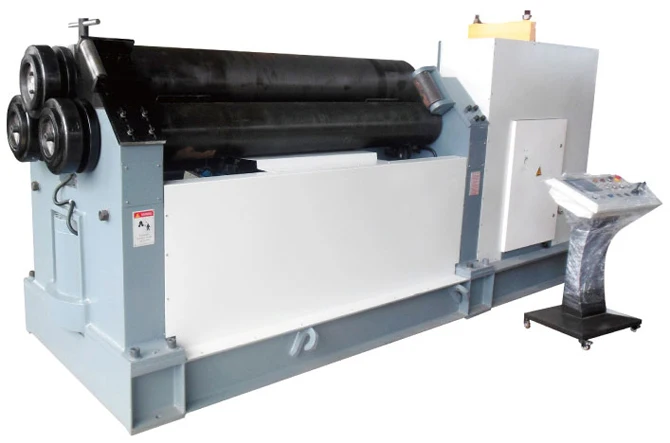

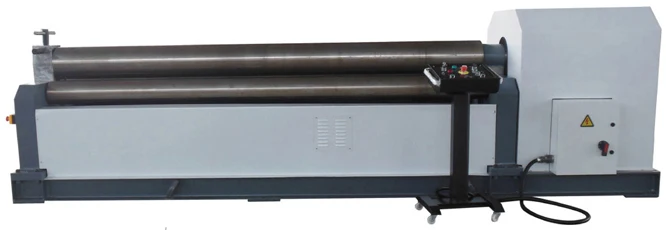

3 roller plate bending machine, W11 roll forming machine,manual sheet metal rolling machine
- Category: >>>
- Supplier: Jiangsu Chunqiu Heavy Machinery Co. Ltd.
Share on (1600270629263):
Product Overview
Description
This machine is essential equipment for boiler, shipbuilding, petrochemical, cement, electrical machinery and other manufacturing industries. This machine is compact in structure and easy to operate. It is a small and medium-sized plate rolling equipment widely used in our country.
Name | three-roll | |
Model | W11-16x23000 | |
Max plate width | mm | 2000 |
Working length of roller | mm | 2050 |
Max plate thickness | mm | 16 |
Min plate thickness | mm | 2 |
Sheet yield limit | Mpa | 245 |
Diam of upper roll | mm | ￠260 |
Diam of lower roll | mm | ￠220 |
Center distance of lower roller | mm | 330 |
Rolling speed | m/min | About 4 |
main motor power | KW | 11-6 |
Lifting motor power | KW | 4 |

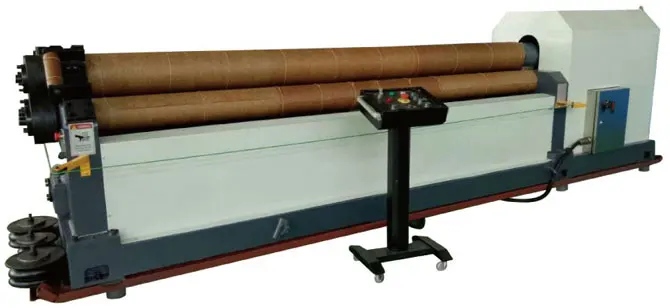

The mechanism is a three-roller symmetrical type. The upper roller moves vertically at the central symmetrical position of the two lower rollers, which is obtained by the transmission of the screw and nut worm, and the two lower rollers rotate through the output gear of the reducer and the lower roller gear. Engage to provide torque for the rolled sheet.

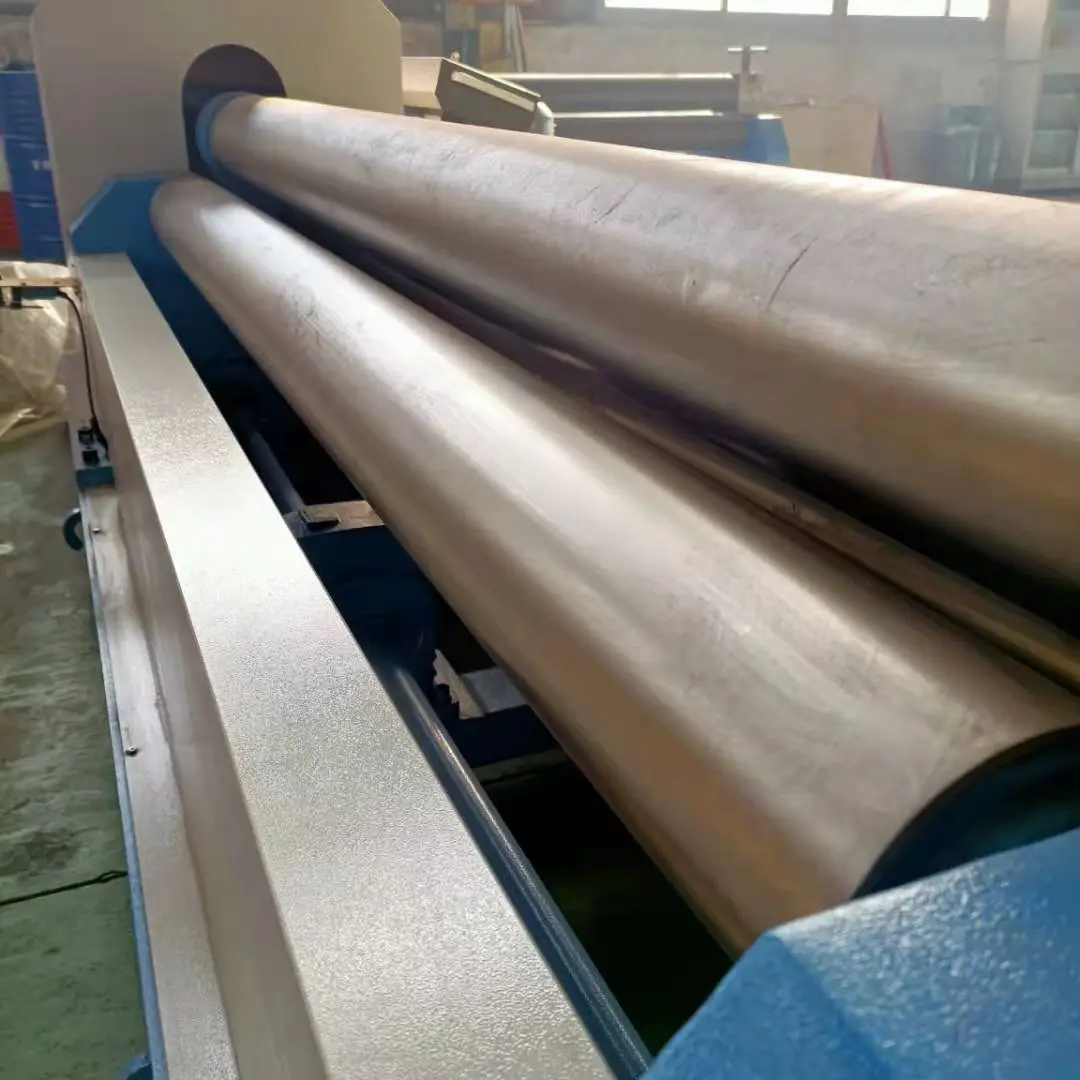

Working roll
Upper and lower rollers: are the main components of the plate rolling machine, made of forged solid high-quality No. 45 carbon
steel, and the surface high-frequency quenching hardness reaches about HRC45 after finishing.
steel, and the surface high-frequency quenching hardness reaches about HRC45 after finishing.

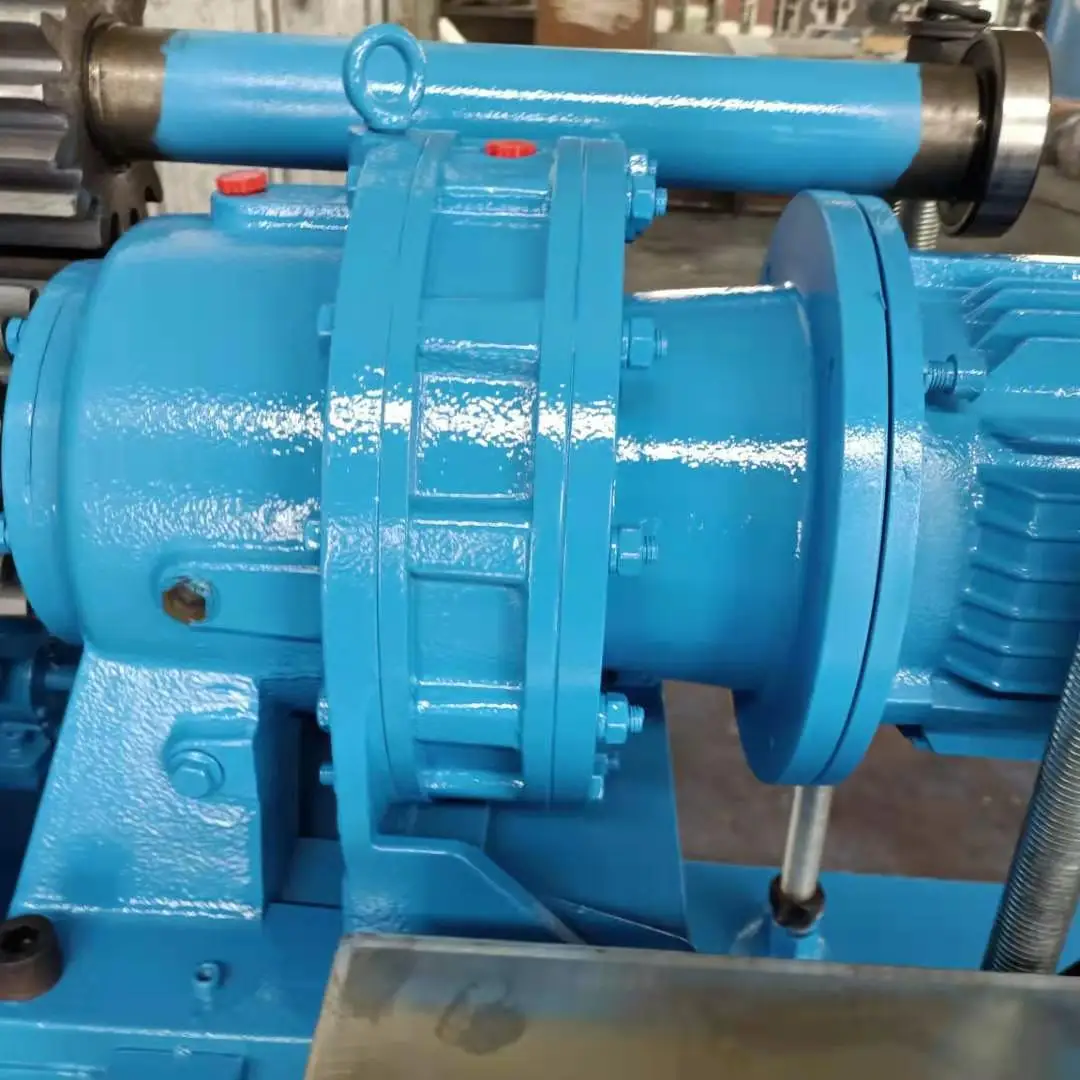

Gear box
The main reducer adopts standard ZSY/BWD, The auxiliary transmission reduction box is designed as an integral closed form, so that
the large worm gear, worm, nut and bearing are immersed in the same closed environment filled with butter to achieve the best
lubrication effect in the industry.
the large worm gear, worm, nut and bearing are immersed in the same closed environment filled with butter to achieve the best
lubrication effect in the industry.

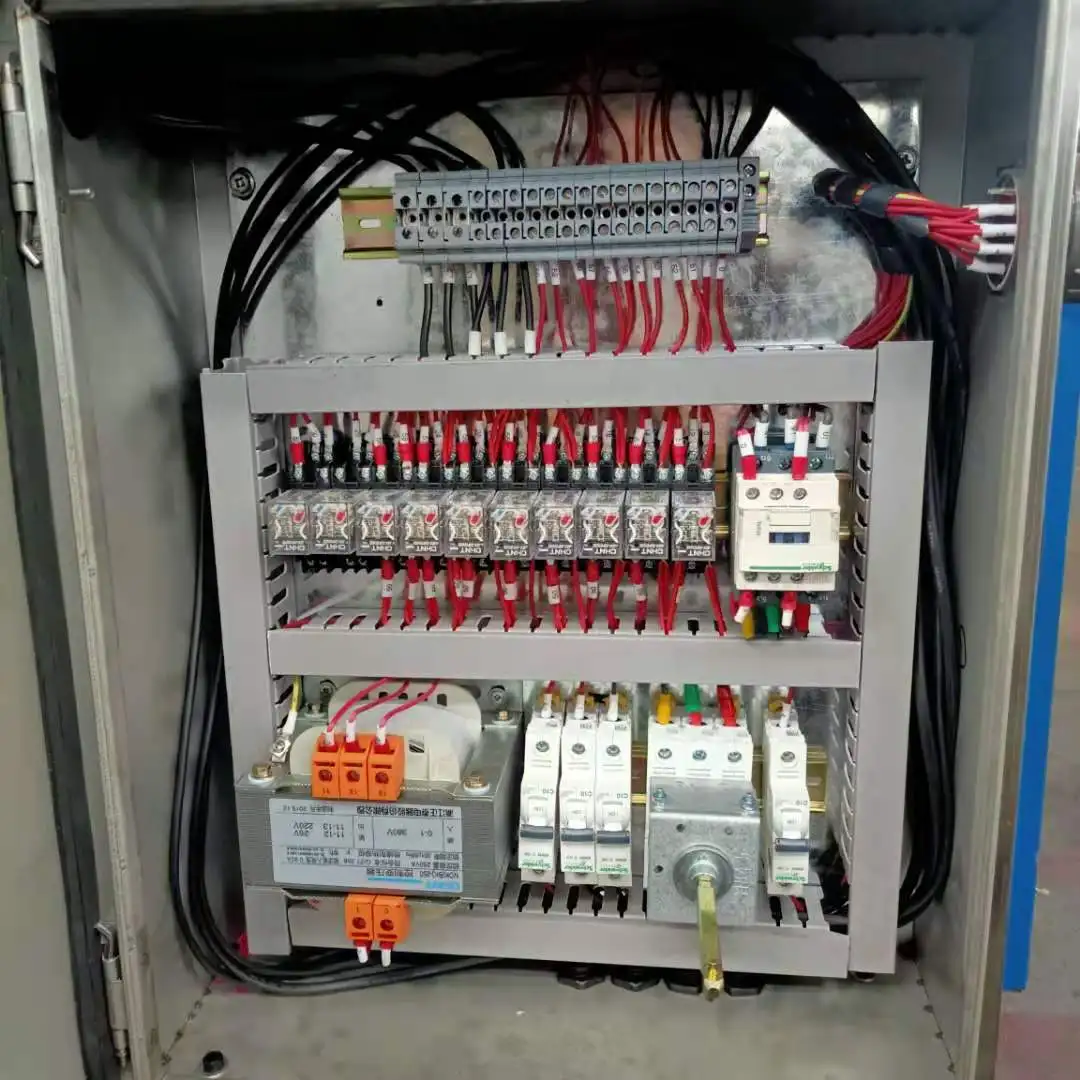

Electrical parts

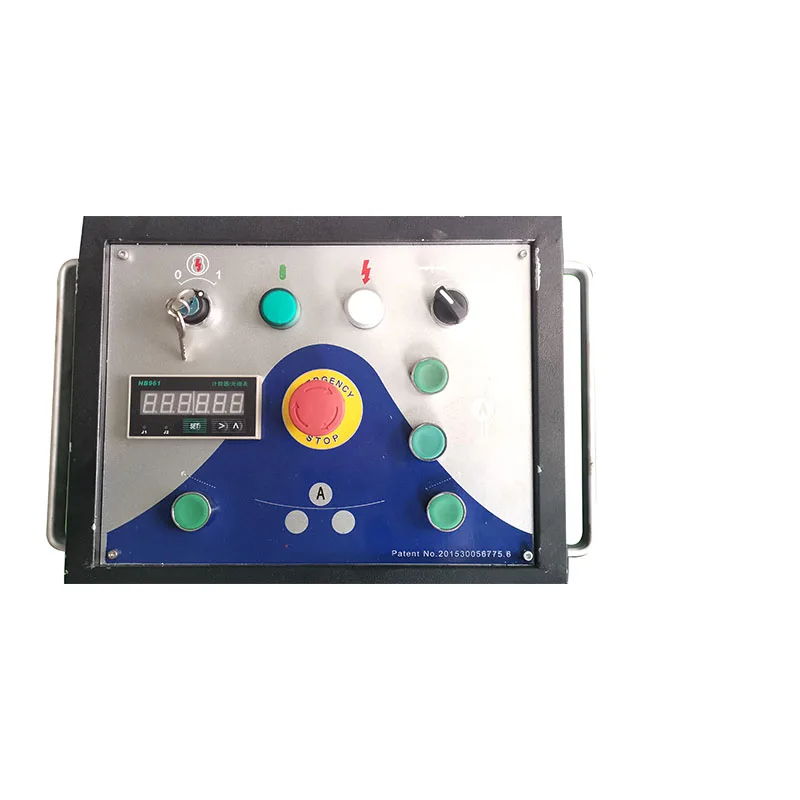

Composed of electrical cabinet, console, motor, etc.

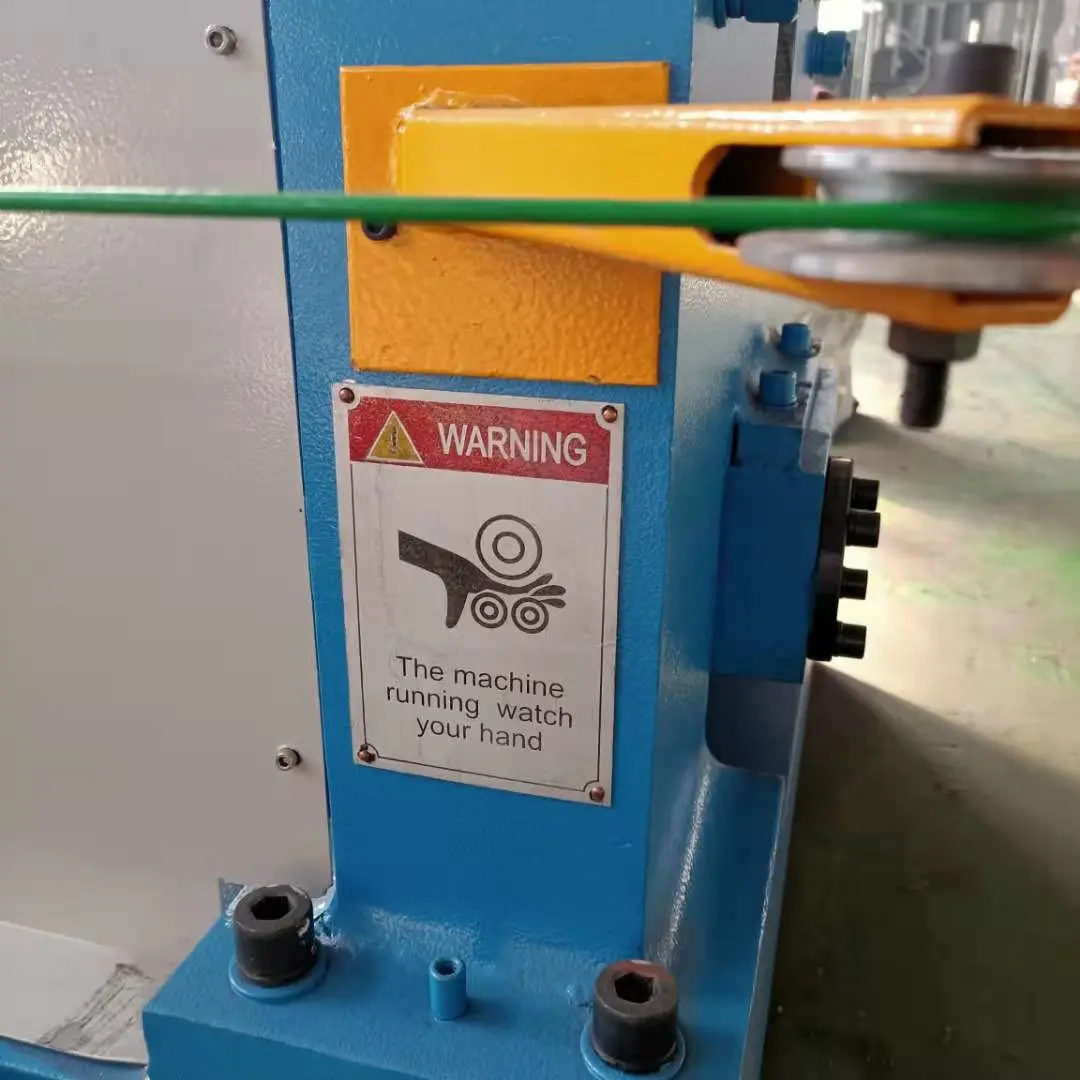

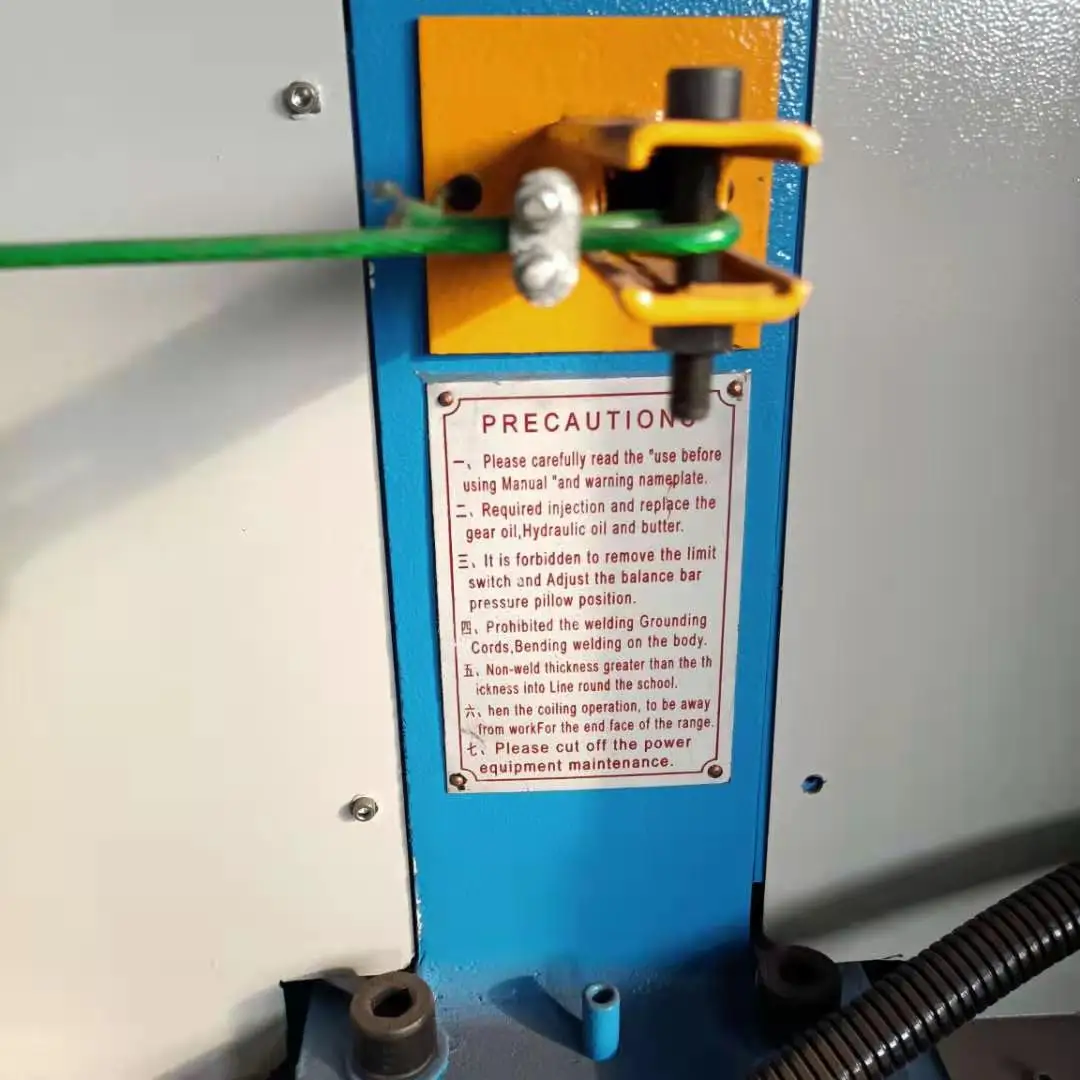

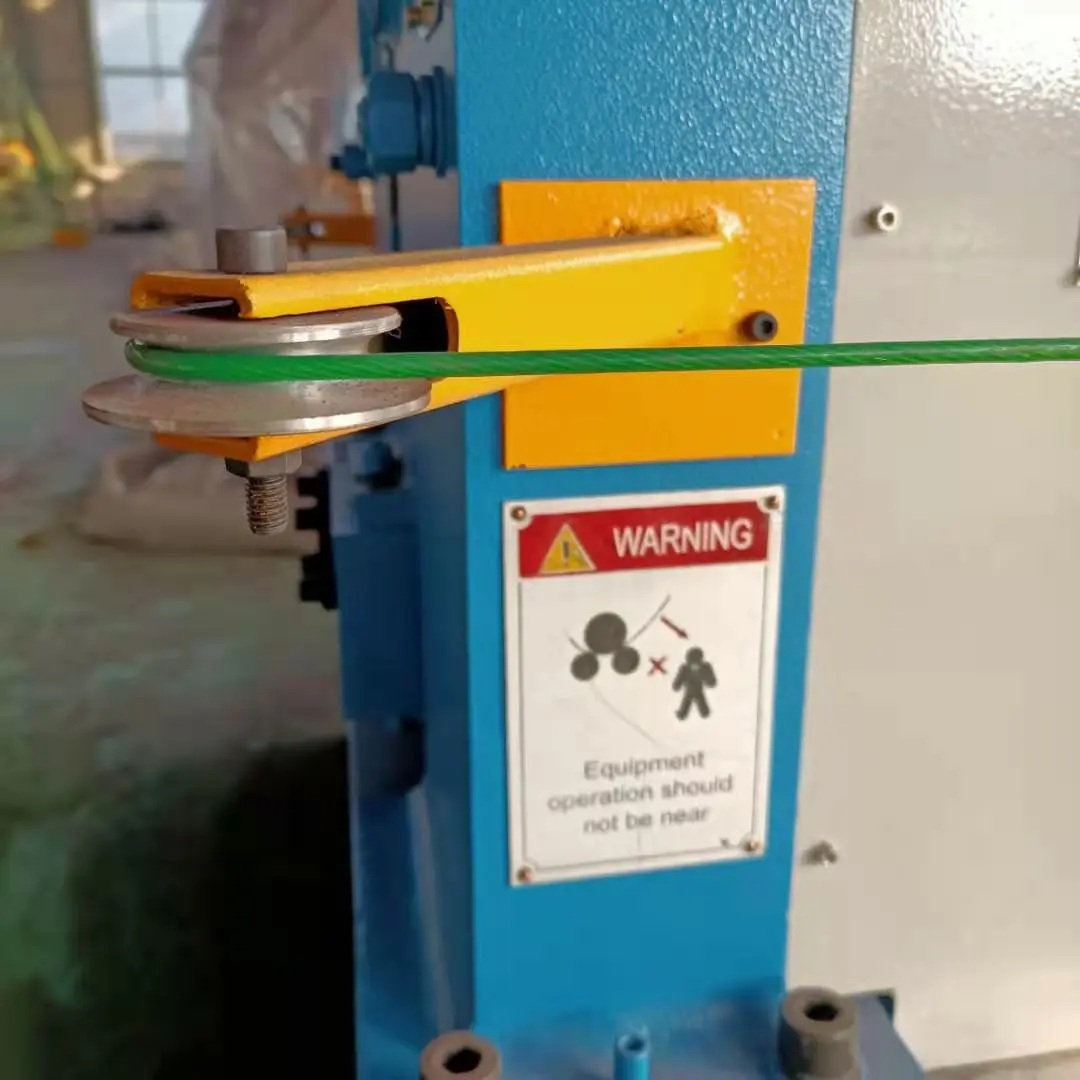

Safety equipment protection

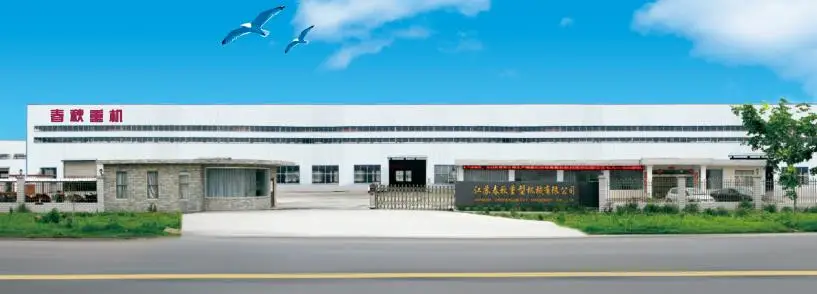

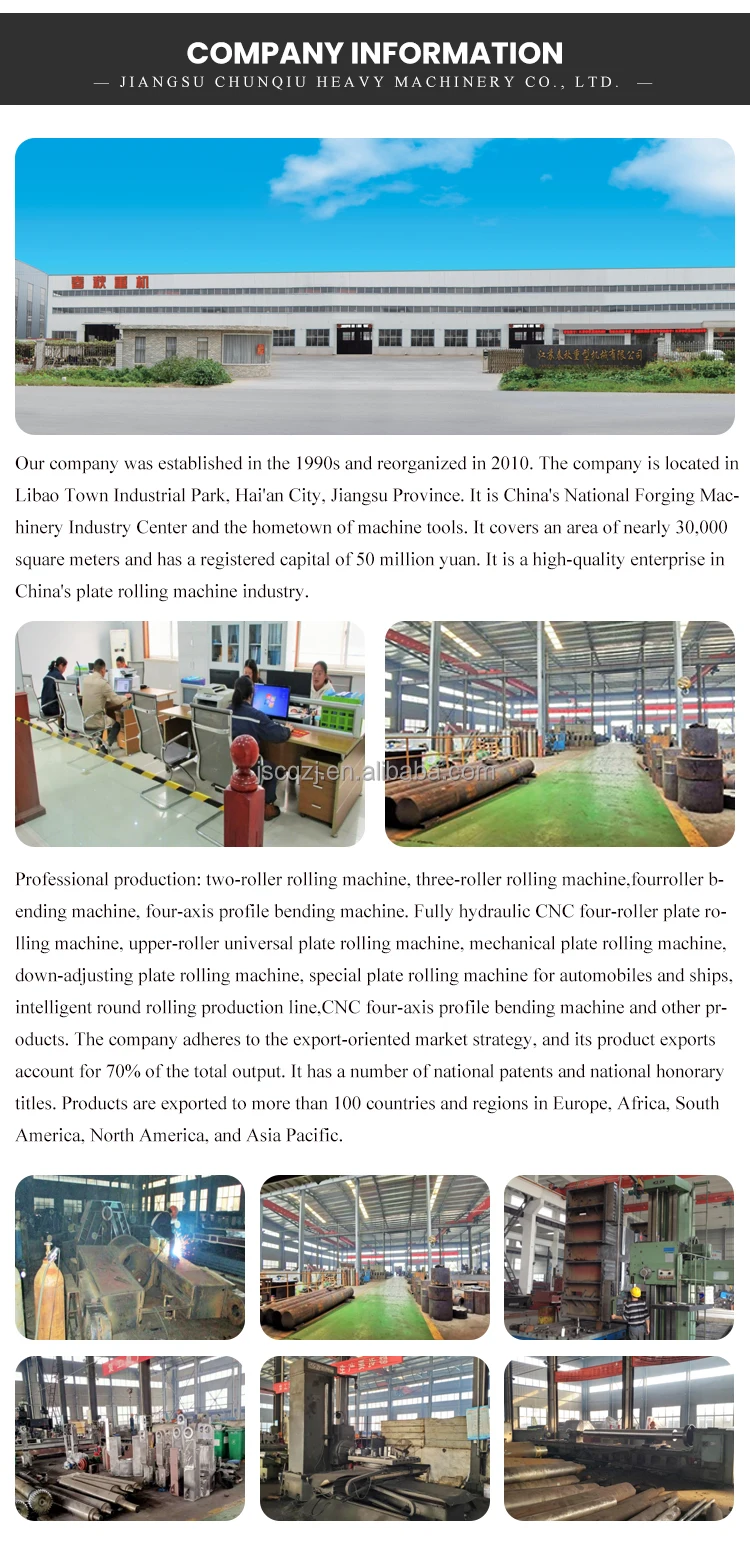

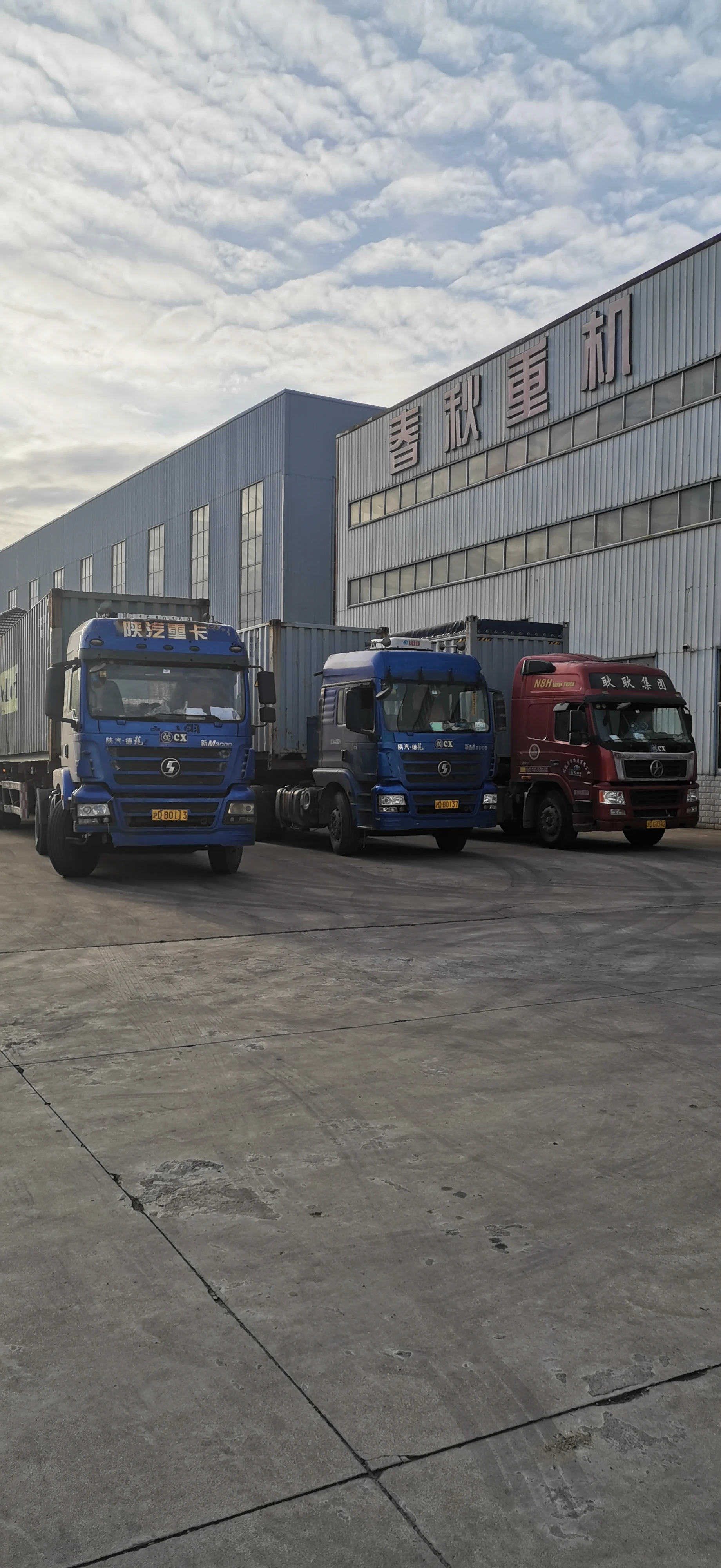

Jiangsu Chunqiu Heavy Machinery Co., Ltd. was established in the 1990s and was reorganized in 2010. The company is located in Libao Town Industrial Park, Hai'an City, Jiangsu Province. It covers an area of nearly 30,000 square meters and has a registered capital of 50 million yuan. It is a national high-tech enterprise in China, a member of China Forging Association, and a high-quality enterprise in China's plate rolling mill industry.
Professional production: full hydraulic CNC four-roll plate rolling machine, upper-roll universal rolling machine, mechanical rolling machine, down-regulating thick plate rolling machine, special marine rolling machine, intelligent rolling production line, CNC four-axis profile bending machine and other products.
Professional production: full hydraulic CNC four-roll plate rolling machine, upper-roll universal rolling machine, mechanical rolling machine, down-regulating thick plate rolling machine, special marine rolling machine, intelligent rolling production line, CNC four-axis profile bending machine and other products.
Q1: When can customers contact us?
A1: We are available from Monday to Saturday. 8AM to 6PM Beijing time.We also offer 24-hour online service for customers.
Q2: How do I order a product from you?
A2: If any problems occur with our products or you are in need of assistance.Please send email or call us via telephone.We will reply as quickly as possible. We offer OEM and ODM services.
Q3: Terms of payment
A3: 1) T/T 30% prepayment,70% balance before shipment
2) L/C at sight
Q4: How about your machine quality
A4: Chunqiu is a mature brand in China. Through our over ten years research in technology, our design including detailed structure and security and precision have been enhanced greatly, and can match all the CE standard or more strict standard. Where there are our machines, there are good reputation and terminal users' satisfaction.
