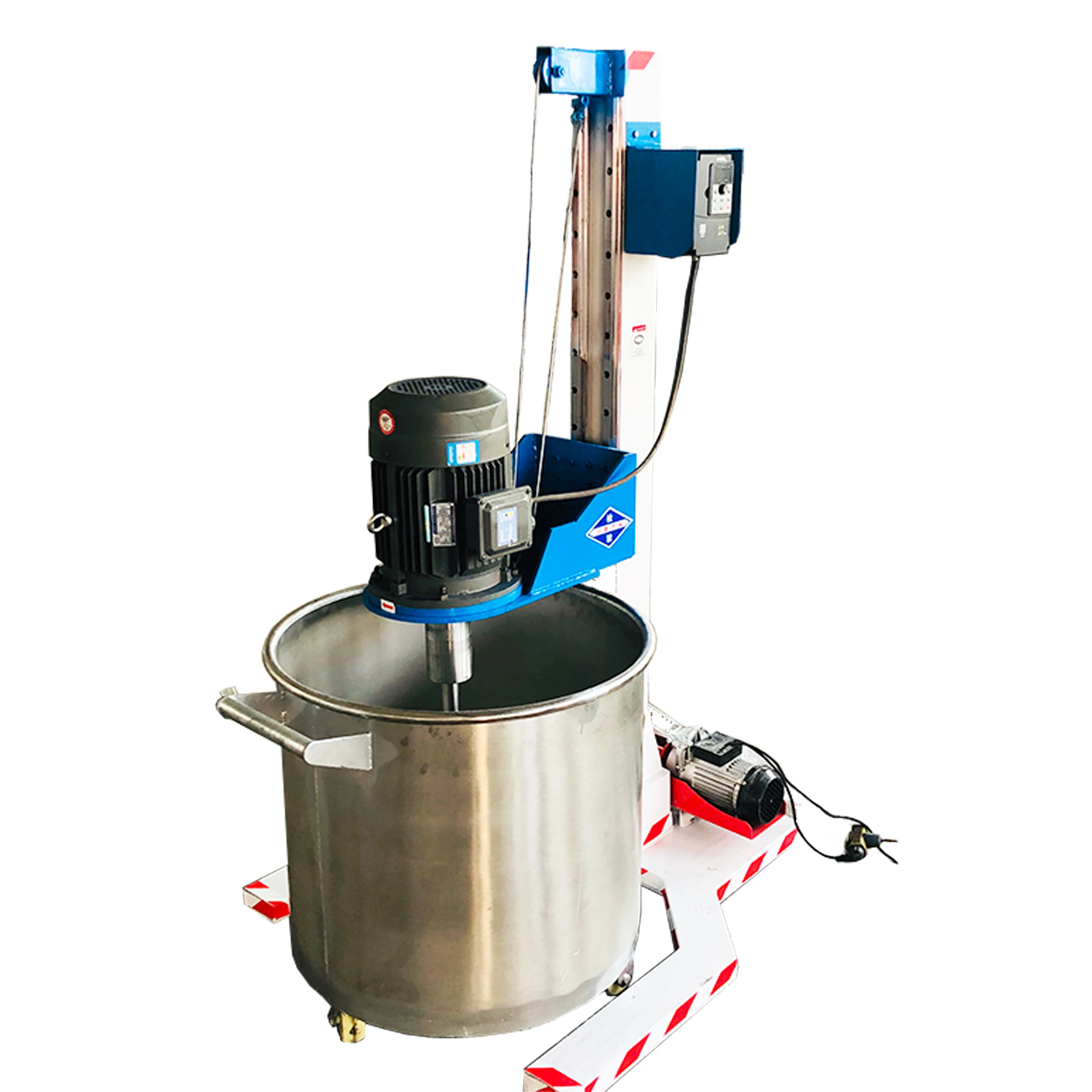

750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab
750w High Speed Round Disc Laboratory Dispersing Machine for Lab

750w High Speed Round Disc Laboratory Dispersing Machine for Lab

Share on (1600270701282):


Price:$300.00

Quantity:


Product Overview

Description



Product Description

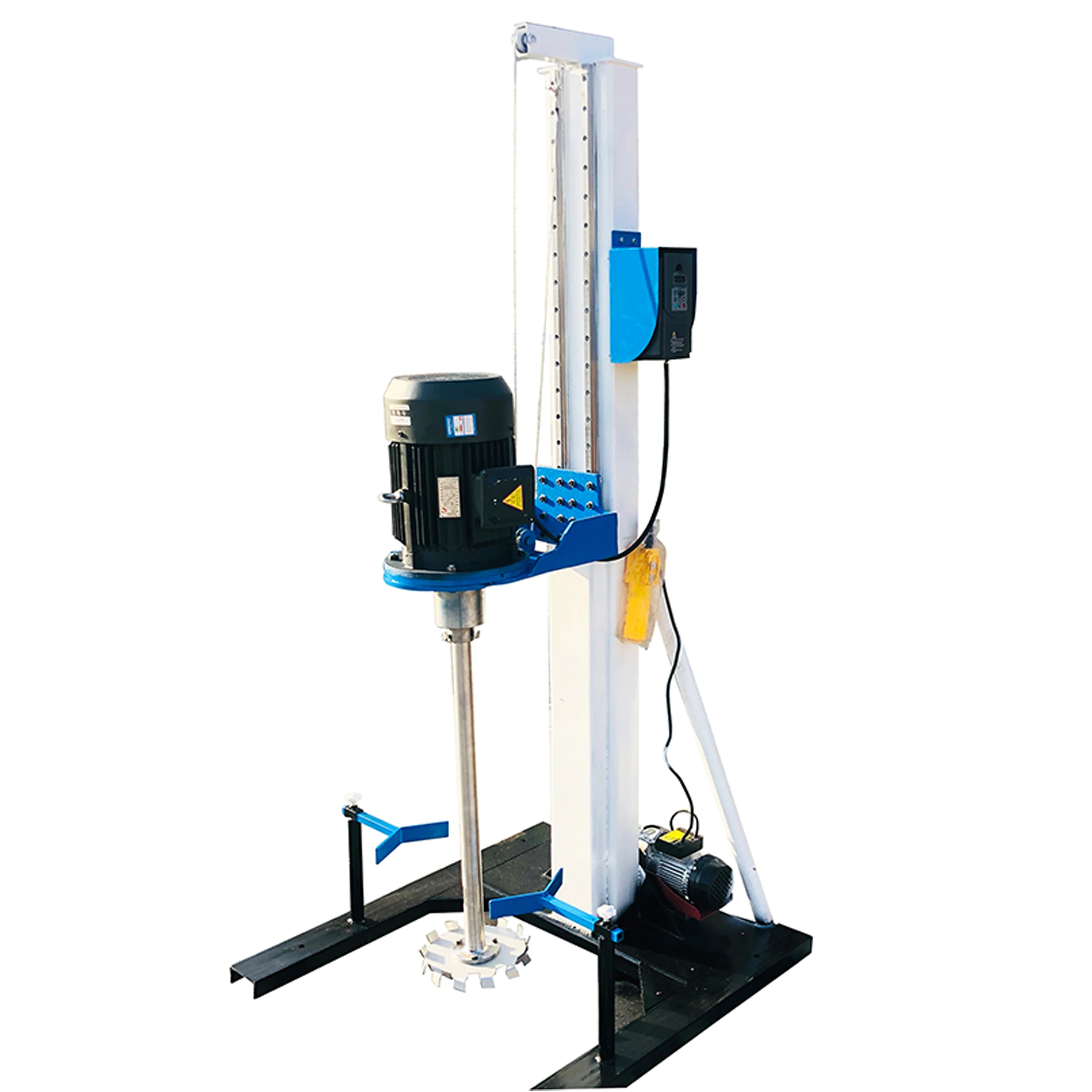

A Disperser Mixer  is under action of high speed mixing, the liquid or liquid-solid materials are stirred, dissolved and dispersed at high speed to complete the process of solid-liquid dispersion, wetting, depolymerization and stabilization. The stirring speed is adjustable (electromagnetic speed regulation or frequency conversion speed regulation). The speed range is 0-8000 rpm, medium speed for stirring and dissolving, high speed for dispersing and homogenizing.



Applications
Coatings, dyestuffs, inks, pigments, paper making, cosmetics, food, resins, adhesives, emulsions, pharmaceuticals, petroleum, pesticides, daily chemicals.





Specification


Technical Parameters
Mixing Motor Power
80~1000 W
Lift Motor Power
80~1000 W
Mixing Speed
0~8000 rpm
Disc Diameter
40~60 mm
Mixing Shaft Lift Range
250 mm
Assembly Height
600~800 mm
Equipment Dimension
As per request
Equipment Weight
10~25 kg





Advantages of a Dispersing Machine

1. Make slurry in annular flow, produce strong vortex area, the particles on the surface of the slurry descend to the bottom of the vortex in a spiral shape.
2. A turbulent zone is formed
2.5-5 mm around the edge of disperser disc, the particles are strongly sheared and impacted;

3. There are laminar flow layers under disperser disc, the slurry layers with different flow rates diffuse to achieve dispersion
effect.


* Equipment body can rotate 270 or 360 degree. One machine with multi-vessels, or switch to press discharging tank, which greatly improves the work efficiency.
* Lift up and down by pneumatic or electric power, move flexibly, low noise.
* Smooth operation and easy to clean.



Related Instruments and Devices

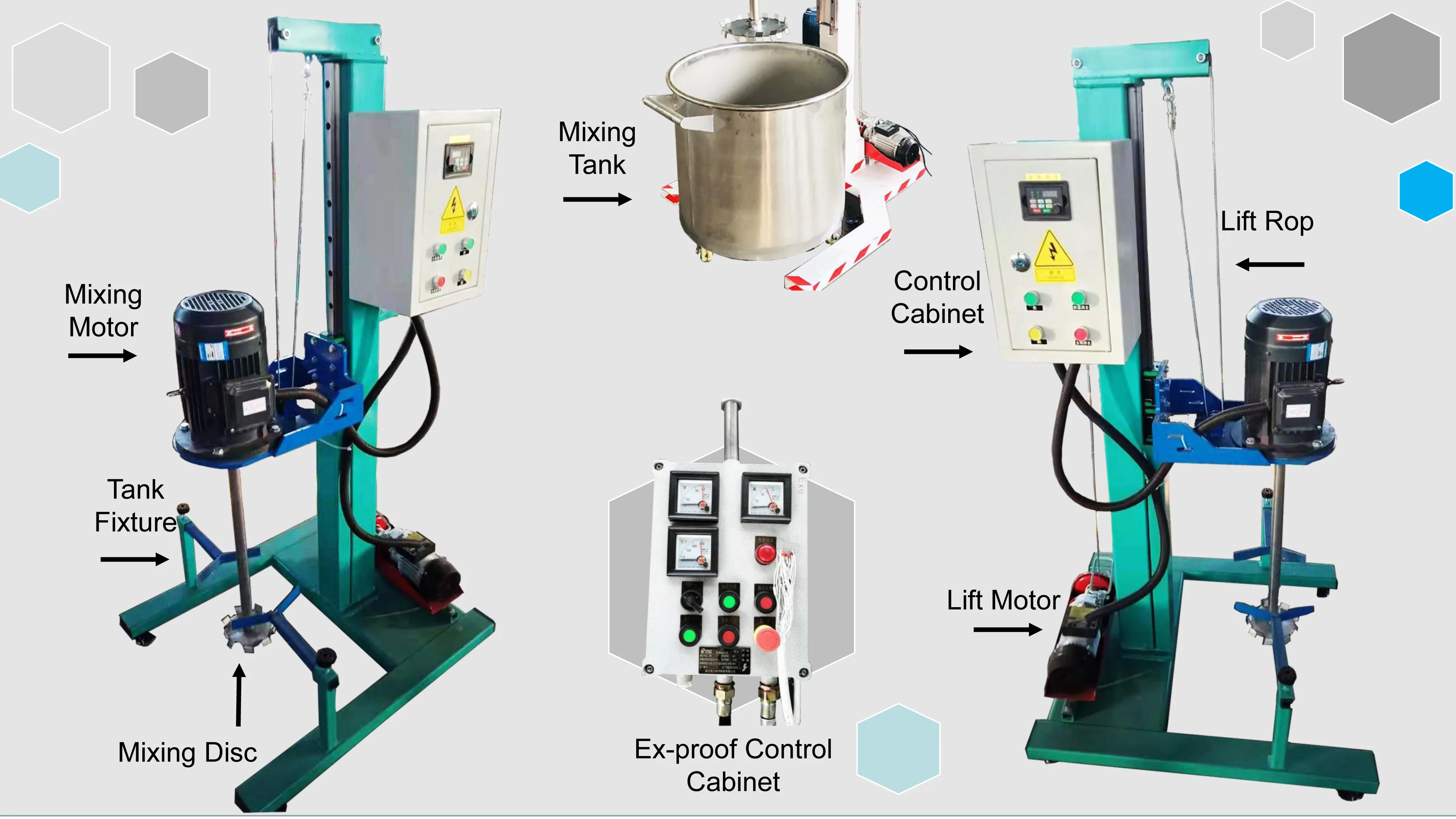

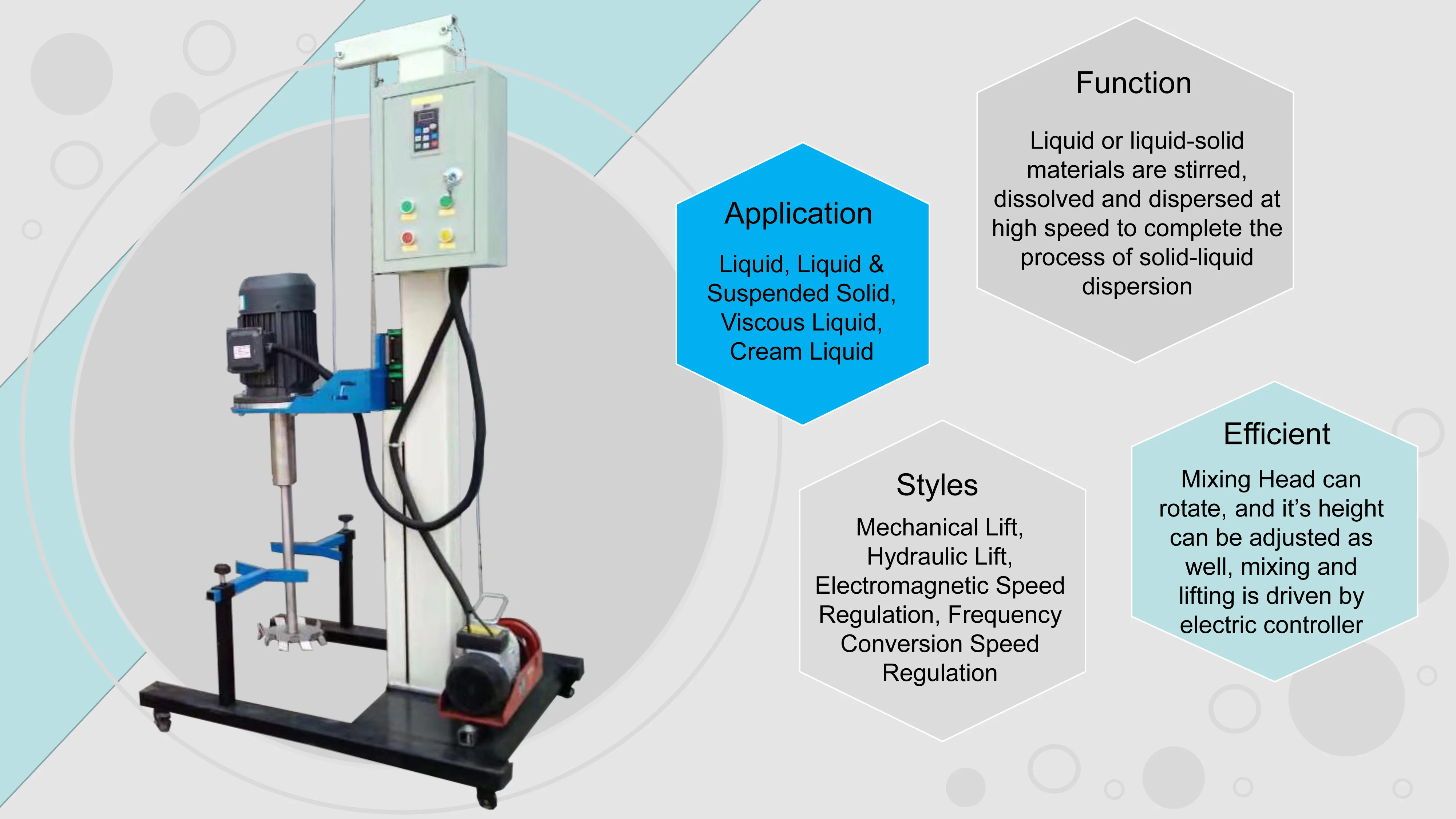

The laboratory disperser mixer consists of Mixing Part, Frame Part, Lift Part, Driving Part, PLC Controller.

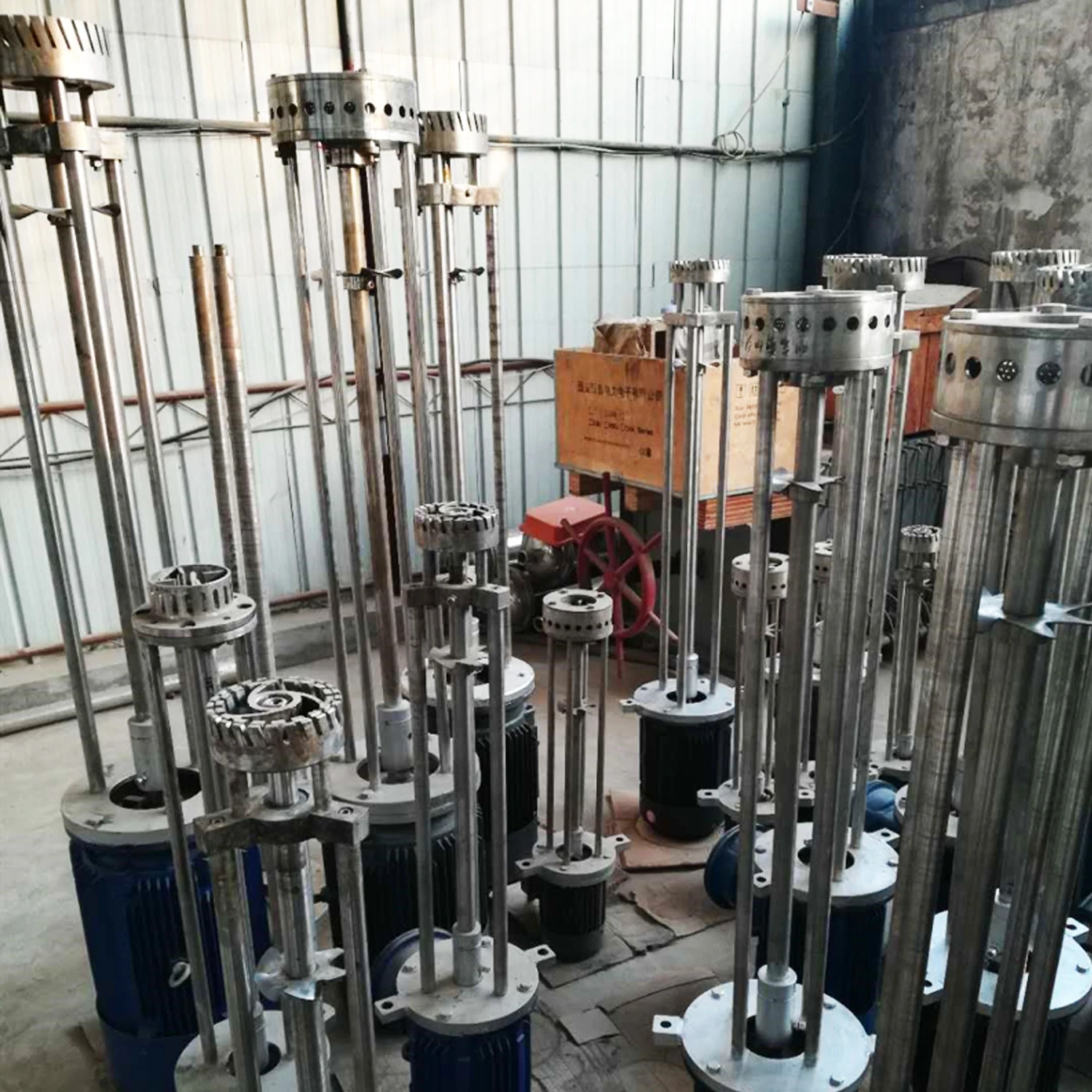

Various Agitator Styles

There are many agitator styles available, to achieve multi function of dispersing, stirring, mixing, dissolving, blending, etc.

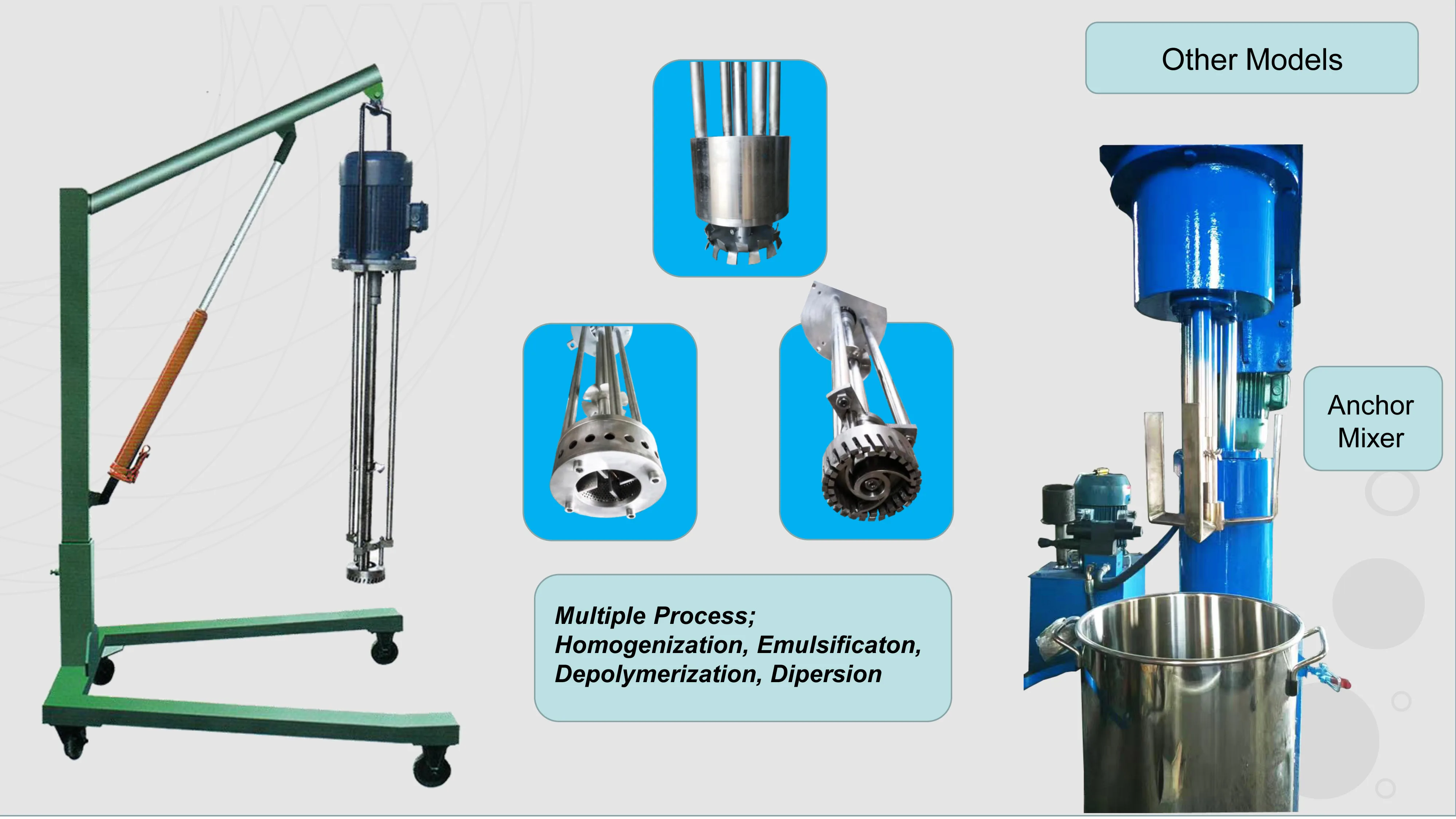

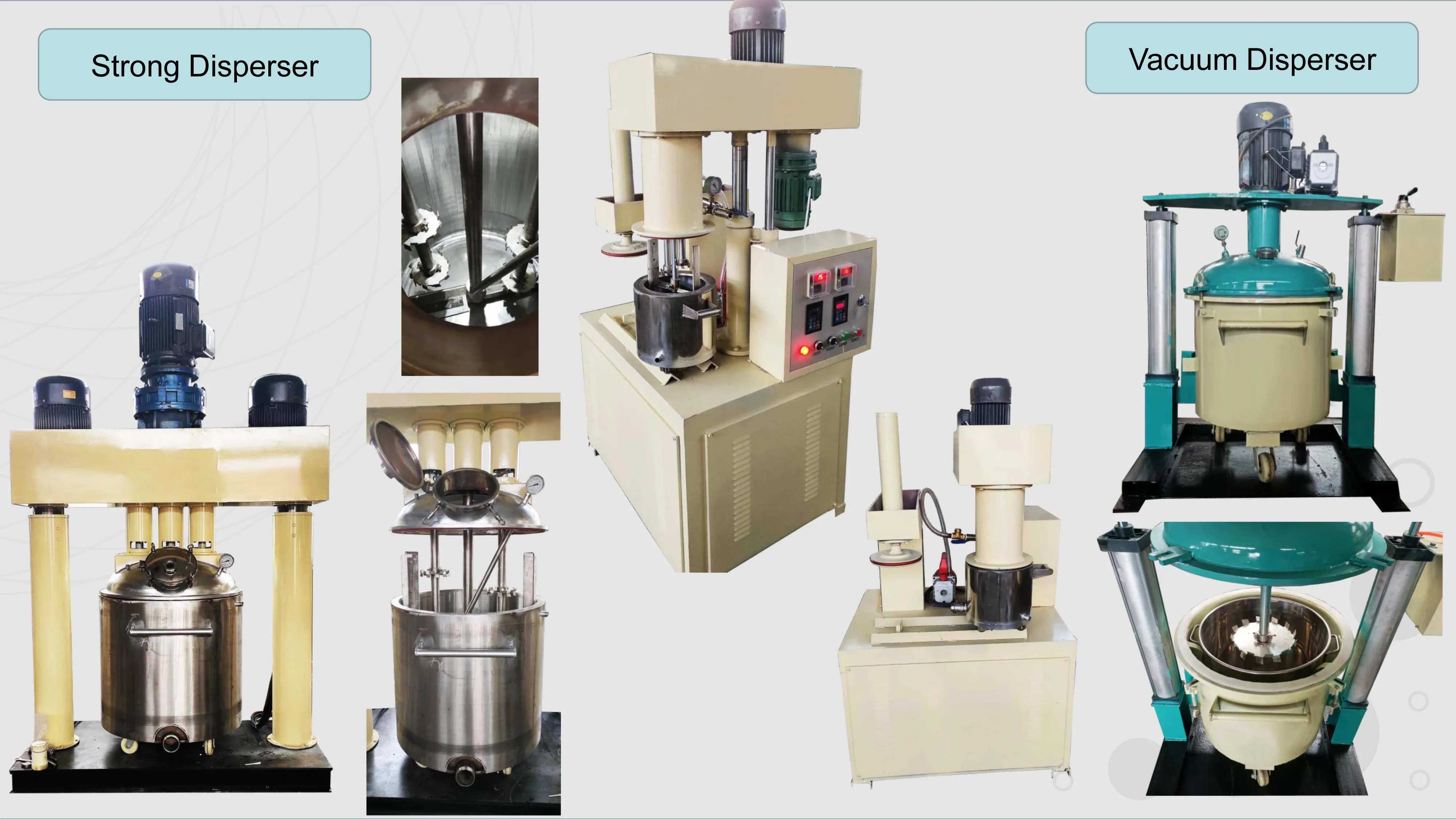

Other Styles

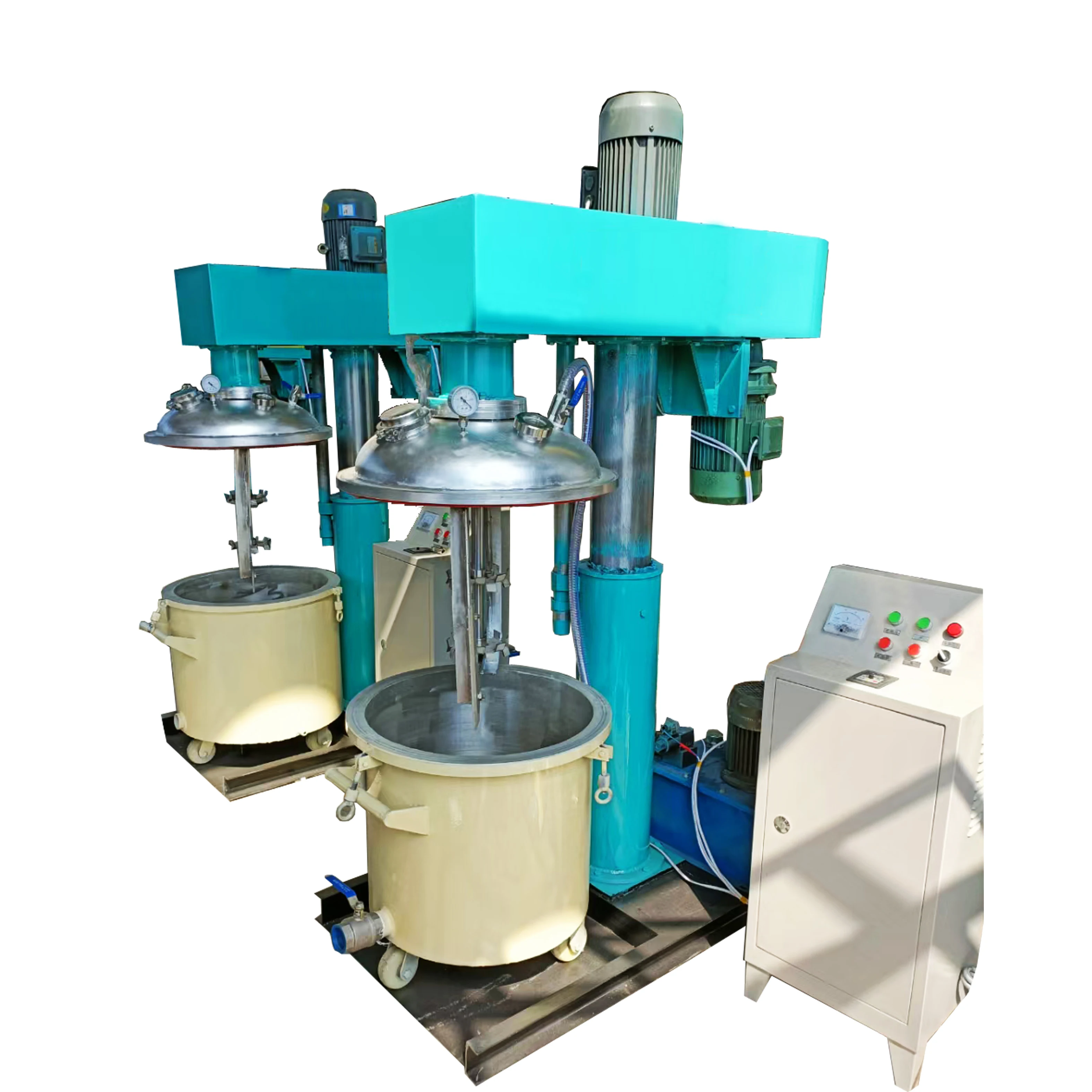

For different mixing request, there are many styles, like strong disperser, vacuum disperser, can be made as per request.

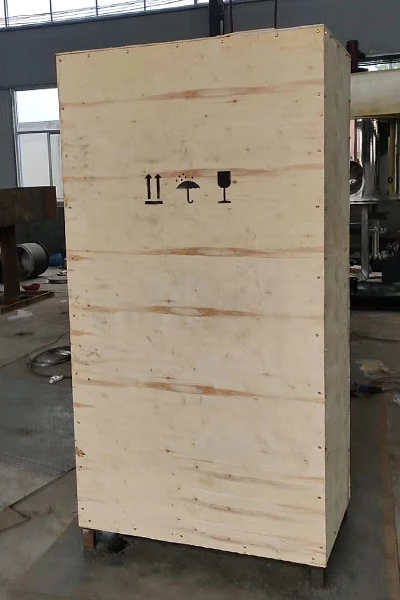

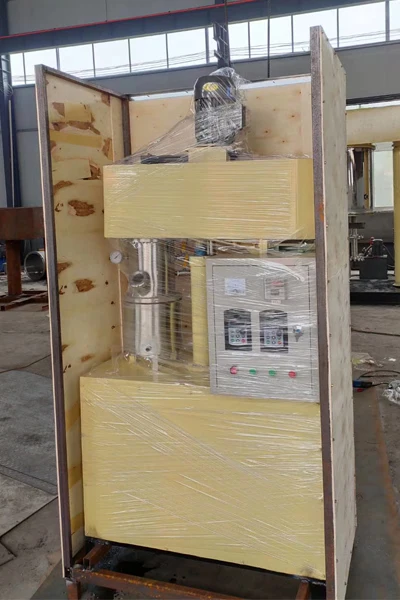

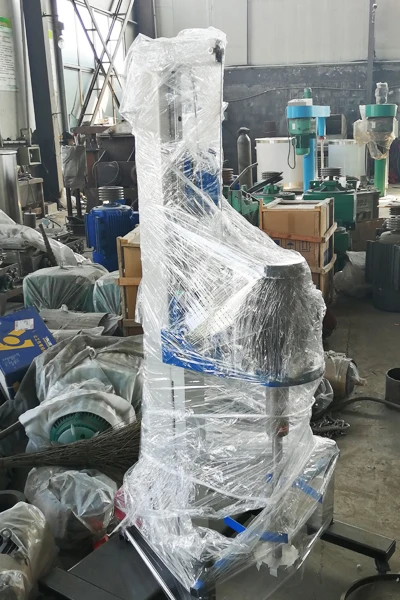

Packing & Delivery






Plastic film wrapping against moisture;
Wood Case for spare parts;
Strong fixture for whole set equipment inside container;
All wood used in package is Fumigation free type, no need extra inspection during custom.


Company Profile


With 10 years experience in chemical industry,
Weihai Chem-Equip Machinery Co., Ltd is a professional supplier in various chemical equipment, we help customer design, develop and fabricate suitable production lines, from initial chemical process design, to workshop building and long term maintaince.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.






FAQ



Our Service

Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:





Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.



After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.



Training & Installation
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
